GGS 118P5 High accuracy automatic peristaltic pump plastic vials forming liquid filling sealing machine
- Category: >>>
- Supplier: Hunan Grand International Trade Co. Ltd.
Share on (62532557522):
Product Overview
Description

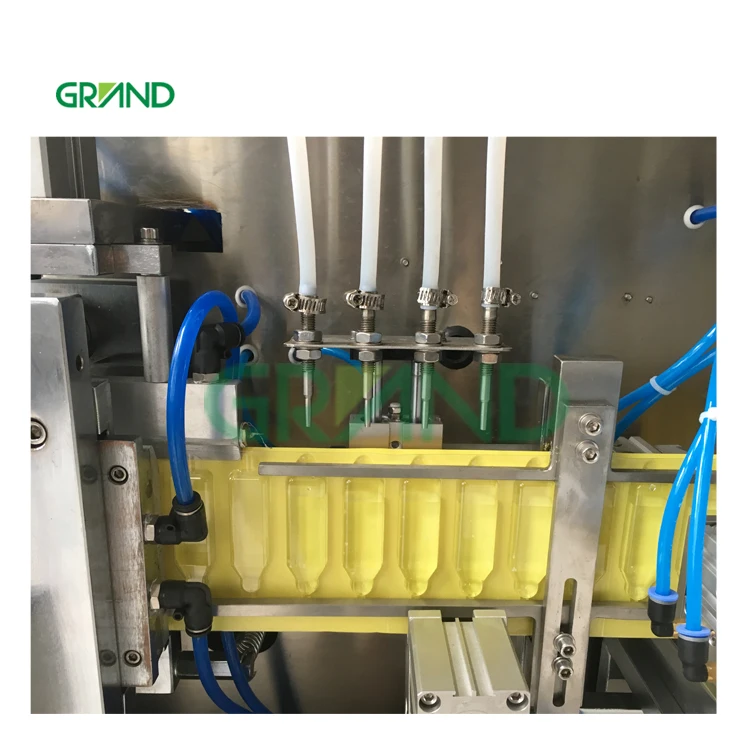

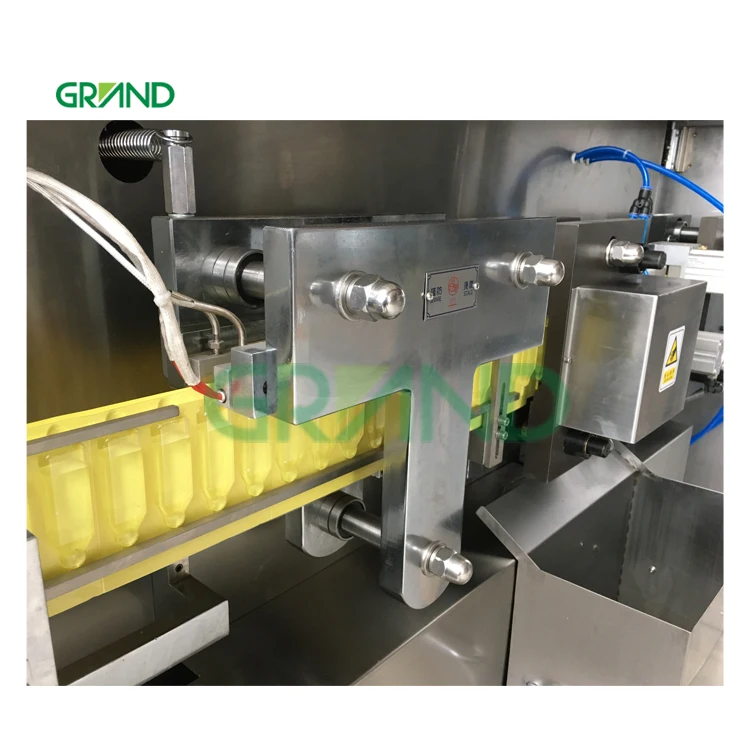

GGS-118P5 High accuracy automatic peristaltic pump plastic vials forming liquid filling sealing machine
Product Description
Main Technical Parameter
| Item | Automatic liquid filling and sealing machine | |
| Model | GGS-118P2 | GGS-118P5 |
| (2 filling heads) | (5 filling heads) | |
| Max. Forming Depth | 12mm | |
| Cutting Speed | 0-25 times | |
| Packing Material | PVC/PE PPET/PE combined sheet (thickness:0.2-0.4mm) | |
| Filling Volume | 0.3-100ml | 0.3-200ml |
| Power Supply | 3.5kw 220V/380V 50HZ (can be customized) | 4.5kw 220V/380V 50HZ (can be customized) |
| Machine Weight | 550kg | 750kg |
| Machine Dimension | 1800*800*1400mm | 2300*850*1500mm |
Features
1. The machine adopts PLC control and stepless altering frequency adjustment.

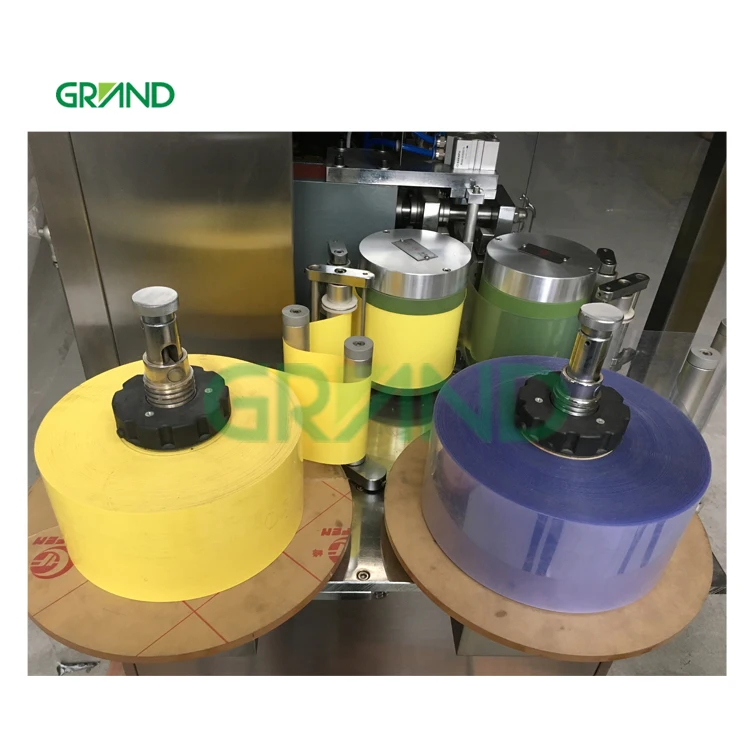

2. The machine can finish the following 6 working station automatically through the programmer, roller sheet release, PVC/PE forming, filling, press the batch number, back-end crop, slitting
3. The machine adopts the human-machine interface operation, operation is easy and simple
4. The filling head has no leakage, no foam and overflow.
5. The contact parts with the material adopt SUS316L, which completely confirms to the GMP standard.
6. The main pneumatic component and electric parts adopt well-known brand products.
7. Filling system adopts mechanical pump, measuring is precisely and the difference is small. We can also design different pump for different product with various kinds of flow-ability.
8. The machine can be connected with labeling machine to realize full production for filling sealing and labeling.

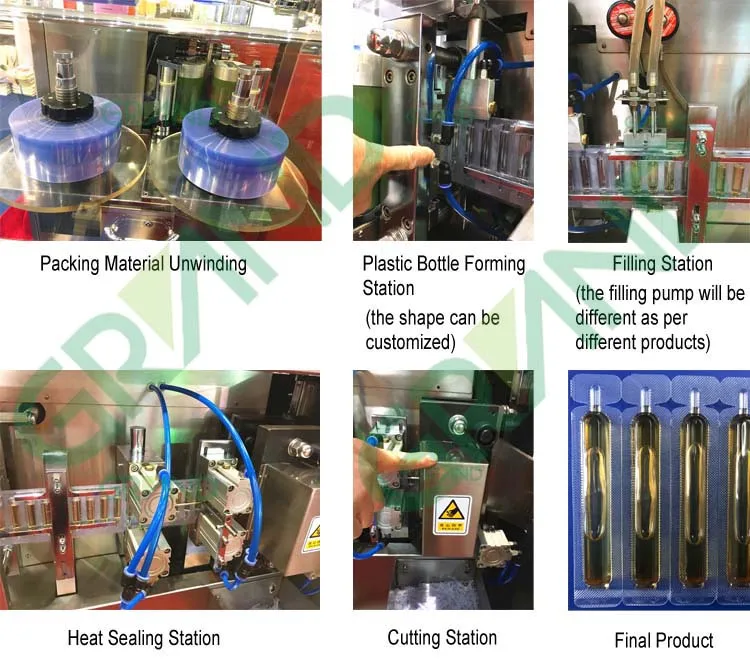

Production Process

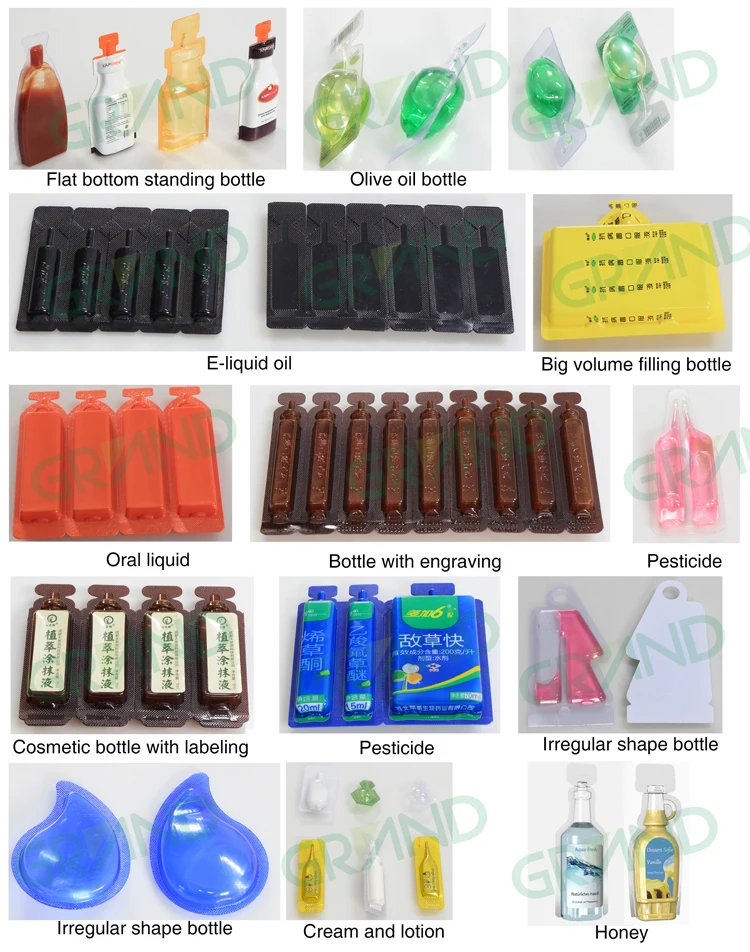

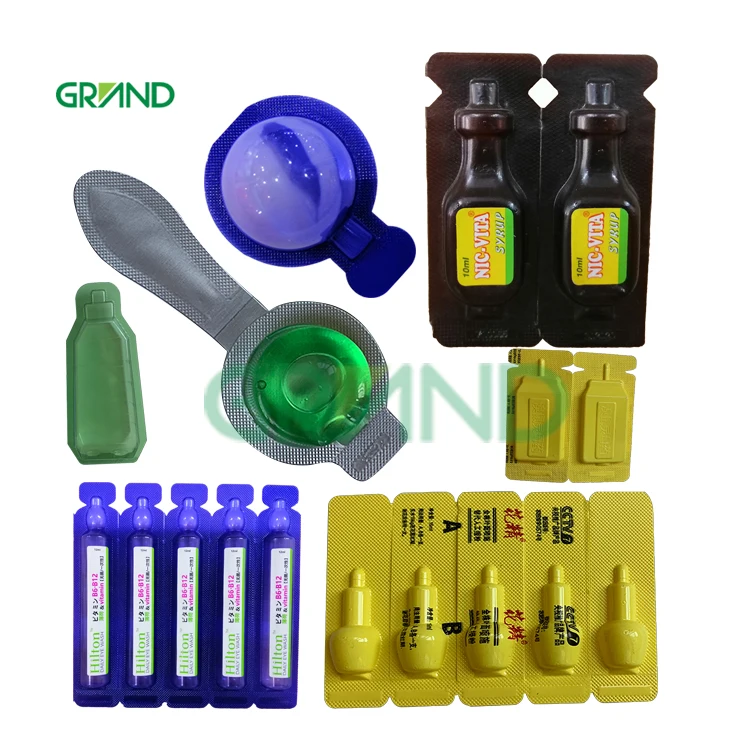

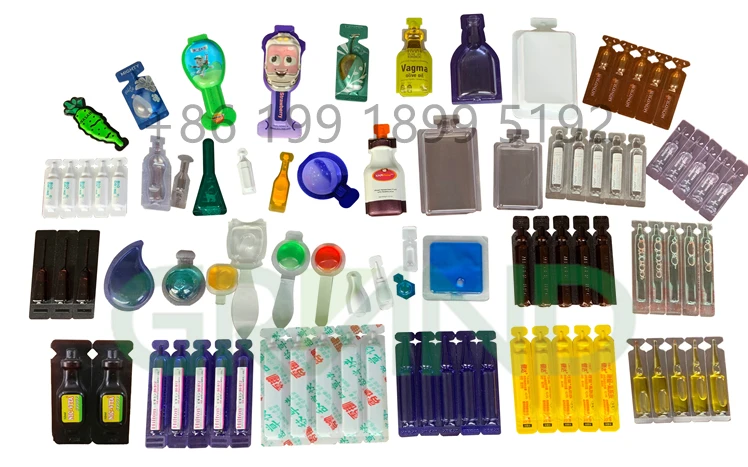

Sample Display
Remark:
1.The bottle shape and size can be customized according to your requirements;
2. Some samples are made by GGS-240 series machine
Customer feedback
Packaging & Shipping
Our Services
Related Products

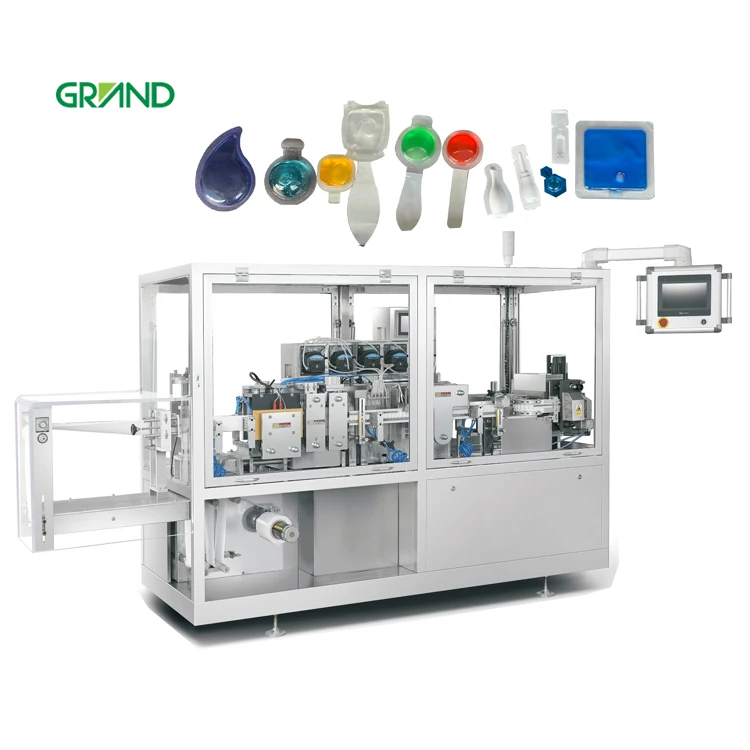

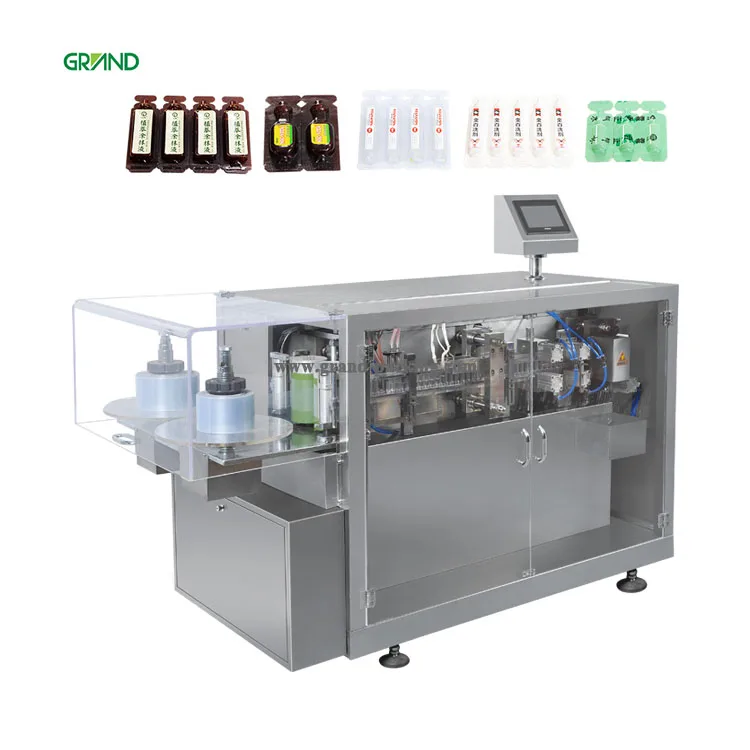

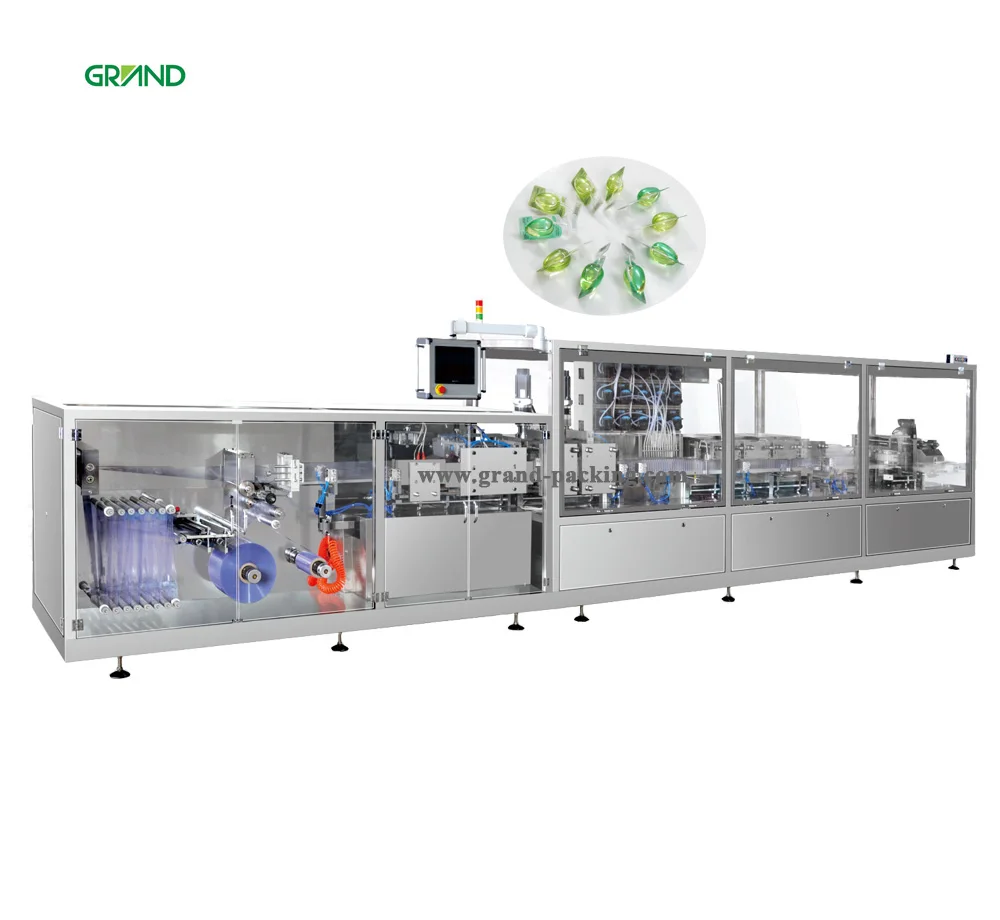

Model GGS-118P2 Model GGS-240P5-A Model GGS-240P15
Tube filling sealing machine Strip packaging machine Wet wipes packing machine

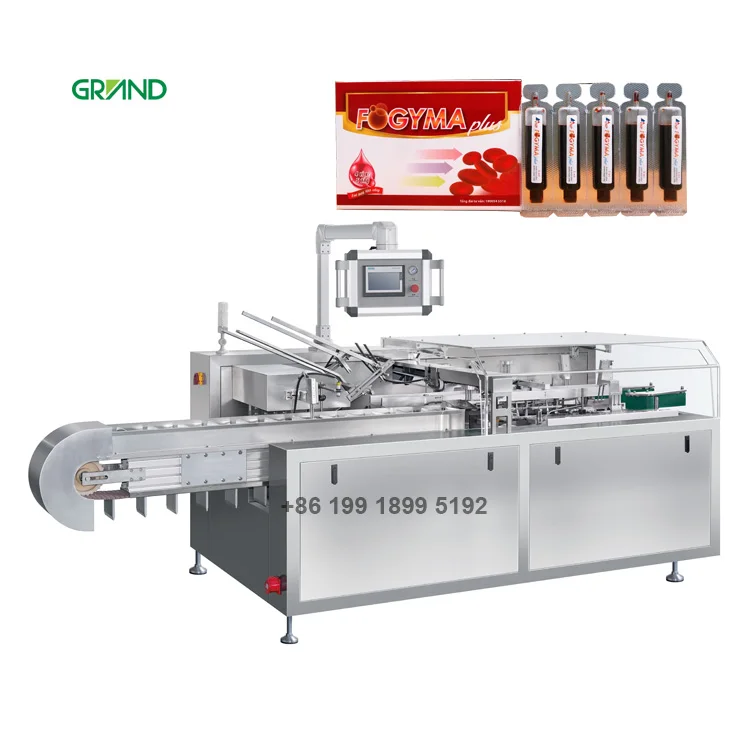

Capsule filling machine Cartoning machine Blister packing machine
Company Information
Hunan Grand Packing Machinery Co., Ltd.
We're specialized in pharmaceutical and packing machinery for more than 10 years, such as plastic ampoule forming filling and sealing machine, capsule filling machine, blister packing machine, strip packaging machine, cartoning machine etc.
Our machines were exported to many different countries and regions in the whole world, such as Indonesia, Thailand, Malaysia, Philippines, New Zealand, Korea, the Middle East area, Poland, Belgium, France, UK, Greece, Italy, Turkey, USA, central and south America such as Trinidad and Tobago, Mexico, Brazil, Russia, Ukraine, UZ, Tunisia, Algeria, Morroco etc. Good reputation of the machine quality and after-sales service always gained from customers. Various kinds of factories and companies in different fields are cooperating with us. Such as pharmaceutical, food, supplement, stationery, hardware, agrochemical factories. For pesticide, fertilizer, personal care products, like cosmetics, daily use products etc.
Our sales team are professional in communicating with customers about different aspects of our machines. We also have our own technical research group to do the new products development and professional group for customers overseas after-sales service. For customer who doesn’t need our engineer for machine installation, we will provide them the detail and professional machine installation and running video for support and help.
Welcome to get in touch with us, we are always here for you...
