Single Colors Plastic Bag Label Printer Flexo Printing Machine Flexographic Printer
$34,000.00-35,000.00
Flexographic Flexo Printing Machine for Plastic Bag FP41000 Hot Sale 4 Colors Flexographic Printer Letterpress Hot Product 2019
- Category: >>>
- Supplier: Jinhua Ziye Technology Co. Ltd.
Share on (62532588647):
Product Overview
Description
Product Description

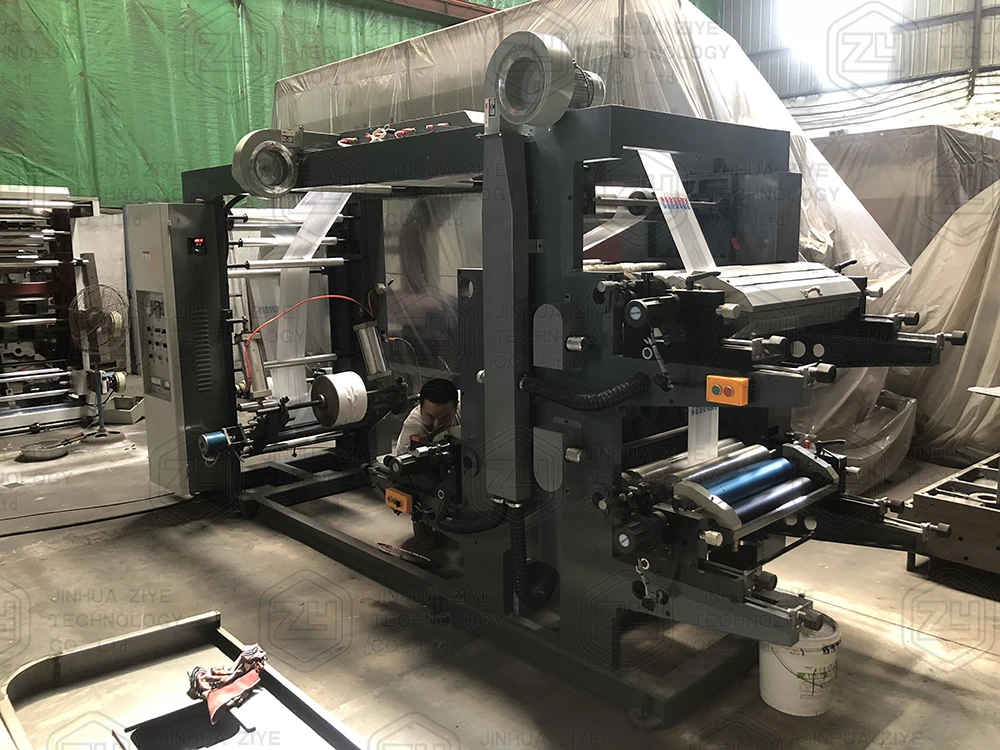

FP41000 Hot Sale 4 Colors Flexographic Flexo Printing Machine For Plastic Bag
The machine can finish material-feeding,printing, drying, laminating, rewinding in one process is anideal machine for printing plastic film, paper and etc.
Feature:
1. Easy operation, gentle starting, accurate color print.
2. The meter counter can set print quantity according the requirements, stop the machine automatically at the quantity or when the material is cut off.
3. After lifting and lowering the printing plate cylinder manually, It will automatically stir the printing in.
4. The printing in is spread by the anilox cylinder roller with evenly ink.
5. Reliable dry system, coordinate high-speed operation, engine off automatic abruption.
6. 360 degrees continuously adjustable longitudinal to register device.
7. Frequency conversion velocity modulation, adaption different pointing speed.
8. On the version roller sear and receives on material to be loaded with the spot to move and the pause button, is advantage for when the justification operates the machine.
2. The meter counter can set print quantity according the requirements, stop the machine automatically at the quantity or when the material is cut off.
3. After lifting and lowering the printing plate cylinder manually, It will automatically stir the printing in.
4. The printing in is spread by the anilox cylinder roller with evenly ink.
5. Reliable dry system, coordinate high-speed operation, engine off automatic abruption.
6. 360 degrees continuously adjustable longitudinal to register device.
7. Frequency conversion velocity modulation, adaption different pointing speed.
8. On the version roller sear and receives on material to be loaded with the spot to move and the pause button, is advantage for when the justification operates the machine.
Samples
Plastic Films (PVC, PP, PET...)
All kinds of Paper (below 250gsm)
Non Woven Fabric
Product Paramenters
Machine Model | FP4600 | FP4800 | FP41000 |
Printing speed | 50m/min | 50m/min | 50m/min |
Max. Web Width | 600mm | 800mm | 1000mm |
Max. Unwinding/Rewind Diameter | 500mm | 500mm | 500mm |
Printing Length | 191-1000mm | 191-1000mm | 191-1000mm |
Color Quantity | 4 colors | 4 colors | 4 colors |
Dimensions | 4300*1600*2445mm | 4300*1800*2445mm | 4300*2000*2445mm |
Main motor | 15 KW | 15 KW | 15 KW |
Voltage | 220V/380V | 220V/380V | 220V/380V |
Gear | Straight/Helical Gear | Straight/Helical Gear | Straight/Helical Gear |
Machine weight | 2500 kgs | 3000 kgs | 3500 kgs |
Details Images
Flexo Printing Unit
Printing Station Comes with Ink Rubber Roller, Anilox Cylinder, Printing Plate Cylinde and Ink Container.
Unwind Unit
With 1 pc 3" Air Expanding Shaft, Can accept max diameter 500mm material jumbo roll. (can be customized)
Rewind
With 2 pc 3" Air Expanding Shaft, Can accept max diameter 500mm material jumbo roll. (can be customized)
Web Guide System
Control paper move straightly.(Optional)
Magnetic Brake and Clutch
With One 50 N.M Magnetic Brake, Two 50 N.M Magnetic Clutch (Optional)
Auto Constant Tension Controller
With 2 Set Auto Constant Tension Controller For Unwind and Rewind (Optional)
Heating & Drying Unit
1).Each Printing Unit comes with Heating Drying Oven.
2).Infrared Heating Drying Oven is placed on material and after each printing station.
2).Infrared Heating Drying Oven is placed on material and after each printing station.
Gear Driving System
Machine Drive By Straight/Helical Gear(Optional). Low Noise and Stable Operation
Control Panel
1).Power Supply, Stop Button, Start Button and Emergency Stop.
2).Anilox Roller Rotation Button for each Printing Station.
Length Counter and Speed Controller
2).Anilox Roller Rotation Button for each Printing Station.
Length Counter and Speed Controller
Why Choose Us

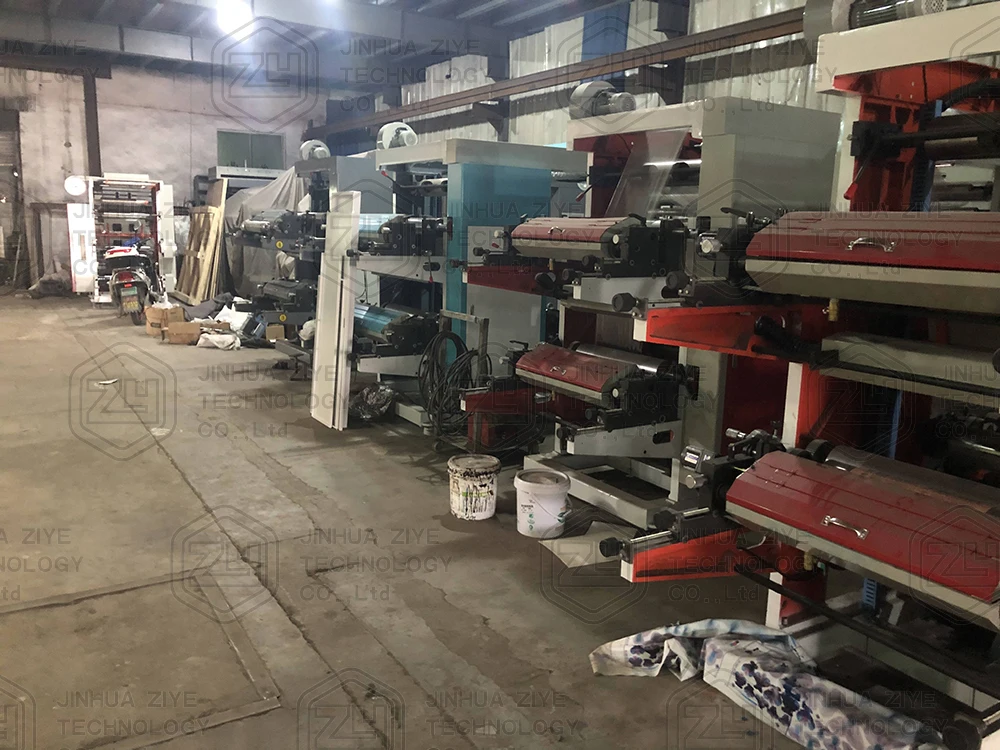

Process Workshop
All parts in machine are working by our factory.
It is easier to do qauality control.
Good Factory Management System
Good management make sure that we make machine with strict quality standards and time planning.
Best After-sale Service
Machine is different other products.
After-sale is same important as price, quality...We have professional after-sale service system. We will provide feedback in time with all contact methods we can.
Product packaging
We promise best quality package:
Interior: Wraping Film to keep dry and prevent from rusty
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.
Machine will be covered by Oil to prevent Rusty in delivery
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.
Machine will be covered by Oil to prevent Rusty in delivery
Company Profile
Jinhua Ziye
professionally research and manufacture flexo printing machine,die cutting machine,slitting machine and
some related series products, we pay attention to talents and the technical innovation, insist on “technical innovation, national brand’ as development strategy, to make company as the leader in after printing machinery line.
Sincerity, quality,service is our operation principle, to be brave, aggressive, pragmatic, efficient is our company spirit. We research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!
some related series products, we pay attention to talents and the technical innovation, insist on “technical innovation, national brand’ as development strategy, to make company as the leader in after printing machinery line.
Sincerity, quality,service is our operation principle, to be brave, aggressive, pragmatic, efficient is our company spirit. We research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!
