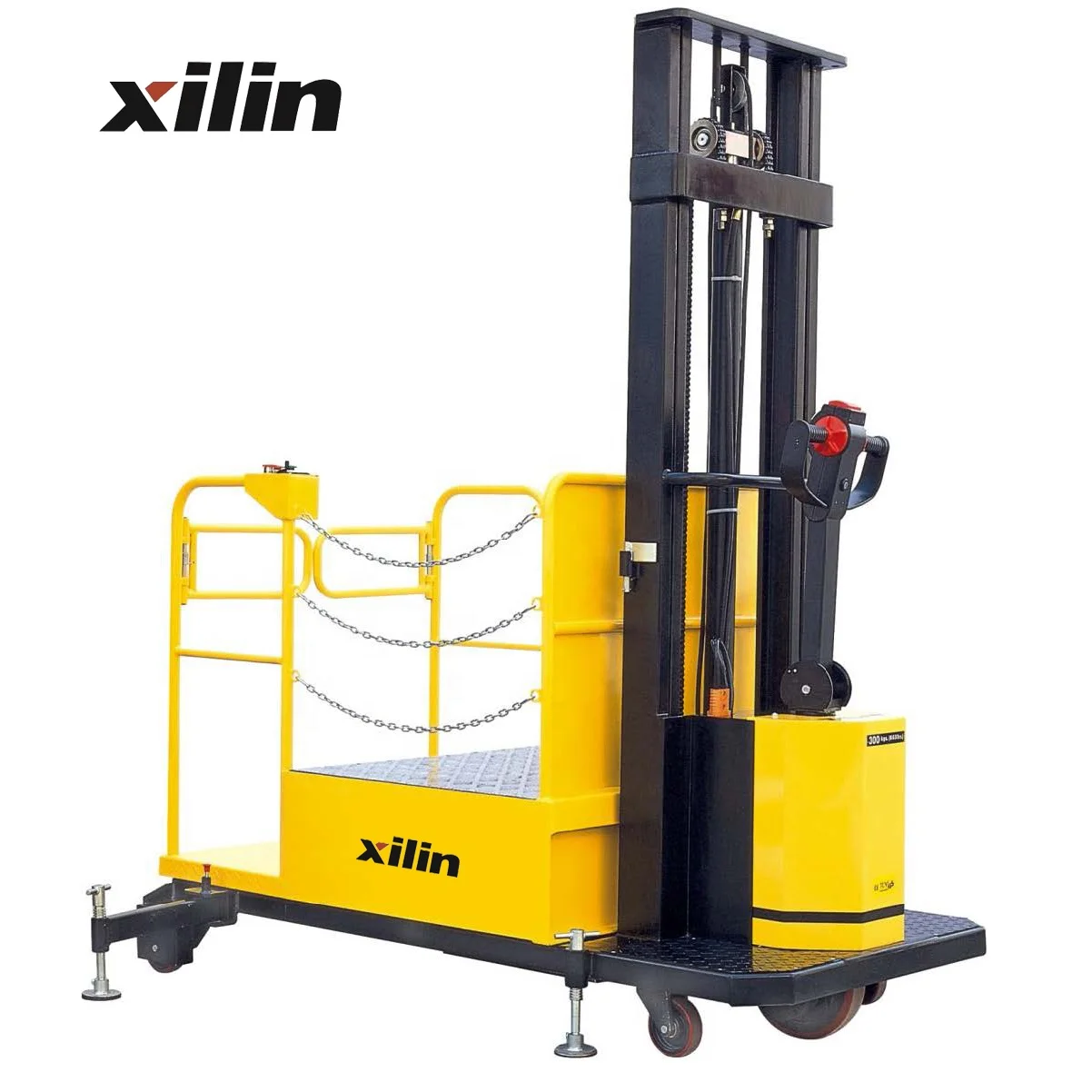

Xilin high powered forklift 3.5m 4m 4.5m 400kg 0.4ton self propelled Order Picker with platform
Xilin high-powered forklift 3.5m 4m 4.5m 400kg 0.4ton self-propelled Order Picker with platform
Xilin high-powered forklift 3.5m 4m 4.5m 400kg 0.4ton self-propelled Order Picker with platform
Xilin high-powered forklift 3.5m 4m 4.5m 400kg 0.4ton self-propelled Order Picker with platform
Xilin high-powered forklift 3.5m 4m 4.5m 400kg 0.4ton self-propelled Order Picker with platform
Xilin high-powered forklift 3.5m 4m 4.5m 400kg 0.4ton self-propelled Order Picker with platform

Xilin high powered forklift 3.5m 4m 4.5m 400kg 0.4ton self propelled Order Picker with platform

Share on (62532739374):


Price:

Quantity:


Product Overview

Description









Xilin high-powered forklift 3.5m 4m 4.5m 400kg 0.4ton self-propelled Order Picker with platform




Advantages:
1.Large working area.
2.Solid slip resistant floor.
3.Self-locking gate provides the maximum safety for aerial working.






Model

SDD04/35,SDD04/40,SDD04/45
Capacity
Q(kg/lbs)
400/880
Load distance,centre of drive axle to fork
x(mm/inch)
1247/49.1
Lowered fork height
h13(mm/inch)
534/21
Wheelbase
y(mm/inch)
1568/61.7
Tread,front
b10(mm/inch)
730/28.7
Tread,rear
b11(mm/inch)
1118/44
Height,mast lowered
h1(mm/inch)
2250/2500/2750（88.6/98.4/108.3）
Max.lift height
h3(mm/inch)
500/4000/4500（137.8/157.5/177.2）
Height,mast extended
h4(mm/inch)
4222/4722/5222（166.2/185.9/205.6）
Overall length
l1(mm/inch)
60/73.2
Overall width
b1(mm/inch)
1174/46.2
Aisle width for pallets 1000*1200 crossways
Ast(mm/inch)
2621/103.2
Turning radius
Wa(mm/inch)
1830/72
Lift speed,laden/unladen
m/s
0.09/0.1
Lowering speed,laden/unladen
m/s
0.14/0.12
Battery voltage,nominal capacity K5
V/Ah
24/200
Battery dimensions l/w/h
mm/inch
250*190*295/9.8*7.5*11.6
Service weight(with battery)
kg/lbs
710/770/830（1565/1697.6/1829.8）








Q1: Are you a factory?
A1: Of course. Ningbo Ruyi Joint Stock Co. Ltd., established in 1985, is a national hi-tech enterprise, which owns the unique combination of scientific research, development, production, sale and service.
Q2: Can Ruyi provide customized products? OEM products or ODM products?
A2: Yes, Ruyi can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q3: What's the specification of the chargers?
A3: Ruyi have all kinds of the chargers and welcome the customers to custom-made.
Q4: How about the delivery time?
A4: Usually Ruyi producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q5: Do you have agent or representative abroad?
A5: Yes. We have two branches in the US and Russia. We have two warehouses are located in Los Angeles and Chicago with products in stock and ready to ship. We also have Xilin distributors agent in Norway, Thailand, Japan, Vietnam and Malaysia. If you are interesting to be our agent and enjoy more price. Pls contact us then we can discuss more detailed.
Q6: Can we print the LOGO on products?
A6: Yes, the OEM is available with the permission of our customers.
Q7: What is your payment term?
A7: T/T or L/C, if you want any other way, please contact us.
Q8: What can I get from cooperating with Ruyi?
A8: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
