Automatic small facial tissue towels napkin folding machine rewinding toilet paper roll making machine
- Category: >>>
- Supplier: Gongyi City Meida Material & Trade Co. Ltd.
Share on (62532847449):
Product Overview
Description
Facial tissue sanitary napkin folding machine rewinding toilet paper manufacturing machine
paper making process
1.Big roll single layer paper→ Small toilet paper roll (Multi-layer)
Automatic toilet rewinding cutting packing machine line
2. Big roll single layer paper→ Napkin paper and Facial tissue paper (Multi-layer)
Big roll paper → rewinding and cutting machine → Napkin folding embossing machine
facial tissue sanitary napkin folding machine rewinding toilet paper manufacturing machine
Paper rewind cut

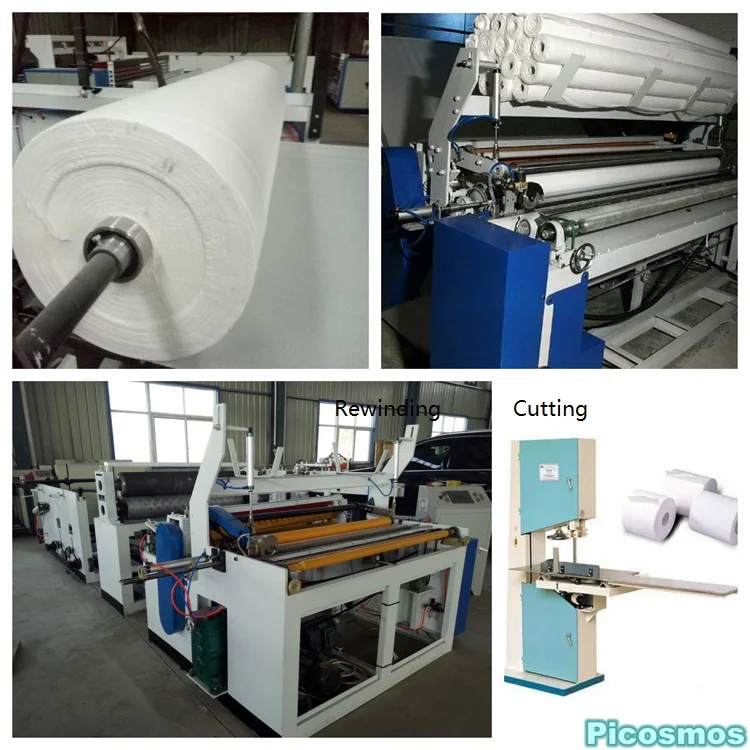

1.Tissue toilet paper rewinding machine
Adopts new international PLC programming technology,variable frequency speed regulation, electronic brake.Touch type man-machine interface surface operating system,the core of the roll forming system,Application PLC program wind column forming technology to achieve faster rewinding,more beautiful appearance.
Product features:facial tissue sanitary napkin folding machine rewinding toilet paper manufacturing machine
1.PLC used in automatic rewinding,automatically send finished product,immediately reset rewinding,automatic trimming,spraying,sealing one complete synchronization.
2.PLC applied to the finished product in the rewinding process after first tight,solve paper core loose phenomenon in long time storage.
3.Automatic stop off paper to ensure normal operation of the machine at high speed. reduce the resulting loss beacuse of broken paper.
Parameter of tissue toilet paper rewinding machine
| Model | 1092 | 1575 | 1760 | 1880 |
| Paper width | 1092mm | 1575mm | 1760mm | 1880mm |
| Base paper roll diameter | 1200mm (Please specify) | |||
| Jumbo roll core diameter | 76mm (Please specify) | |||
| Product diameter | 40-200mm | |||
| Paper backing | 1-4 layer,general chain feed or continuously varible transmission feed paper | |||
| Punch | 2-4 knife,spiral cutter line | |||
| Hole pitch | positioning of belt and chain wheel | |||
| Control syetem | PLC control,variable frequency speed control,touch screen operation | |||
| Product range | core paper ,non core rool paper | |||
| Drop tube | manual and automatic (optional) | |||
| Non core roll paper | automatic core pulling | |||
| Working speed | 150-280 m/min | |||
| Spray cut rewind | Automatic | |||
| Finished product launch | Automatic | |||
| Point moving mode | Before and after ,the point moving | |||
| Power | 380V 50HZ | |||
| Required air pressure | 0.5Mps | |||
| Embossing | Single embossing,double embossing(steel roller to wool roller,steel roller. optional | |||
| Blank holder | Airbag control,cylinder control,steel to steel structure | |||
| Outline dimension | 6200-7500mm * 2600-3200mm * 1750mm | |||
| Machine weight | 2900-3800 kg | |||
facial tissue sanitary napkin folding machine rewinding toilet paper manufacturing machine

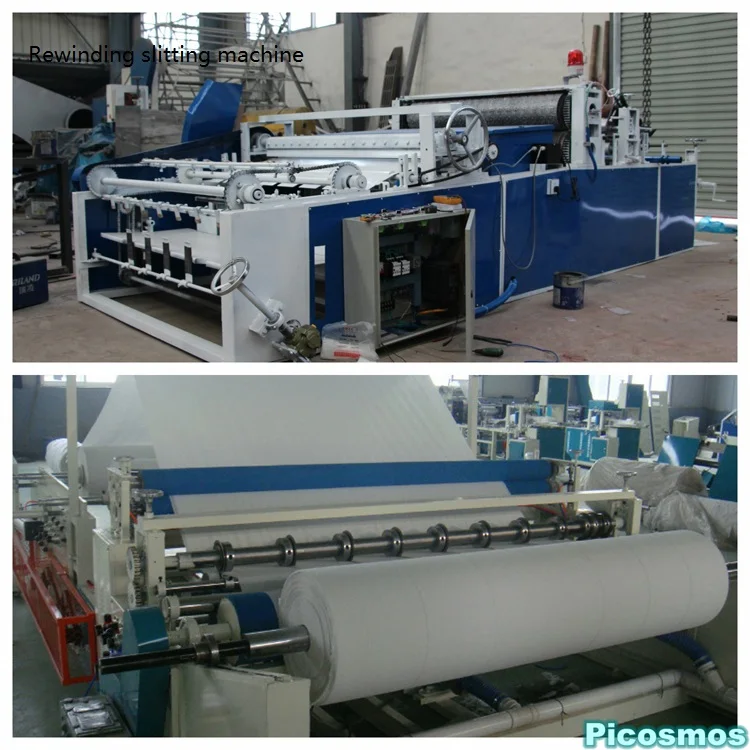

2.Toilet paper slitting and rewinding machine
1.Adopt the air shaft to wind up to make the paper tube accurate positioning
2.Edge system: Adopting steel-to-steel blank holder and independent cylinder adjustment to achieve no layering on each layer of paper
3.Horizontal unwinder,pneumatic paper,save manual handling
4.Pneumatic wide leather moving paper feeding,each has separate volume paper tension adjusting device
5.Traction base paper with front and rear jog switch,simple and safe operation
Technical Parameter facial tissue sanitary napkin folding machine rewinding toilet paper manufacturing machine
| Model | 1575 | 1880 |
| Working speed | 180-300 m/min | |
| Maximun paper width | 2200 mm | |
| Maximun base paper diameter | 1300 mm | |
| Max roll diameter | 350 mm | |
| Power | 5.5 kw | |
| Outline diameter | 6200*2600*1800 mm | |
| Weight | 2900-3800 kg | |
Toilet cut package

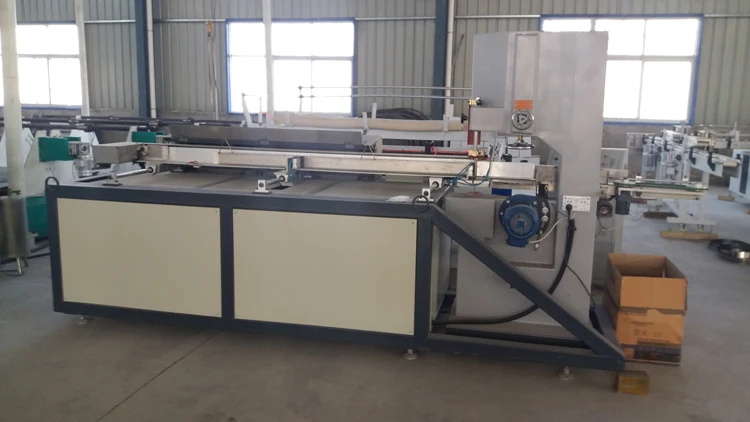

1.Automatic toilet paper roll cutter
1.Computer touch screen, simple operation and high security
2.Used for cutting roll paper and facial tissue, adjustable cutting length
3. Can set the number and length of cutting, automatic paper feeding, automatic adjustment, no waste of raw materials facial tissue sanitary napkin folding machine rewinding toilet paper manufacturing machine
facial tissue sanitary napkin folding machine rewinding toilet paper manufacturing machine
Parameter of Automatic paper roll cutter
| Name | Automatic paper roll cutter |
| Material length | 0-300mm (can be customized) |
| Raw material diameter | 65-130mm |
| Paper size | To be set |
| Product dimension error | ±1mm |
| Control system | PLC,servo drive,touch screen operation |
| Cutting swing structure | Cam structure |
| Production speed | 50-100 cut/min |
| Power | 380V 50HZ |
| Required air pressue | 0.5 Mpa (customer owned) |
| Machine weight | 1100 kg |
facial tissue sanitary napkin folding machine rewinding toilet paper manufacturing machine
2.Semi-automatic cutting machine
Manual band saw paper cutting machine is used together with rewinding machine and facial tissue machine. It can adjust the cutting length and width of paper, automatically sharpen the knife, and automatically roll down. Linear bearing is used for track sliding technology to make the cut more smooth
facial tissue sanitary napkin folding machine rewinding toilet paper processing machinery
| Name | Manual belt saw paper cutter |
| Finished paper roll | Adjustable length |
| Size of paper | <1300*3500mm |
| Power | 1.5 kw |
| Outline dimension | 1330*800*1800mm |
| Weight | 500kg |
facial tissue sanitary napkin folding machine rewinding toilet paper processing machinery
3.Automatic toilet paper roll packing machine
1.PLC control Squashing,bagging,sealing,belt conveyor
2.Capacity:10-20 bags per minute
Parameter facial tissue sanitary napkin folding machine rewinding toilet paper manufacturing machine
| Bagging method | Push palm type |
| Air pressure | 0.6Mpa |
| Voltage | 380V 50HZ |
| Packing speed | 10-20mention/min |
| Diameter packing size | Single diameter 70-120mm |
| High packing size | Single height 100-120mm |
| Total power | 2 kw |
| Outline dimension | 5000*1000*1500 mm |
| Weight | 1000 kg |
Napkin folded

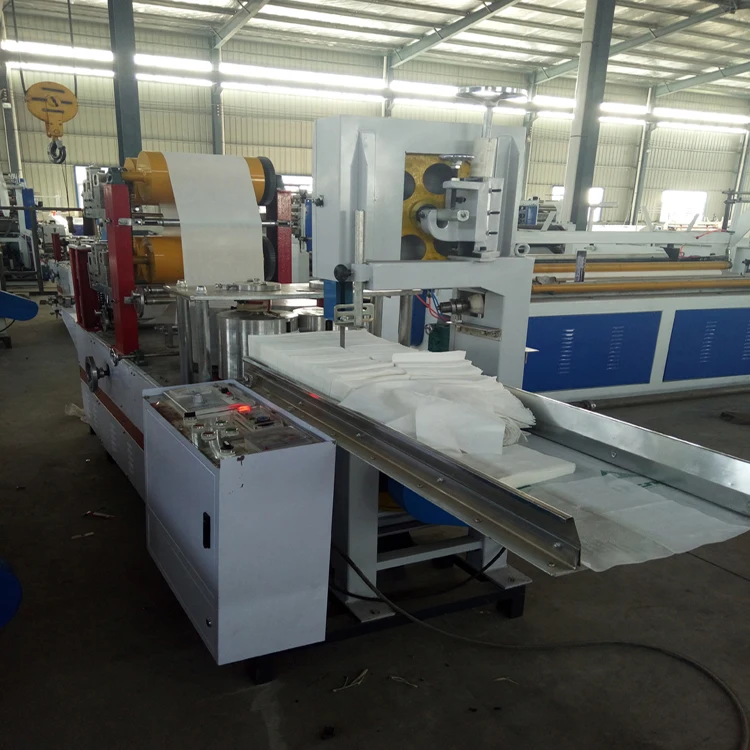

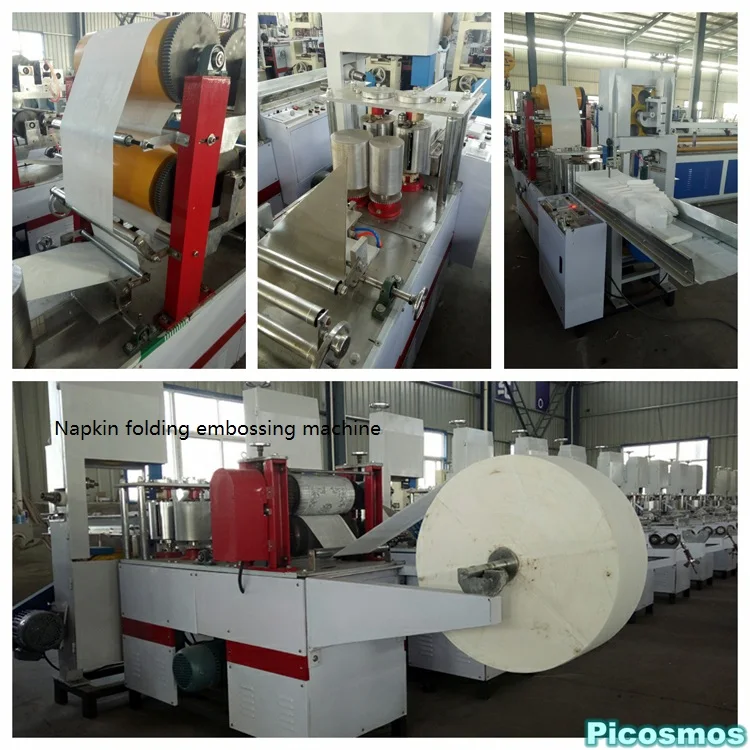

1. Napkin embossing folding machine
Embossing, folding, electronic counting, cutting, and processing into square napkins.customizable flower shape
Technical Parameter facial tissue sanitary napkin folding machine rewinding toilet paper processing machinery
| Finished size | 180*180mm--460*460mm |
| Base paper size | ≤ 1300mm diameter |
| Inner diameter of base paper core | 75mm Other sizes need customize |
| Embossing roller end | Cots,wool roll,steel to steel |
| Counting system | electronic counting |
| Power | 4-8 kw |
| Dimension | 3200*1000*1800mm |
| Speed | 0-900 pcs/min |
| Related | Automatic paper feeding, conveying, printing |
facial tissue sanitary napkin folding machine rewinding toilet paper processing machinery

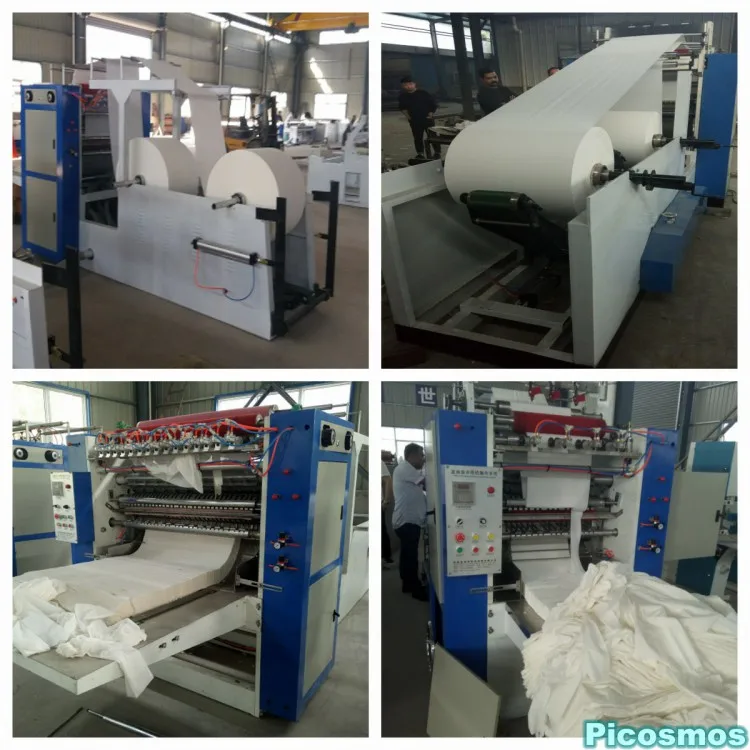

2.Facial tissue folding machine
process the slit paper into interactive folded facial tissue paper
Technical Parameter facial tissue sanitary napkin folding machine rewinding toilet paper processing machinery
| Model | 2L 3L 4L |
| Finished size | 200*200 mm Customizable specifications |
| Base paper diameter | ≤ 1300mm diameter |
| Inner diameter of base paper core | 76.2mm |
| Speed | 0-180m/min |
| Embossing roller end | Felt roller,wool roller,rubber roller,steel roller |
| Blank lines | steel on steel, Independent regulation |
| Embossing device | steel to steel embossing |
| Power | 3kw |
| Cutting system | Penumatic point cut |
| Vacuum system | 7.5kw |
| Pneumatic system | 3HP air compressor,pressure 5kg/cm2Pa |
| Dimension | 5150*1300*1920mm |
facial tissue sanitary napkin folding machine rewinding toilet paper processing machinery
