Intel Core i7-8550U Dual cores and four threads 1.8GHz,Max Turbo can reach 4.0GHz
Menory
2*DDR4 SO-DIMM sockets supporting up to 32 GB of system memory Support 1.2V DDR4 1866/2133/2400 MHz
Storag
1*M.2
2*SATA
Audio
Built in with Realtek ALC662 HD Audio Controller Support High Definition Audio
Network
Built in RTL 8111E network cardork card
Expansion Slots
1*M.2（WIFI）

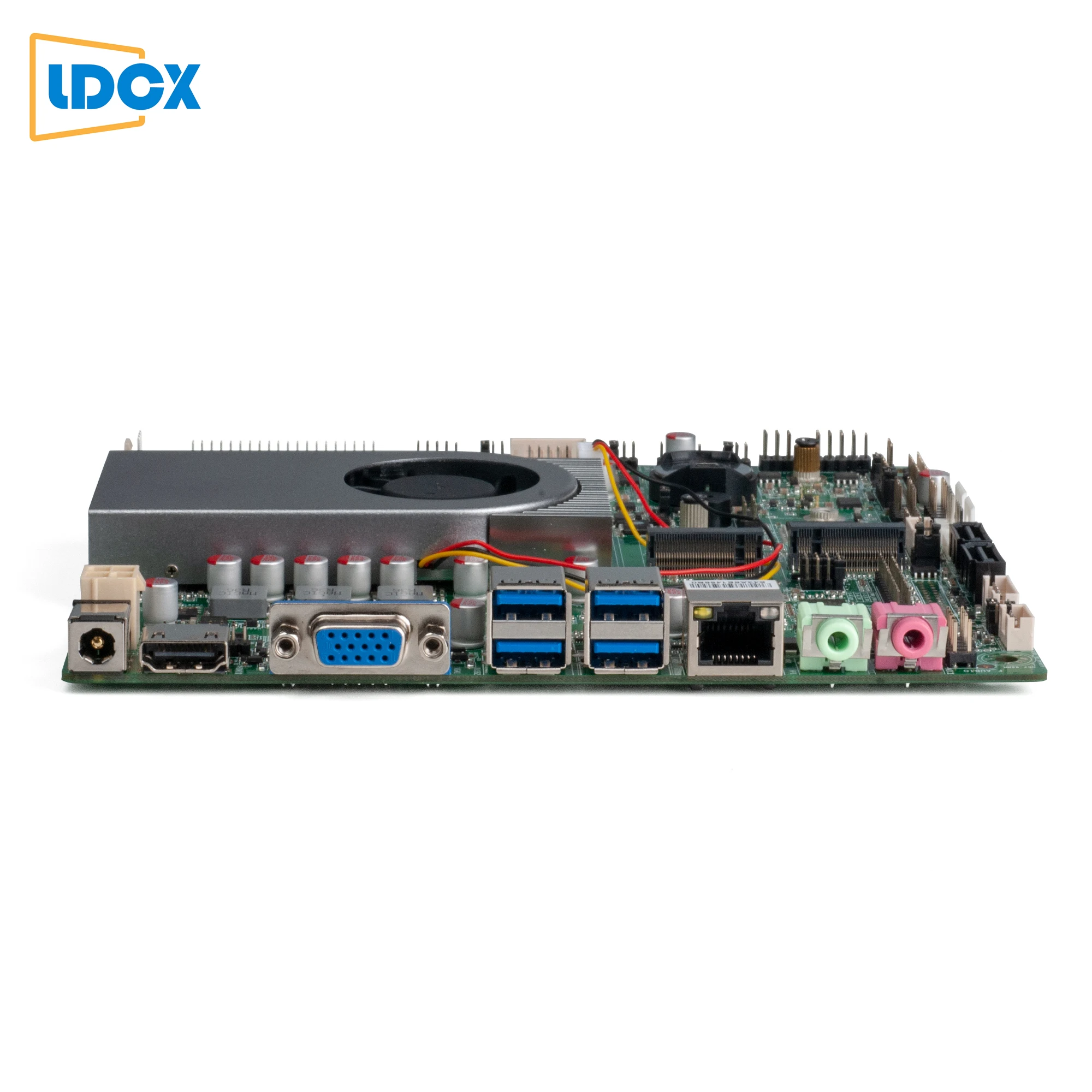

Backplane I / O interface
1* HDMI 1* VGA 1* LAN
2* USB 2.0（Can be changed to LAN） 2* USB 3.0 1* MIC 1* AUDIO
1* DC12V（5525）
Built in I/0 interface
1* LVDS
1* INVER
1* J_PRINT
1* JHDMI
1* JVGA
1* JPS/2
2* SATA_PWR
3* F_USB2.0
1* F_AUDIO
1* F_PANEL
6* COM
1* GPIO
1* ATX12V（4Pin）
1* SPEAKER
BIOS
AMI 64Mb Flash ROM
Fan interface
SYS_FAN
Power Supply
DC12V
Support system
Windons7/8/10/Liunx
Size
170*170mm
Packing&Shipping
Package list: 1 * Motherboard
1* Computer baffle
1* SATA disk connection
1* SATA power supply line
1 * neutral box
