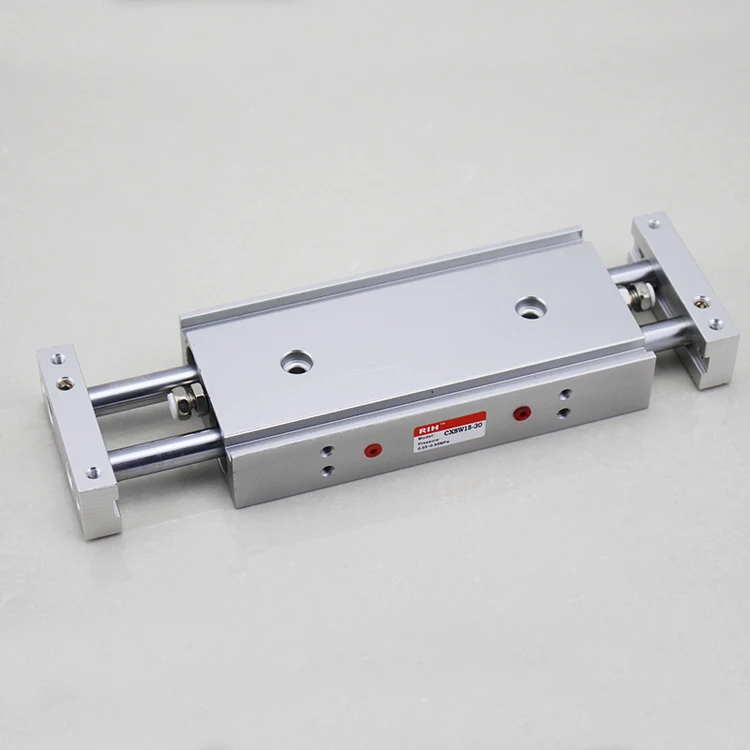

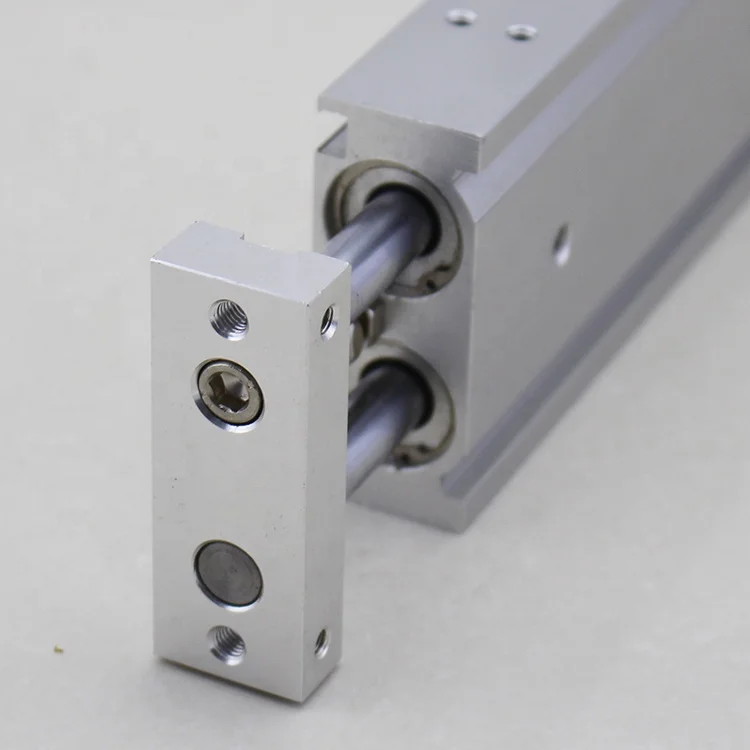

CXSW Series Double Shaft Dual Rod Air Cylinder Double Acting Double Piston Rods With Magnet Type Pneumatic Cylinder


Specification
| Bore size(mm) | 10 | 15 | 20 | 25 | 32 |
| Action | Air(filtered through 40 µ filter element) | ||||
| Fluid | Double acting type | ||||
| Max.operating pressure | 0.7Mpa | ||||
| Min.operating pressure | 0.1Mpa | 0.05Mpa | |||
| Piston speed | 30~800 | 30~700 | 30~600 | ||
| Ambient & fluid temperature | -10~60°C | ||||
| Cushion | Rubber cushion on both ends | ||||
| Structure | Double-rod | ||||
| Lubrication | Not required | ||||
| Stroke adjustable range | 0~5mm | ||||
| Bearing type | Slide bearing/ball bushing bearing | ||||
| Non-ratating accuracy | ±0.1° | ||||
| Port size | M5×0.8 | 1/8'' | |||
| Body material | Aluminum alloy | ||||

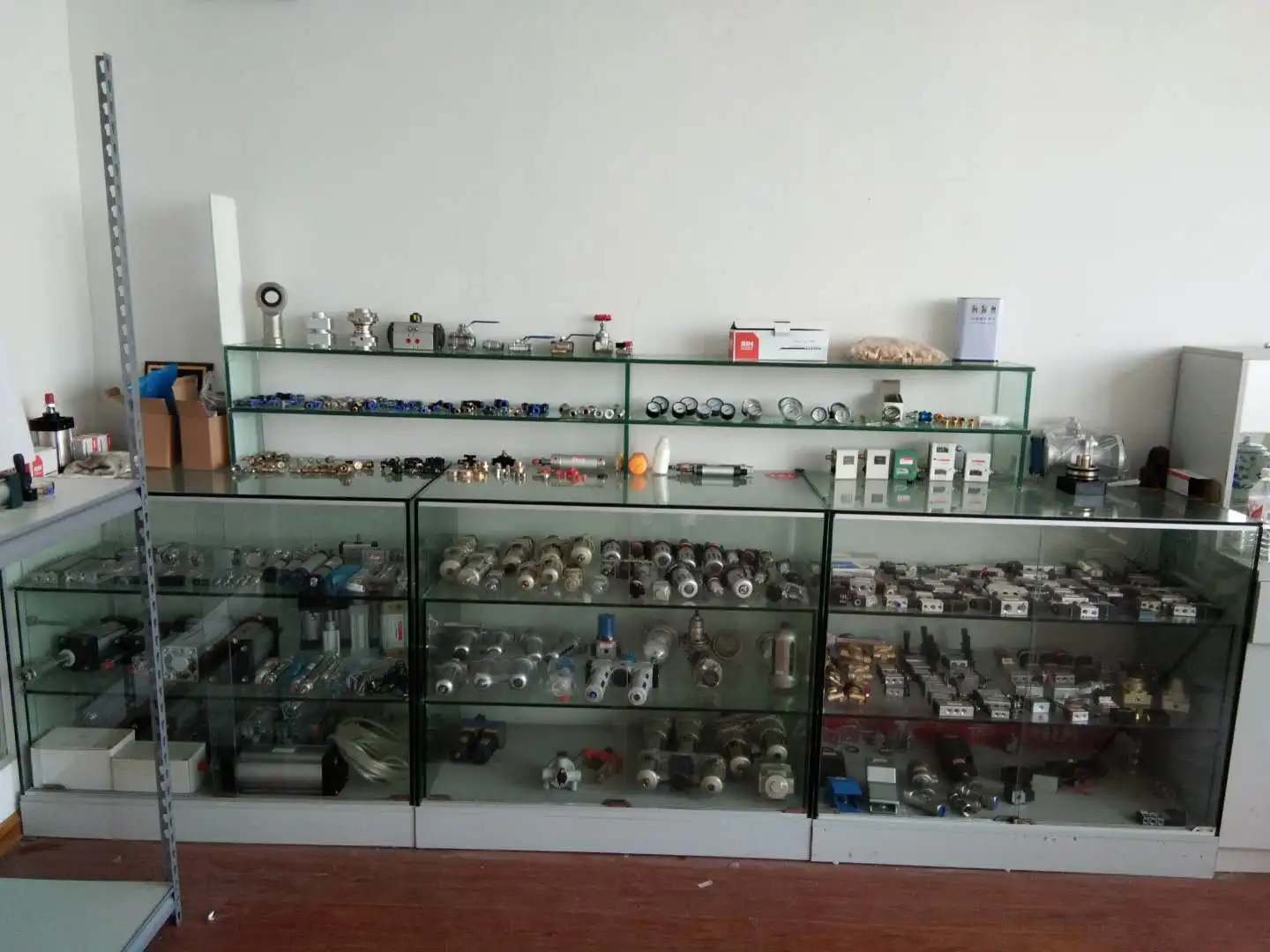

Sample showroom:


Pneumatic Cylinder Air Source Treatment Solenoid Valve Pneumatic Fitting PU Tube
View More View More View More View More View More

Q1: Are factory or trading company?
A1:We are the leading manufacturer of pneumatic products who have 13 years experience. Welcome to visit our factory
at any time.
Q2:Can I get sample?
A2:Yes,We can offer free sample but express charge by your side. In a word, each of your needs are of most valuable
matter for us.
Q3:Do you accept OEM business?
A3:Yes.We do.
Q4:What’s the payment term?
A4: T/T,Western Union,Paypal are applicable for us.
Q5: How about the warranty?
A5: 12 months under normally used.
Q6. What’s the delivery time ?
A6.. Normal model 2-5days,because we have ability to do the stock.For big order,it takes about 10-15days.
Q7: How does your factory dothe quality control?
A7: Quality is important,we always attach importance to quality control from the beginning to the end of the prodution.
Each product will be fully assembled and carefully tested before packing and shipping.
