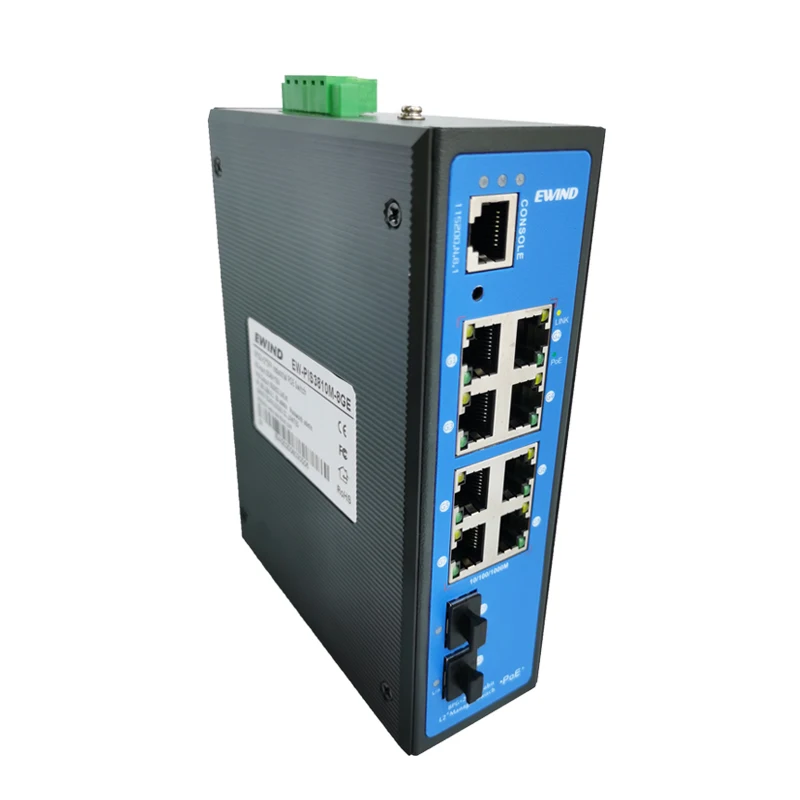

industrial 8 Port 1000 Base Reverse Power Supply RPOE POE Switch

Model

EW-PIS3810M-8GE

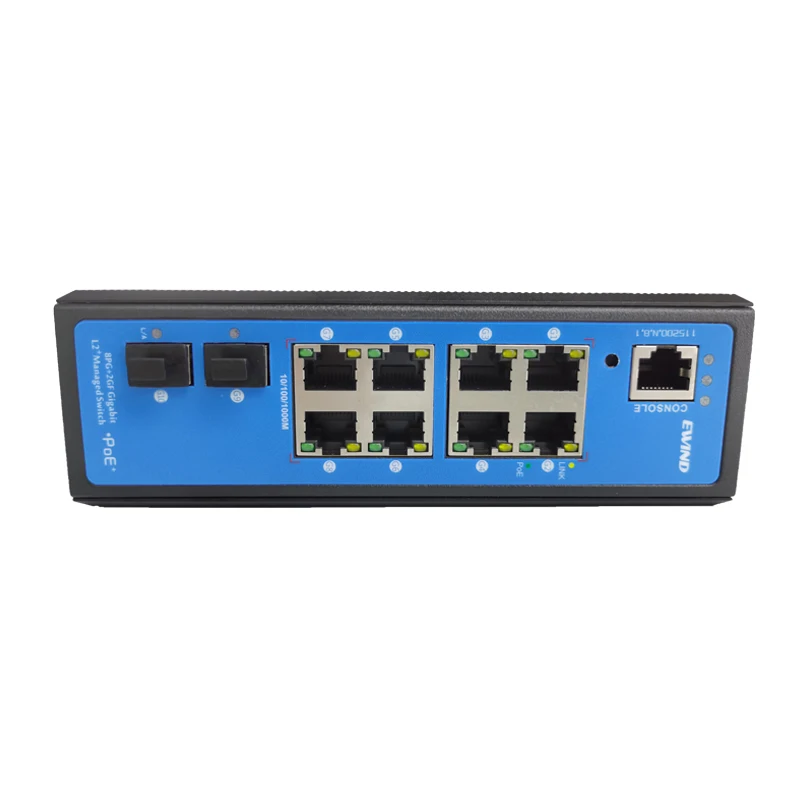

Interface

8*10/100/1000Base-TX PoE ports (Data/Power)
2*10/100/1000M RJ45 ports (Data)
1 * RS232 console port (115200, N,8,1)
2 set of V+, V- redundant DC power interface (5 Pin Phoenix terminal)

PoE Port

Port 1-8 supports POE @ IEEE802.3af/at

Network Protocol

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX;
IEEE802.3ab 1000Base-T;
IEEE802.3z 1000Base-X;
IEEE802.3x

PoE Standard

IEEE802.3af/at

Ethernet Port Feature

10/100/1000BaseT (X) automatic detection, full / half duplex MDI/MDI-X adaptive

SFP Port Characteristic

Gigabit SFP optical fiber interface, default matching optical modules, need to buy separately, (optional order mode / multi-mode,
single fiber / double fiber optical module.

Forwarding Mode

Store and Forward (Full Wire Speed)

Switching Capacity

192bps (Non-blocking)

Forwarding Rate@64byte

14.88Mpps

MAC

8K

Buffer Memory

4M

Jumbo Frame

10K

Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP (≤100 meter)
100BASE-TX: Cat5 or later UTP (≤100 meter)
1000BASE-T: Cat5e or later UTP (≤100 meter)

Optical Cable

Multimode: 850nm 0 ~ 500M;
Single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.

Power Consumption

Standby:<10W; Full load:<240W

Working Voltage

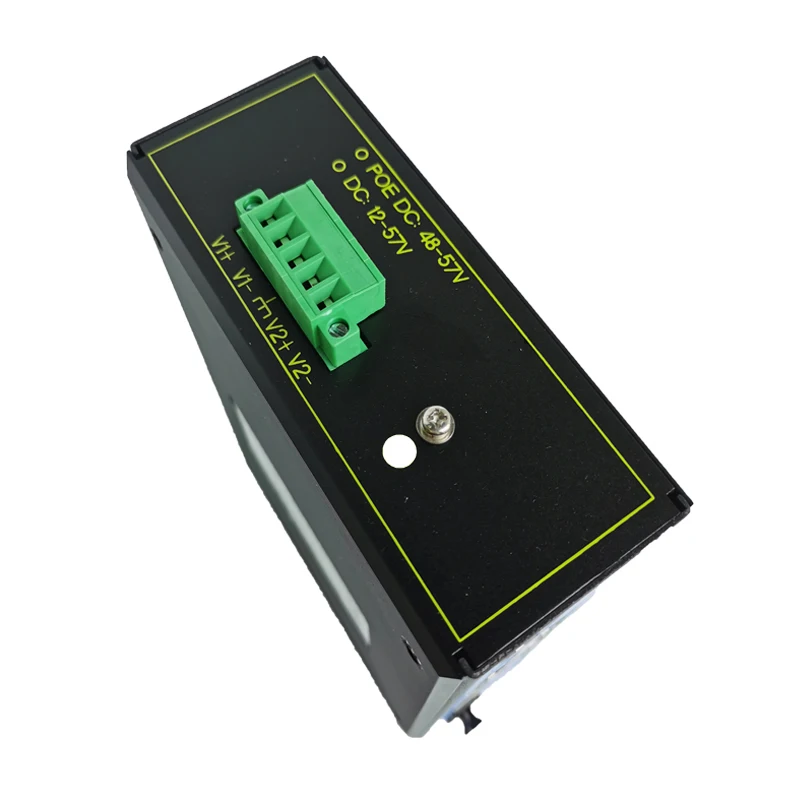

48-57VDC; 5 Pin industrial Phoenix terminal, support anti-reverse protection.

Max Power Per Port

30W; IEEE802.3af/at

Total PWR / Input Voltage

240W (48-57VDC)

Power Consumption

Standby:<10W; Full load:<240W

LED Indicator

System indicator: SYS (green); Network Indicator: Link (yellow); SFP Indicator: L/A (green); PoE Indicator: PoE (green)

Power Supply

No, optional 48V/120W or 48V/240W industrial power supply

Operation TEMP / Humidity

-40~+75°C;5%~90% RH Non condensing

Storage TEMP / Humidity

-40~+85°C;5%~95% RH Non condensing

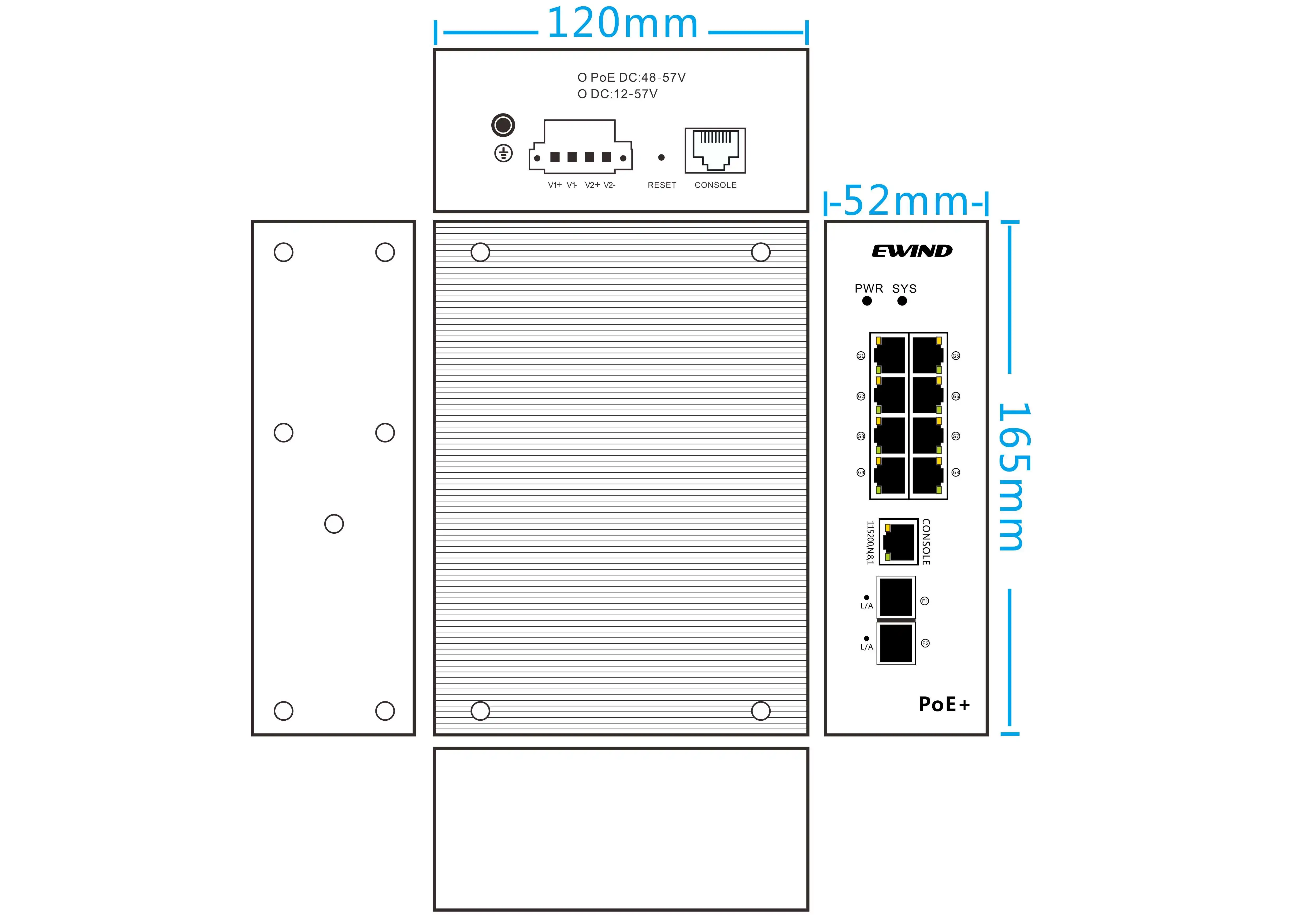

Dimension

165*120*52mm

Net /Gross Weight

<0.8kg / <1.2kg

Lightning protection / protection level

Lightning protection: 6KV 8/20us; Protection level: IP40
IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-3(RS):10V/m(80~1000MHz)
IEC61000-4-4(EFT): power cable: ±4kV; data cable: ±2kV
IEC61000-4-5(Surge): power cable:CM±4kV/DM±2kV; data cable: ±4kV
IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)
IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s
IEC61000-4-9(pulsed magnet field):1000A/m
IEC61000-4-10(damped oscillation):30A/m 1MHz
IEC61000-4-12/18(shockwave):CM 2.5kV, DM 1kV
IEC61000-4-16(common-mode transmission):30V; 300V,1s
FCC Part 15/CISPR22(EN55022): Class B
IEC61000-6-2(Common Industrial Standard)

Mechanical Properties

IEC60068-2-6 (anti vibration)
IEC60068-2-27 (anti shock)
IEC60068-2-32 (free fall)

Certification

CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS;

Warranty

5 years, lifelong maintenance.

CONTENT

QTY

UNIT

10 Ports Full Gigabit Managed Industrial PoE Switch
(EW-PIS3810M-8GE)

1

SET

User Guide

1

PC

Warranty Card

1

PC
