Factory sale 2 ton per hour screw biomass wood briquette extruder machine complete charcoal briquette production line
- Category: >>>
- Supplier: Gongyi Sanjin Charcoal Machinery Factory
Share on (62533066283):
Product Overview
Description
Product Description
Excellent coal charcoal powder metal dust briquette making machine

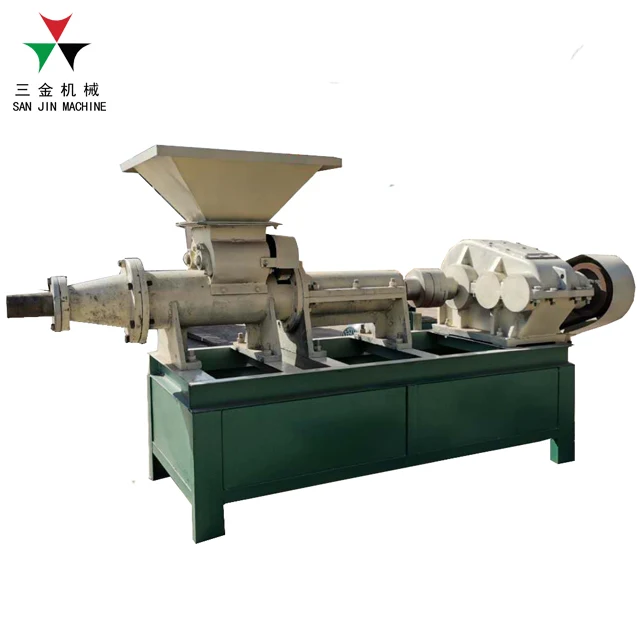

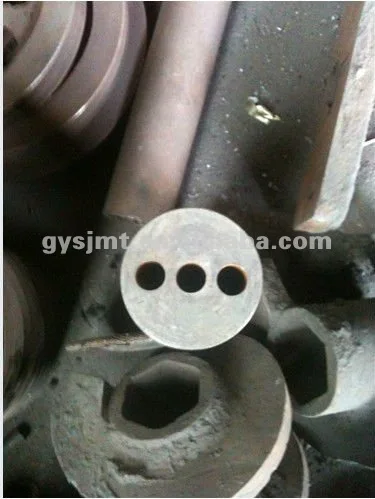

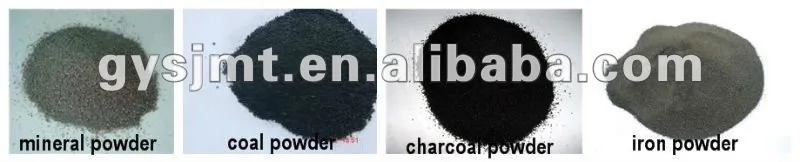

Charcoal extruder machine, which using the principle of screw extrusion to compress the coal powder into a predeter mined shape with a certain intensity.after the coal powder poured into machine chamber,it bears tremendous pressure.With the help of all kinds of shaped molds,it will be shaped into certain shapes.Now, our factory has developed and researched double-head and four-head coal extruder.It not only improve production capacity largely, but also give the buyers more choices.This kind machine not only can accept coal powder, but also charcoal powder coconut shell powder and so on.
Main Features:
*1 Charcoal powder rod making machine use hardened reducer,small size,high load carrying capacity.

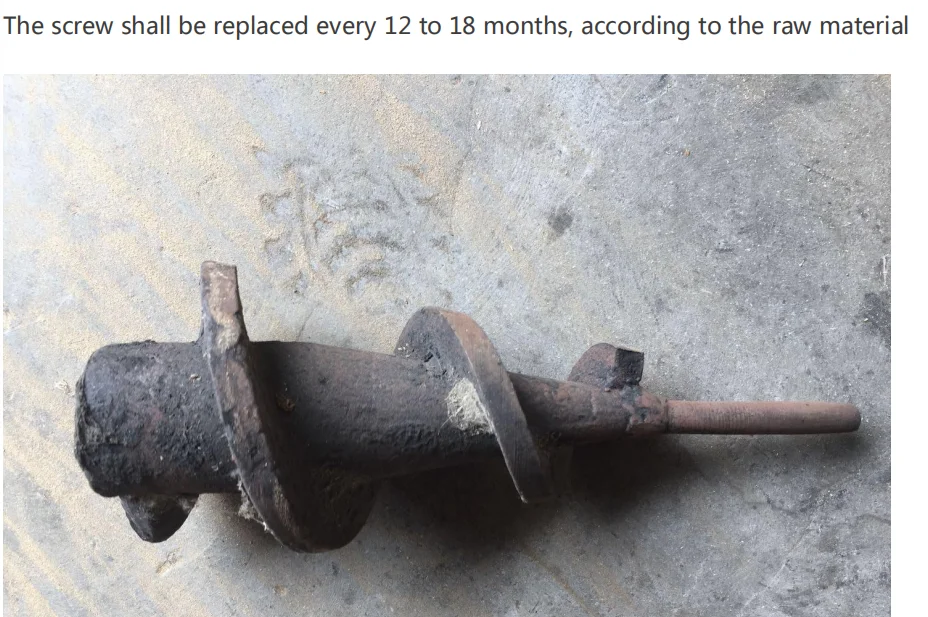

*2 Thick internal impeller blade design,impeller and liner using wear-resistant cylinder body made of cast materials, life expectancy increased 4-5 times than ordinary materials.

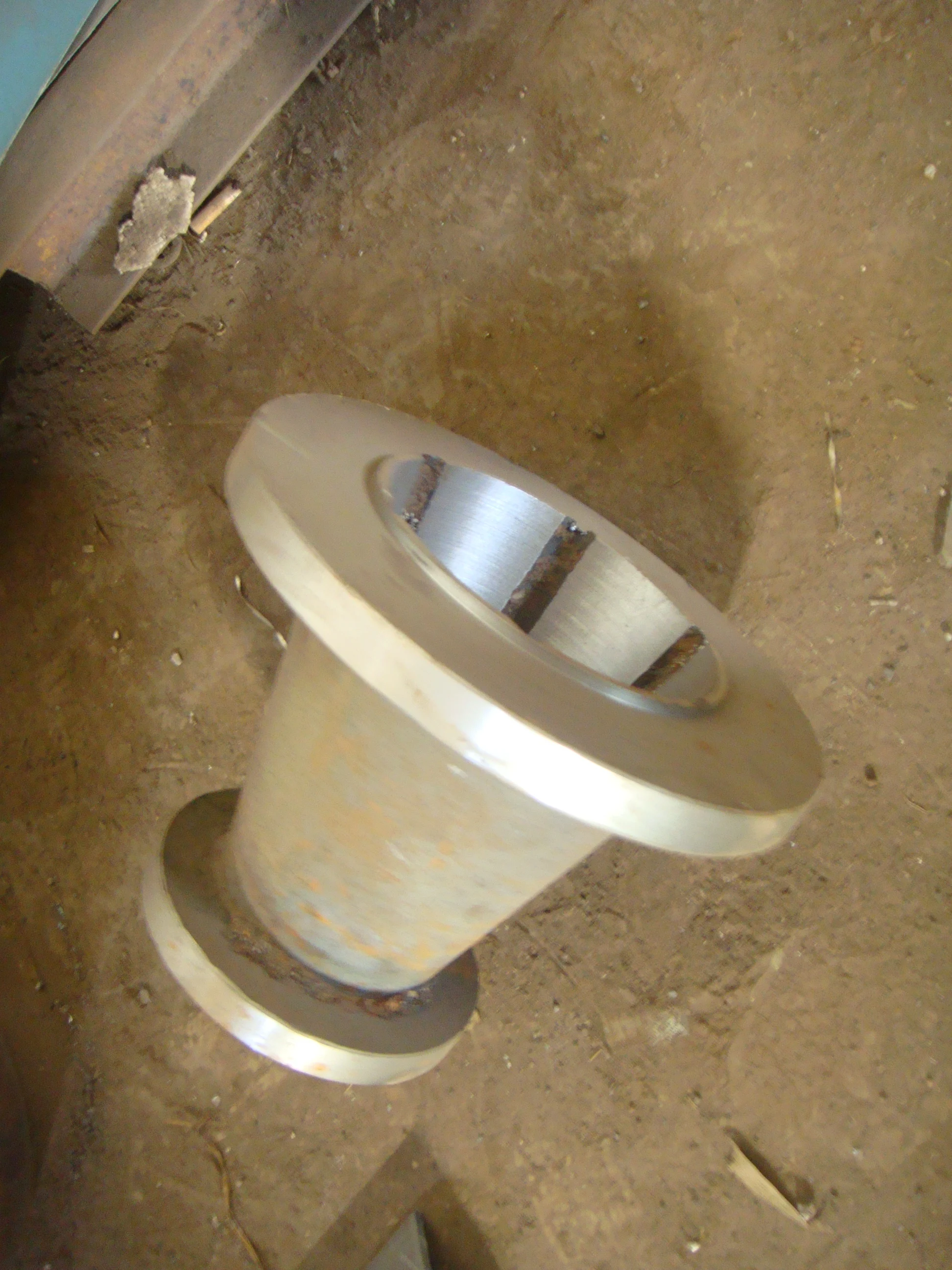

*3 Charcoal powder rod making machine head can be replaced by a wear-resistant alloy steel,also easy to replace.
*4 Head and cylinder use splicing forms so it can be opened when the overhaul,replacement of internal impeller and cylinder liner is very convenient.
*2 Thick internal impeller blade design,impeller and liner using wear-resistant cylinder body made of cast materials, life expectancy increased 4-5 times than ordinary materials.
*3 Charcoal powder rod making machine head can be replaced by a wear-resistant alloy steel,also easy to replace.
*4 Head and cylinder use splicing forms so it can be opened when the overhaul,replacement of internal impeller and cylinder liner is very convenient.

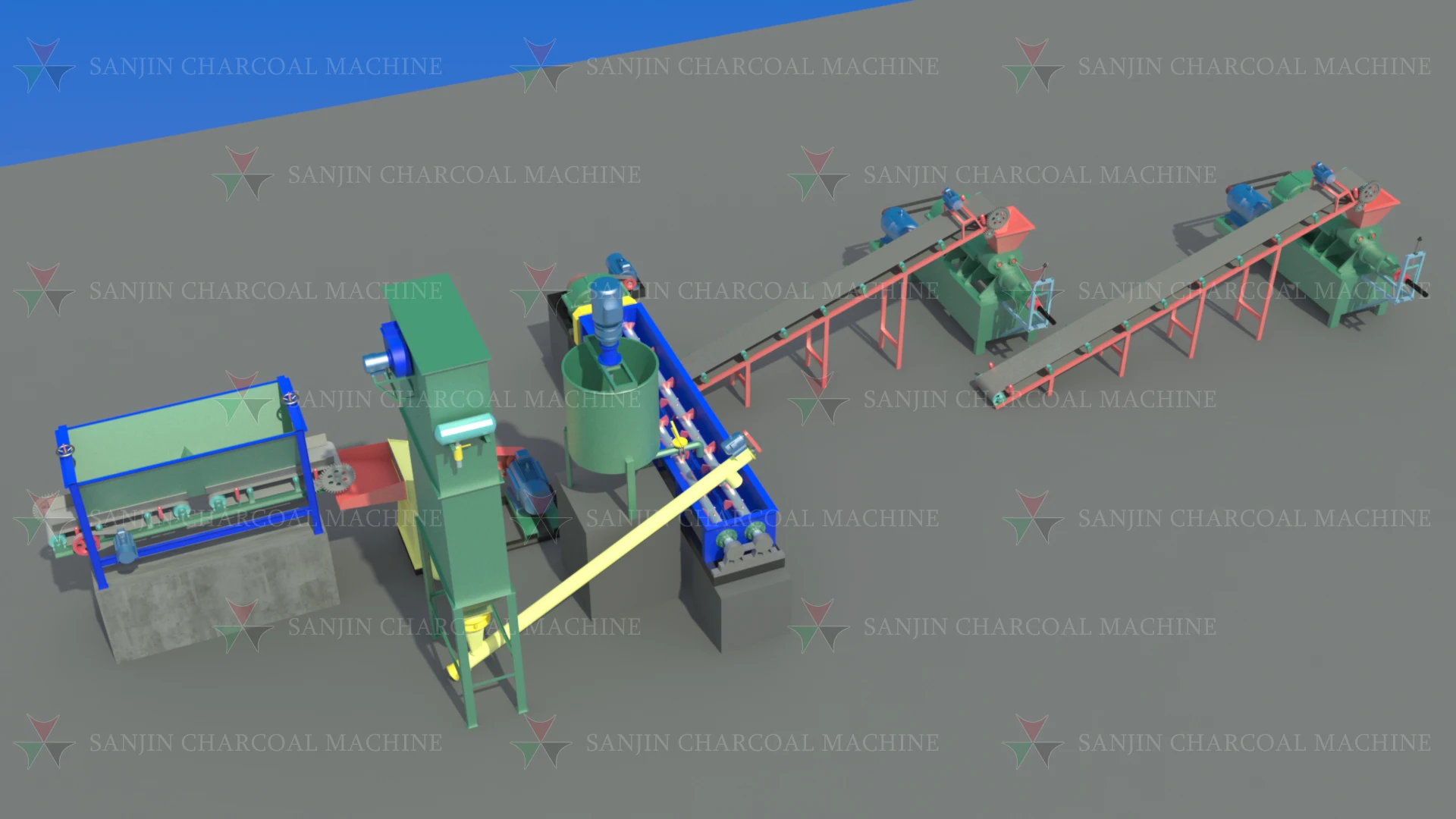

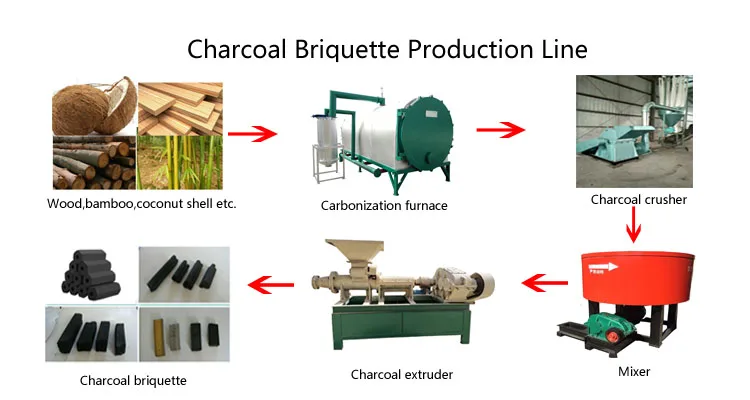

Working Flow:
*1 Binder mixer: It is using for dissolving and thicking binder.
*1 Binder mixer: It is using for dissolving and thicking binder.
*2 Crusher and mixer: It is a machine with the function of crushing and mixing together, crushing the raw material below 5mm, and mixing them uniformly. The moisture need controlled between
25%-30%.
25%-30%.
*3 Coal briquette machine: It presses coal powder, charcoal powder, or other powders.
*4 Drying room: We have mesh belt dryer and Air energy drying room . We will suggest suitable dryer according to your raw machine, shape and size.

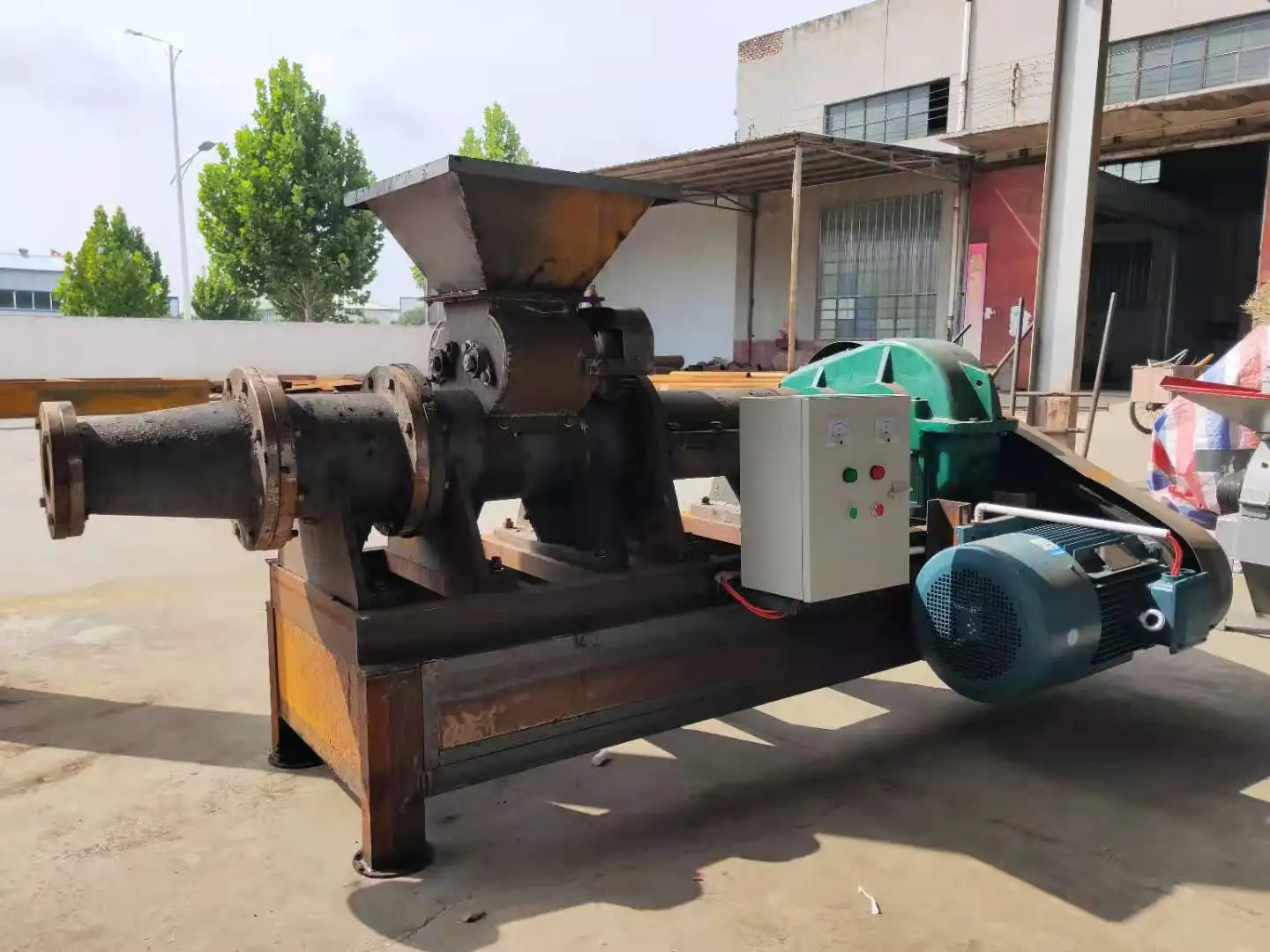

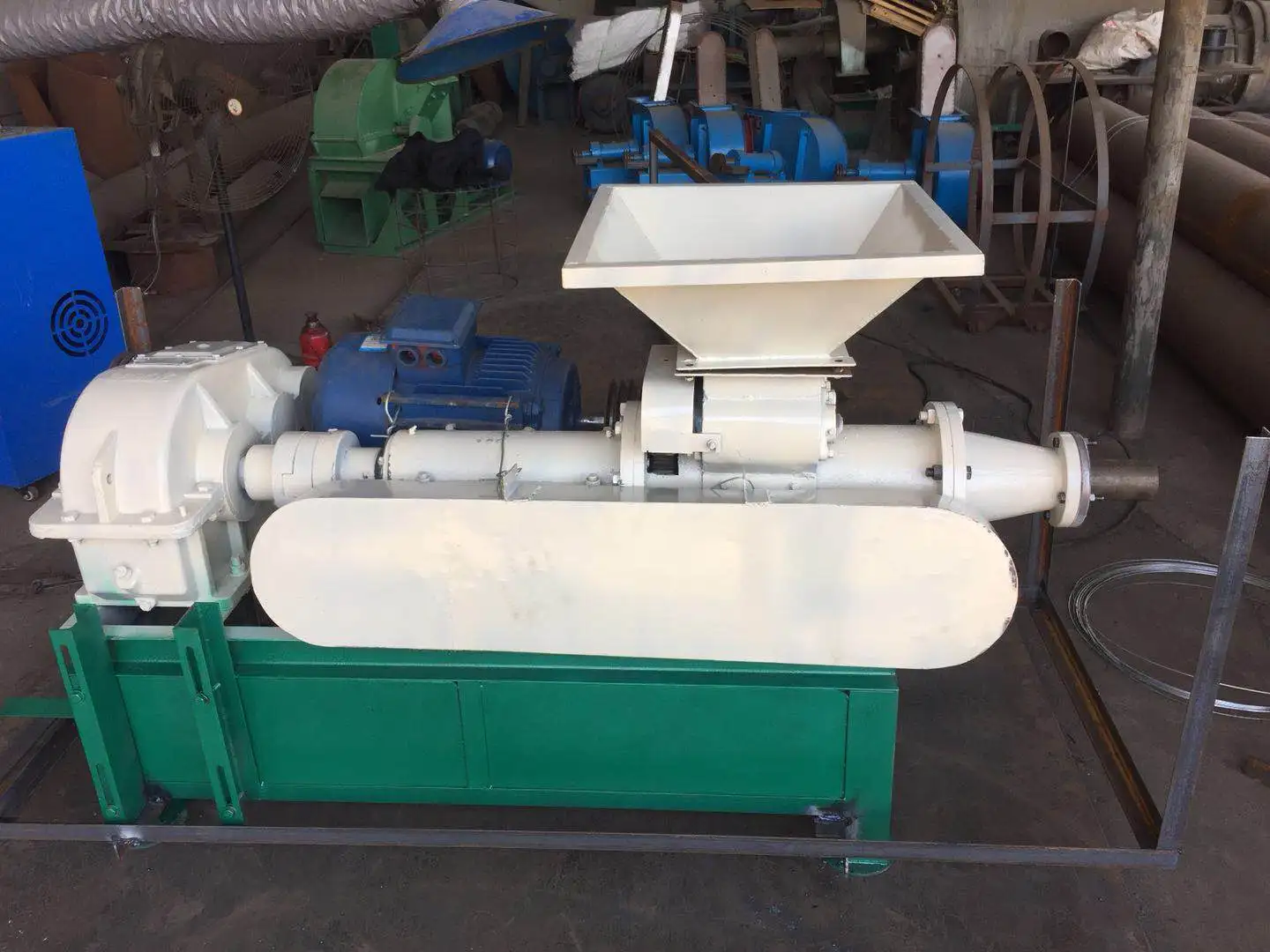

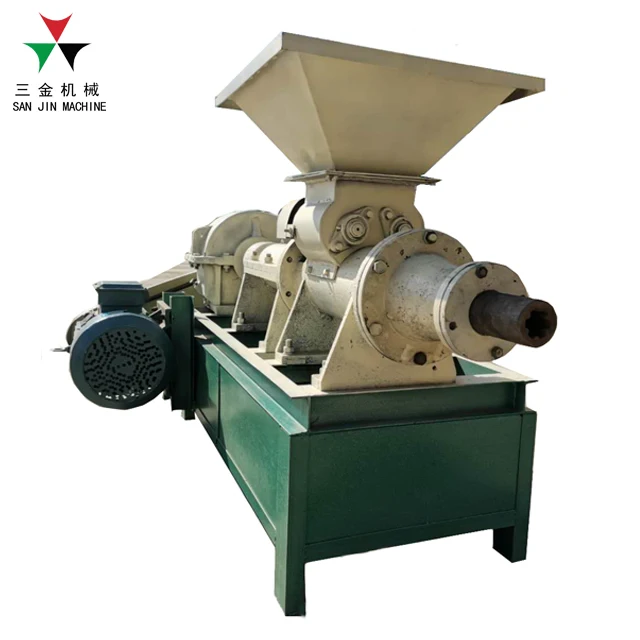

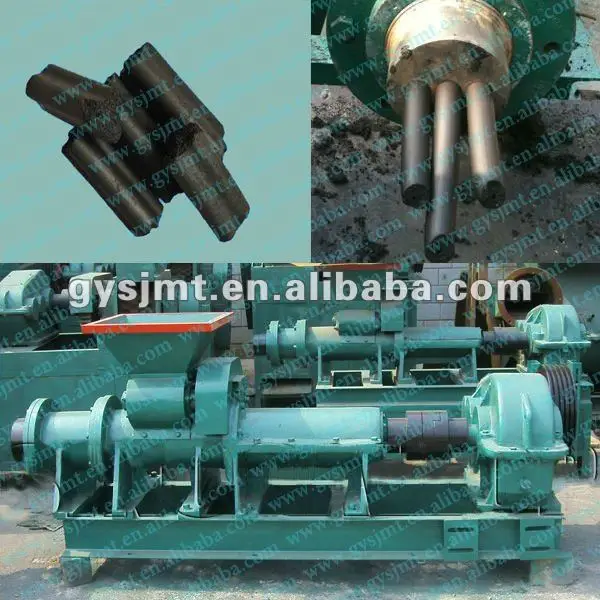

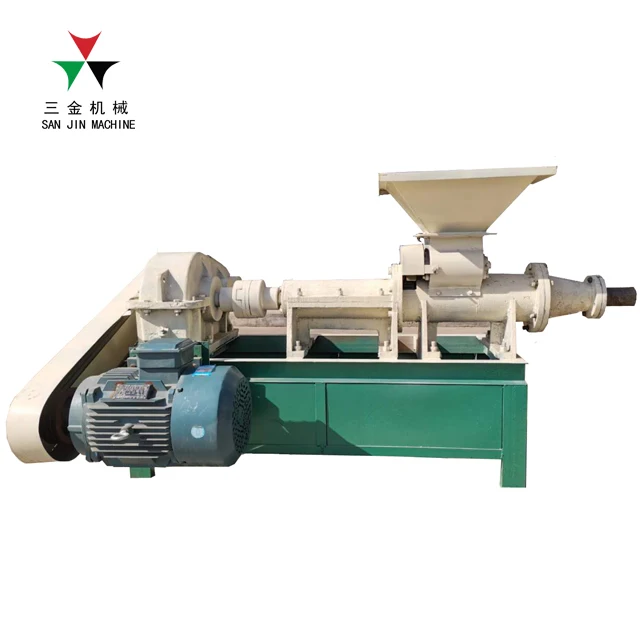

Detailed Images
Type | MBJ-140 |
Power | 11KW |
Capacity | 1-2T/H |
Spindle speed | 46-60(r/min) |
Diameter of fianl product | 30-40mm |
Weight | 700kg |
Type | MBJ-180 |
Power | 18.5KW |
Capacity | 2-3T/H |
Spindle speed | 38-50r/min |
Diameter of fianl product | 30-60mm |
Weight | 900kg |

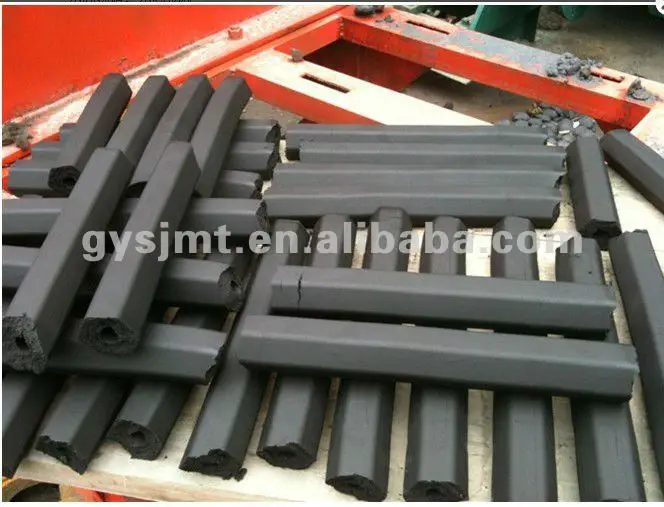

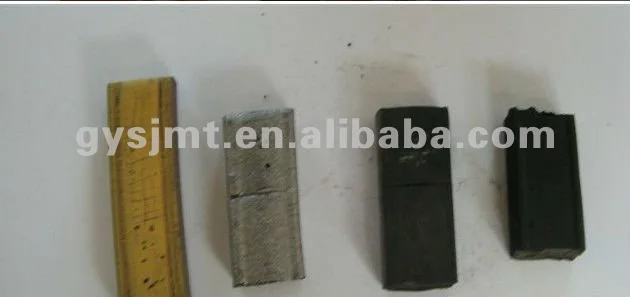

Final product
Related Products

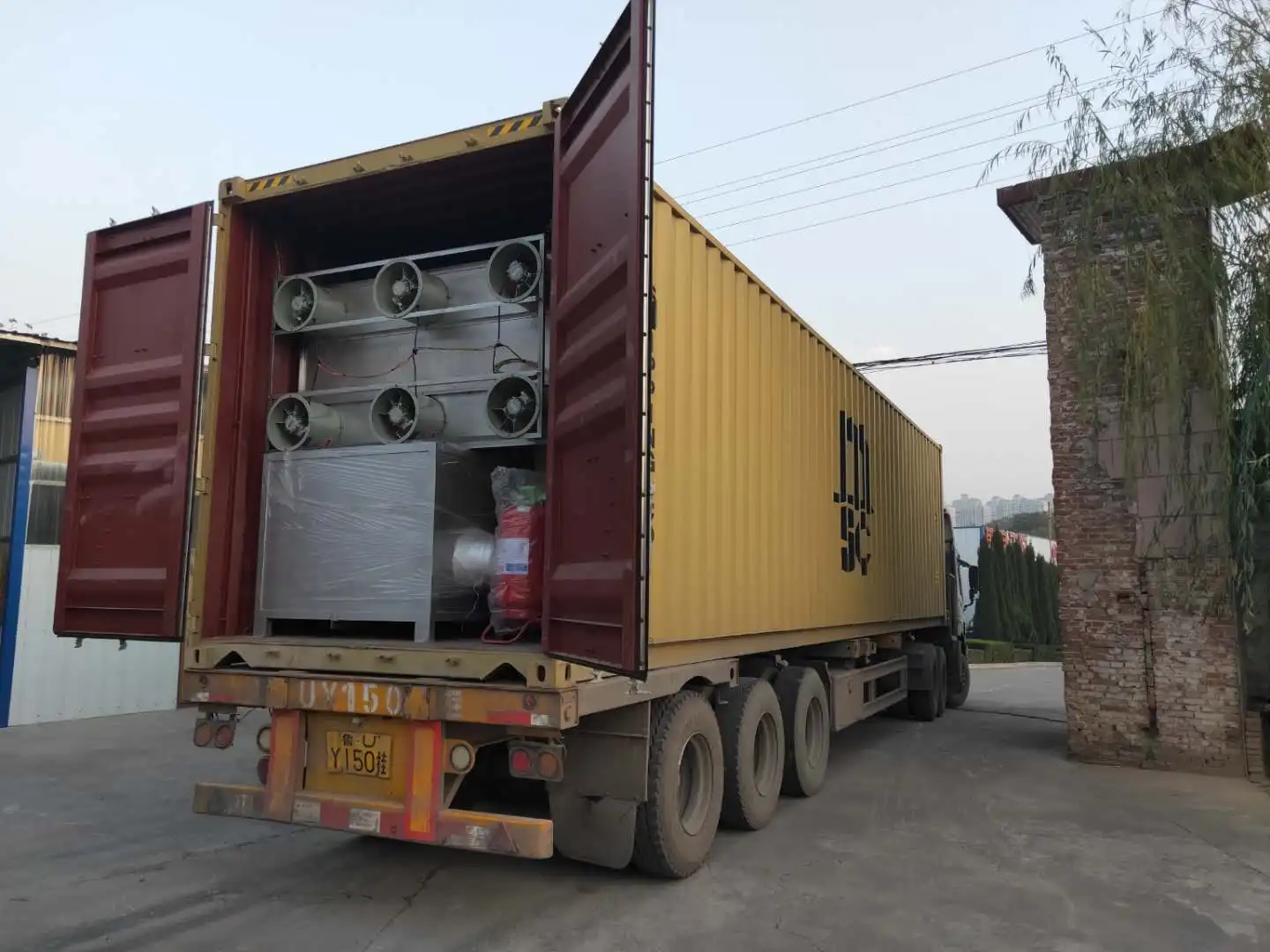

Packing&Shipping

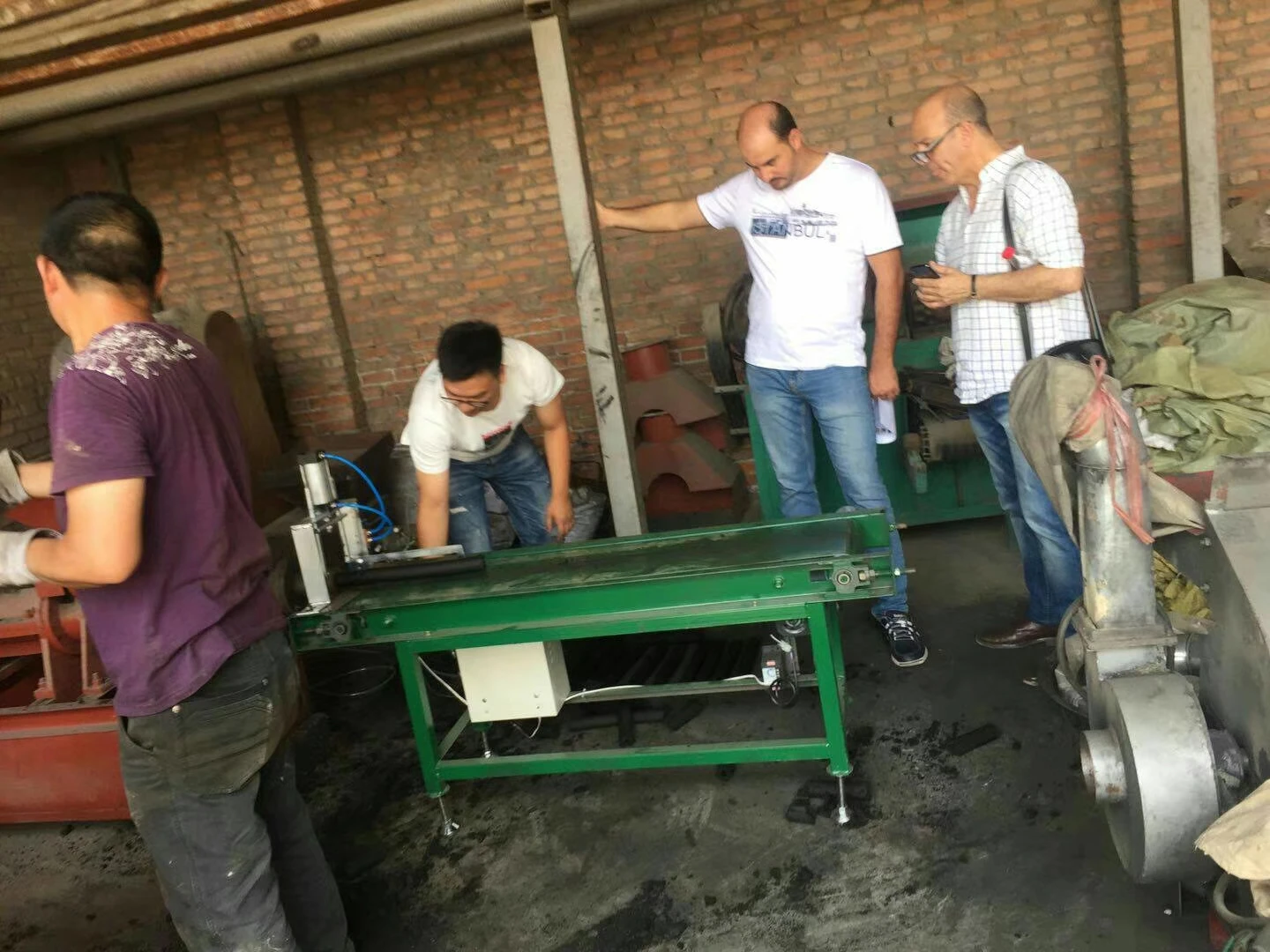

Customer Photos
After Sales Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
