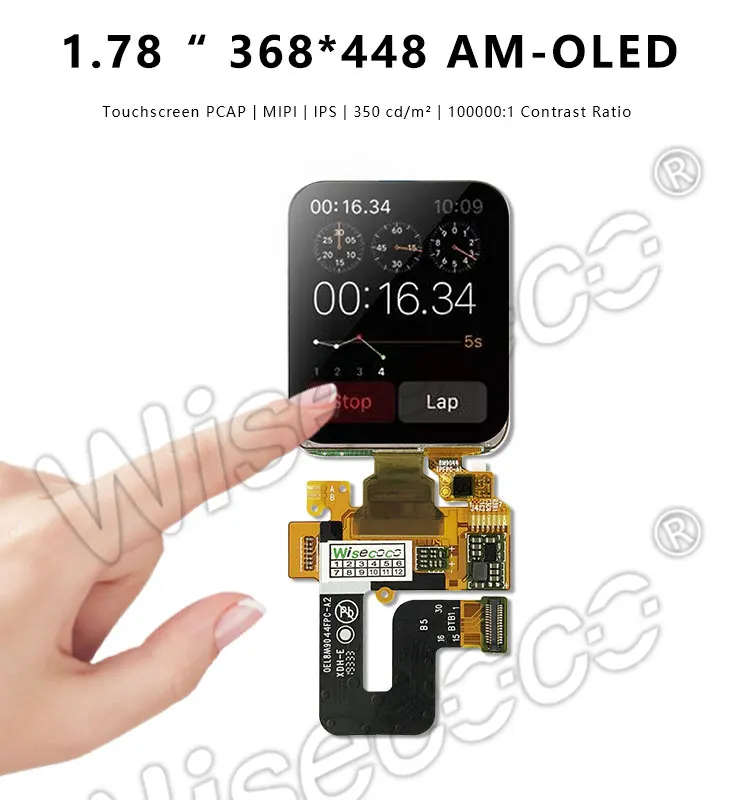

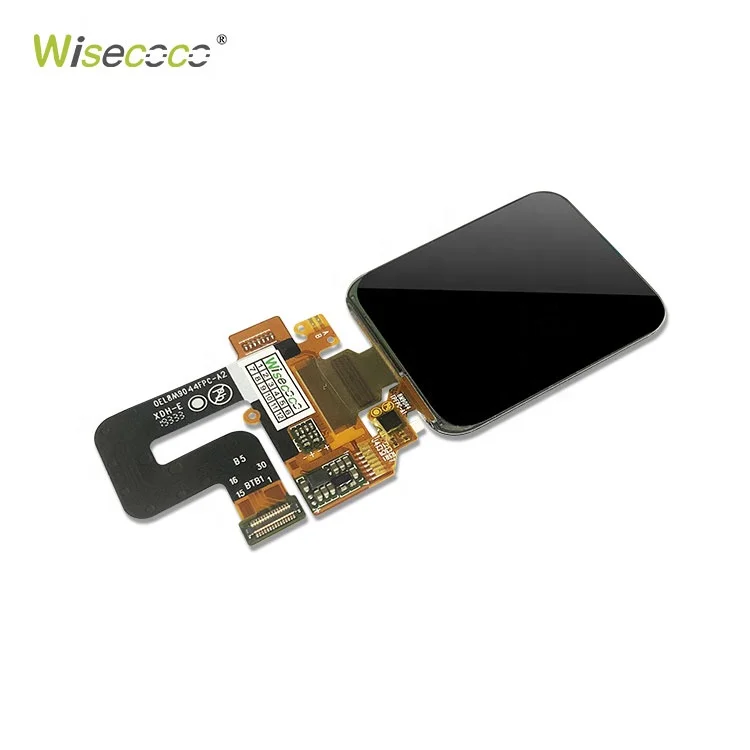

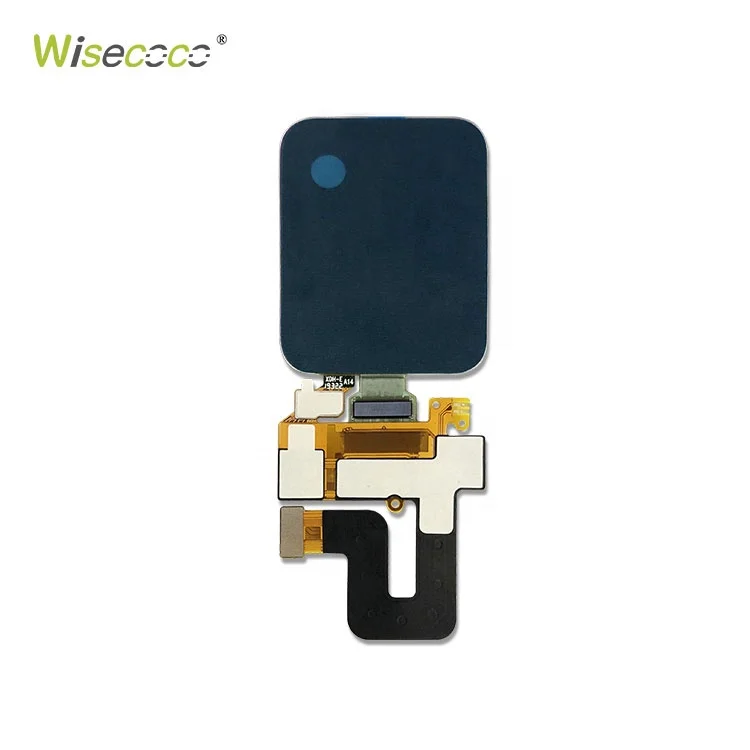

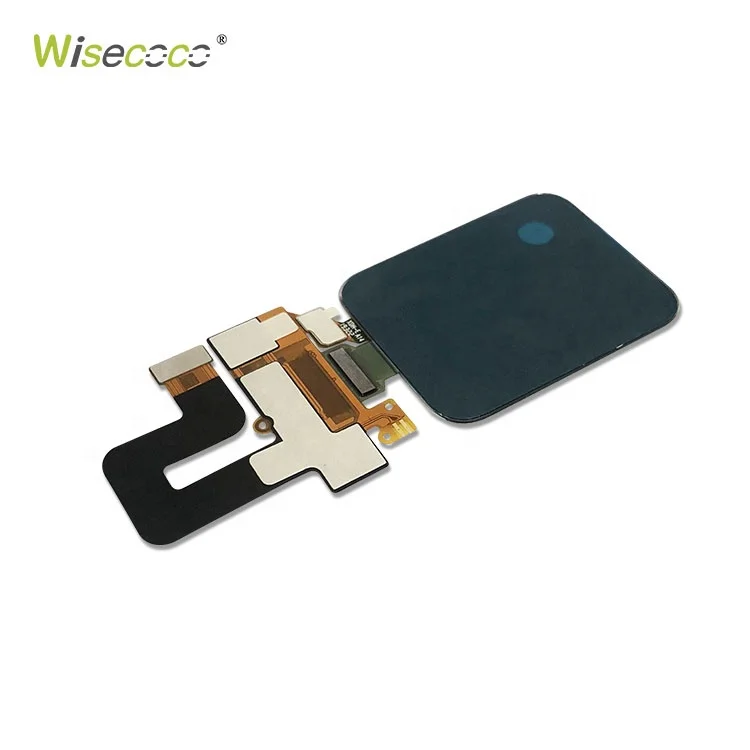

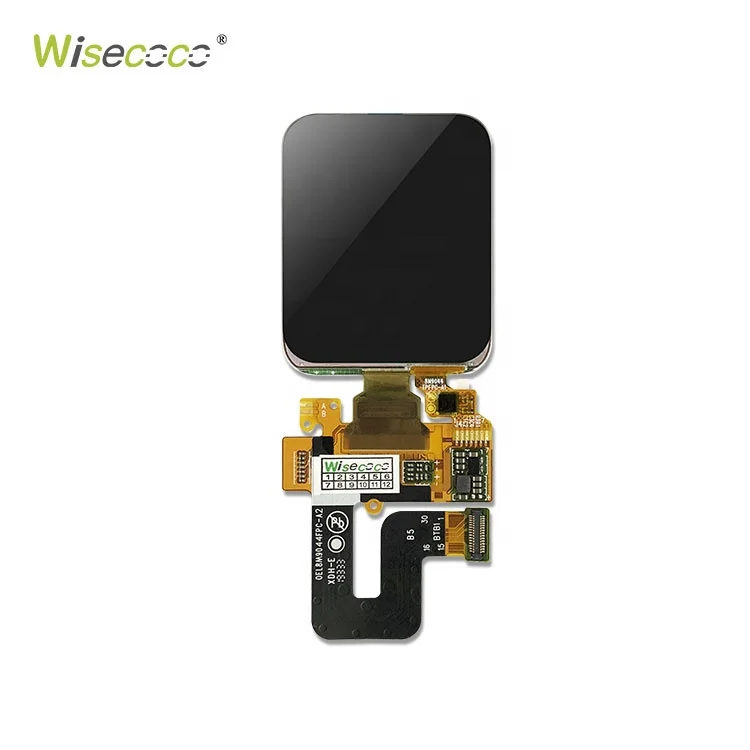

1.78 amoled square screen oled 1.8 inch touchscreen IPS PCAP display smart wearable home automation screen thin panel

General Features :

Panel Size

1.78 inch

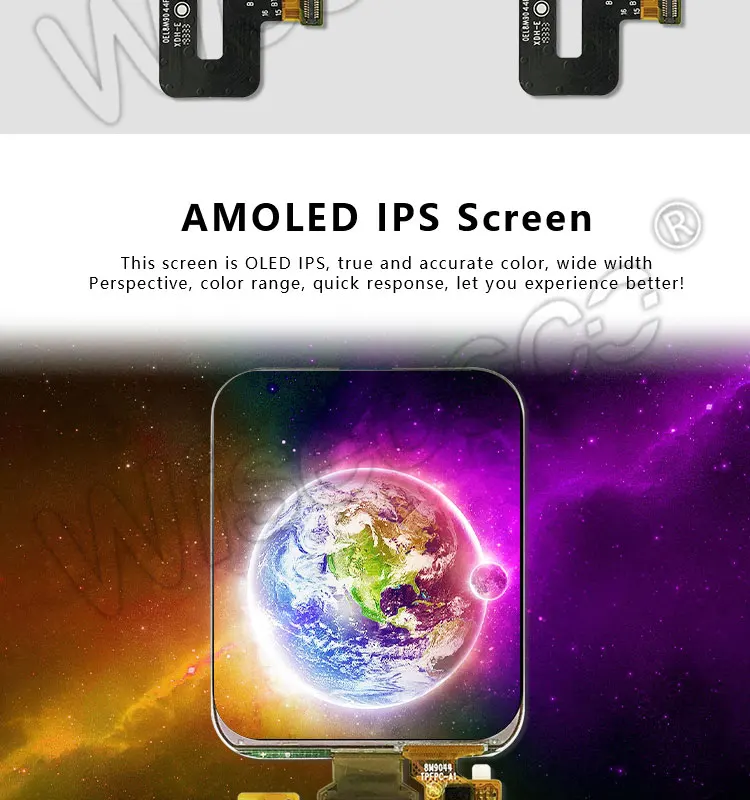

Panel Type

AM-OLED, OLED

Resolution

368(RGB)×448

Pixel Format

RGB Vertical Stripe

Display Area

28.7 × 34.94 (H×V)

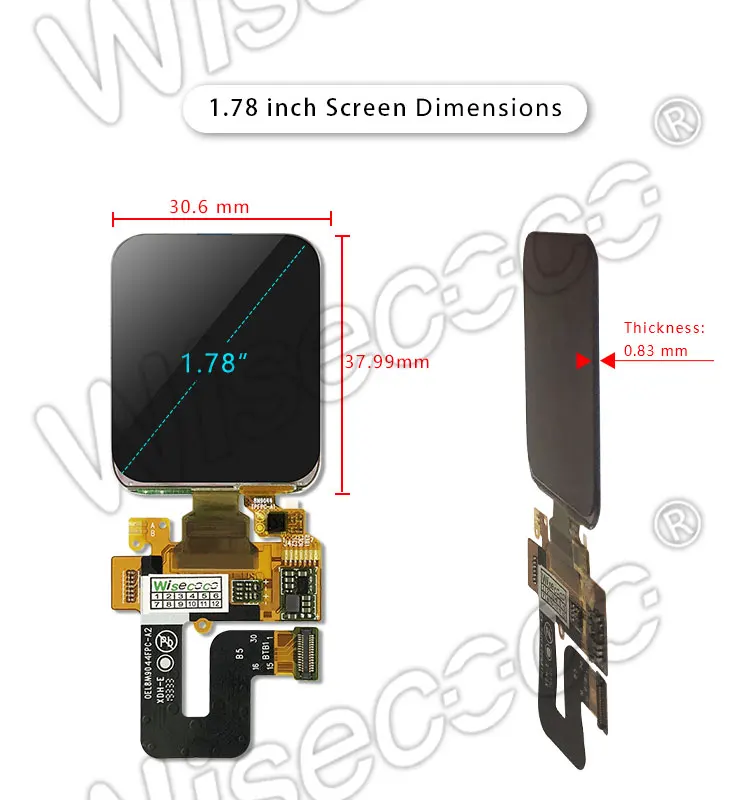

Outline Size

30.6 × 37.99 × 0.8 (H×V×D)

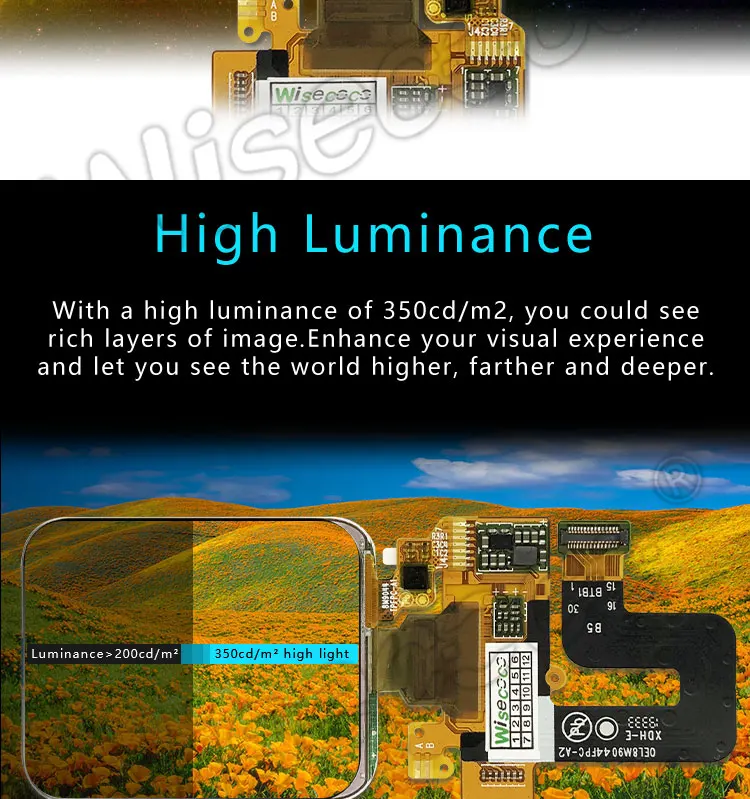

Brightness

350 cd/m² (Typ.)

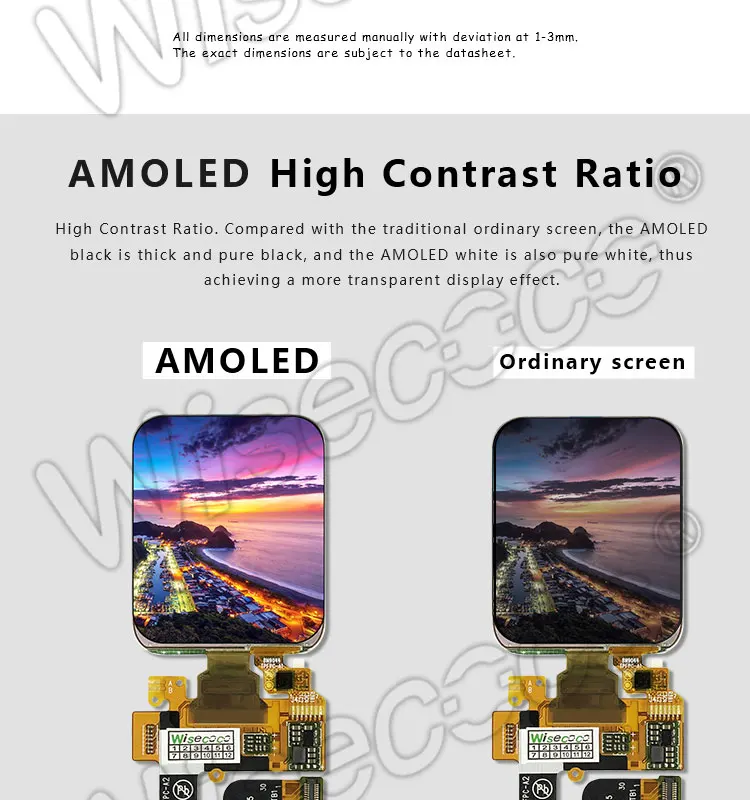

Contrast Ratio

100000:1 (Min.) (TM)

Viewing Angle

80/80/80/80 (Typ.)(CR≥1000)

Best View on

Symmetry

Display Colors

16.7M   100% DCI-P3

Driver IC

RM69090

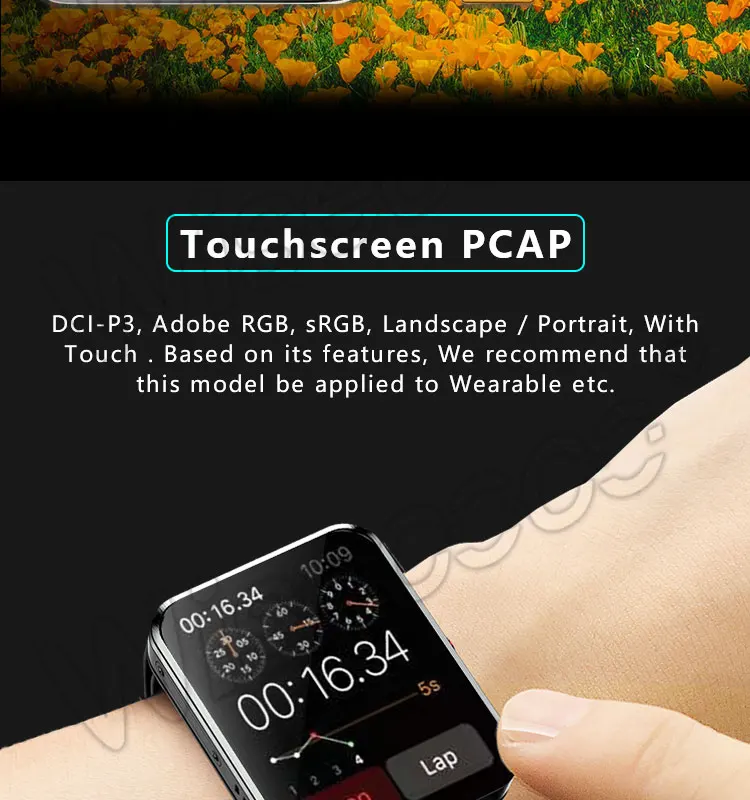

Touch Screen

PCAP

Application

Signal Interface

MIPI , 34 pins Connector

Input Voltage

2.8V (Typ.)

Environment

Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -40 ~ 80 °C
