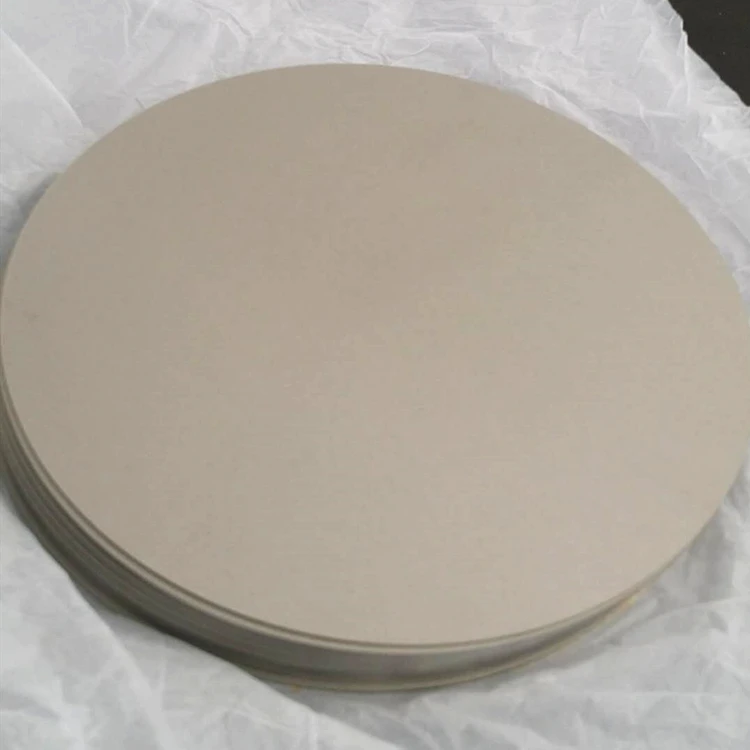

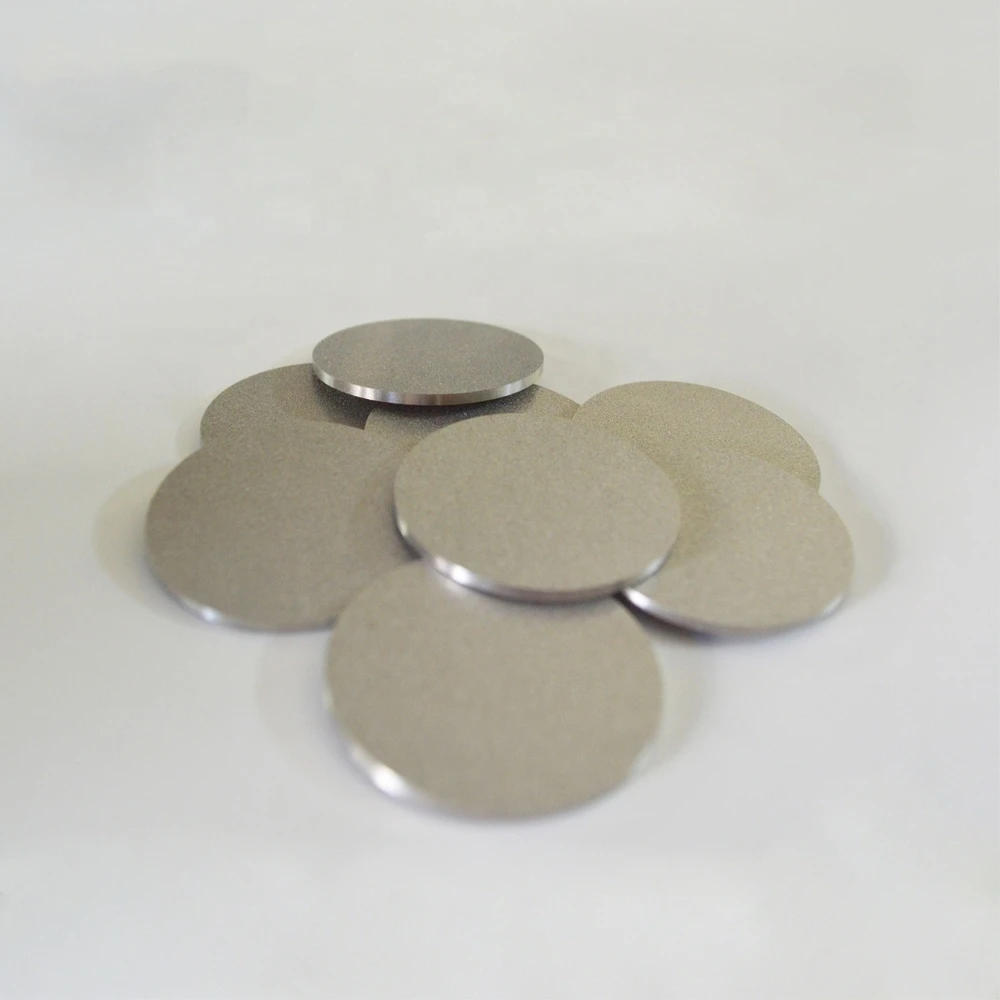

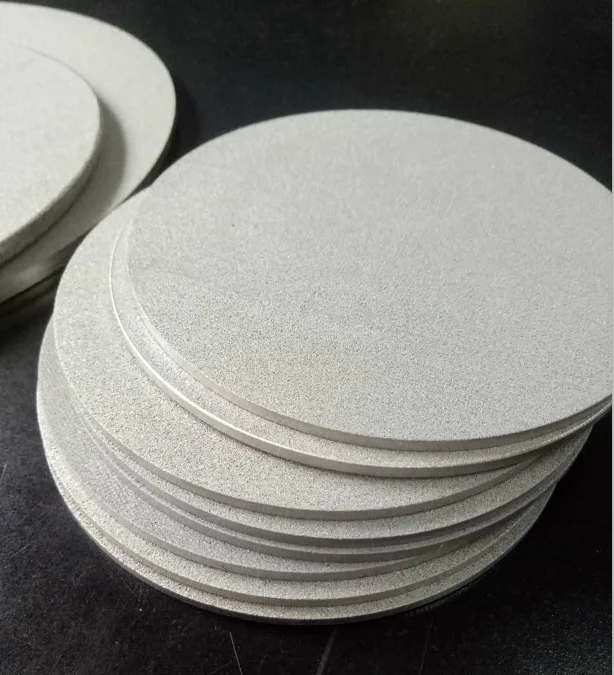

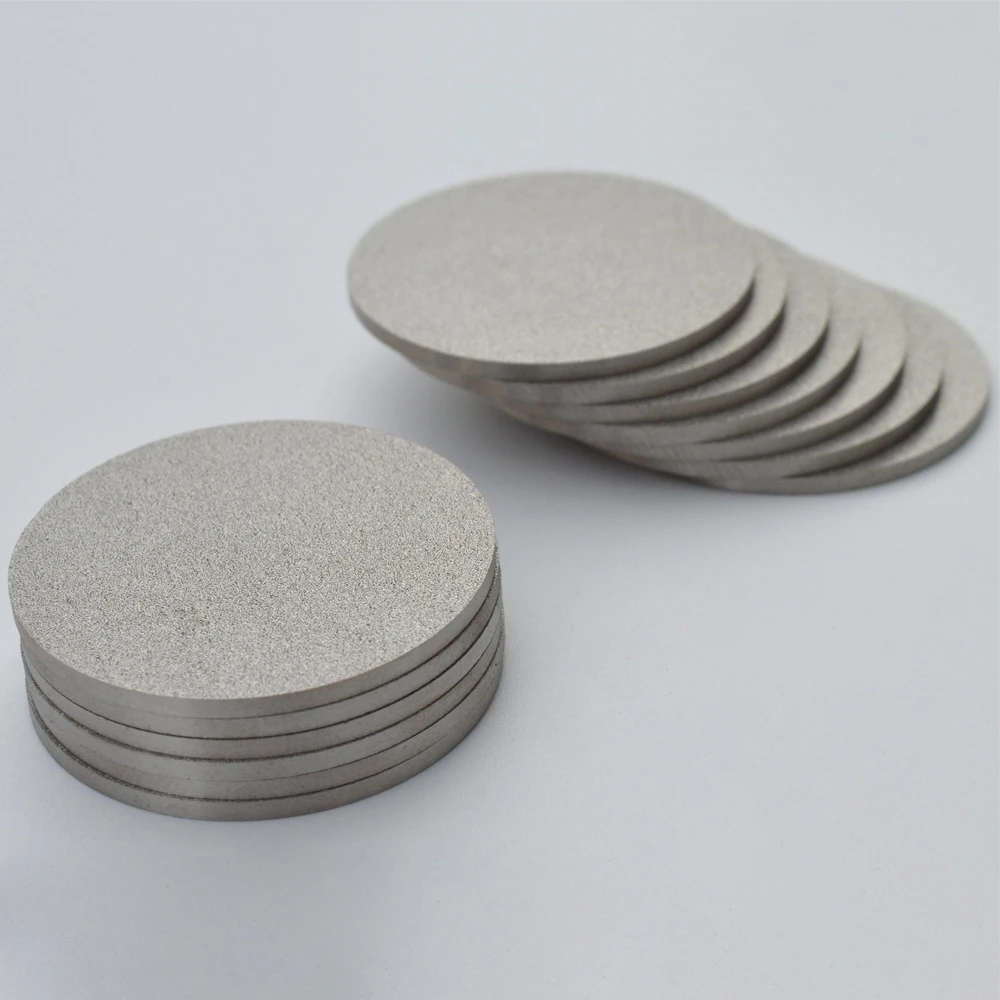

Backwashable filter strainer screw Stainless Steel sintered intered Filter Sheet Disc for gas buffer
- Category: >>>
- Supplier: Baoji City Changtai Metals Trading Co. Ltd.
Share on (62533123647):
Product Overview
Description
Product Description
Material | SS304,304L,306,306L |
Pore size | 5-200 microns |
Filtration Precision | 0.5-70microns |
Porosity | 20-50% |
Penetrability | 3-1300M³/M²hKPa |
Shape | Plate,Disc,Frits,Bar,Ring,Tube,Cone, Cup,Cap etc. |
Work Environment | Nitric acid,sulfuric acid,acetic acid,oxalic acid,phosphoric acid,5% hydrochloric acid,molten sodium,liquid hydrogen,nitrogen,hydrogen sulfide,acetylene,water vapor,gydrogen gas,carbon dioxide gas. |
Filtration grade | Filter rate (μm) | Pore size Max. (μm) | Permeability 10-12m² | Breathability m³/h.m².Kpa | Thickness (mm) | Compression strength Mpa/cm² |
S8 | 0.5 | 5 | 5 | 3 | 3.0 | |
S7 | 1 | 10 | 10 | 3 | 3.0 | |
S6 | 5 | 15 | 0.23 | 40 | 3 | 3.0 |
S5 | 10 | 30 | 1.81 | 160 | 3 | 3.0 |
S4 | 20 | 60 | 3.82 | 350 | 3 | 3.0 |
S3 | 30 | 100 | 7.29 | 500 | 3 | 2.5 |
S2 | 40 | 120 | 9.43 | 700 | 3 | 2.5 |
S1 | 70 | 180 | 15.1 | 1300 | 3 | 2.5 |
Manufacturing Technique
Details Images
Related Products
Certifications
Company Profile
Baoji City ChangTai Metal Trading Co.,Ltd.
Our Company is located in Baoji City which is know as the"Titanium City". Our factory was established in 2006,and as a professional manufacturer,we specialized in the production of kinds of titanium filter and stainless steel filter element material.
Our Supply Capacity:100000pcs / per month.
Delivery time :7-15 working days after payments.
Delivery time :7-15 working days after payments.
Packing & Delivery
In order to protect them from rubbing,make them wrapped with plastic bags respectively.
kraft paper is used to fasten the plates together,protect them from scattering.
Putting the foam in the wooden cartoon to protect them better while shipping.
Finally put the goods into wooden cases.
kraft paper is used to fasten the plates together,protect them from scattering.
Putting the foam in the wooden cartoon to protect them better while shipping.
Finally put the goods into wooden cases.
FAQ
1. Are you a factory or a trading company?
A: We are a factory which has been specialized in metal powder porous sintered filter material manufacturing for more than 12 years.
3. How long can I get some samples for checking and what about the price?
A: Normaly samples will be done within 1-2 days. The sample cost depends on all information (size, material, finish, etc.). We will return the sample cost if your order quantity is good.
2. Where is your factory and how can I visit it?
A: Our factory is located in Baoji city and you can get more detailed information by browsing our website: www.bjcstytitanium.com
A: Our factory is located in Baoji city and you can get more detailed information by browsing our website: www.bjcstytitanium.com
3. How long can I get some samples for checking and what about the price?
A: Normaly samples will be done within 1-2 days. The sample cost depends on all information (size, material, finish, etc.). We will return the sample cost if your order quantity is good.
4. How is the warranty of the products quality control?
A: We have a total of three inspection procedures from raw materials to finished products to aim at 100% error free.
A: We have a total of three inspection procedures from raw materials to finished products to aim at 100% error free.
