Dahua slitter 1.0 version Madical using infusion bag/plastic film/limation film slitter rewinder machine
- Category: Plastic Cutting Machines >>>
- Supplier: Hangzhou Dahua Industry Control Technology Co. Ltd.
Share on (62533145210):
Product Overview
Description
Product Description
Product Brief Introduction
This slitter is used to provide customized solutions for infusion bag/plastic film/limation film.
Its structure is very convenient and expandable, with certain versatility and good material adaptability.
This model is advanced in design, high speed, high efficiency, flexible and reliable. It is an international advanced level intelligent slitting and rewinding processing equipment.
Machine Specification
The following parameter is only for reference. The exact specification can be designed according to buyer's request
BASIC PARAMETERS | ||
Slitting Material | Infusion bag/plastic film/limation film | |
Material Thickness | 400um | |
Machanical Speed | 60m/min | |
Slitting Way | Razor | |
Unwinding Way | motor clamping | |
Unwinding Width | 700mm-1650mm | |
Unwinding Diameter | Max.900mm | |
Unwinding Core Size | 6 plastic core | |

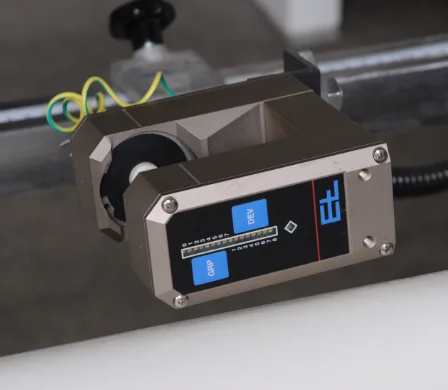

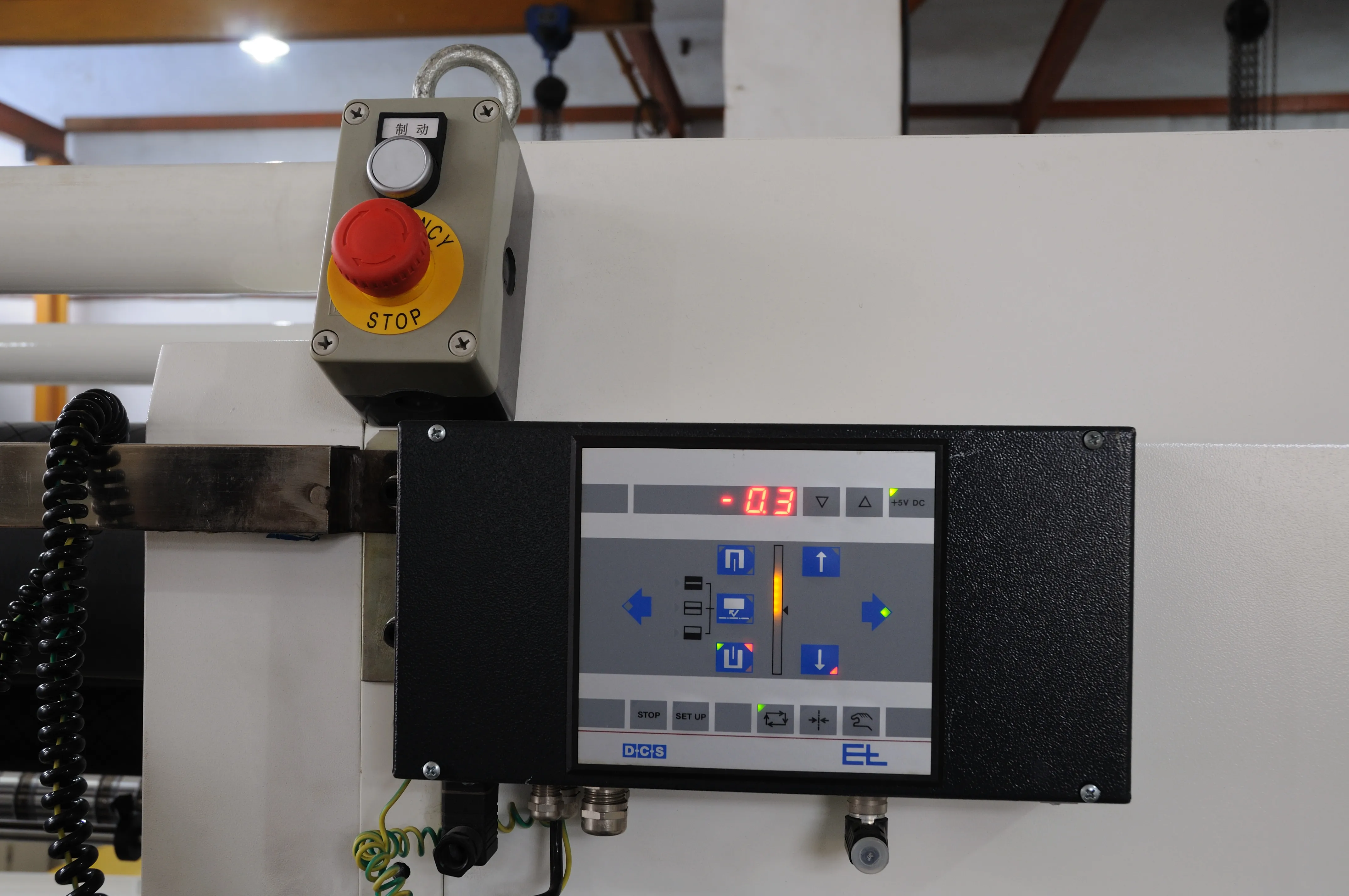

Edge guide Way | Edge guide system (Germany E+L),Ultrasonic edge（EPC） | |
Rewinding Way | Central shaft rewinding | |
Rewinding Width | 100mm-1650mm | |
Rewinding Diameter | 600mm | |
Rewinding Core Size | 6 plastic core | |
Rewinding roll quality(if any) | according to the customer | |
unloading Way | manual, storage roll unwinding | |
Edge Trim Way | Two edge trim rewinding machine rewind directly. | |
Equipment Power | Around 20KW | |
Equipment Size | Around Length 3600mm×Width 2200 mm ×Height 1700mm | |
Control System | Japan Mitsubishi | |

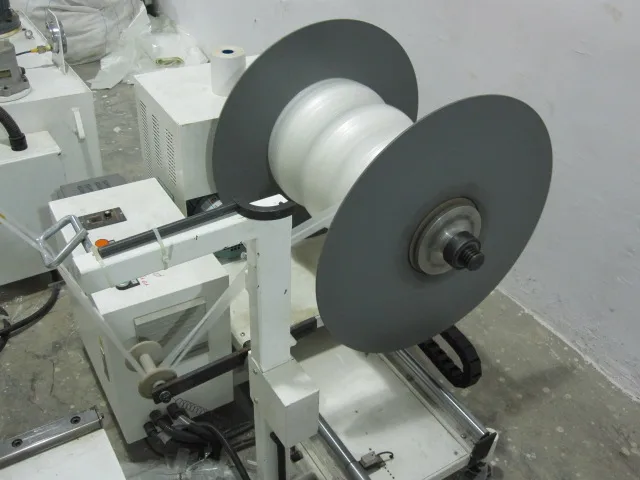

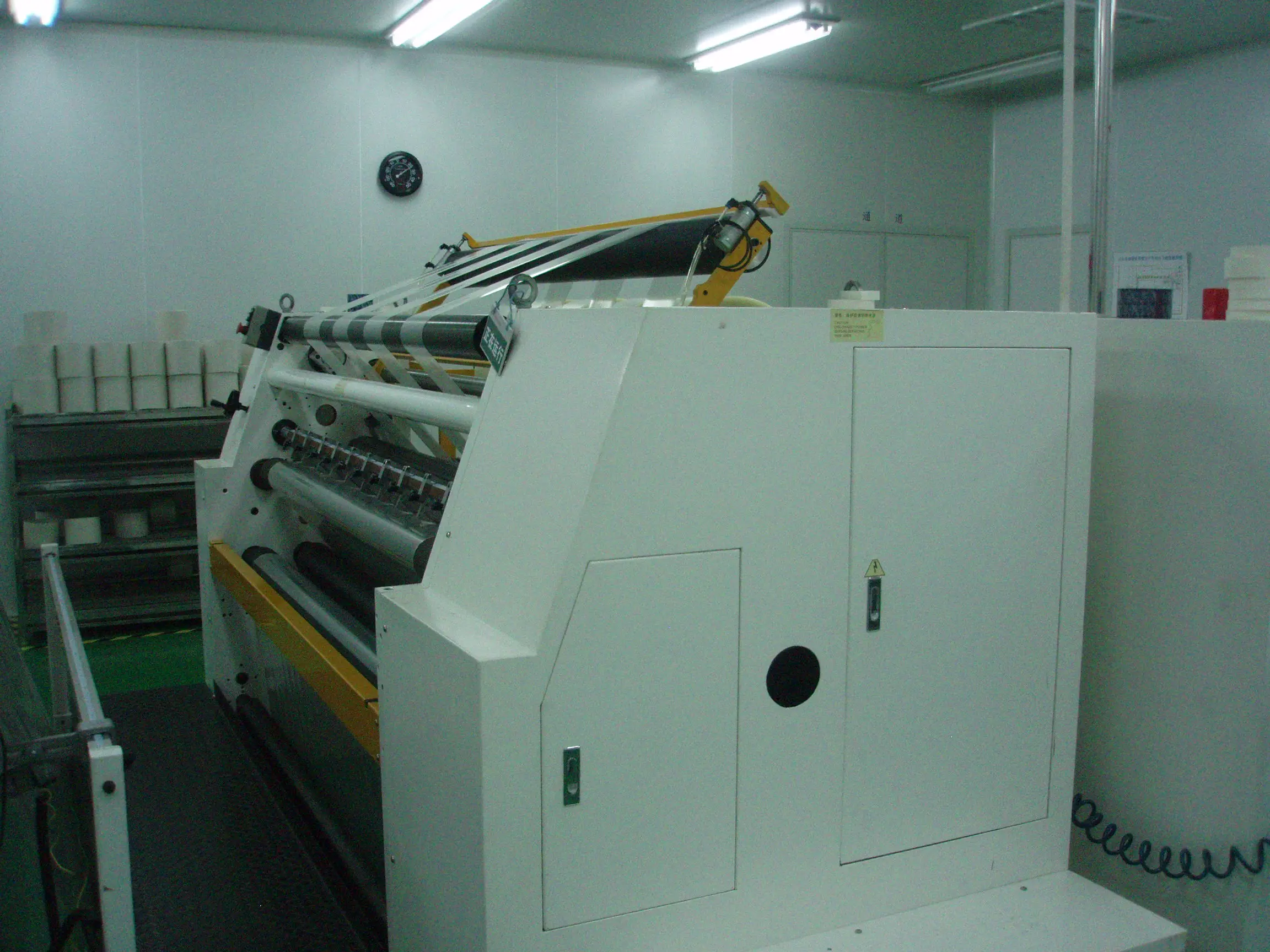

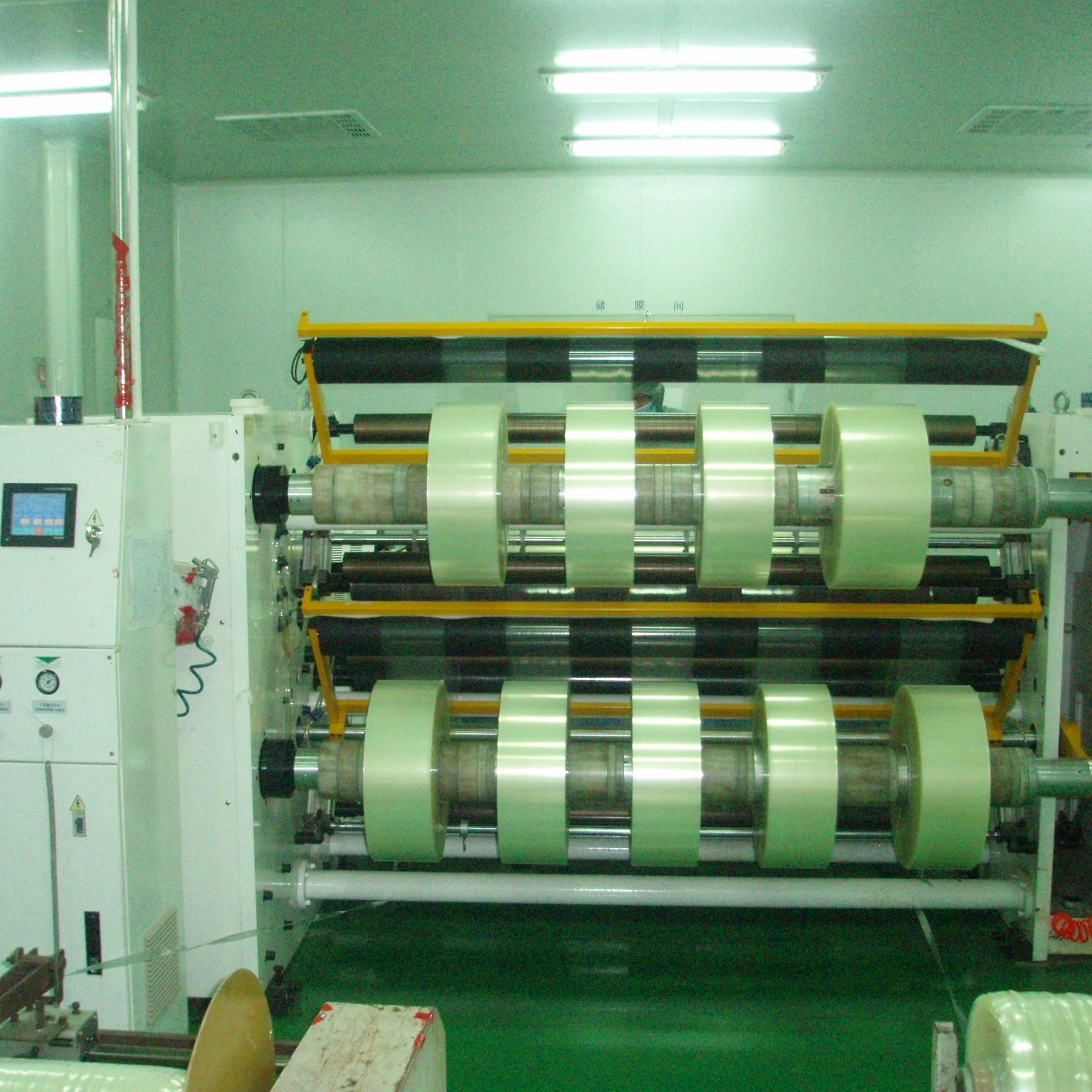

Detail Images
Equipment Main Feature
1、Intelligent control mode, one button works. |
2、Advanced structure, good adaptability, High precision of parts processing and assembly |
3、High-precision friction shaft effectively controls the tension of each roll and ensures the winding quality |
4、Provide the perfect solution with competitive price |
Acceptance index
1、60 m/min (qualified film roll, suitable winding width) |
2、Uniformity of slitting end face（Qualified material）: ±0.5mm。 |
3、The finished product has a uniform hardness and no scratch on the film surface. |
Special instructions of Equipment
1、Rewinding end face neat. |
2, The film surface is smooth and flat |
3、No wrinkles and scratches on the film roll surface |
4、Overall design with reasonable structure |
