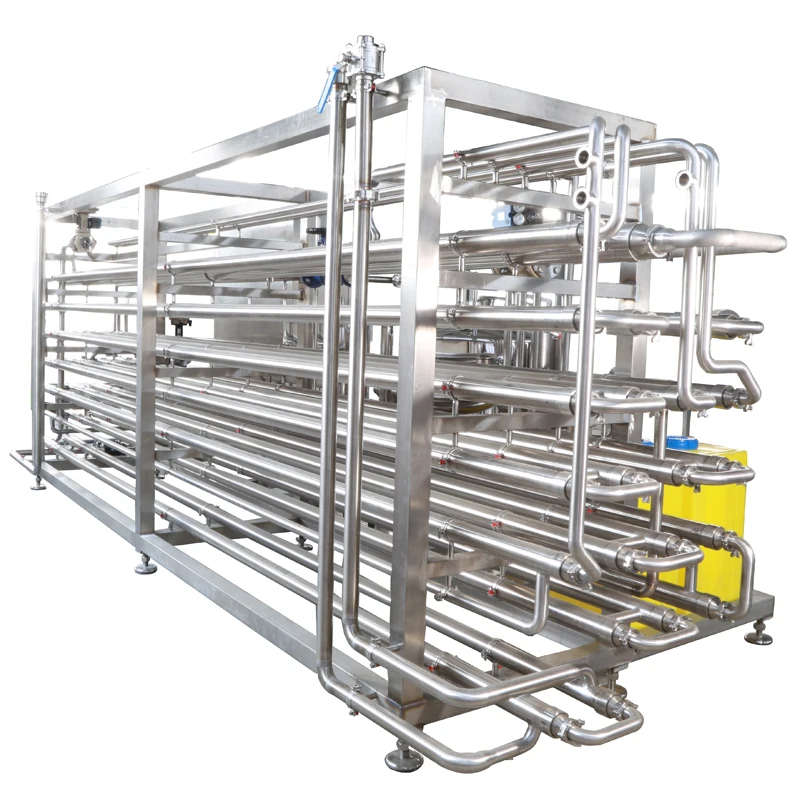

Трубчатый пастеризатор для фруктового сока, UHT для продажи
- Category: Sterilizer >>>
- Supplier: Shanghai Chun Nuo Machinery Co. Ltd.
Share on (62533219654):
Product Overview
Description
Product Description

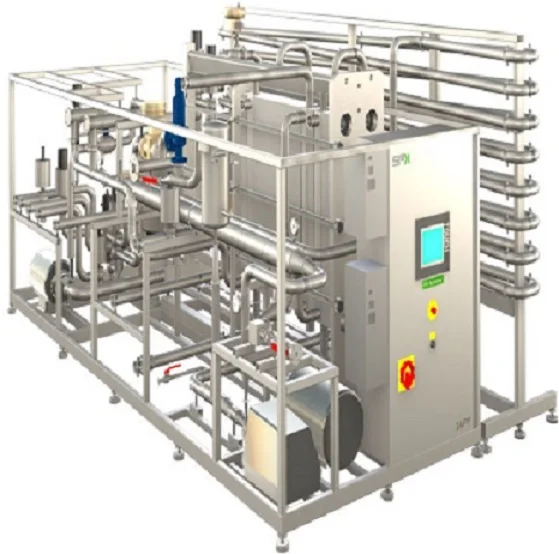

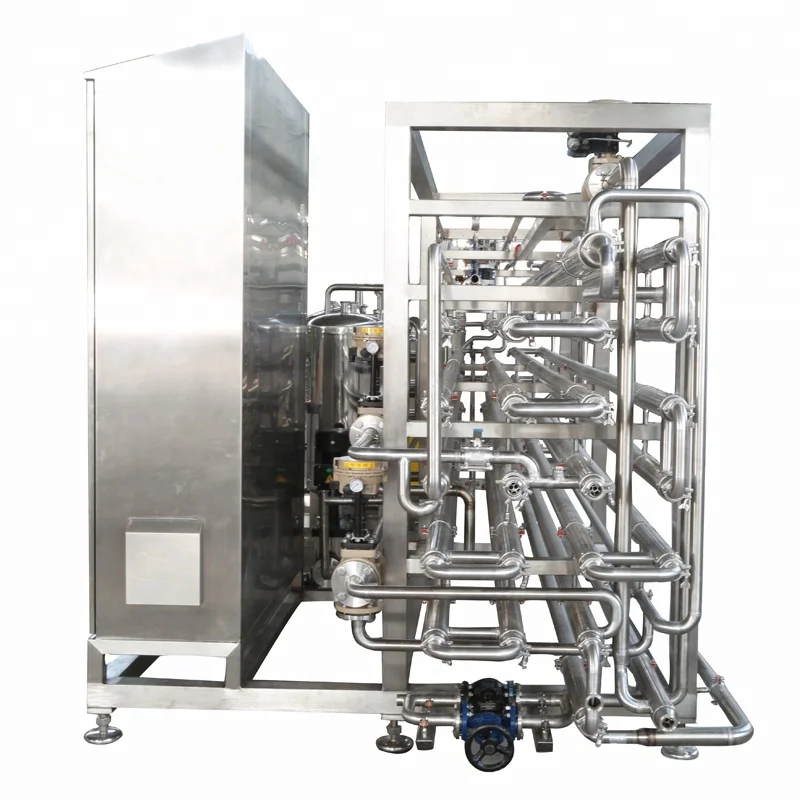

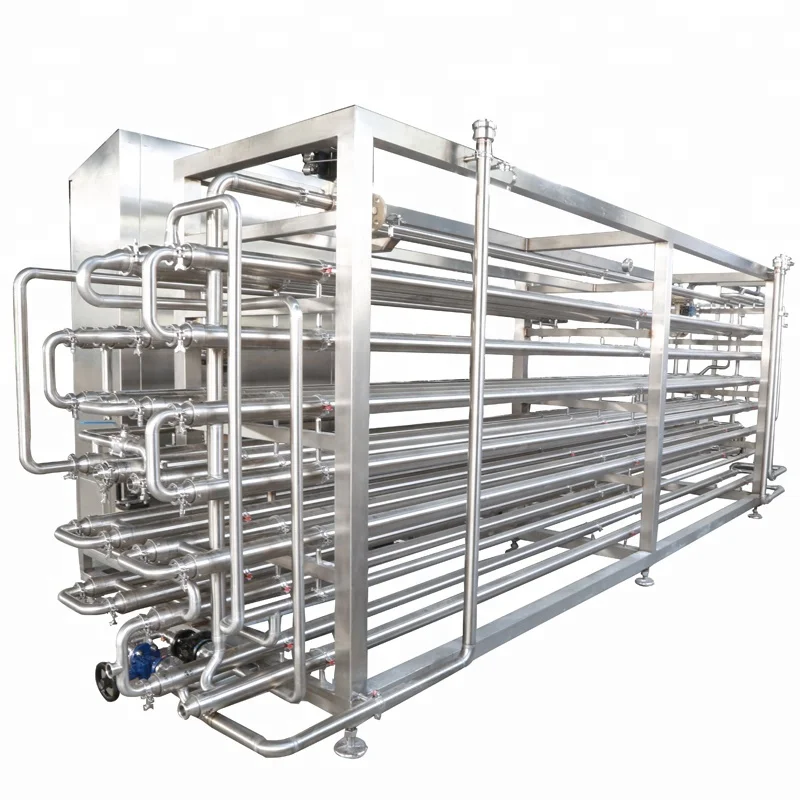

Tubular Pasteurizer for Fruit Juice, UHT for Sale
Tubular pasteurizer for fruit juice sterilizing temperature is about 135-140 degree celsius. Holding time is about 4-10S. This can meets the requirements of commercial sterilization. Sterilization means that it can takes certain strength heating to products which can make the microorganism and heatproof enzymes inactivity. This method can reach the standard of commercial sterilization. After sterilization the products can be stored for 1-12 month at room temperature. It can be used in dairy, beverage, beer and other food industry. In normal storage conditions, the products would not grow microorganism.
Detailed Images

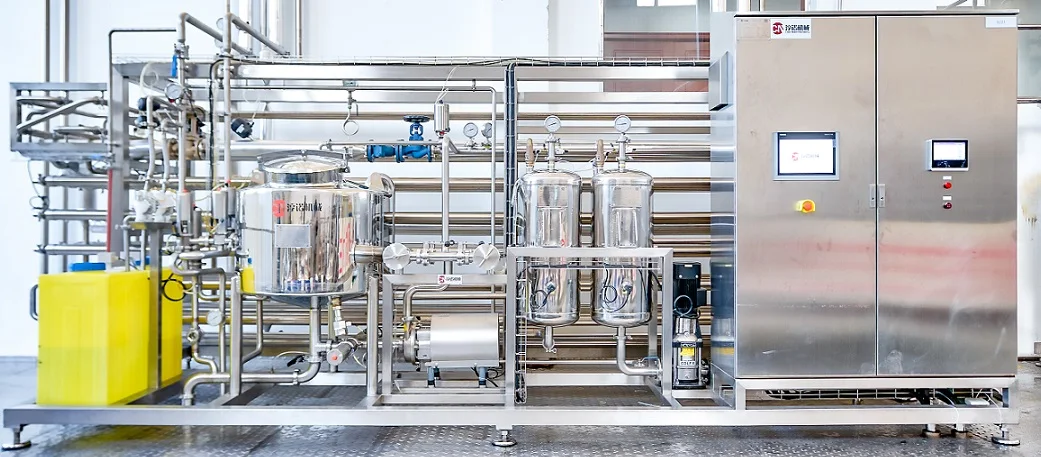

Process of tubular pasteurizer
The products from upper feed pipe enter into balance tank of uht sterilization machine. Then the output pump will transfer the products to tubular heat exchanger. The products will be preheated to 70 degree celsius in first stage. After that, the products will enter into degassing tank and homogenizer. After degassing and homogeneity, the product will enter into the second part of tubular heat exchanger. It will be continiously heated to 95 degree celsius and make the protein steady. When the protein is steady, the products will enter into the final heating part where the temperature can reach 135-140 degree celsius. Meanwhile it will be sterilized for 4-8 seconds. After sterilization the products will go through heat recovery part and cooling part. The products will cool to 25 degree celsius. It will enter into aseptic tanks or sterile filling machine.
Technical Parameters | ||
Model | Plate Type /Tubular | |
Material | SUS 304/ SUS 316 | |
Capacity | 500L/H-20000L/H | |
Operation Mode | Full-automatic, Semi-automatic(PLC Control, touch panel) | |
Sterilizing Temperature | 115°C-140°C | |
Holding Time | 4-8S | |
Major Configurations | tubular heat exchanger, pump, valves, pipes, electric control box | |

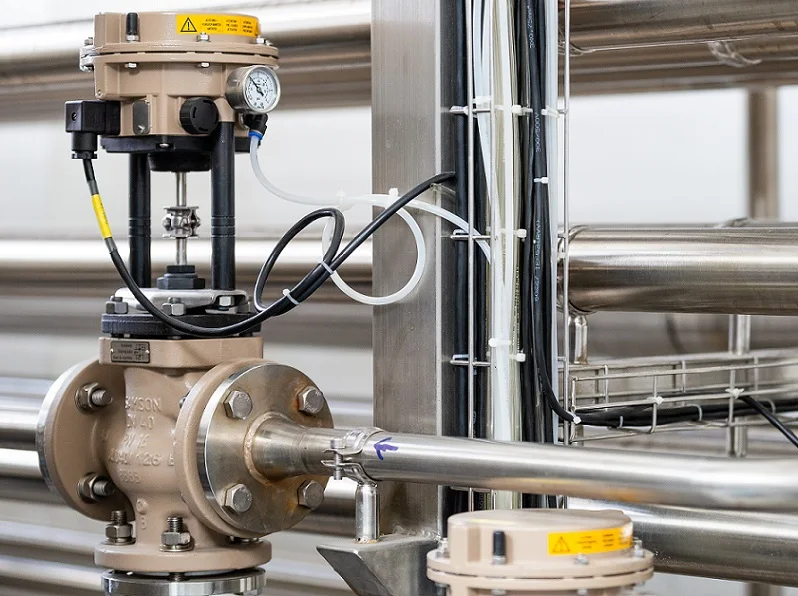

Valves | pneumatic reversing valve, pneumatic rotary butterfly valve, steam reducing valve, etc. | |
Chun Nobel UHT Sterilizer Advantages
1.Chun Nobel self-developed high-quality hygienic grade tube heat exchanger has longer service life, higher heat transfer efficiency, and reduces the quality risk of products due to leakage of inner tubes.

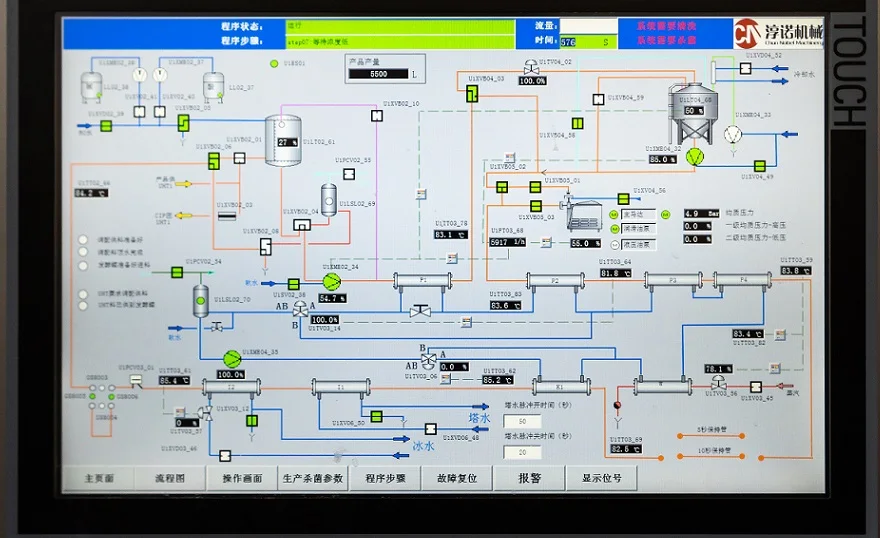

2. More optimized UHT touch screen program and PLC program make the equipment more reliable. Touch screen program and PLC program design make the operation easier, interface clearer and easy to operate.
3. We have purchased a complete set of calculation software of international food engineering design organization (equipment flow rate, pressure drop, pipe selection, etc.)

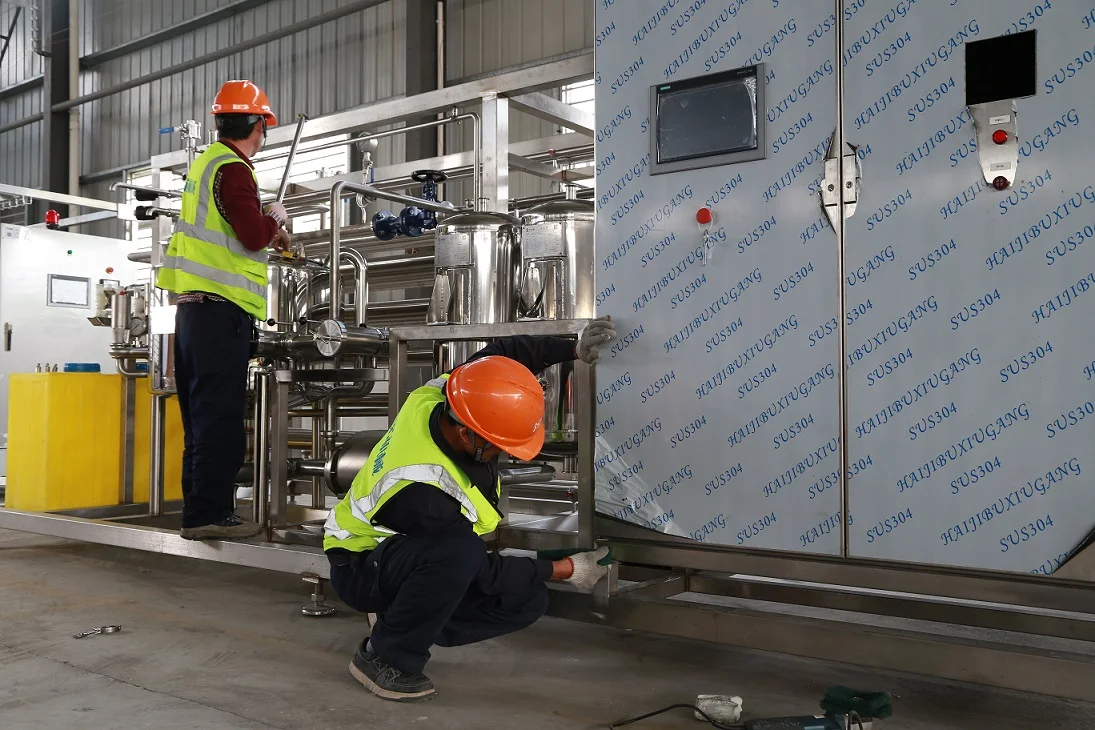

UHT pasteurizer for sale Installation Team
We have our own design and installation team for milk pasteurizer.
Chun Nobel Exhibition for UHT Sterilizer Tube
The outer and inner pipes are separated in structure design, which can easily pull out the inner pipes for cleaning and maintenance, and ensure that the inner and outer pipes have different thermal expansion and contraction during
heating and cooling.
