High efficient precast concrete Wall panel making machine/concrete sandwich wall board forming production line

Product Overview

Description



High efficient precast concrete Wall panel making machine/concrete sandwich wall board forming production line

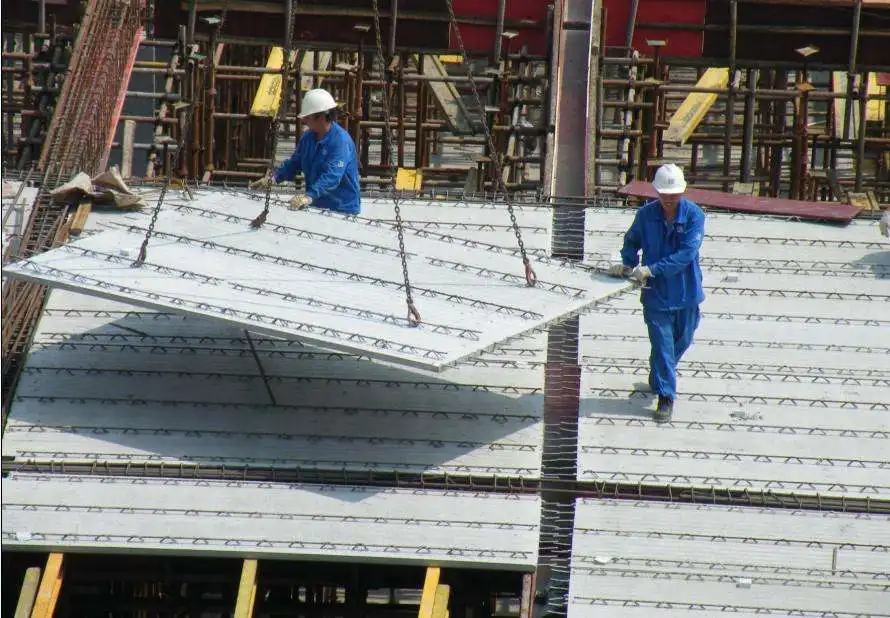

Prefabricated building refers to the building which transfers a large number of field work in the traditional construction mode to the factory, processes and manufactures building components and accessories (such as floors, wallboards, stairs, balconies, etc.) in the factory, transports them to the construction site, and assembles and installs them in the field through reliable connection mode.









♣ who we are ?

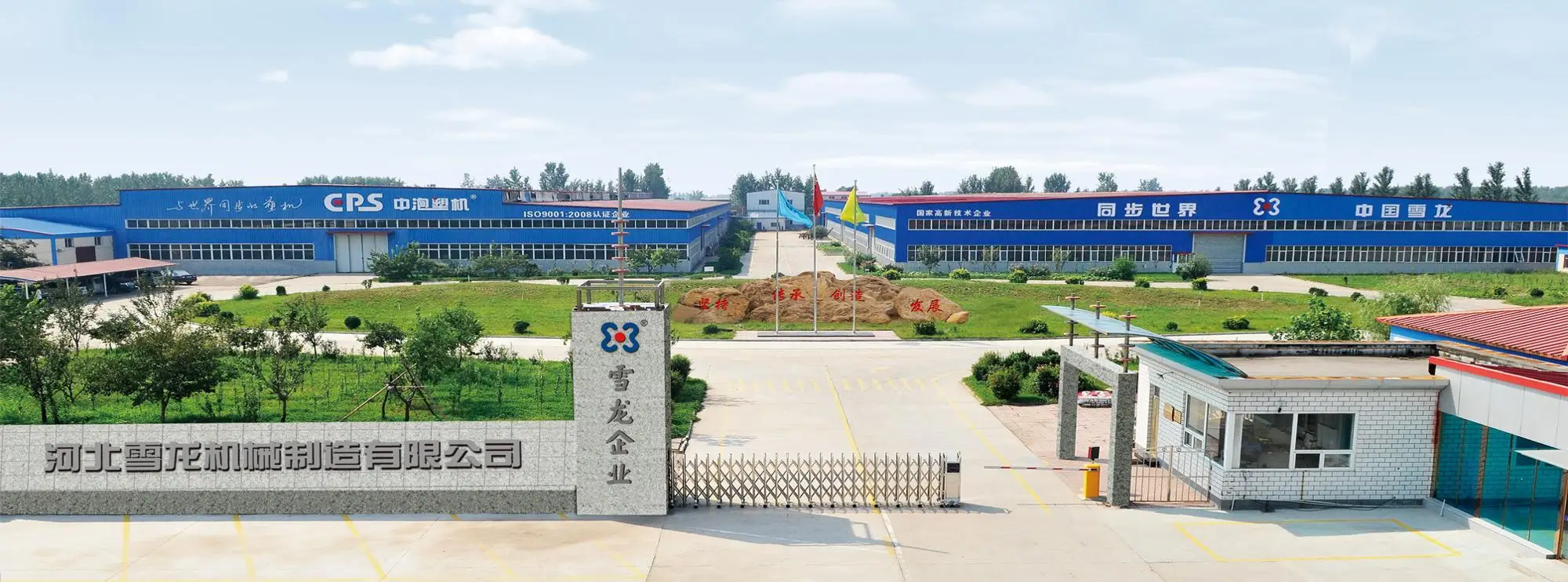

we are a professional supplier of High efficient precast concrete Wall panel making machine/concrete sandwich wall board forming production line .   located in Hebei Province of China .  1.5 hours from Beijing to my city by fast train .  Factory area 100000 sqm  from 1994 .



♣ How to get to our factory ?



(1) Fly to Beijing , then come to my city by fast train ,only 1.5 hours .



(2) Fly to Shanghai , then come to my city by air , only 2 hours .









♣ Introduction of our products : High efficient precast concrete Wall panel making machine/concrete sandwich wall board forming production line .



The High efficient precast concrete Wall panel making machine/concrete sandwich wall board forming production line  adopts a high-precision and high structural strength molding mold, in which the concrete is poured by an automatic spreader machine. The vibrating table is not demoulded immediately after vibration, but the production process of demoulding treatment is carried out when the component strength is ≥ 75% of the design strength through static maintenance and steam maintenance,



the complete production process incluidng Flying bucket , Concrete spreader , vibration table . curing chamber , tilting machine , steel pallets and so on .



♣ High efficient precast concrete Wall panel making machine/concrete sandwich wall board forming production line certification :









♣ Our factory team of High efficient precast concrete Wall panel making machine/concrete sandwich wall board forming production line   :

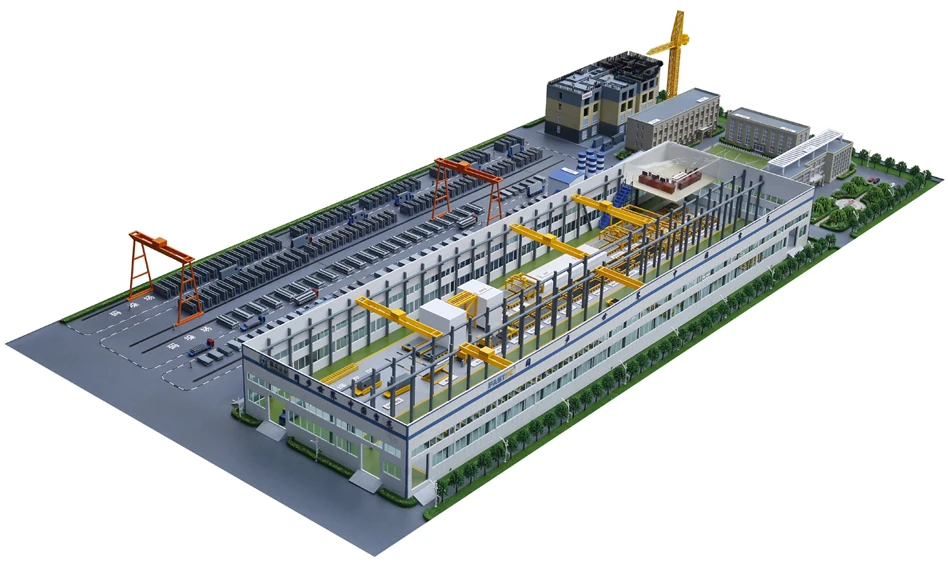

♣  High efficient precast concrete Wall panel making machine/concrete sandwich wall board forming production line layout :

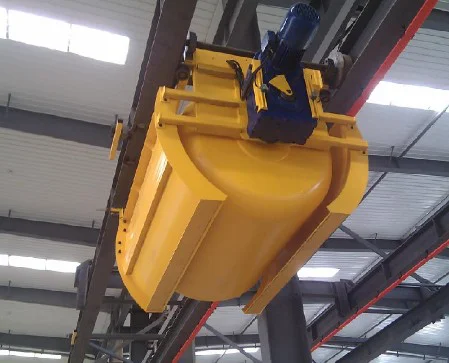

(1). Flying bucket



The concrete flying bucket is used for High efficient precast concrete Wall panel making machine/concrete sandwich wall board forming production line . It is an auxiliary equipment for the production line. The flying bucket is used to transport concrete from the concrete batching plant station to the cocnrete spreader machine.

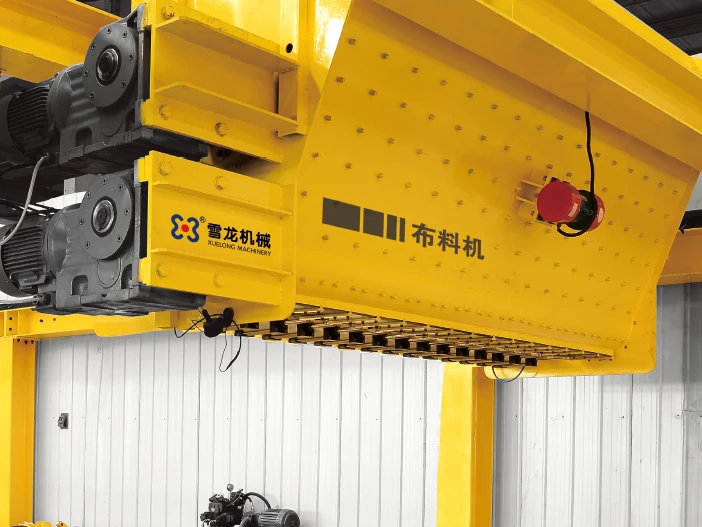

(2). Concrete spreader machine



The concrete spreader machine is used in the High efficient precast concrete Wall panel making machine/concrete sandwich wall board forming production line , and is the key equipment of the production line, and used for uniformly and quantitatively spreading concrete into the concrete elements molds.

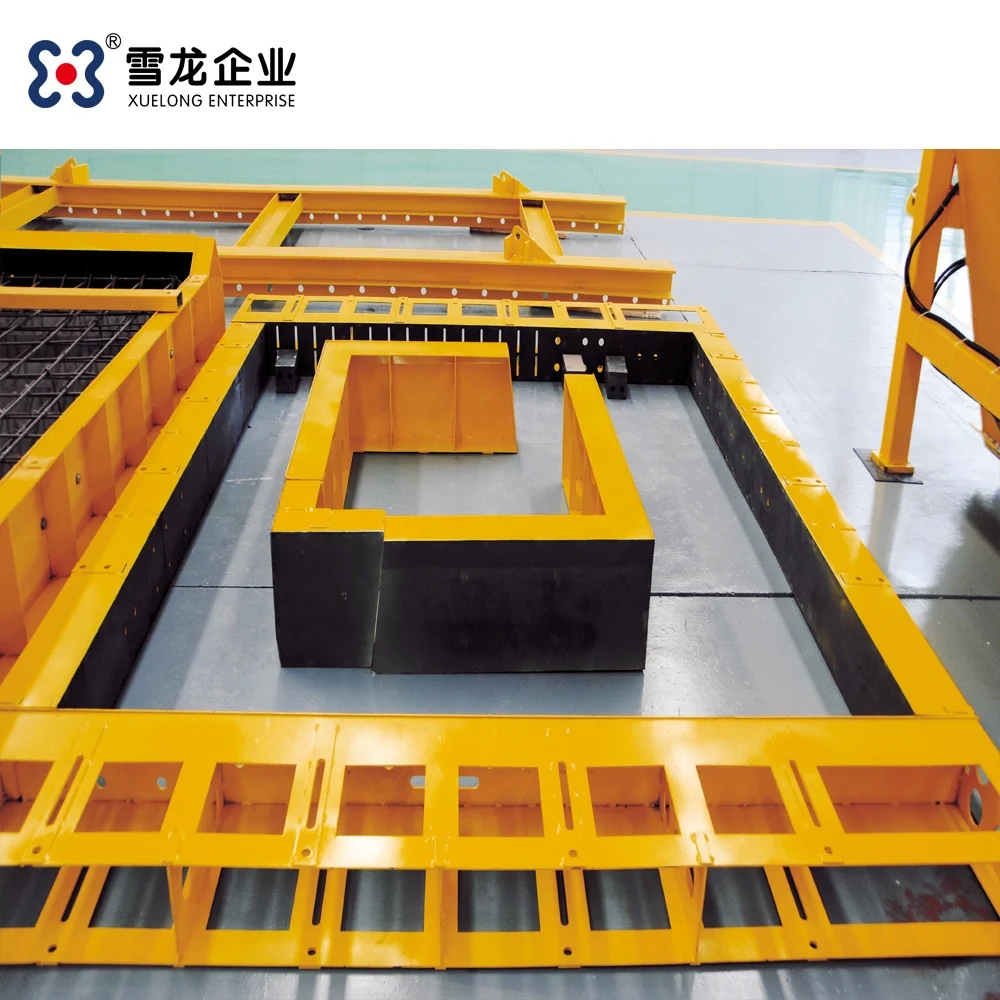

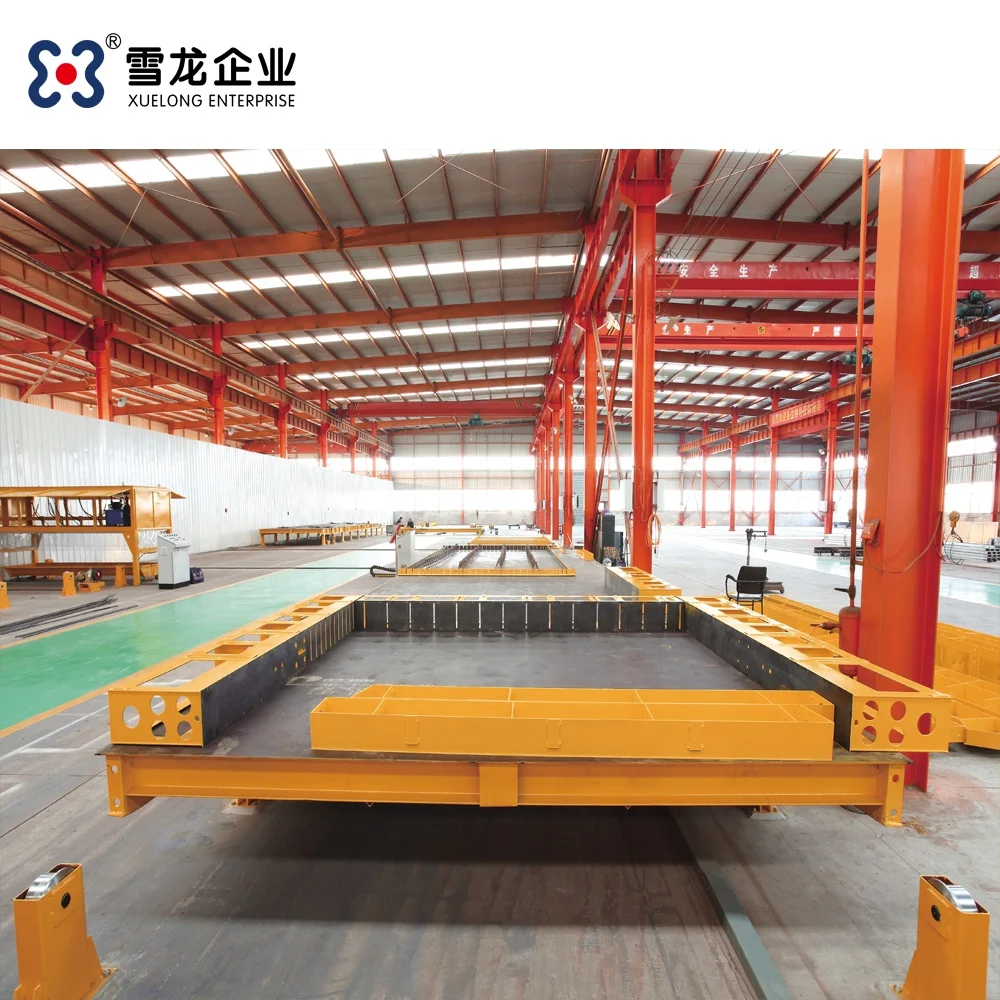

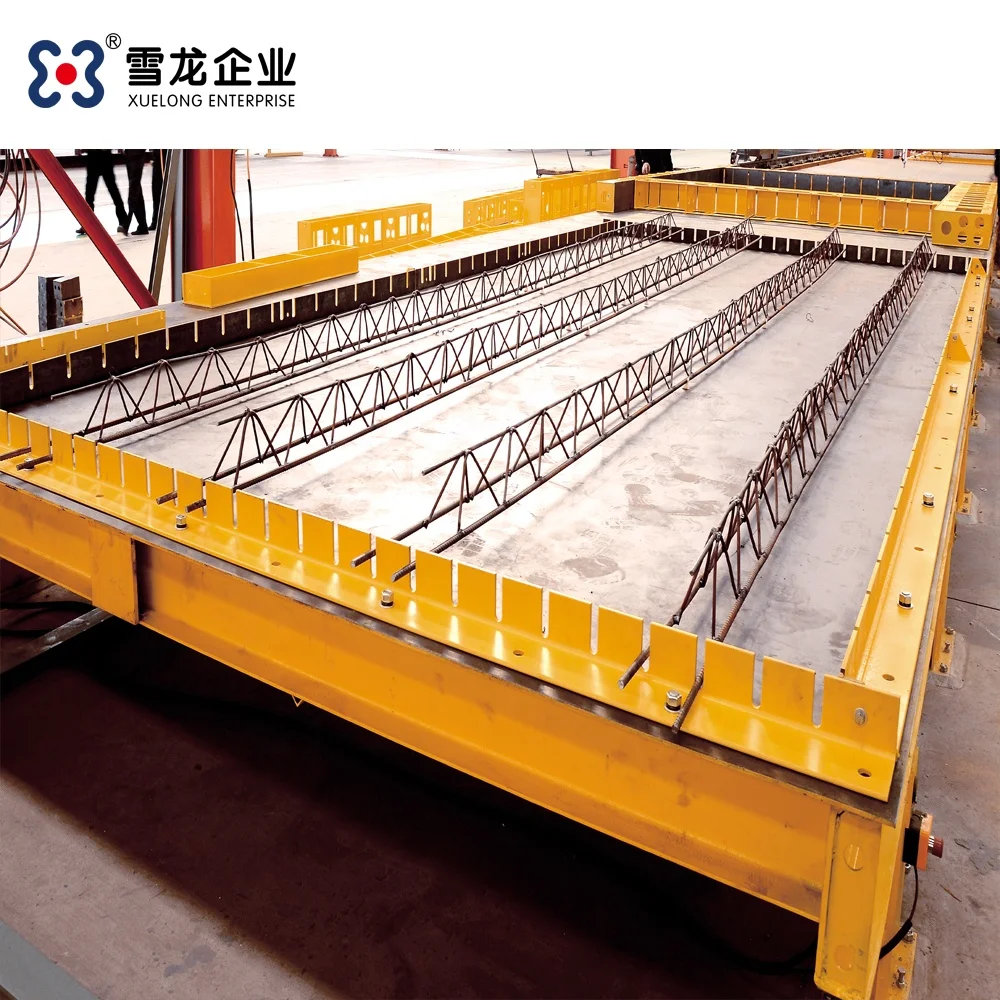

(3). steel pallets



steel pallet is consist of steel frame , anticollision device ,face-board . Circulation is key to produce PC components . PC component concrete distributing , vibration, forming ,curing and other procedures works on pallet
Edge shuttering is consist of solid edge shuttering , magnetic box and so on .   steel pallet size could be 7×3.5m,   8×3.5m ,  9×3.5m ,  9×4m, 10×3.5m , 10×4m and so on





4. tilting machine



The tilting machine is used for the High efficient precast concrete Wall panel making machine/concrete sandwich wall board forming production line . It is an auxiliary demoulding device for wall panels elements. It can tilt the pallet with the element to meet the requirements of concrete element lifting.

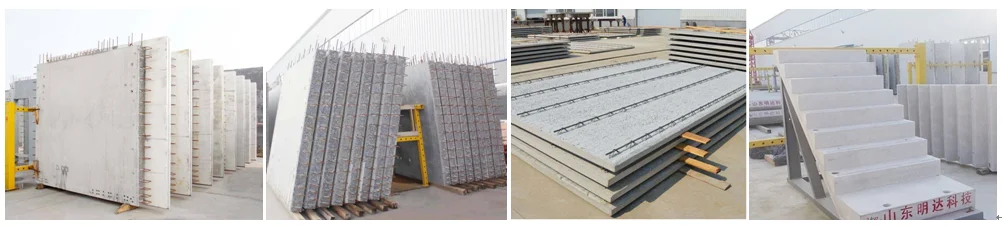

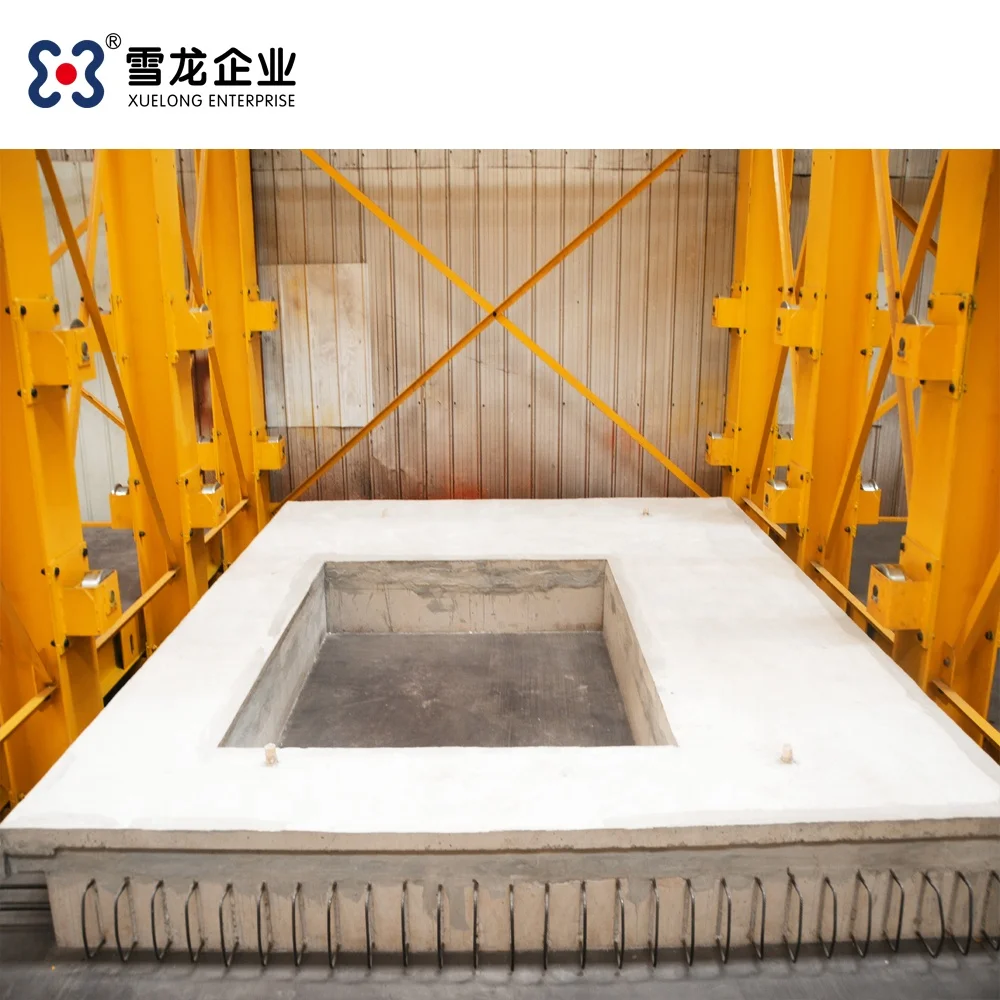

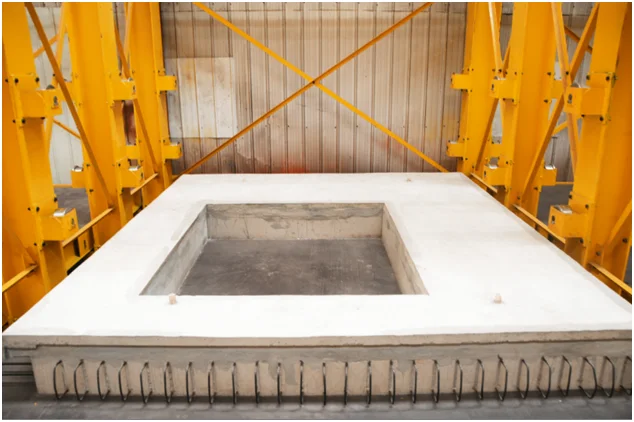

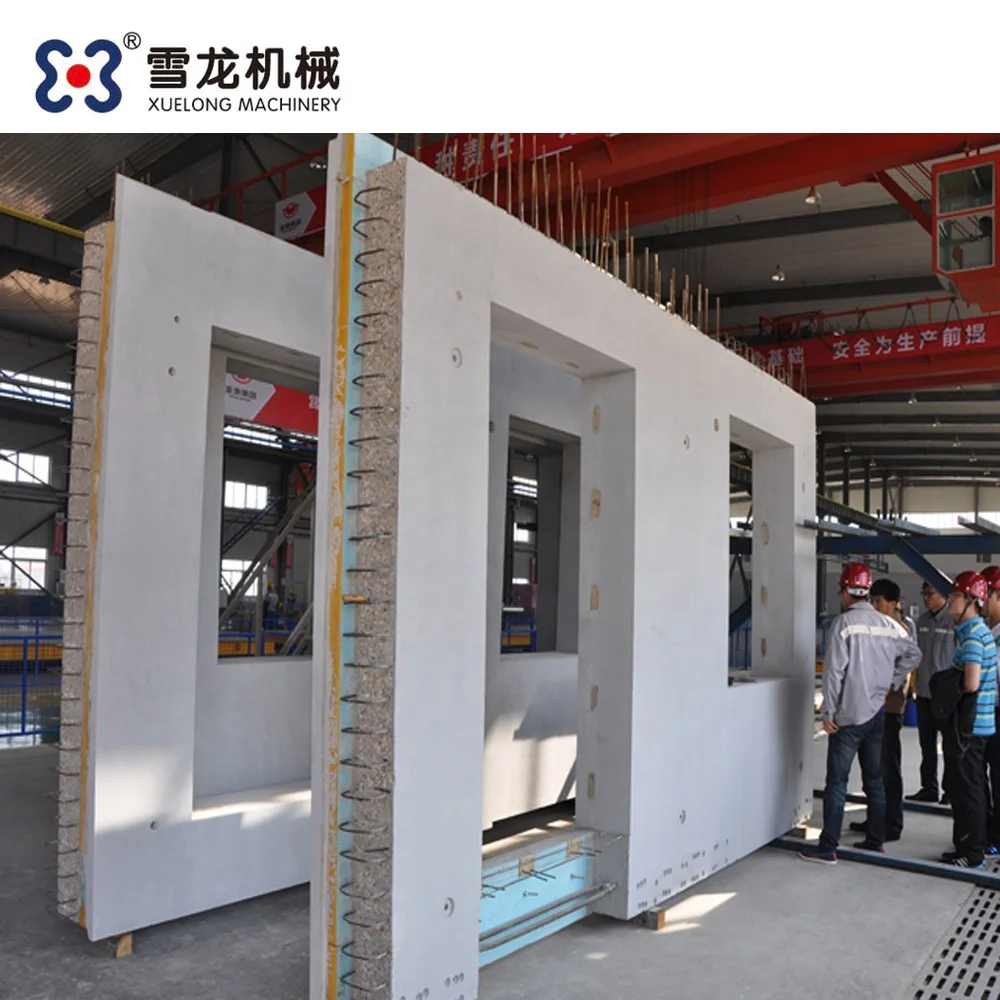

♣  precast concrete wall panels  produced by our High efficient precast concrete Wall panel making machine/concrete sandwich wall board forming production line   :





















♣  High efficient precast concrete Wall panel making machine/concrete sandwich wall board forming production line or spall parts packing :









♣ How to contact me for the cooperation of High efficient precast concrete Wall panel making machine/concrete sandwich wall board forming production line :
