China low speed 0.1NM 0.4A 12V gear stepper motor for telescope or Medical device
- Category: >>>
- Supplier: Beijing SDSW Technology Co. Ltd.
Share on (62533456940):
Product Overview
Description

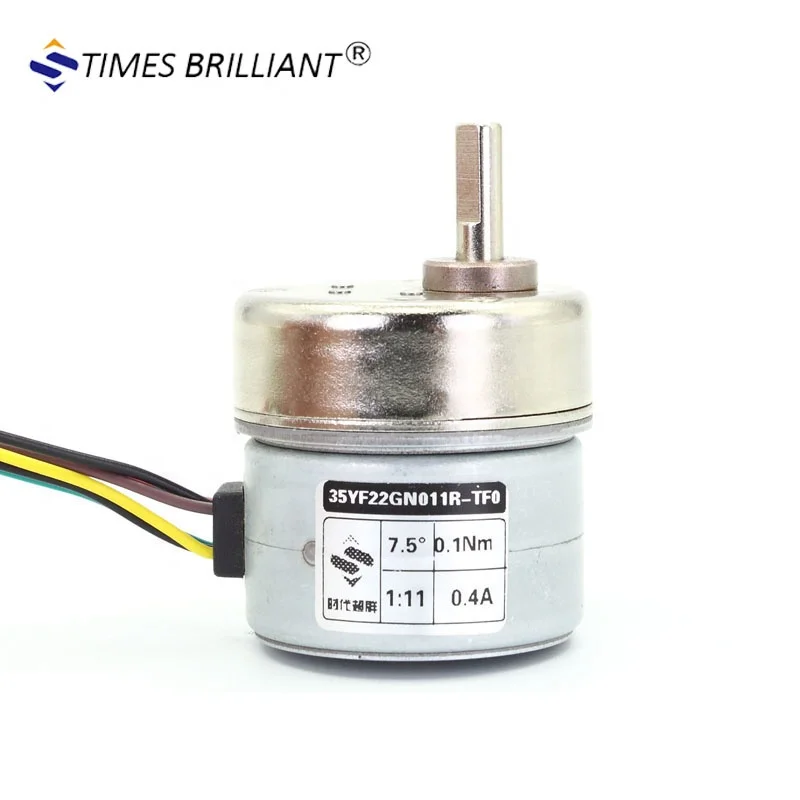

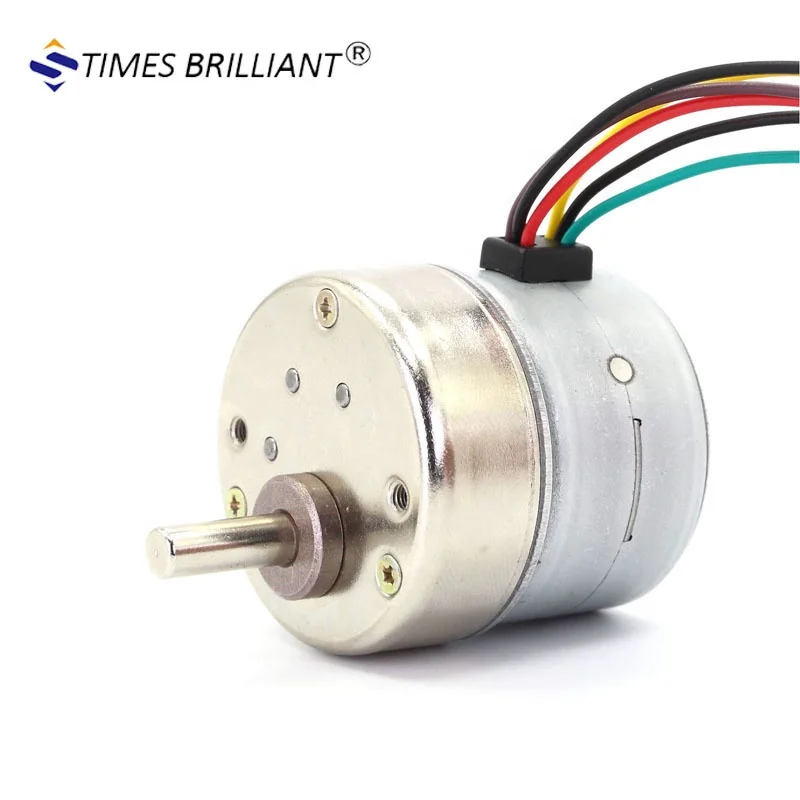

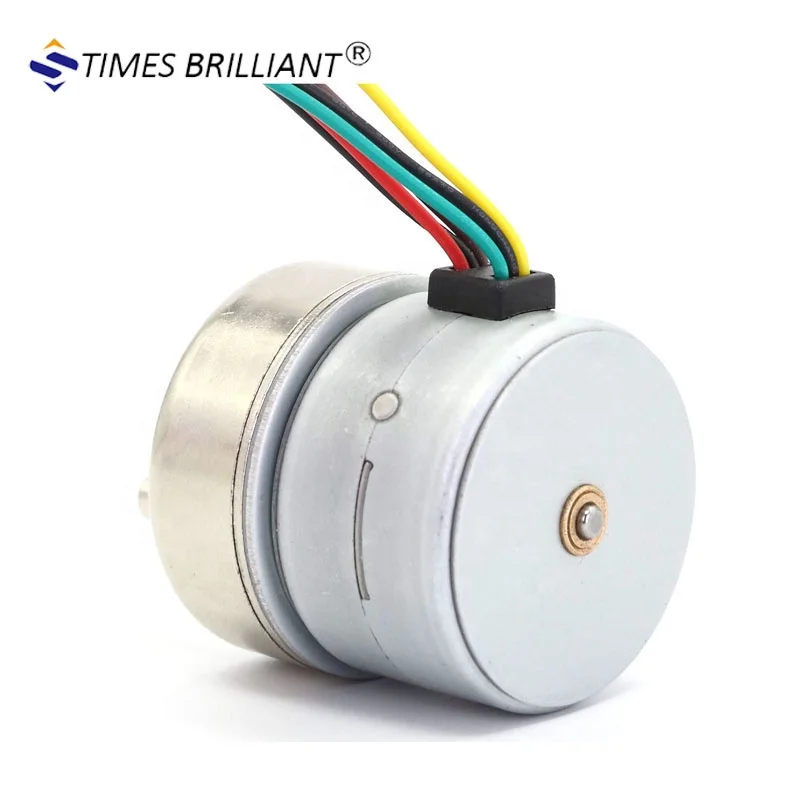

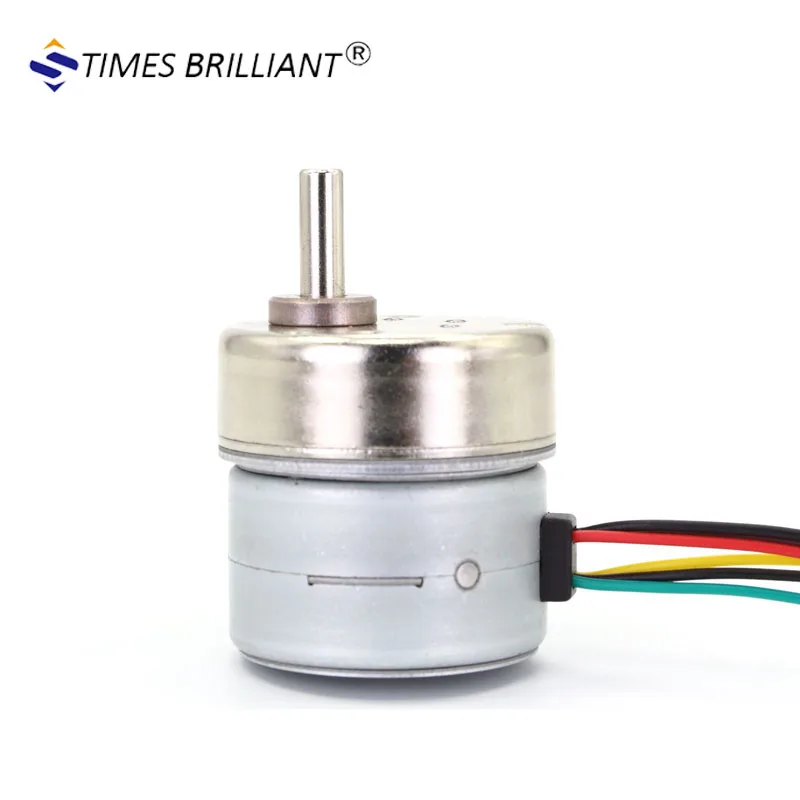

China low speed 0.1NM 0.4A 12V gear stepper motor for telescope or Medical device
Note: the motor with magnetic ,so magnetic inspection fee will be incurred during transportation. Please contact shop assistant to supplement it.large quantities can dispense with it
Related Products |
model | phase | stepper angle(°) | troque (Nm) | ratio | current(A) | Resistance(Ω) |
| 35YF22GN011R-TF0 | 2/4 | 7.5 | 0.1 | 1:11 | 0.4 | 30 |
| 35YF22GN030R-TF0 | 2/4 | 7.5 | 0.3 | 1:30 | 0.4 | 30 |
| 35YF22GN075R-TF0 | 2/4 | 7.5 | 0.8 | 1:75 | 0.4 | 30 |
| 35YF22GN120R-TF0 | 2/4 | 7.5 | 1 | 1:120 | 0.4 | 30 |
| 42YF22GN010S-TF0 | 2/4 | 7.5 | 0.1 | 1:10 | 0.4 | 30 |
| 42YF22GN025S-TF0 | 2/4 | 7.5 | 0.3 | 1:25 | 0.4 | 30 |
| 42YF22GN030R-TF0 | 2/4 | 7.5 | 0.4 | 1:30 | 0.4 | 30 |
| 42YF22GN050S-TF0 | 2/4 | 7.5 | 0.6 | 1:50 | 0.4 | 30 |
| 42YF22GN075R-TF0 | 2/4 | 7.5 | 0.8 | 1:75 | 0.4 | 30 |
| 42YF22GN120S-TF0 | 2/4 | 7.5 | 1 | 1:120 | 0.4 | 30 |
