High efficiency vibration polishing machine for metal plastic dryer machine
- Category: >>>
- Supplier: Dongguan Dongyuan Grinding Machinery Co. Ltd.
Share on (62533714162):
Product Overview
Description

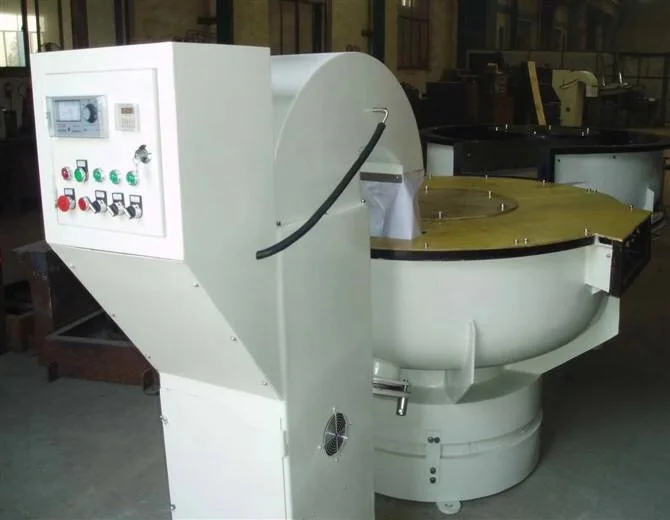

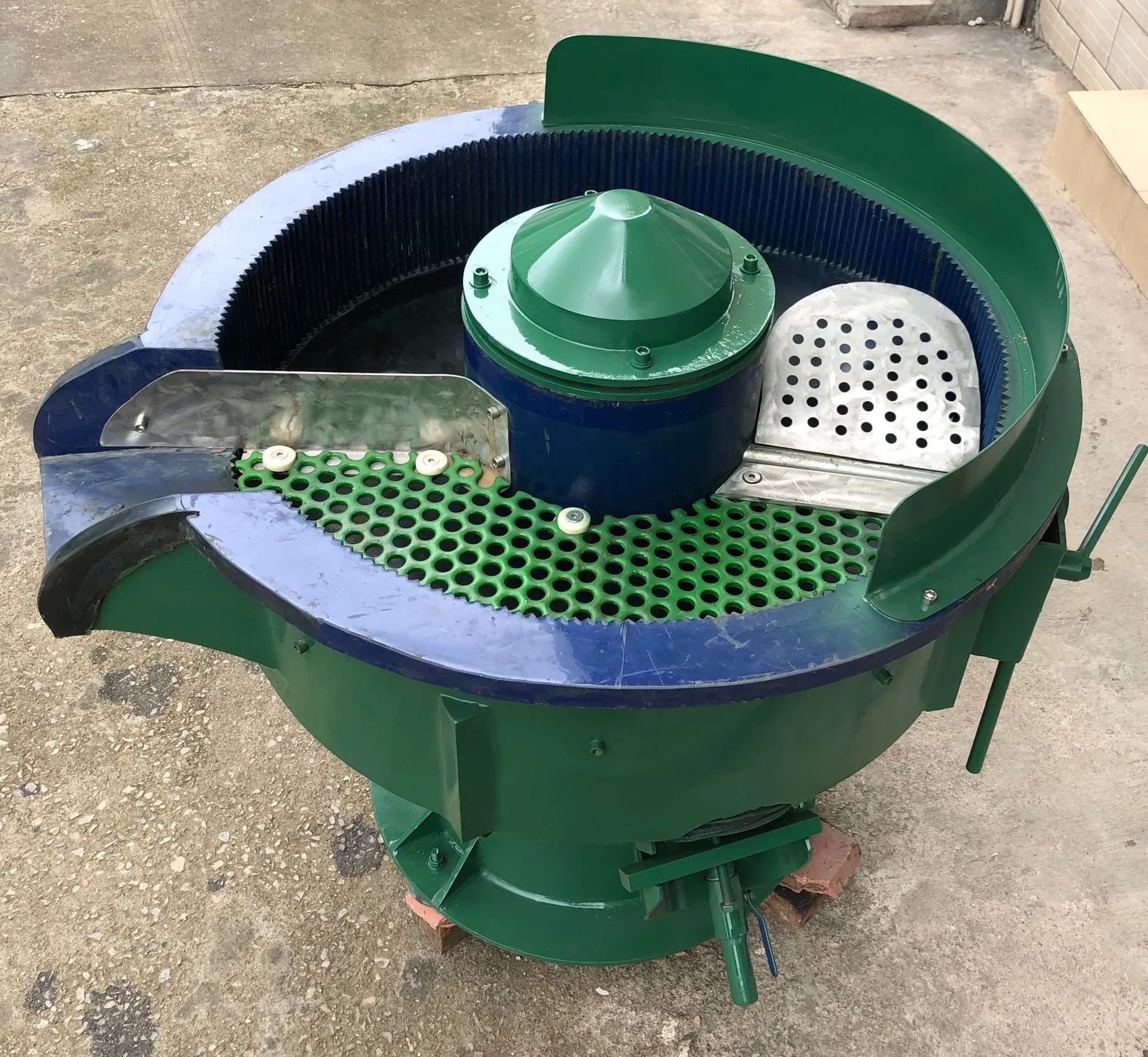

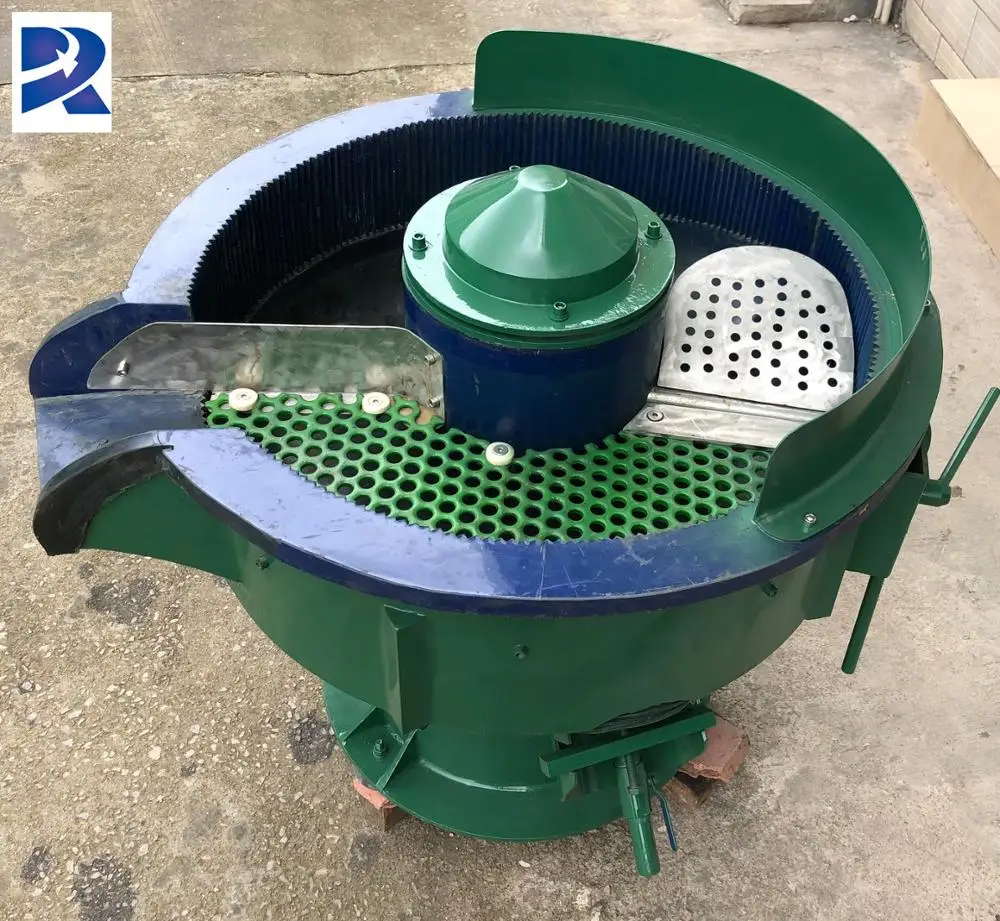

Industrial centrifugal vibratory tumbler vibration dryer machine corn cob
This machine is combining vibratory polishing and drying function in one machine, super high efficiency.
Feature:
a. Drying media within machine flows and recycled.
b. Parts evenly distribute among inner channel of vibratory dryer.
c. Dust cover with integrated suction fan and dust collector.
d. The constant relative movement between parts and medium has not only a drying but also a polishing effect on the parts.
e. Parts feeding opening and discharging opening design easy to connect with other working process, easy to realize production automation.
Application
The machine is widely used for workpiece surface polishing, chamfering, deburring,derusting, spot removing,fine grinding, coarse grinding, precision grinding, gloss polishing and vibrating finishing before plating which covers die-casted parts, stamping parts, sheetmetal parts, bicycle parts, furniture hardwares, clothing hardwares, luggage and box hardwares, glasses parts, medical instruments, bearings, music equipments, Metal fishing tackles, instruments and meters,arts and crafts, daily necessories, clocks and watches accessories, locks, electronic parts, hand tools(wrench, socket, nozzle etc.) , jewelry, powder metallurgy and resin parts etc.
a. Drying media within machine flows and recycled.
b. Parts evenly distribute among inner channel of vibratory dryer.
c. Dust cover with integrated suction fan and dust collector.
d. The constant relative movement between parts and medium has not only a drying but also a polishing effect on the parts.
e. Parts feeding opening and discharging opening design easy to connect with other working process, easy to realize production automation.
Model | Volume | Weight | Speed(rpm) | Watt(KW) | Machine Size(mm) | Inner adhesive |
ZHM-60A | 60L | 100kg | 1450 | 0.75-1.1 | 700*640*700 | 6-12mm |
ZHM-95A | 95L | 125kg | 1450 | 1.1 | 860*800*750 | 6-12mm |
ZHM-135B | 135L | 350kg | 1450 | 2.2-3.0 | 1150*1060*900 | 6-15mm |
ZHM-150A | 150L | 380kg | 1450 | 2.2-3.0 | 1150*1050*900 | 6-15mm |
ZHM-150AB | 150L | 380kg | 1450 | 2.2-3.0 | 1150*1100*900 | 6-15mm |
ZHM-350B | 350L | 800kg | 1450 | 3.7 | 1500*1350*1050 | 6-20mm |
ZHM-350A | 350L | 800kg | 1450 | 3.7 | 1450*1350*1050 | 6-20mm |
ZHM-350AB | 350L | 800kg | 1450 | 3.7 | 1450*1350*1050 | 6-20mm |
ZHM-450A | 450L | 1000kg | 1450 | 5.5 | 1550*1430*1050 | 6-20mm |
ZHM-450AB | 450L | 1000kg | 1450 | 5.5 | 1600*1430*1050 | 6-20mm |
ZHM-650A | 650L | 1500kg | 1450 | 7.5 | 1900*1850*1300 | 6-20mm |
ZHM-650B | 650L | 1500kg | 1450 | 7.5 | 1850*1800*1400 | 6-20mm |
ZHM-650AB | 650L | 1500kg | 1450 | 7.5 | 2000*1850*1300 | 6-20mm |
Application
The machine is widely used for workpiece surface polishing, chamfering, deburring,derusting, spot removing,fine grinding, coarse grinding, precision grinding, gloss polishing and vibrating finishing before plating which covers die-casted parts, stamping parts, sheetmetal parts, bicycle parts, furniture hardwares, clothing hardwares, luggage and box hardwares, glasses parts, medical instruments, bearings, music equipments, Metal fishing tackles, instruments and meters,arts and crafts, daily necessories, clocks and watches accessories, locks, electronic parts, hand tools(wrench, socket, nozzle etc.) , jewelry, powder metallurgy and resin parts etc.

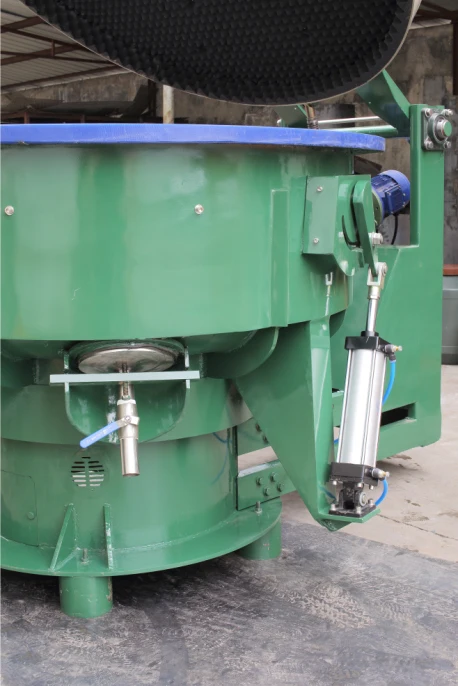

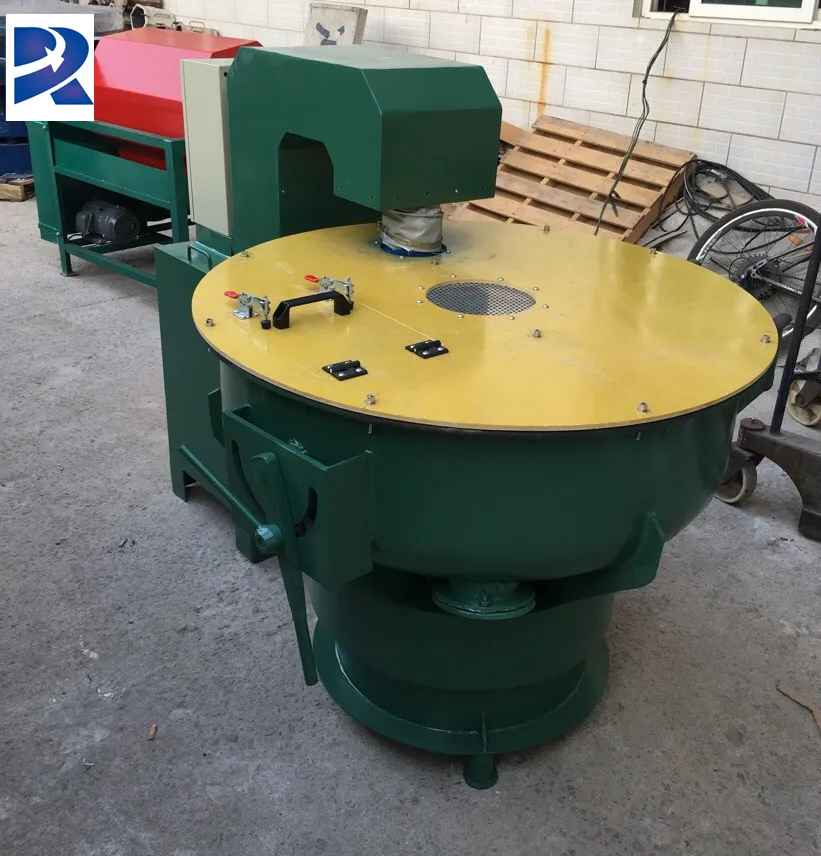

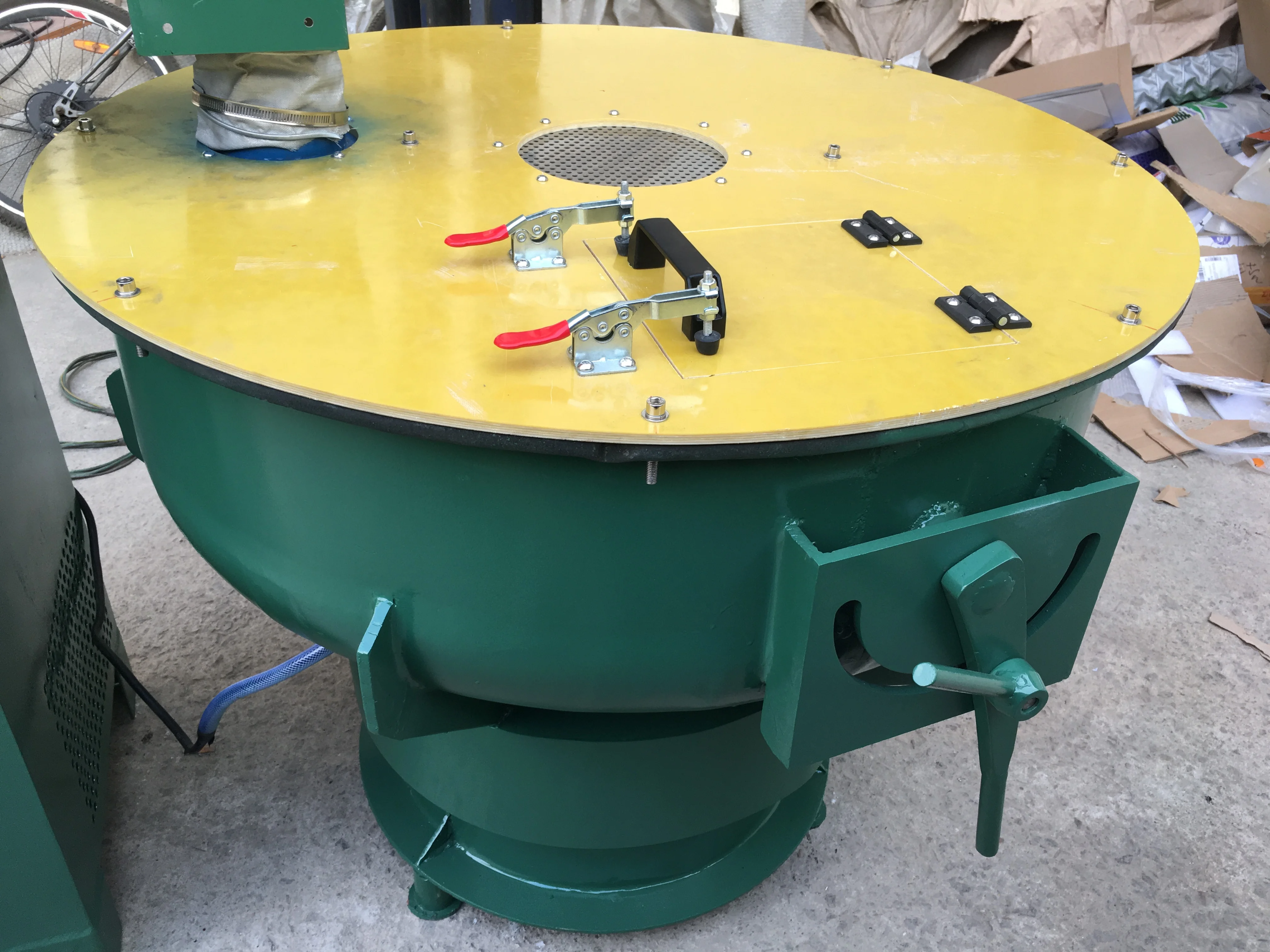

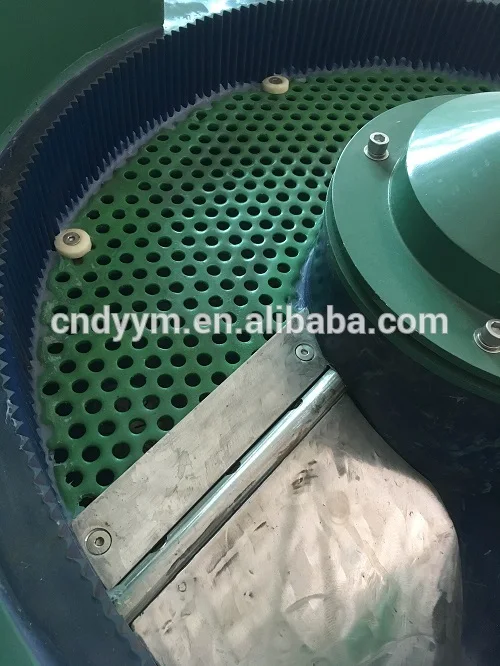

Machine Details
Recommend Products
DISC polishing machine
Magnetic polishing machine
Centrifugal dryer
Rotary polishing machine
Drag finishing machine
Centrifugal polishing machine
Polishing Media
Below the all kinds of polishing media that suitable for vibratory polishing machine when polishing different workpieces.
