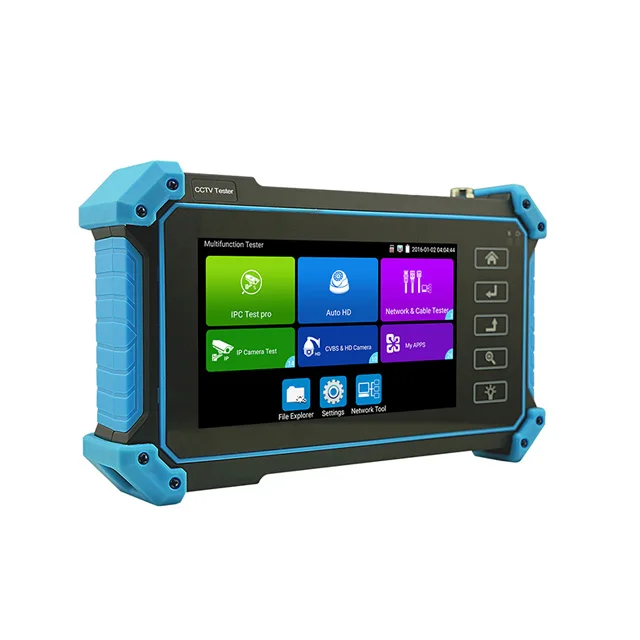

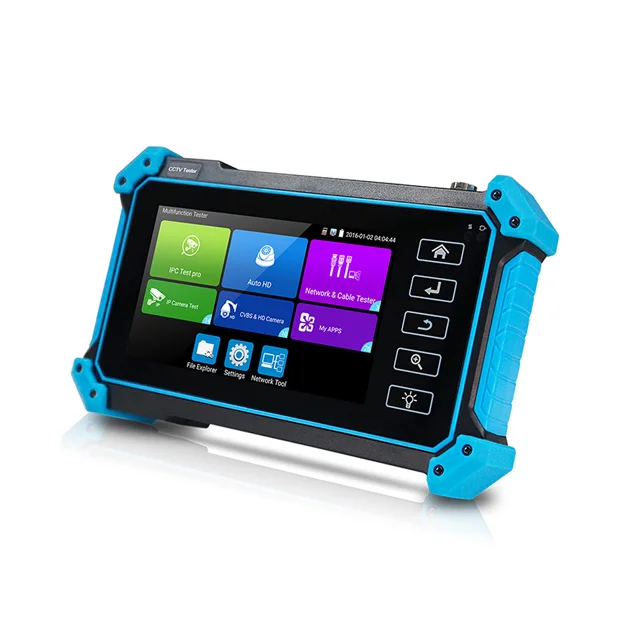

Top selling 5 inch 1920*1080 POE all in one camera tester HD & VGA input

Product Overview

Description

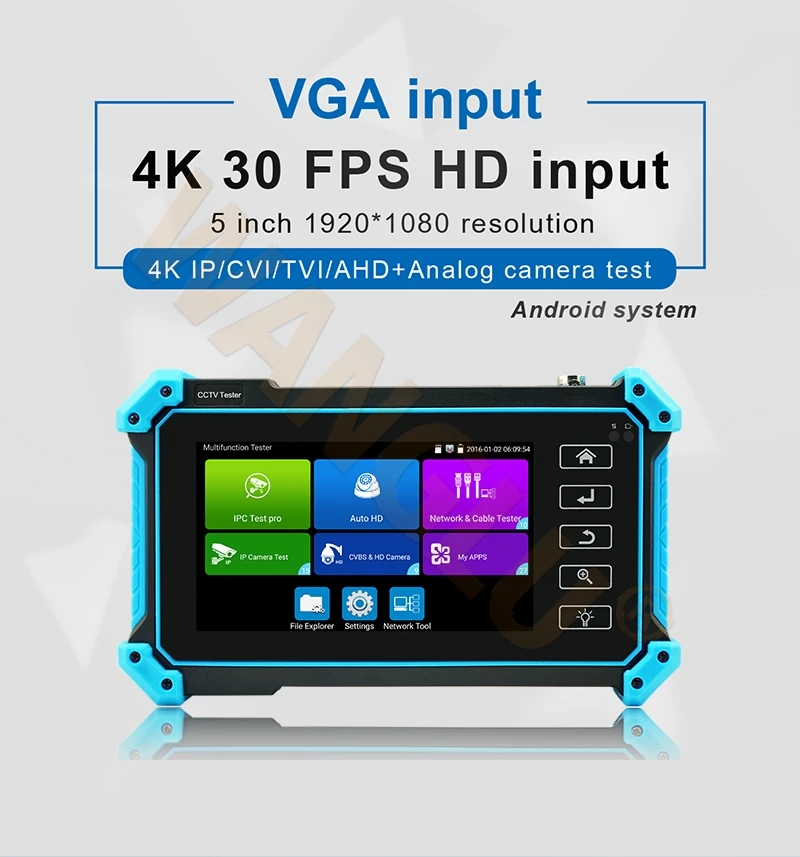

WANGLU Newest 5 inch IP Analog AHD TVI CVI CCTV tester HD Input, VGA Input

IPS touch screen, 1920*1080 resolution



Model : IPC-5100 Plus

4K H.265/H.264, 8MP TVI, 8MP CVI, 8MP AHD IP Camera Tester



Features

Camera test:

— 5 inch IPS touch screen, 1920*1080 resolution

— H.265 & H .264 IP, 4K video display via mainstream

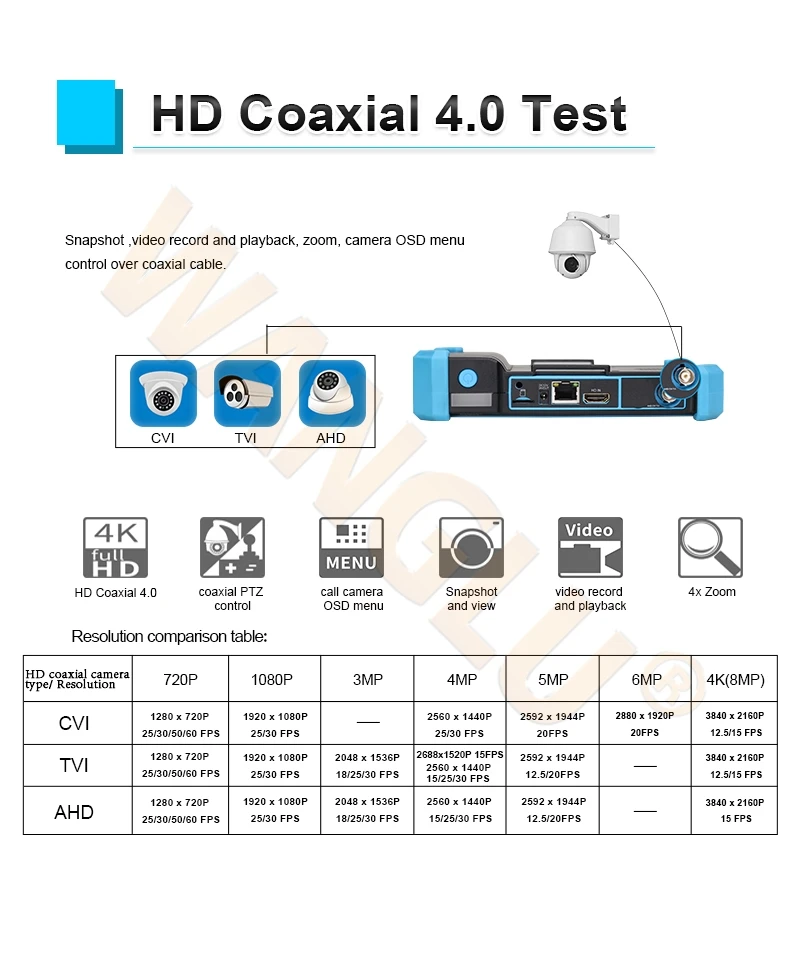

— 8MP TVI test,3840 x 2160P 12.5/15 FPS,4xzoom ,video record &playback ,coaxial PTZ control & call OSD menu *

— 8MP AHD test, 3840x2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *

— 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *

— Rapid ONVIF, Auto log in and display image, create testing report

— IP and analog display image at the same time

— IPC TEST (Non-ONVIF test)

— CVBS camera test, PTZ controller

— DC12V/3A power output, camera can be powered from DC 12Votage

— Rapid video, just by one key to detect all network cameras and auto display

— Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

— CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable

— Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

Cable test:

— Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized

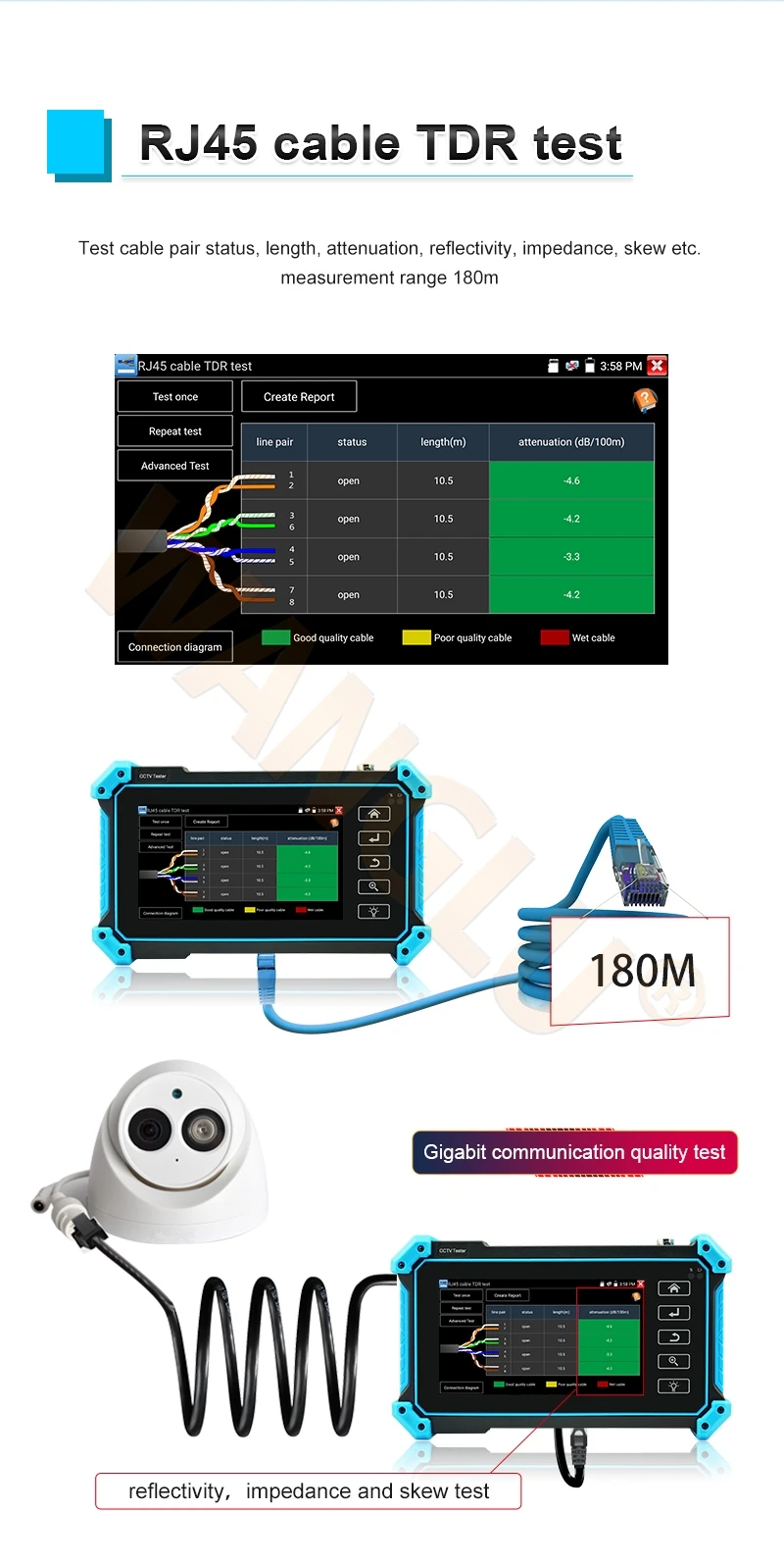

— RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

Other Functions:

— Network tool: Ping, IP scan, Port Flash ,DHCP server, Trace Route

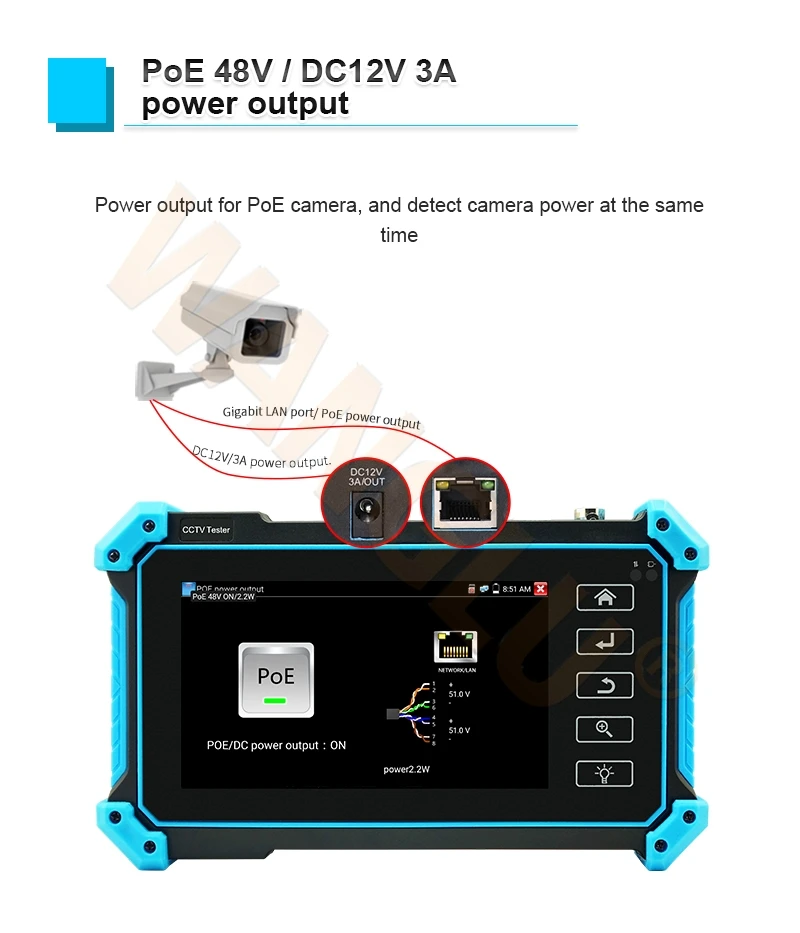

— POE & power information, DC12V& PoE power and voltage output /input measurement

— Tester Play: Tester, android version mobile phone and PC display at the same time

— Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc

— VGA input, up to 2048 x 1152 60FPS, support snapshot, video record & playback*

— HD signal input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display image ,record and snapshot *

— Traffic monitoring of the tester "LAN port", display network port or WIFI connection real-time upload and download speeds and other network parameters

— Customers self-update software, you can install apps with android version

— 7.4 V /3350mAh Lithium Ion Polymer Battery, after 3~4 hours charging , working time lasts 6 hours



Features/ Model	IPC-5000 Plus	IPC-5100 Plus	IPC-5200 Plus
8MP AHD	√	√	√
8MP TVI	√	√	√
8MP CVI	√	√	√
HD-SDI/3G-SDI/EX-SDI*	X	X	√
HD IN*	X	√	√
VGA IN*	X	√	√
Battery	2600mAh	3350mAh	3350mAh
Digital Cable tracer*	Optional	Optional	Optional
