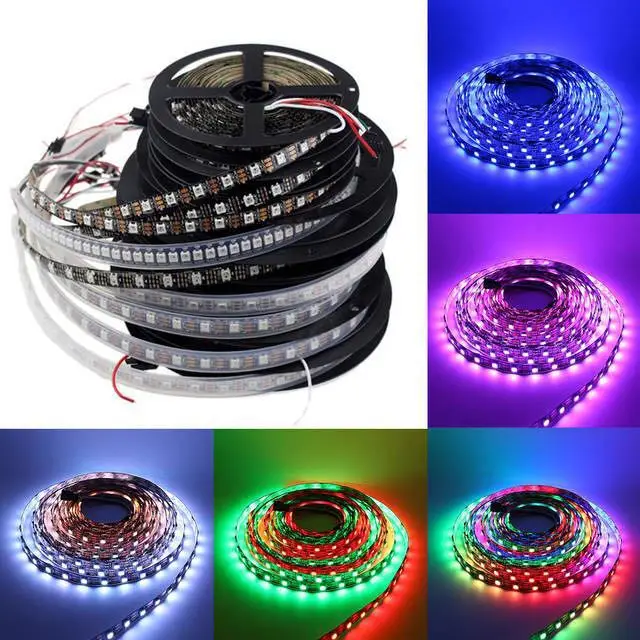

Black/White PCB WS2812 IC pixel led strip 30/60/74/96/144 leds/m ,IP30/IP65/IP67 addressable rgb led strip 5v

Input voltage:DC5v;

Power:30leds/m----9watt/meter

             60leds/m----18watt/meter

             74leds/m----22watt/meter

             96leds/m----28.8watt/meter

             144leds/m----43.2watt/meter

LED resource: WS2812B led (5050 SMD RGB LED with built-in improved version of ws2811 ic)

LED:each LED is separately controlled

IC Type: improved version ws2812 IC(built inside the 5050 smd rgb led)

Of IC: (1 IC drives 1 led chip);

Pixels: 30/60/74/96/144/meter;

Grey scale: 256;

Bits/color:8-bits/color;

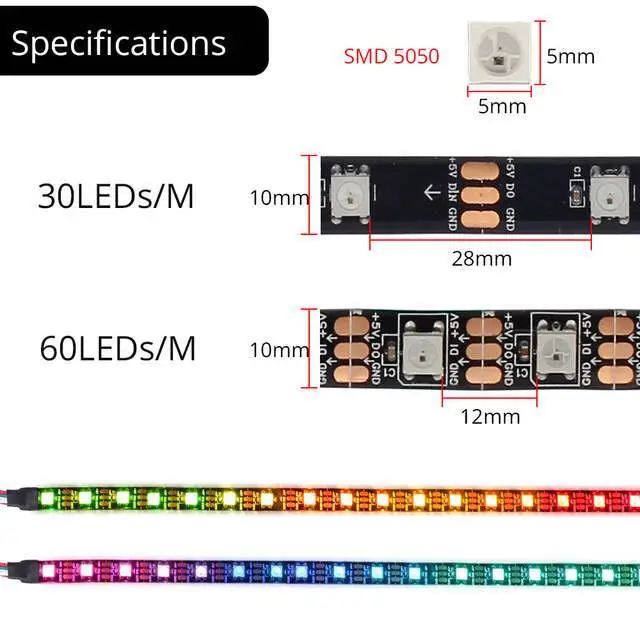

FPCB Width: 30leds/m----10mm

                       60leds/m----10mm

                       74leds/m----10mm

                       96leds/m----12mm

                       144leds/m----12mm

FPC color: BLACK/White

Protection rate:    IP30 Non-Waterproof

                             IP65 Waterproof in Silicon Coating

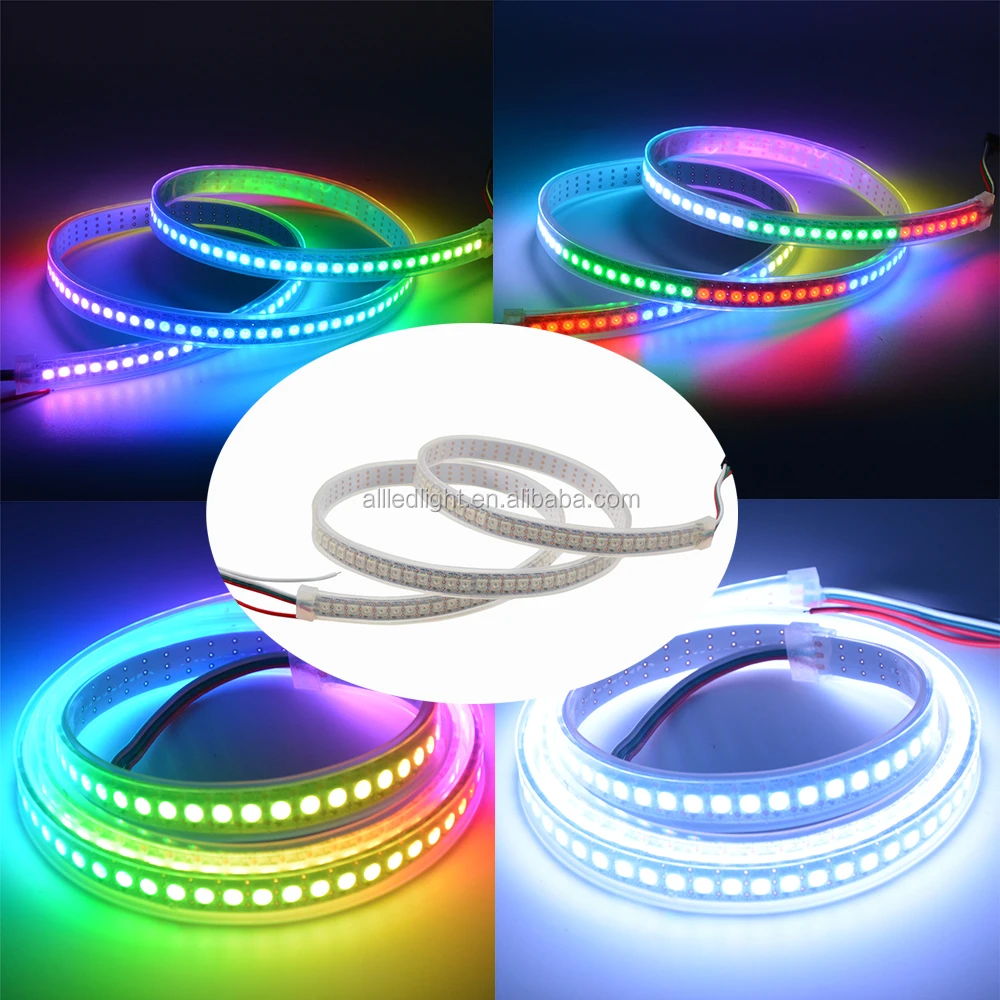

                             IP67 Waterproof in Silicone Tube

Colors:Full color RGB, dream color changing;

Cuttable:every LED is cuttable;

Package:in anti-static bag,IP30 IP65 with 3M adhensive tape on the back

                (IP67 without 3M adhensive)

               each strip with one free male connector for connector

Easy installation
Every LEDs lamp(one 2812B IC )  can be arbitrary cut off, good flexibility, easy installation, can be arbitrary bending.

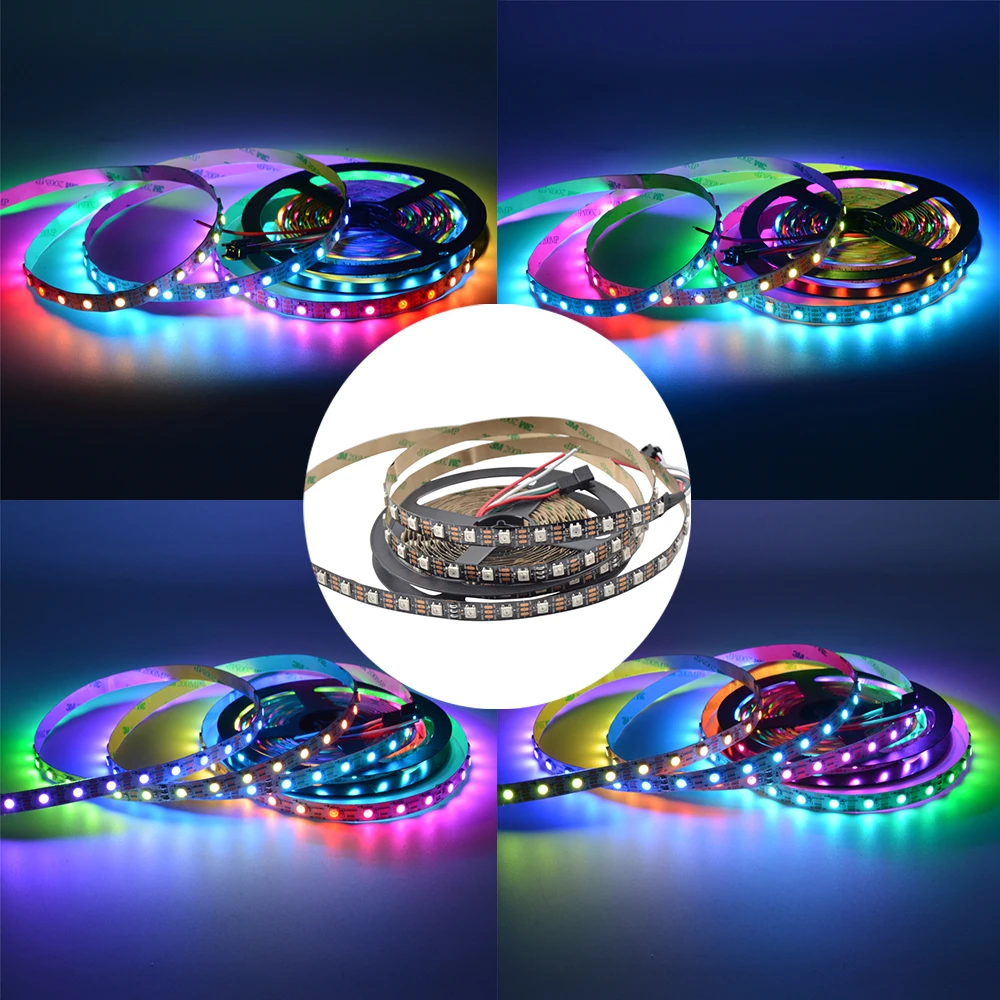

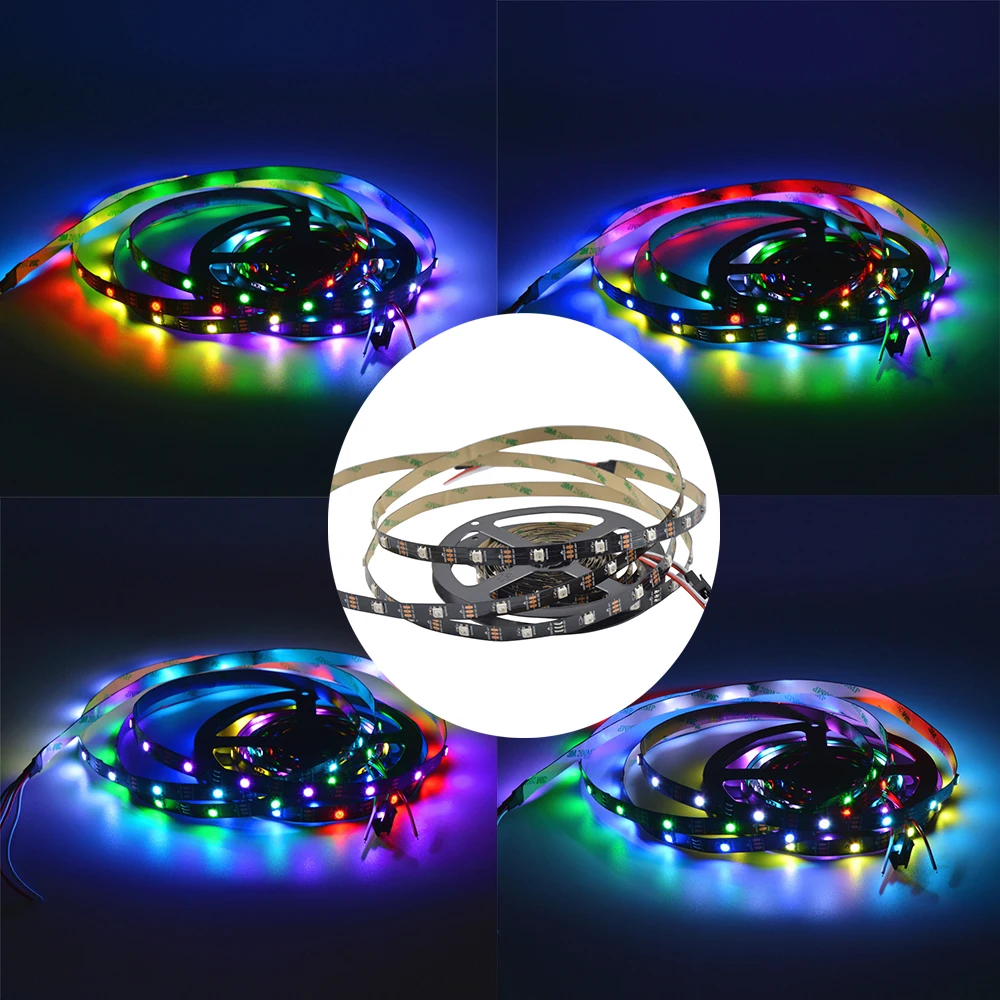

Dream color lighting
Match use controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect,

you can also edit animation effect by Coreldraw/Flash/LedEdit software.

WS2812B Magic LED Strip Light Application :

Making led screen, led wall, advertising board. Apply to hotel, KTV, bars, advertisement company, decoration company,

the city lighting project, entertainment and leisure places lighting.
