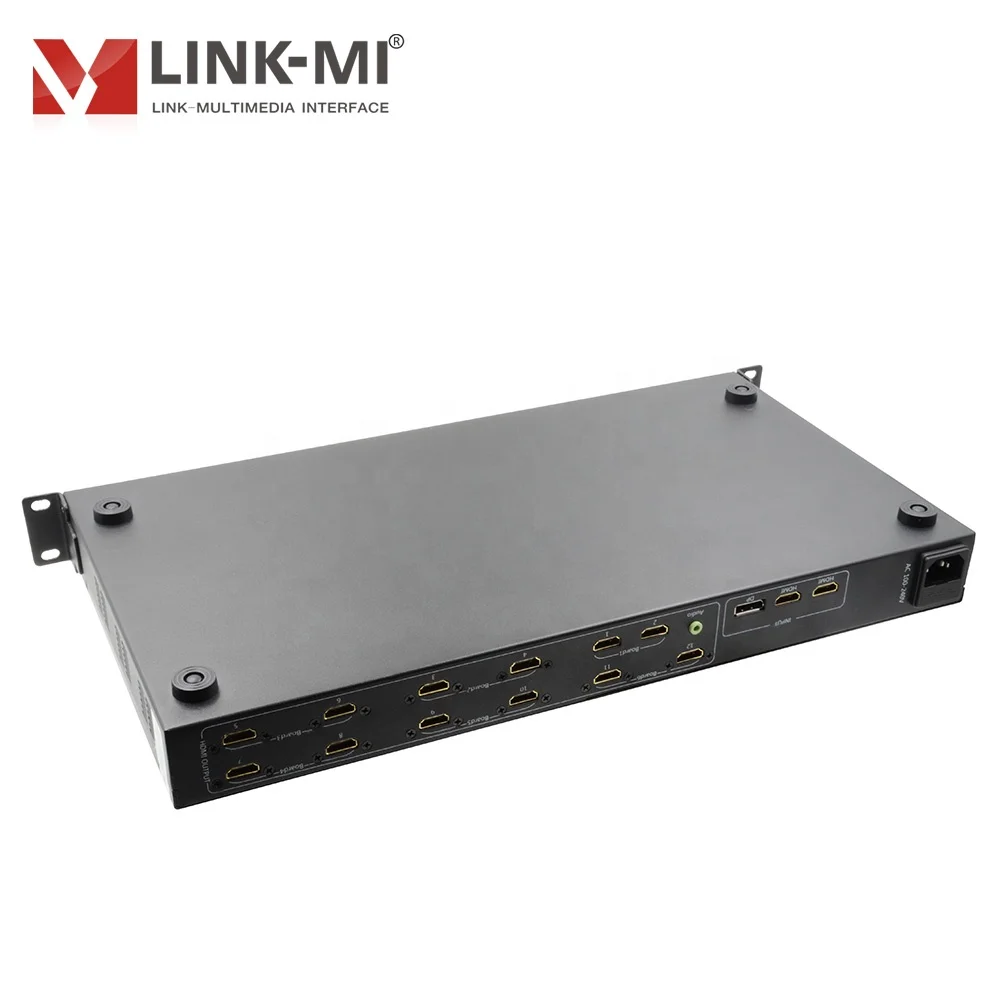

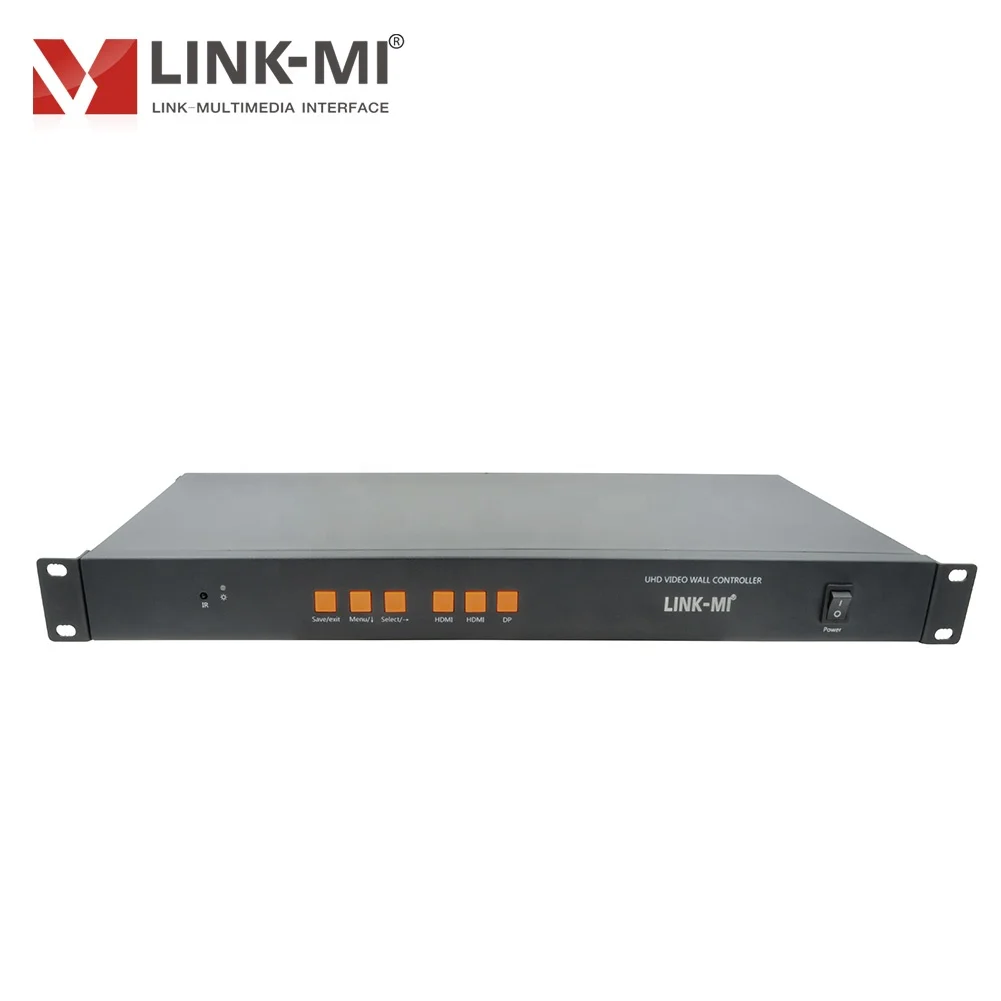

LINK MI UHD 3X4 3x3 3x2 4K2K Video Wall Controller 3840x2160 Video Wall Processor Mobile signal HDMI DP Input 12 HDMI Output

LM-TV12-4K2K is a high performanceUltra HD 4K image splicer, user-customized image stitching. Its main function is to display one big 4K2K@60Hz image  on multiple splicing screens. Products using advanced image processing technology will play fast animation without any delay or loss of frames. With 1 HDMI input, 1 mobile signal input and 1 DP 1.2 input, the maximum input resolution up to 3840×2160@60Hz and each HDMI output is 1920×1080@60Hz. LM-TV12-4K2K UHD Video Wall Controller can be controlled by remote and button.

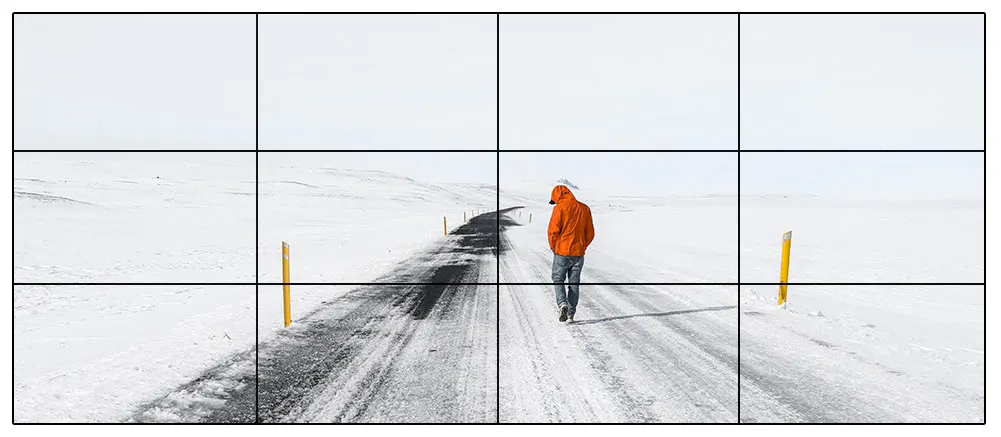

1) Video wall function - 1 big image displaying on multiple splicing screens

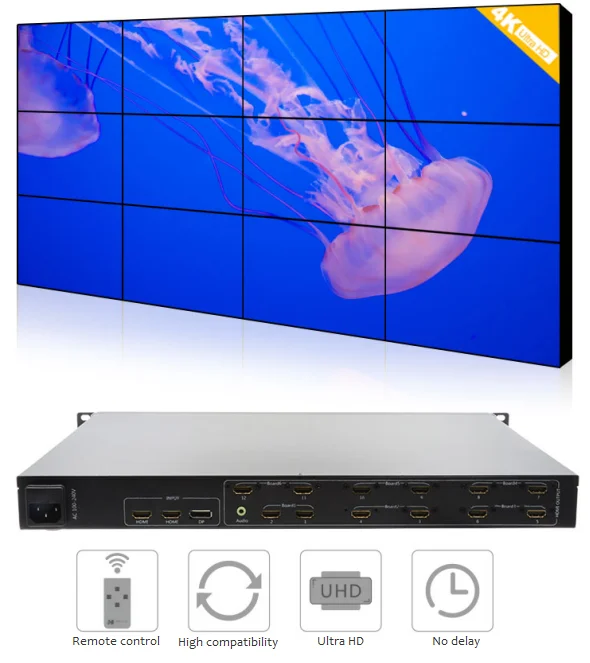

                                                                                                     3 x 4 Standard Mode

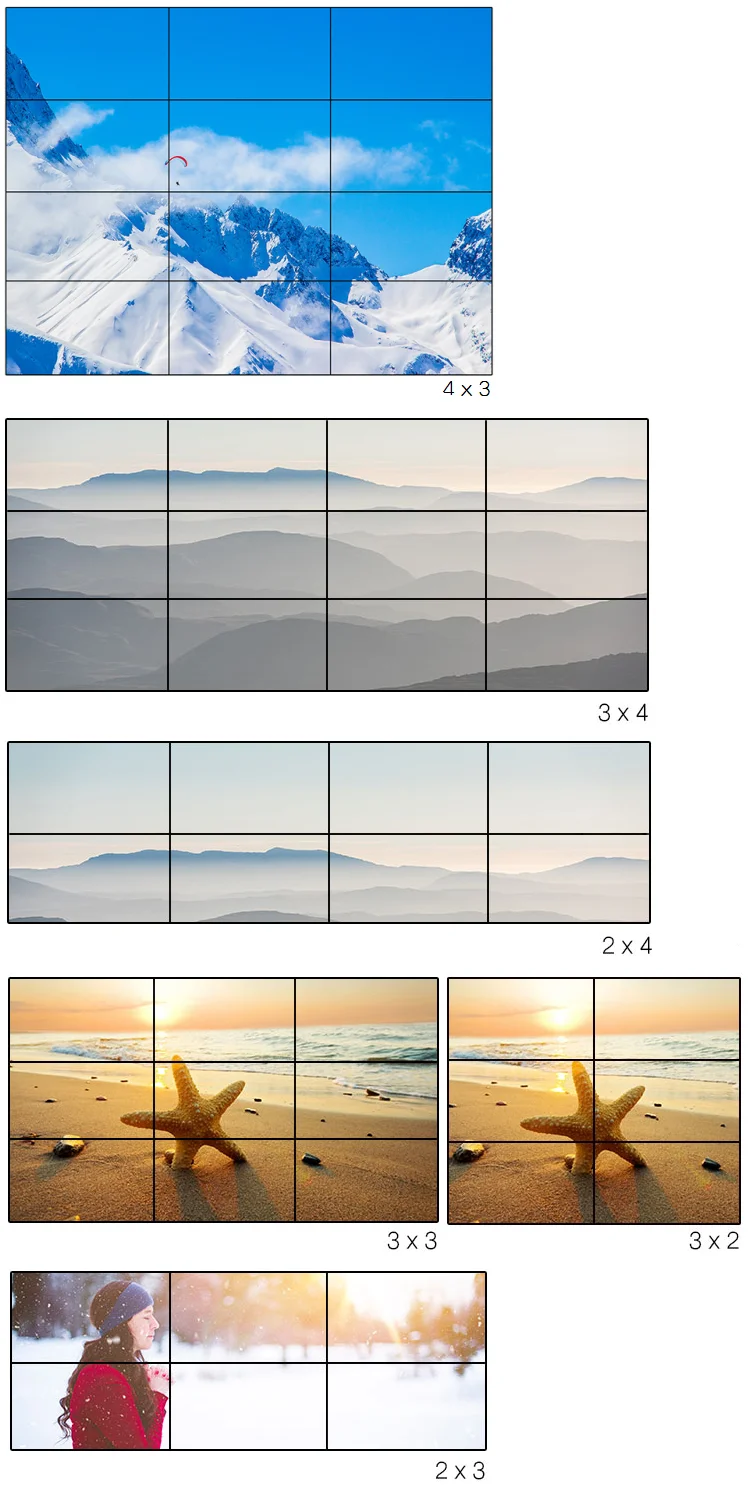

2) Under 3 x 4 standard mode, 2x1, 2x2, 2x3, 2x4, 2x5, 2x6, 3x4, 3x3, 3x2, 3x1... are available for options, under 4 x 3 customized, more displaying modes are also available.

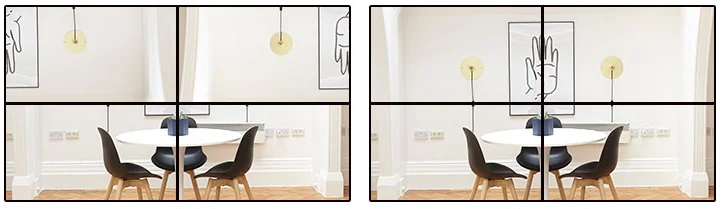

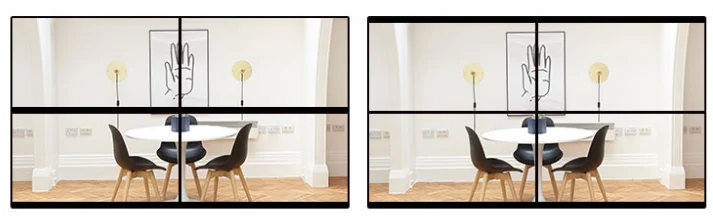

3) Support 180 Degree Rotation for each screen

                           Before                                                                     After

                             Before                                                                    After

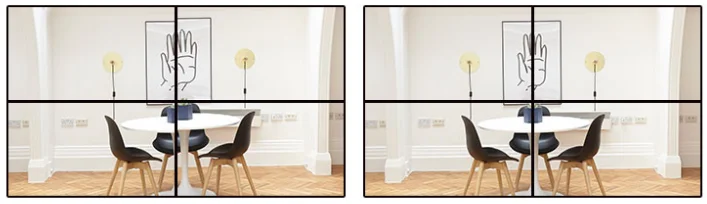

4) Bezel Correction

                              Before                                                                   After

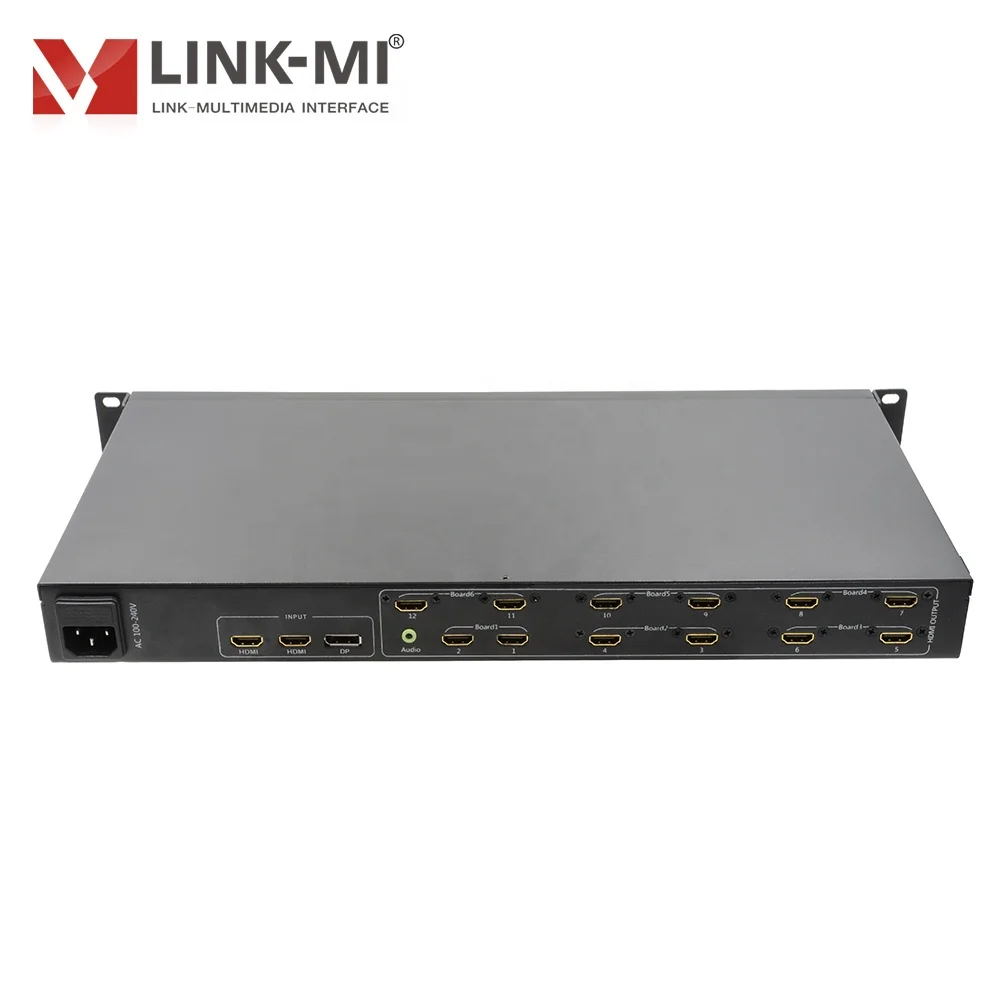

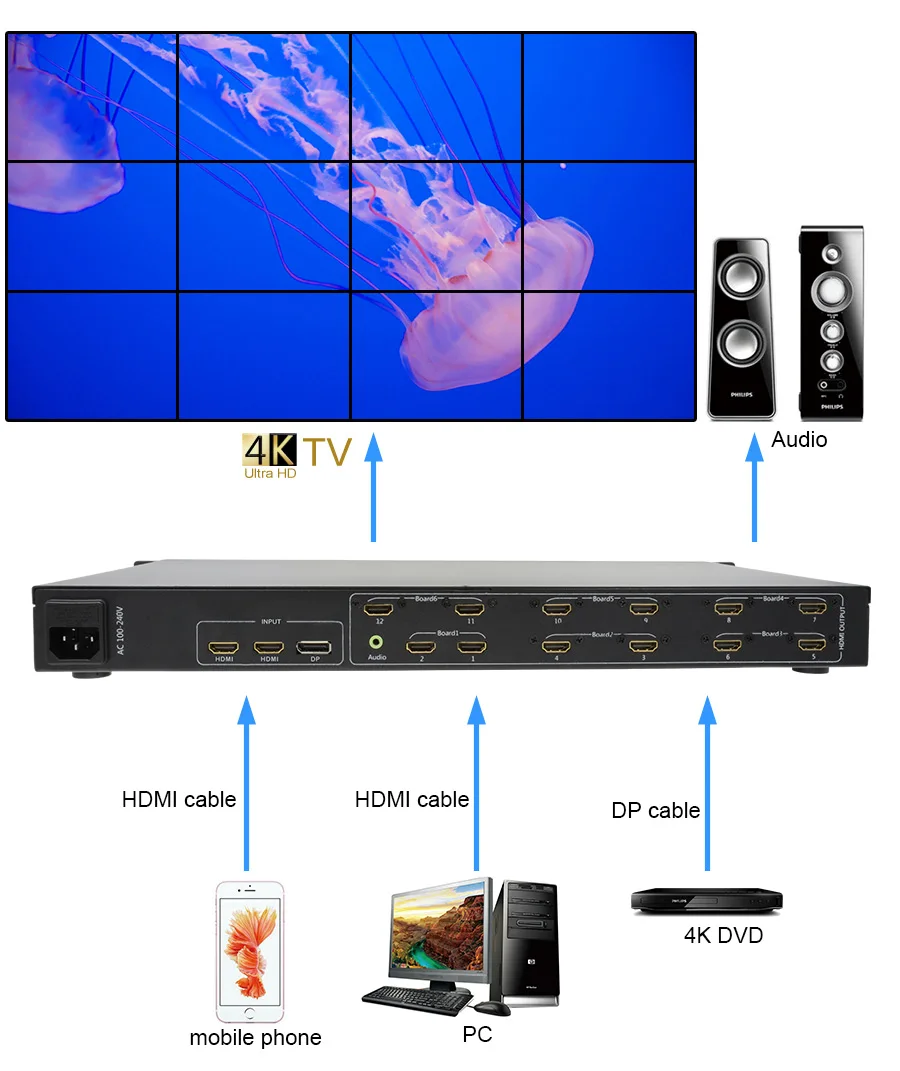

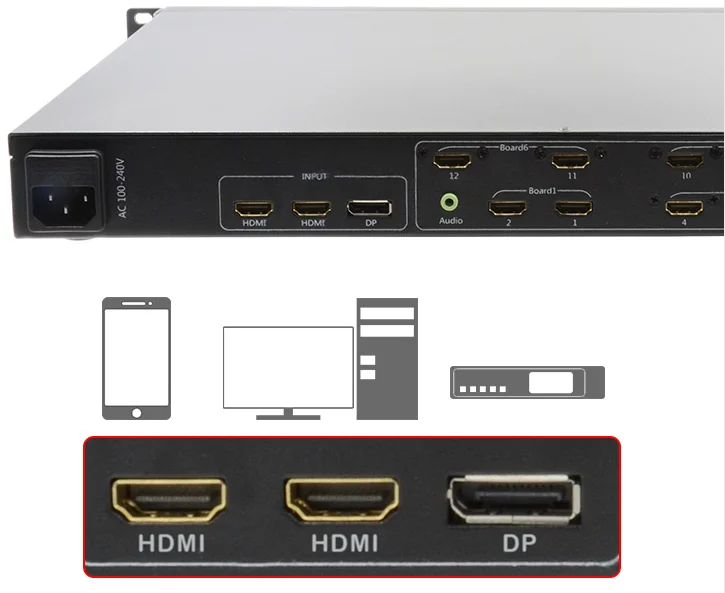

5) Mobile signal/HDMI/DP input, HDMI2.0 compliance

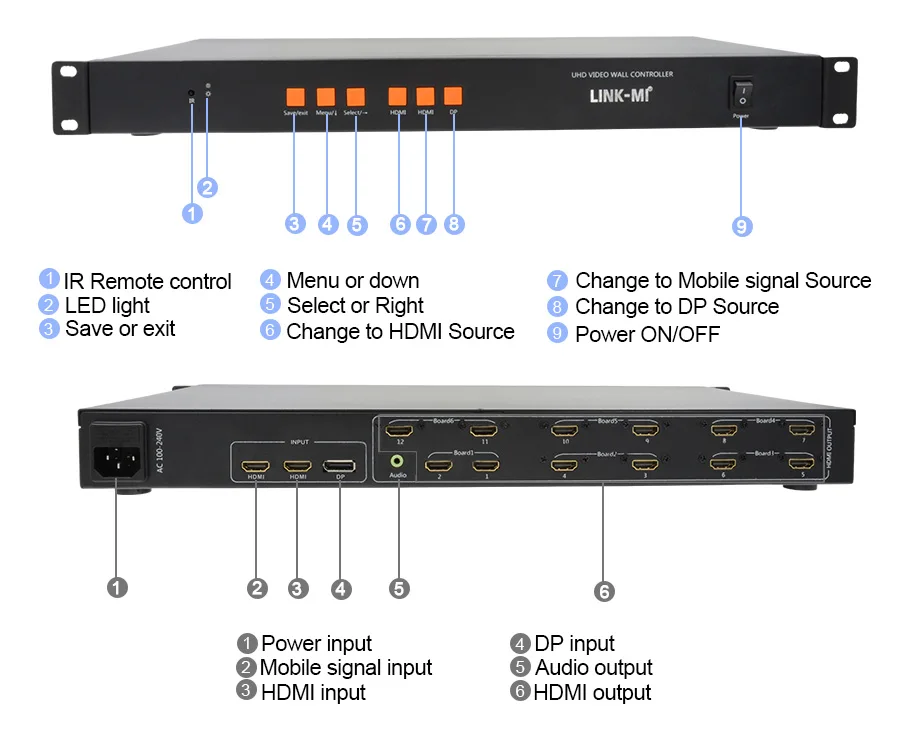

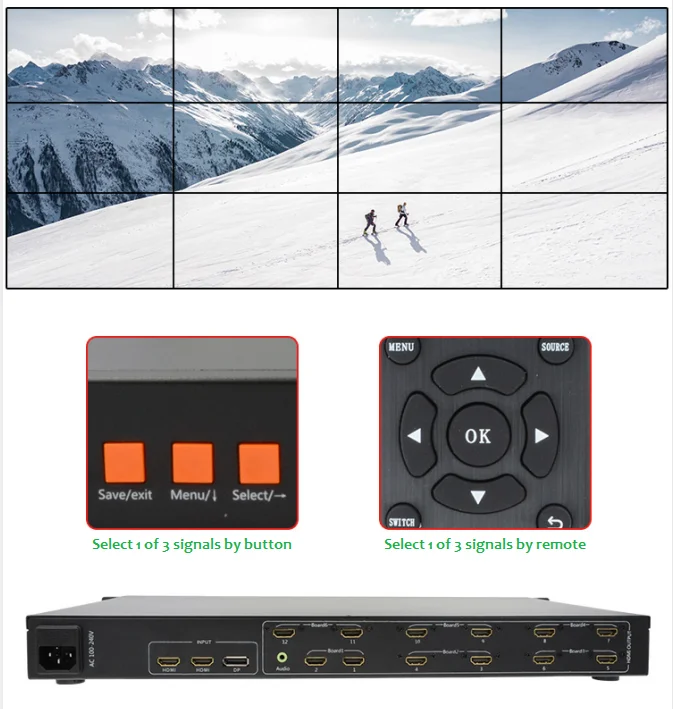

6) Select 1 of 3 input singals by button or remote to display one big UHD image on multiple splicing screens

7) Ultra HD input resolution up to 3840*2160@60Hz, output resolution 1920*1080P or 1920*1200

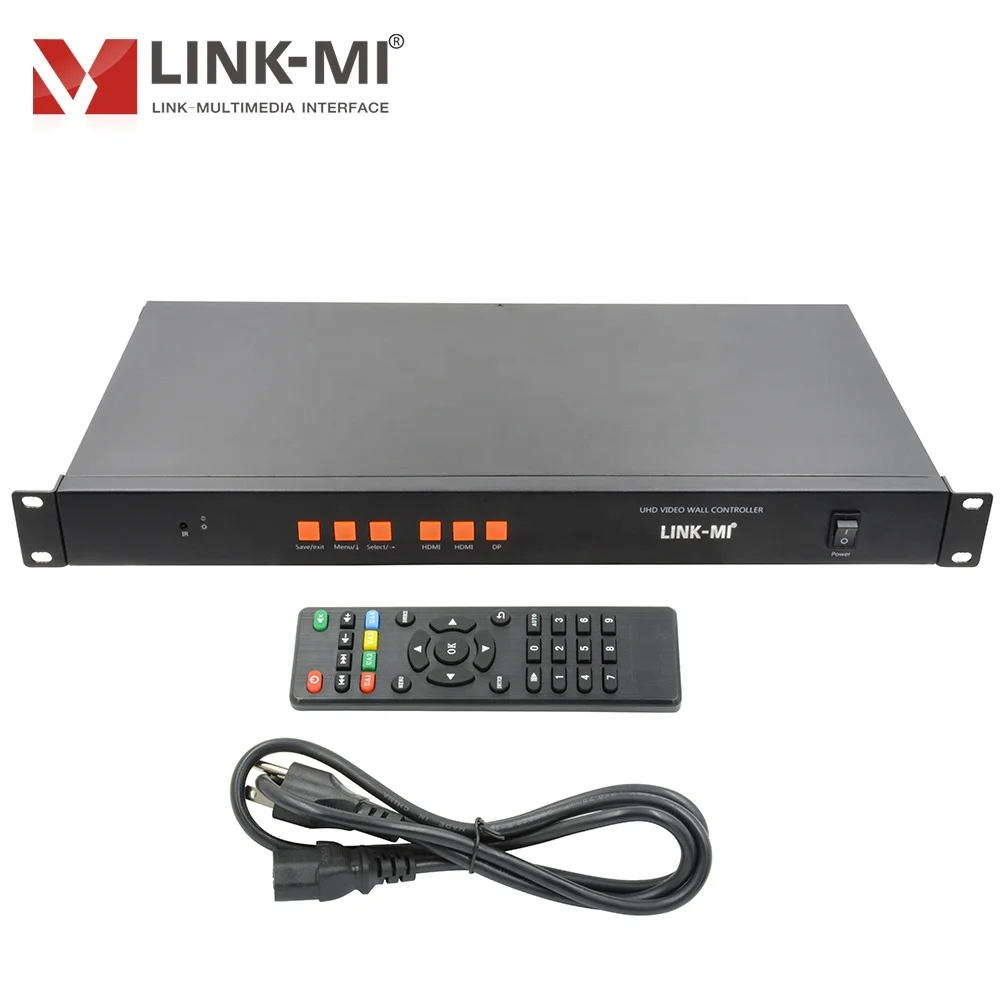

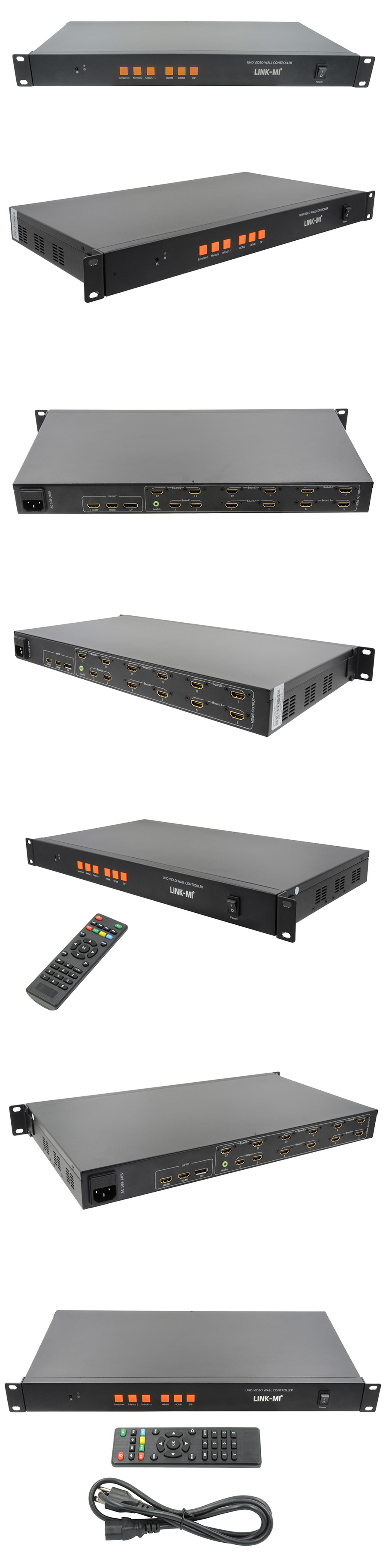

1) 1x Main Unit (4K 3x4 Video Wall Controller)
2) 1x Power Adapter
3) 1x IR Remote Control
4) 1x User Manual
