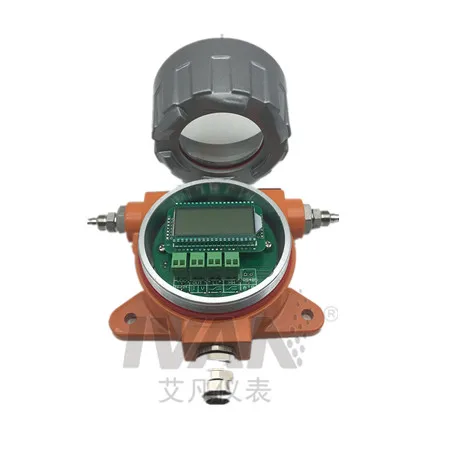

Hot sale explosion proof wind speed sensor with good price
- Category: >>>
- Supplier: Beijing Ifan Peng Instrument Co. Ltd.
Share on (62533937024):
Product Overview
Description
Product Description
Specification
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profie
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
FAQ
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

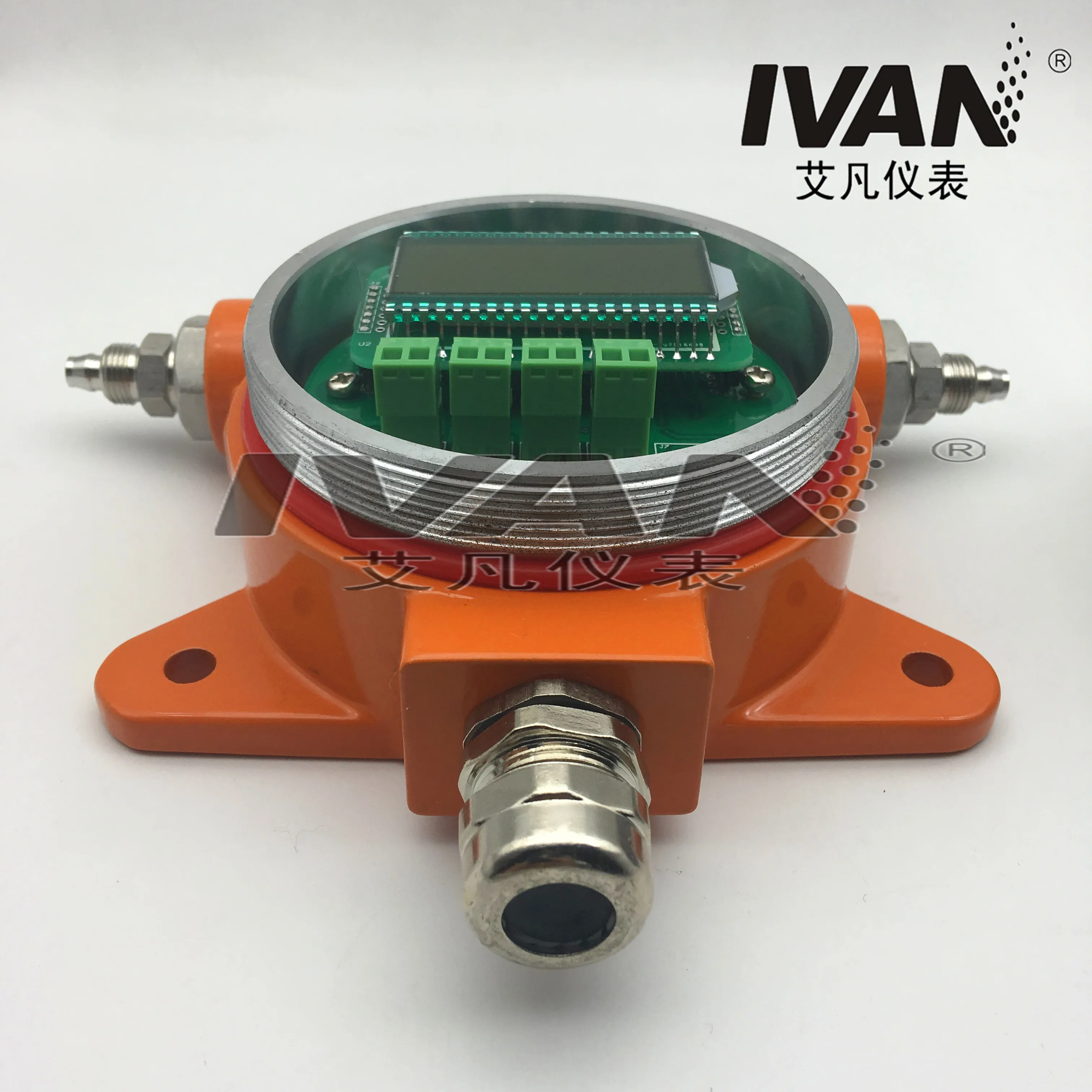

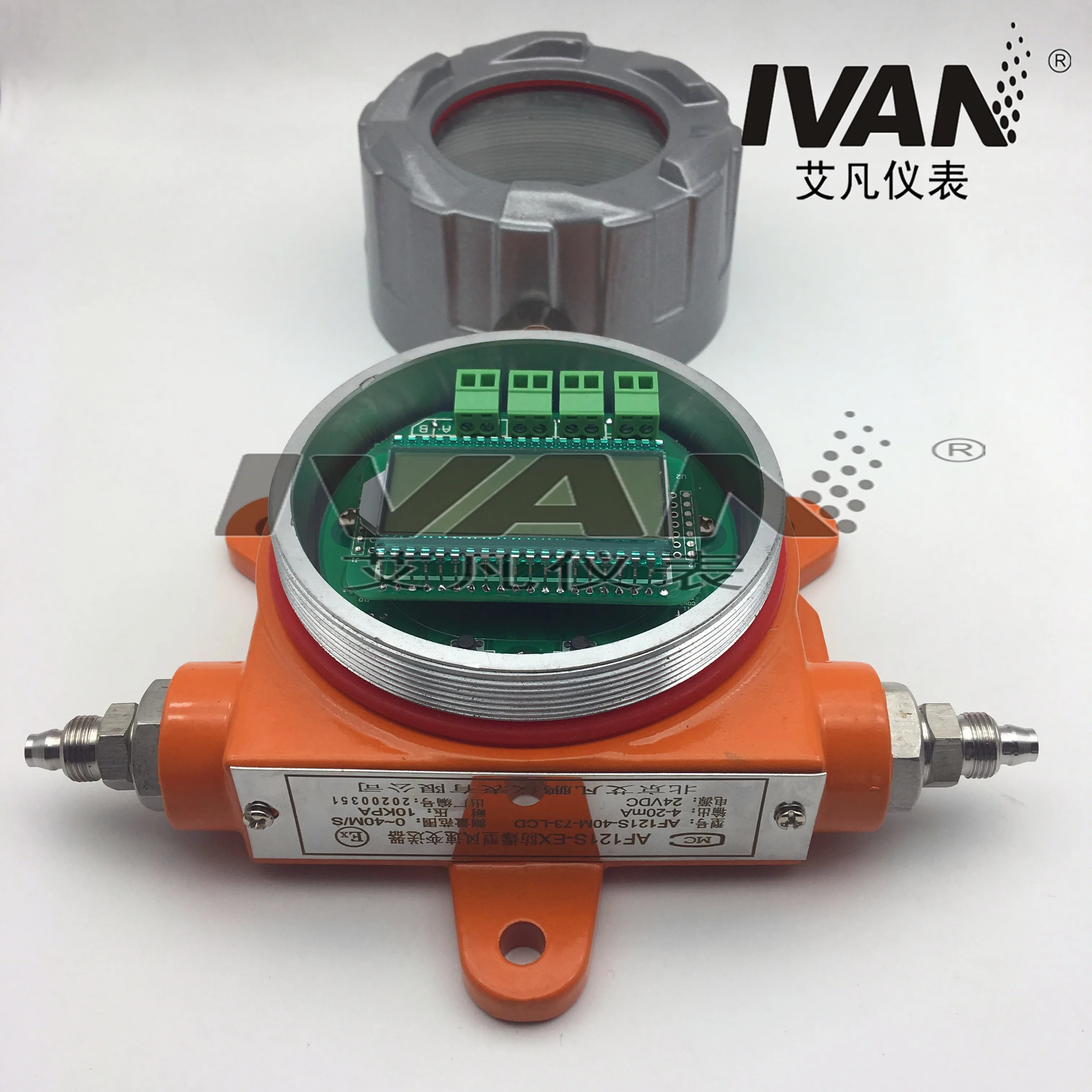

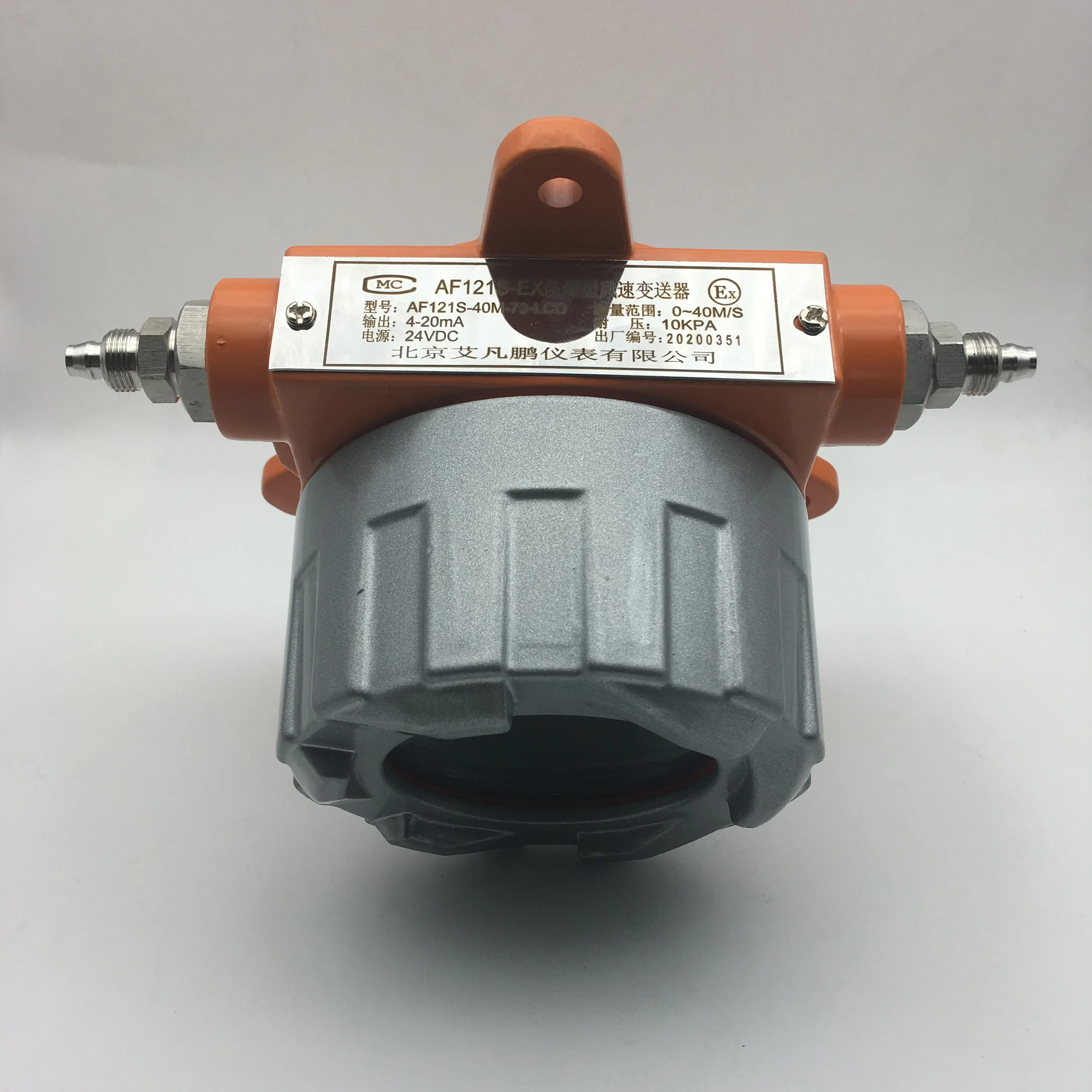

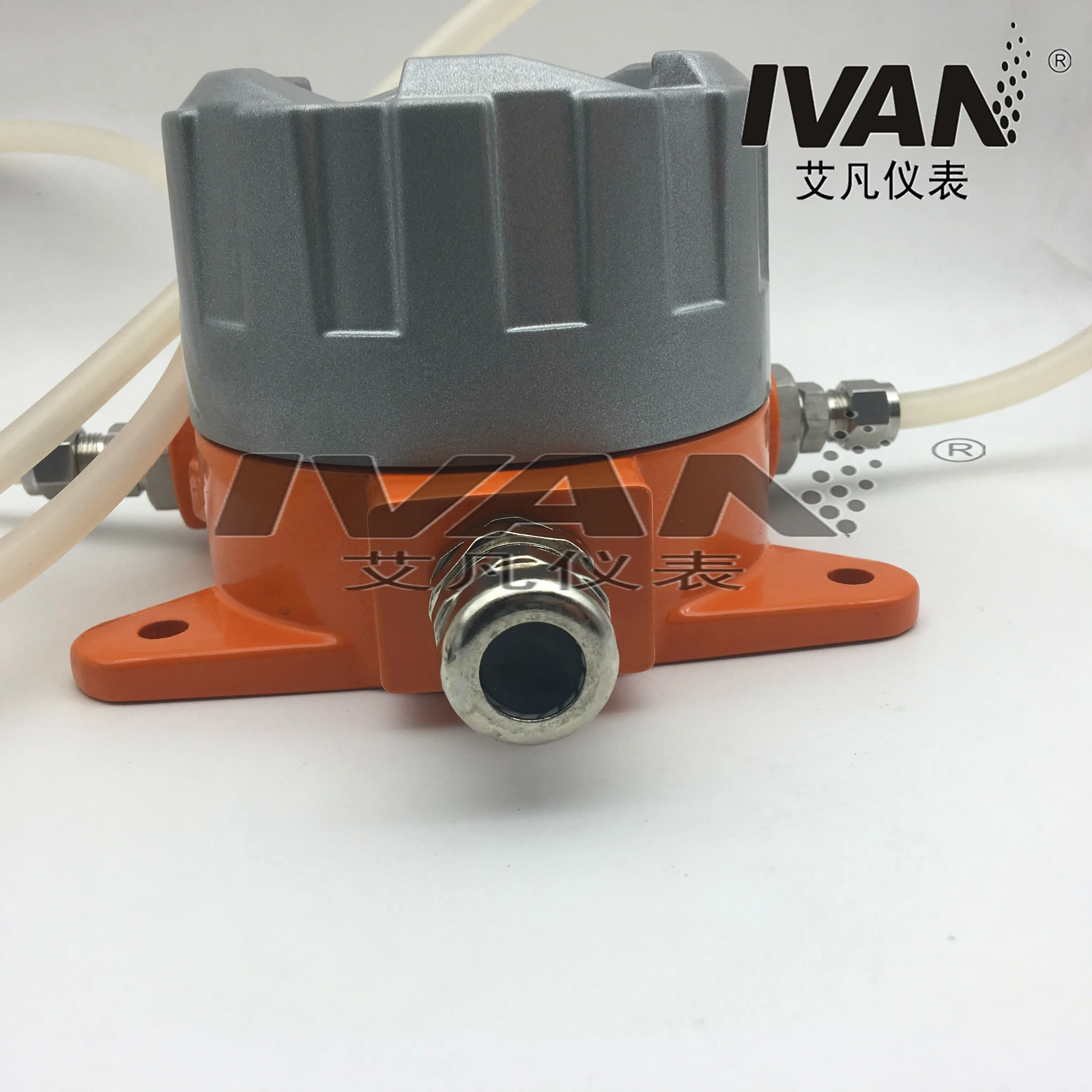

Af121b-ex explosion-proof, high temperature resistant and wind speed (air volume) transmitter
1. overview

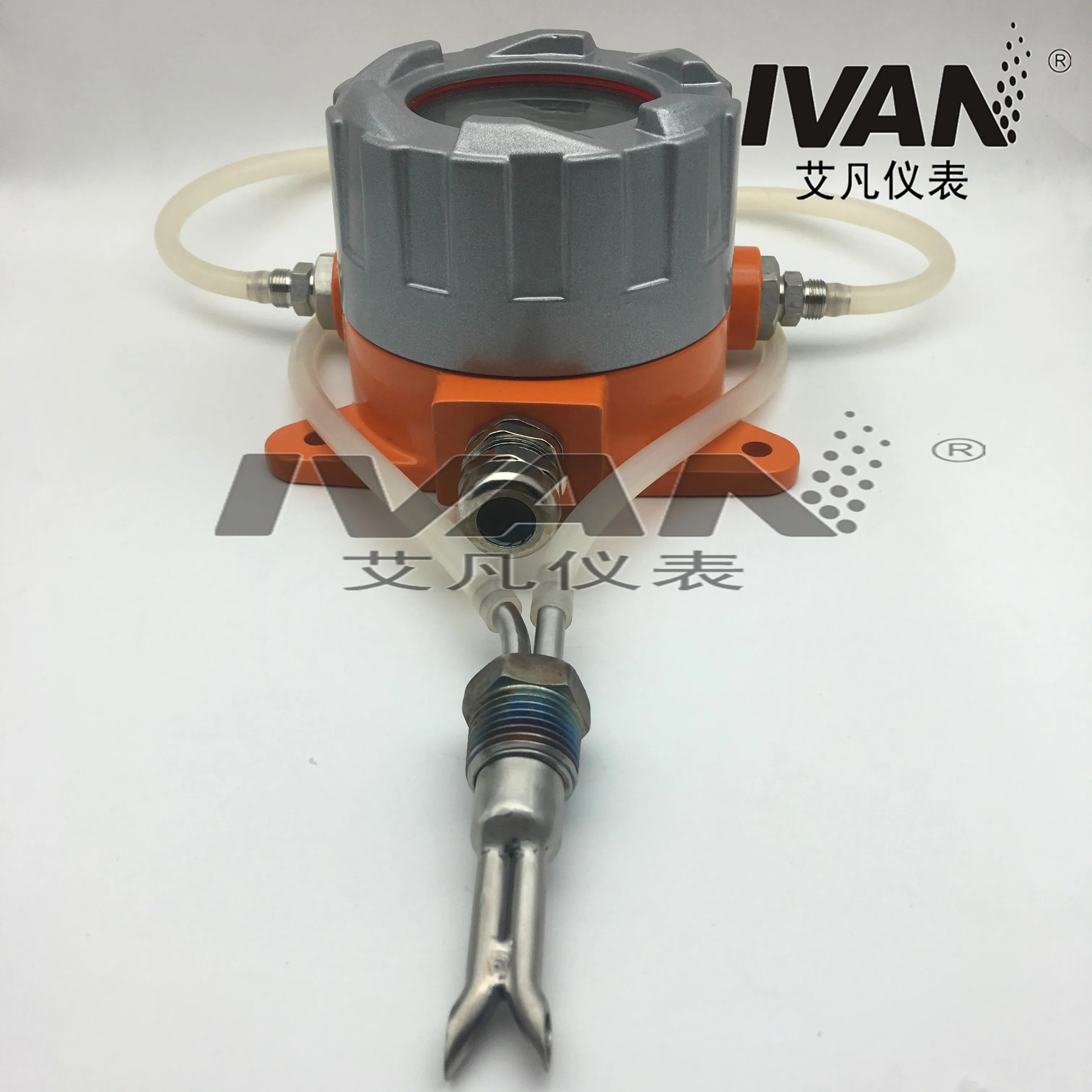

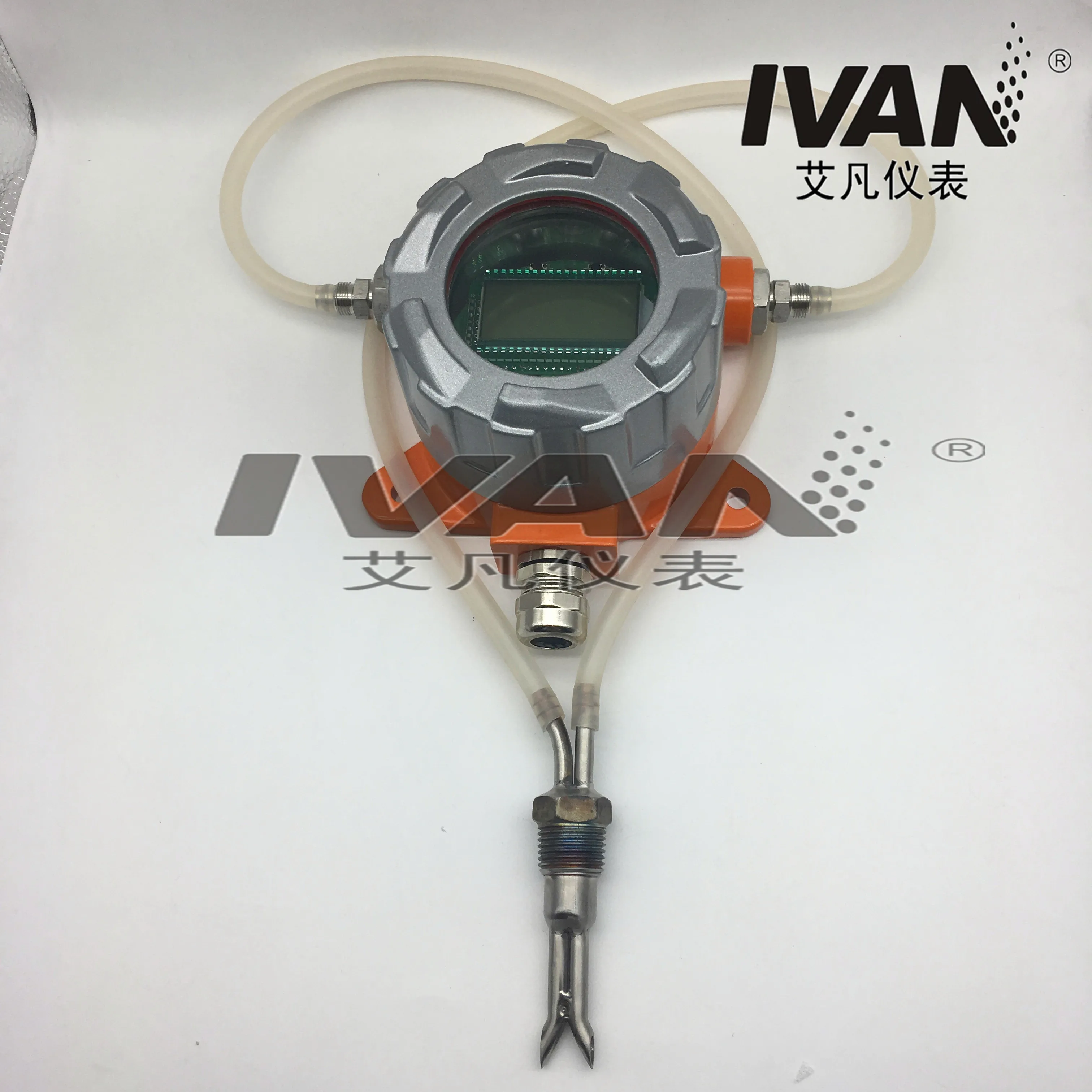

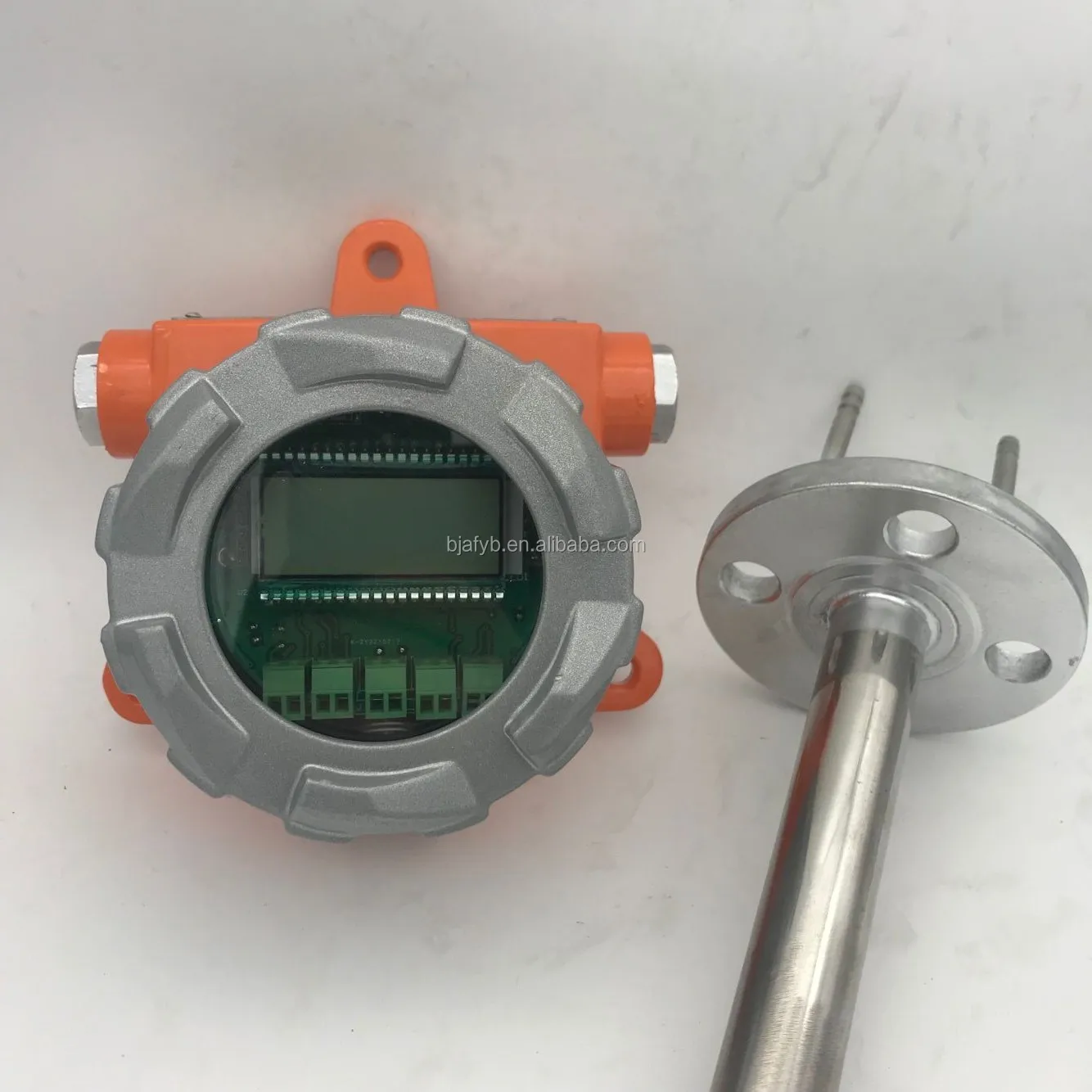

Af121b-ex transmitter with standard S-type pitot tube can measure the flow and velocity of high temperature flue gas.

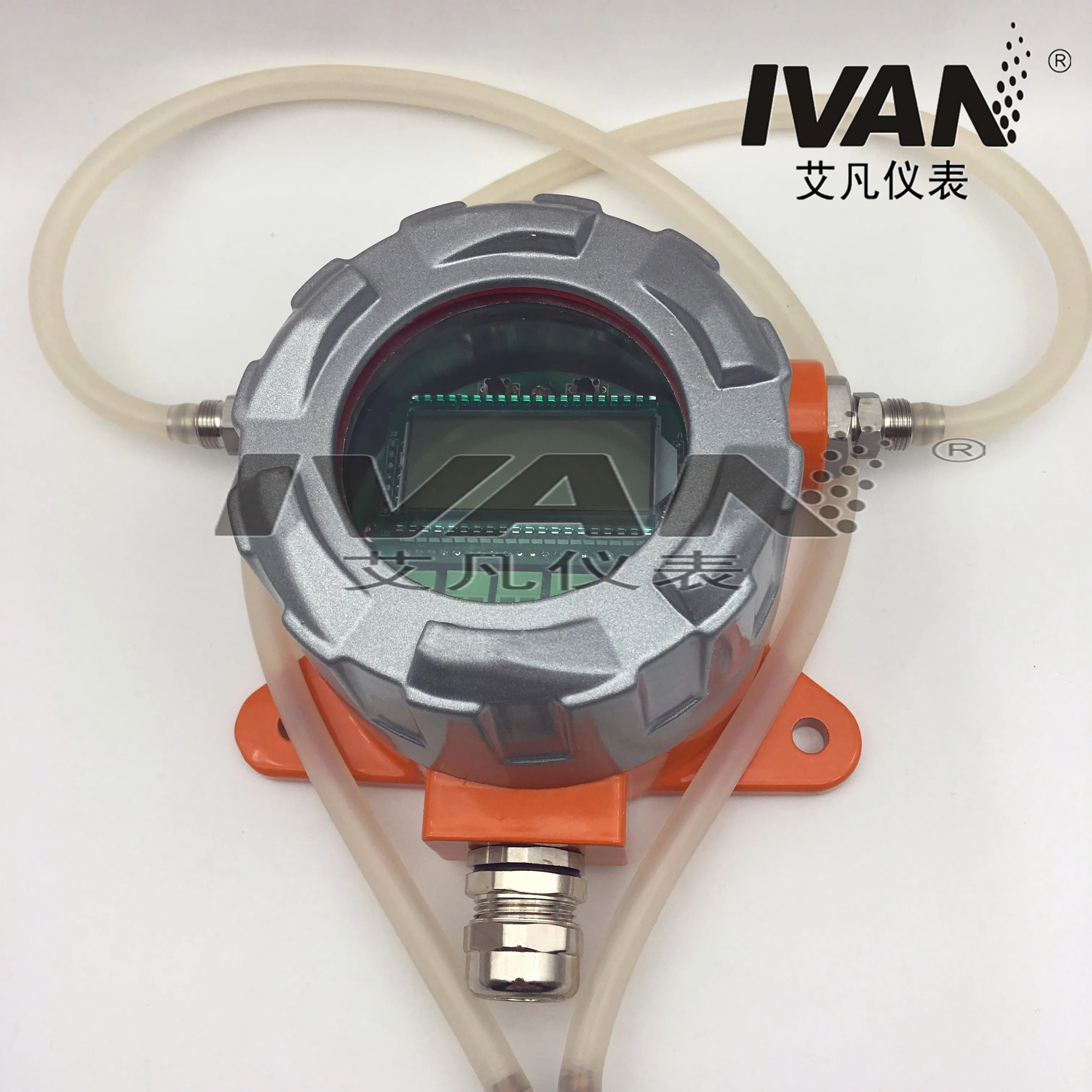

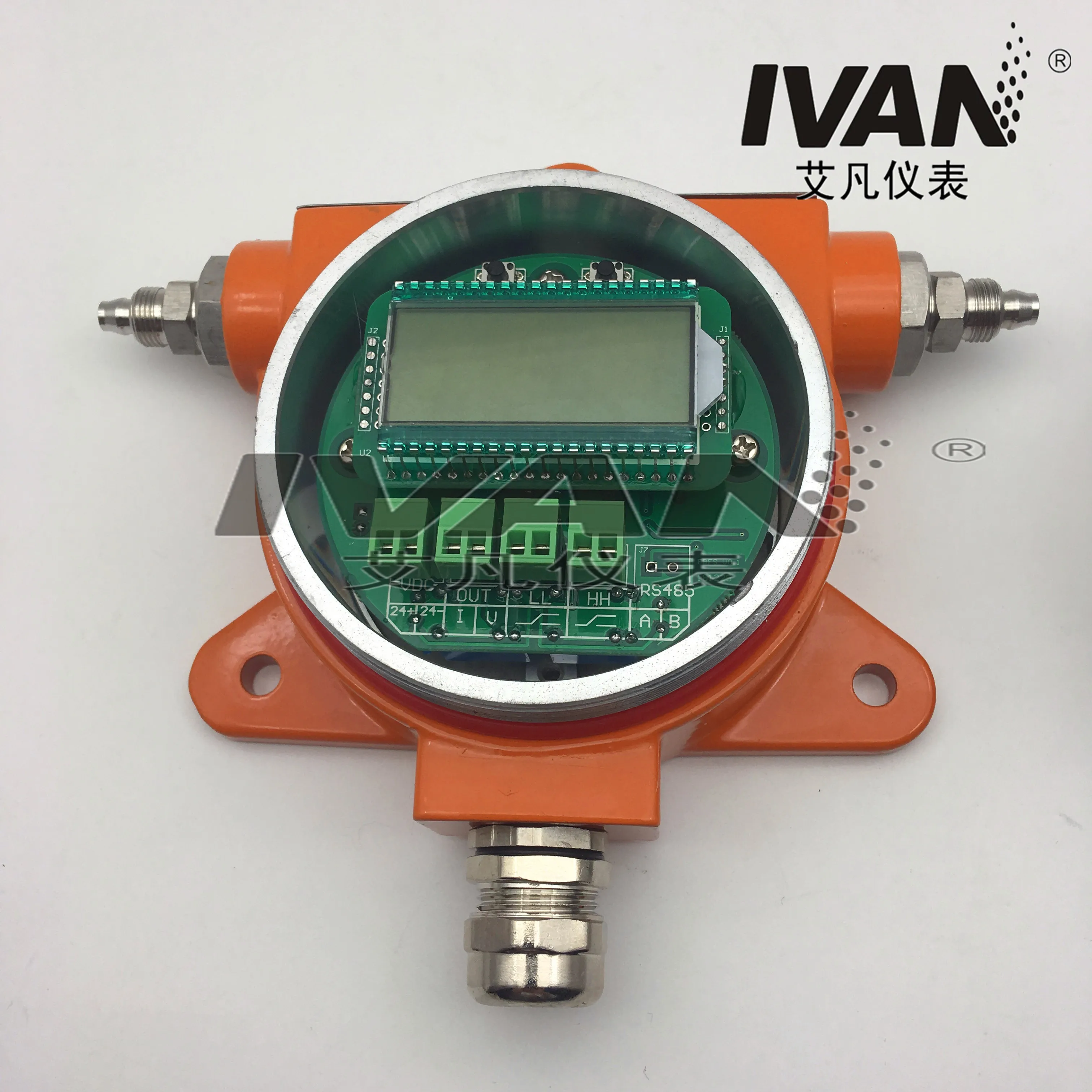

Explosion proof grade: exiict6 II. Functional characteristics Stainless steel pitot tube temperature resistance (450 ℃), standard transmitter host: 4-digit LCD display, zero adjustable onsite, full adjustable on site.
2 .The stability is good, and the long-term stability of full degree and zero position can reach 1% FS / year.The main engine is in the range of compensation temperature 0-70 ℃, temperature drift Less than 1% FS, less than 1% FS in the whole allowable operating temperature range.
Af121b-ex transmitter with standard S-type pitot tube can measure the flow and velocity of high temperature flue gas.
Explosion proof grade: exiict6 II. Functional characteristics Stainless steel pitot tube temperature resistance (450 ℃), standard transmitter host: 4-digit LCD display, zero adjustable onsite, full adjustable on site.
2 .The stability is good, and the long-term stability of full degree and zero position can reach 1% FS / year.The main engine is in the range of compensation temperature 0-70 ℃, temperature drift Less than 1% FS, less than 1% FS in the whole allowable operating temperature range.
3.It has reverse protection and current limiting protection circuit. When the positive and negative poles are connected reversely
during installation, the transmitter will not be damaged. In case of abnormality, the transmitter will automatically limit thecurrent within 35mA.
4Solid structure, no moving parts, high reliability, long service life.
during installation, the transmitter will not be damaged. In case of abnormality, the transmitter will automatically limit thecurrent within 35mA.
4Solid structure, no moving parts, high reliability, long service life.
Measurement range: | 0~10M/S， 0~20M/S, 0~30M/S，0~40M/S，0~70m M/S |
Maximum overload: | 5 times of standard range |
Output form: | Wind speed |
Accuracy class: | 3% f · s, display resolution |
Display resolution: | 0.01 |
Supply voltage: | 24VDC |
Load resistance: | Less than 500 Omega |
Long term stability: | ± 1% F · S/ year |
Ambient relative humidity: | 0~ 95% |
Compensation temperature: | 0~70 |
Operating temperature: | |
Protection class: | IP65 |
