water penstock sluice gate lifting valve price
- Category: >>>
- Supplier: Tianjin Tanggu Jinbin Valve Co. Ltd.
Share on (62533958431):
Product Overview
Description
Products Description

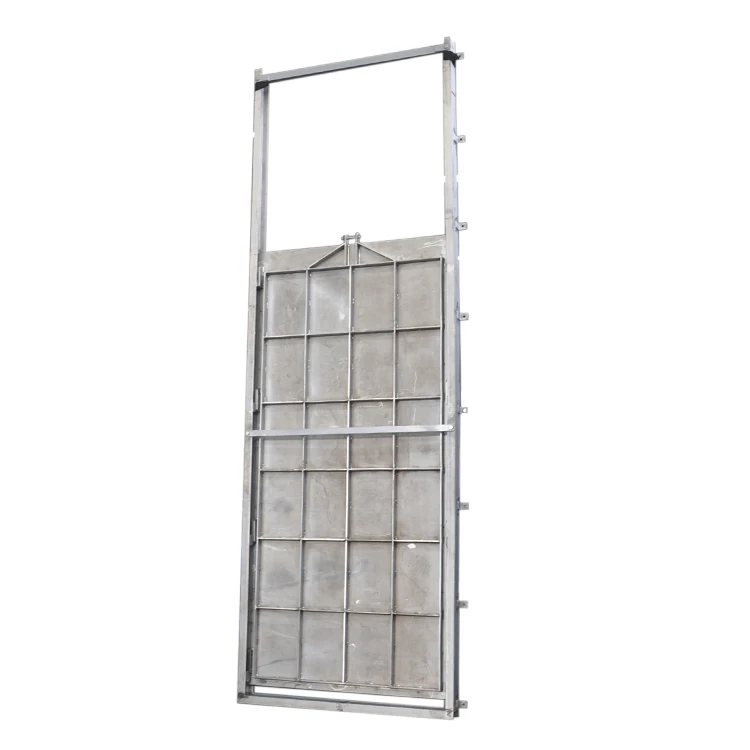

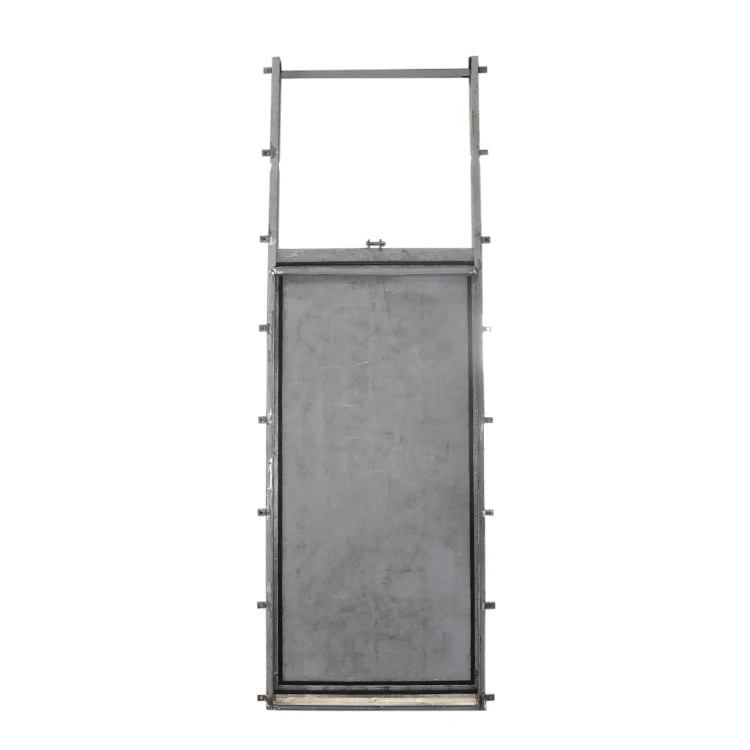

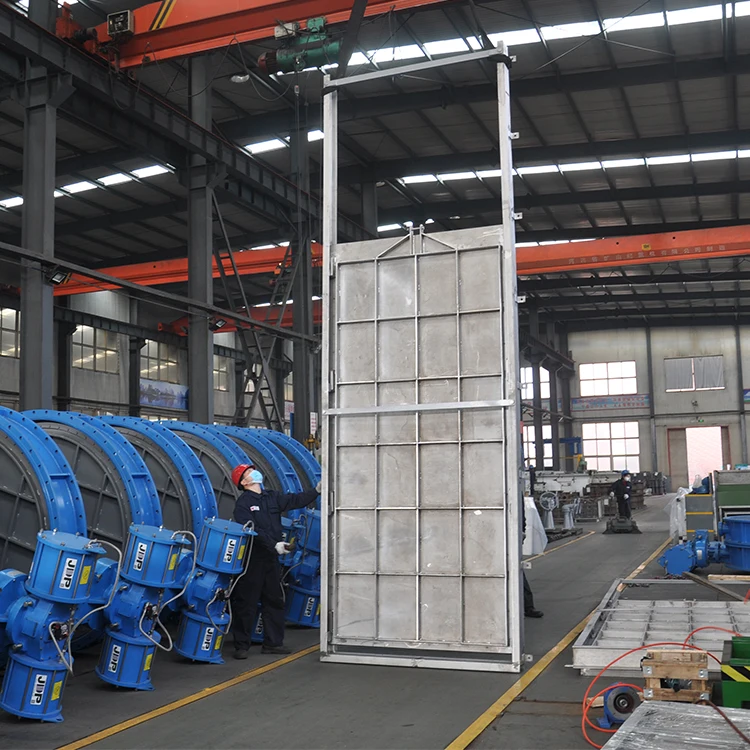

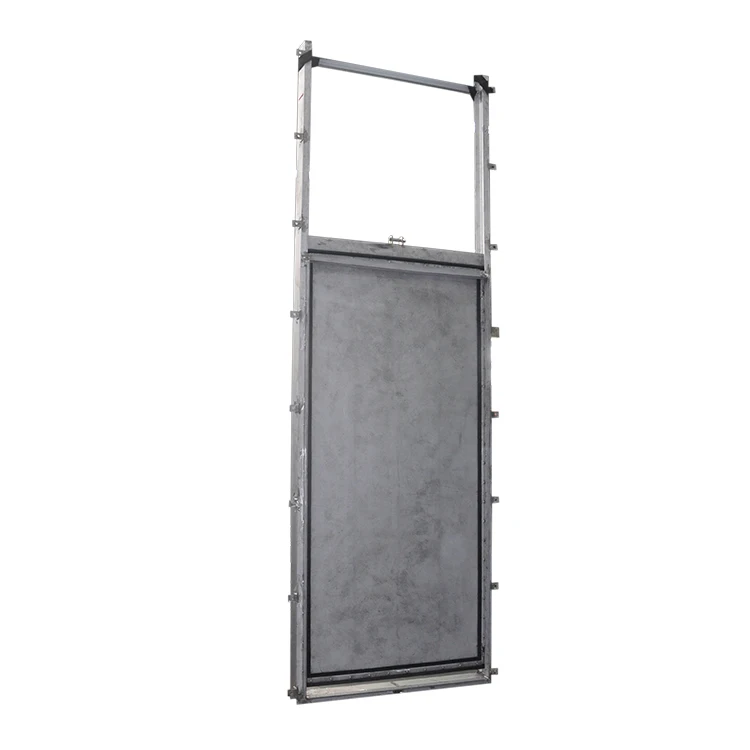

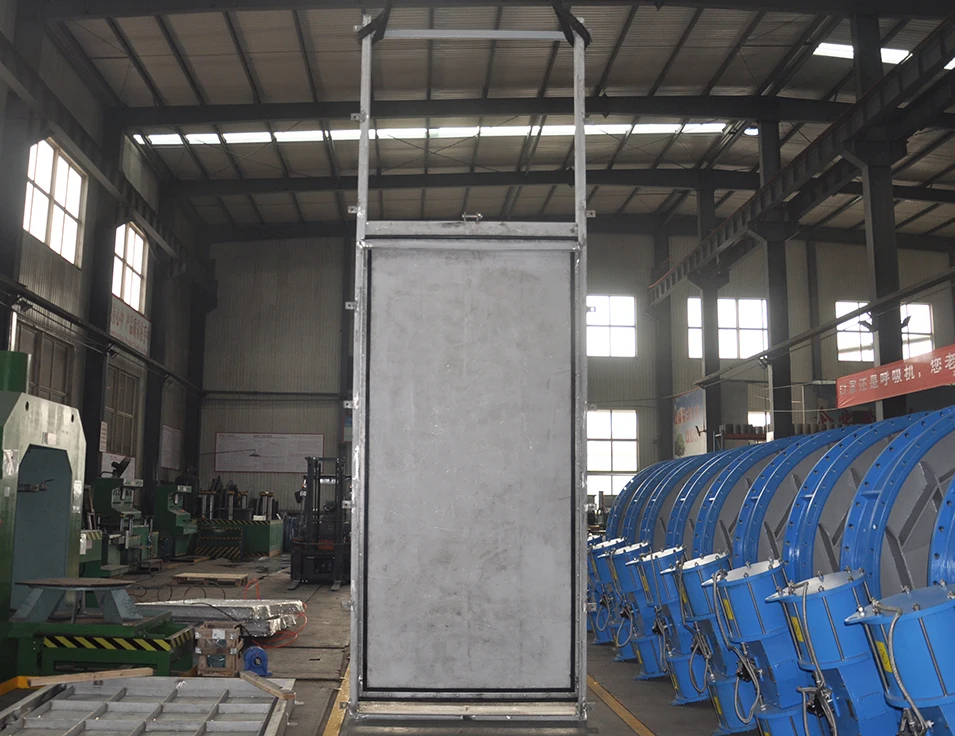

penstock sluice gate lifting valve
Penstock valve is mainly used to regulate and control the flow of water, specially canals or river~
penstock sluice gate lifting valve
1.Our company produce penstock valve that are two types, Wall type penstock vlaves and Channel type penstock valves.
2.Penstock valve's Body materials are stainless steel and carbon steel with epoxy coating and ductile iron, Seal material is EPDM or brass,
3.Our product penstock valve has many advantages, such as flexible operation, and corrosion resistance. convenient installation and maintenance, reliable sealing,
4.Working condition: widely used in waterworks, sewage plants, irrigation and drainage, petroleum, chemical, metallurgy, environmental protection, electricity, ponds, weirs, rivers and other projects as a cut-off, regulating flow and controlling water levels Use.

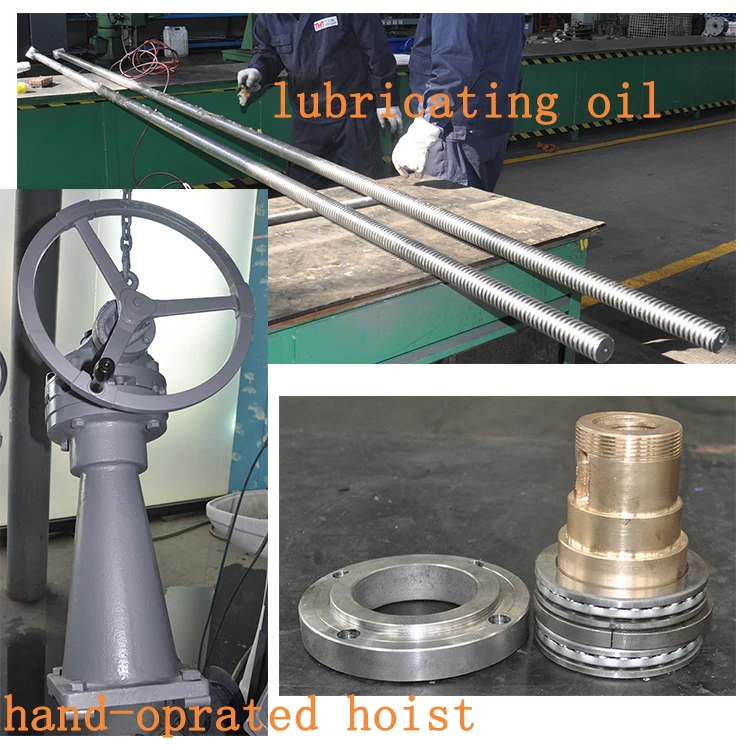

5.Penstock valve is composed of hoist , hoist base, stem, penstock valve body, penstock valve disc, EPDM Seal etc. the hoist mainly includes hand wheel type, manual type, dual-purpose manual and electric hoist and double lifting point hoist.
2.Penstock valve's Body materials are stainless steel and carbon steel with epoxy coating and ductile iron, Seal material is EPDM or brass,
3.Our product penstock valve has many advantages, such as flexible operation, and corrosion resistance. convenient installation and maintenance, reliable sealing,
4.Working condition: widely used in waterworks, sewage plants, irrigation and drainage, petroleum, chemical, metallurgy, environmental protection, electricity, ponds, weirs, rivers and other projects as a cut-off, regulating flow and controlling water levels Use.
5.Penstock valve is composed of hoist , hoist base, stem, penstock valve body, penstock valve disc, EPDM Seal etc. the hoist mainly includes hand wheel type, manual type, dual-purpose manual and electric hoist and double lifting point hoist.
Pressure and Temperature ratings
Penstock valve

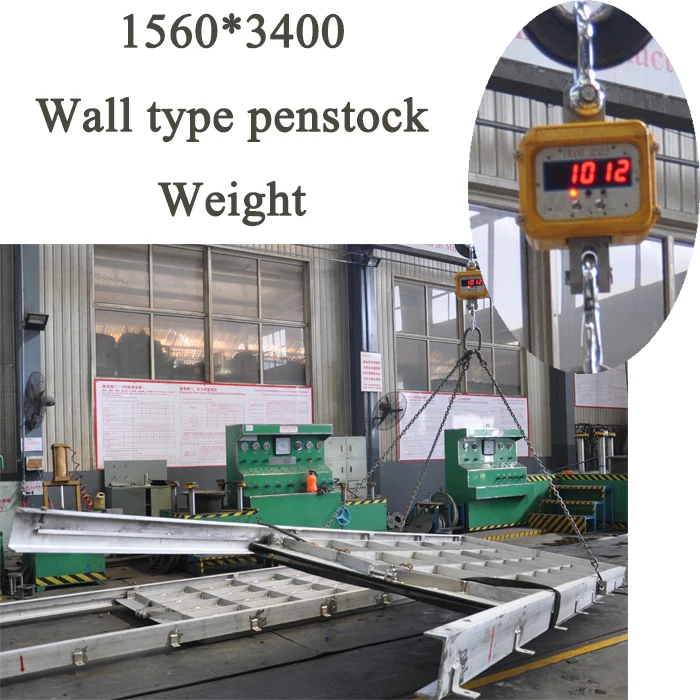

Size | 1560*3400 |
working pressure | 0.1Mpa |
strength test | 0.15Mpa |
working temperature | ≤80℃ |
suitable media | water |
Materials:
Penstock valve
part | material |
body | stainless steel |
plate | stainless steel |
shaft | Cr13 |

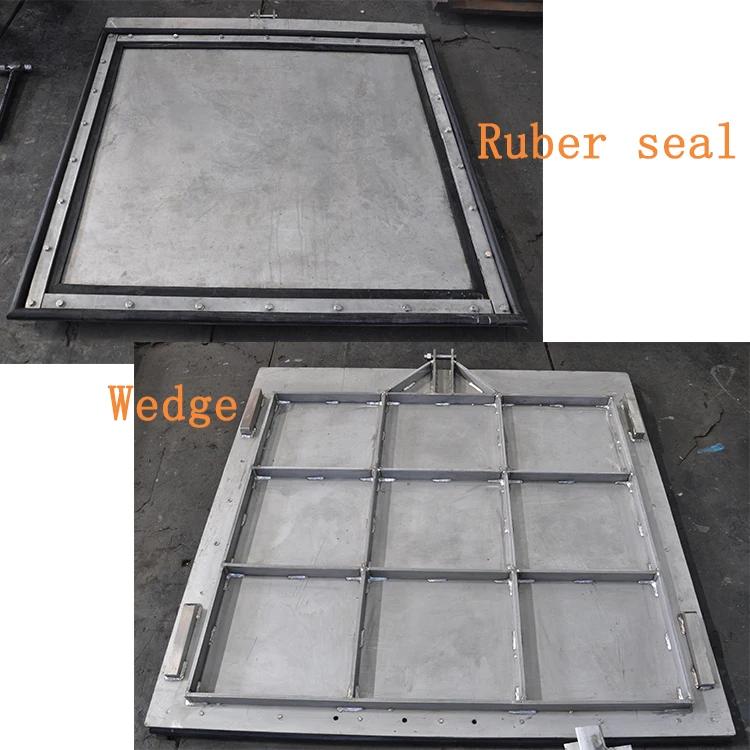

seal ring | rubber |
Specification and data sheet: Penstock valve
Size | 1560*3400 |
Pressure | 0.05Mpa/0.1Mpa/0.15Mpa/0.25Mpa |
Design standard | ISO10631/JB/T8692 |
Test standard | GB/T13927/ API598/ISO5208 |
Operation | Handwheel/Worm gear/Electric/Penufactic/Hydraulic |
Temperature | ≤80℃ |
Media | water |
Standard | customer requirements |
leakage rate | ≤1% |
MOQ | 1Set |
Suitable materials: Penstock valve
Body | Carbon steel/stainless steel |
Disc | Carbon steel/stainless steel |
Seat | EPDM/NBR/stainless steel |
Shaft | SS420/SS304/SS316 |
bolts&nuts | stainless steel |
Recommend Products
Company Profile
Professional valve manufacture since 2004
Tianjin tanggu jinbin valve co.,ltd was founded in 2004,with registered capital of 113 million yuan,covering an area of 20000 square meters,including 15100 square meters for factories and offices,she is a valve manufacture engaged in professional R&D,production and sales,a joint-stock enterprise integrating science,industry and trade.

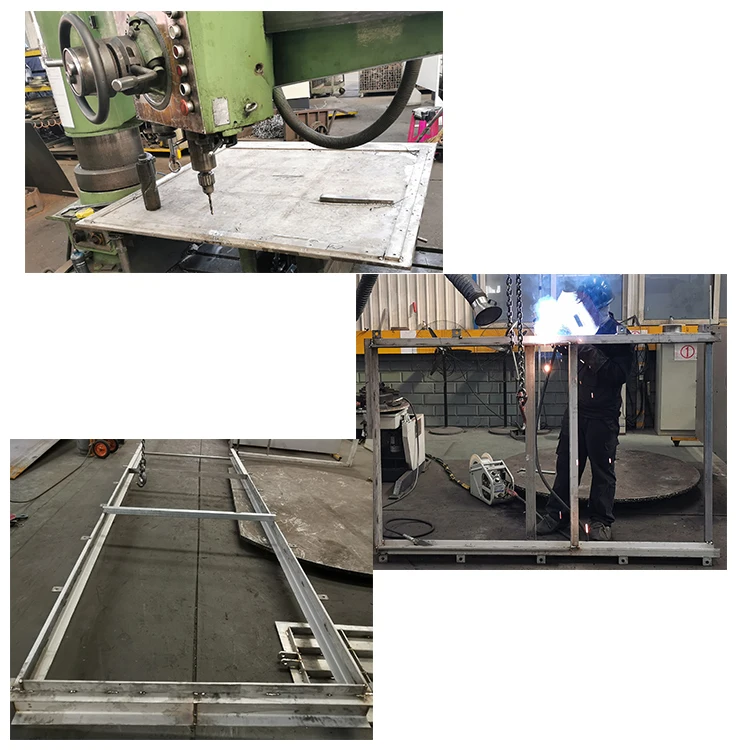

Product Process And Test
Certifications

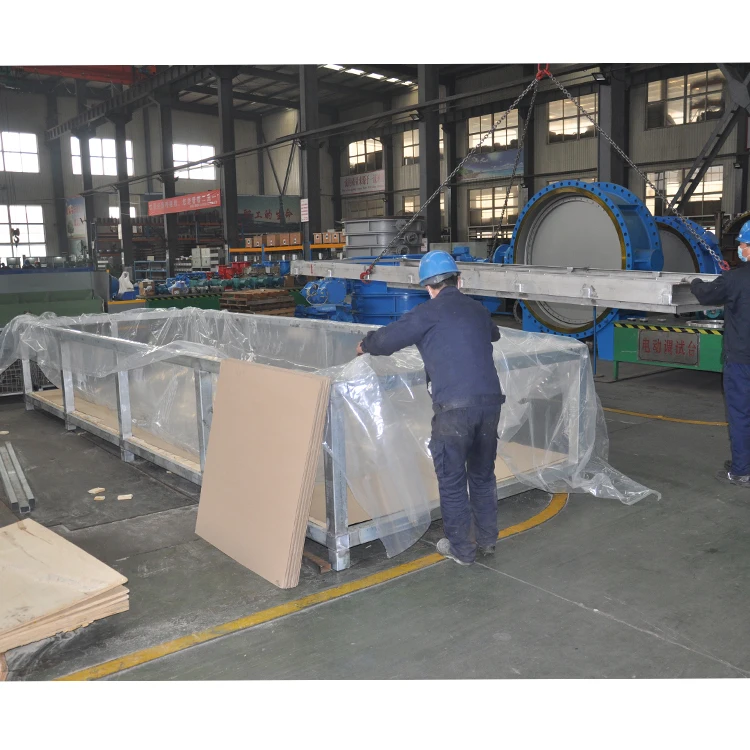

Product packaging
