Hot Pin digital high precision liquid densitometer
- Category: >>>
- Supplier: Jiangsu Tianyuan Testing Equipment Co. Ltd.
Share on (62533963740):
Product Overview
Description

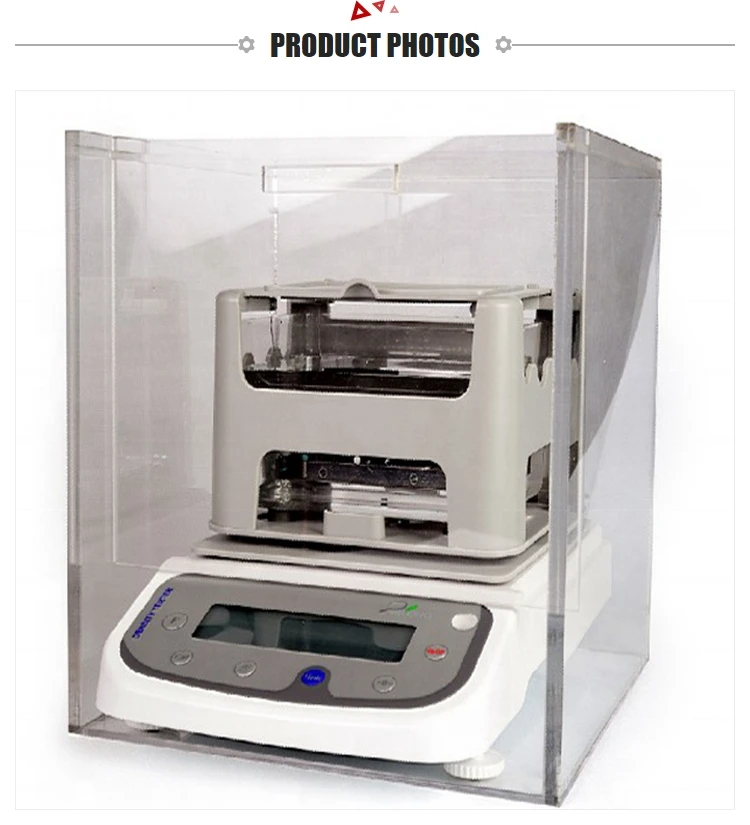

PRODUCT DISPLAY
|
Suitable for:
rubber, wire and cable, aluminum products, plastic PVC particles, powder metallurgy, mineral rocks, EVA foaming materials, glass industry, metal products, precision ceramics, refractories, magnetic materials, alloy materials, mechanical parts, Metal recovery, Minerals and Rocks, cement Manufacturing, Jewelry Industry and other New Materials Research Laboratory.
Functional features and devices:
1.Without any manual calculation, 2-step operation, 2-5 seconds can quickly read the specific gravity value of various solid particle samples, volume operation is simple.
2.Support the function of one key automatically reset and auxiliary parts weight deducting.
3.Has the function of temperature and solution compensation setting, to meet the need for specific gravity of the measuring medium (water) and replacement of the measuring medium due to low room temperature
4.The gold-plated ceramic sensor has long corrosion resistance and low failure rate
5.Adopt the transparent measuring flume of integral shape, the dimension of integral shaping flume: 165*115*85mm
6.Adopts light, thin and stainless steel suspension line design, which can greatly reduce the error caused by buoyancy of the suspension line
7.External dimension: 270*270*270mm , Net Weight: 4.5kg
8.Rs-232 standard interface makes it easy to connect the gravimeter to computer and printer
Standard accessories:
(1)mainframe, (2)sink, (3)measuring table, (4)tweezers, (5) instructions, (6)weights, (7) windproof dust shield, (8)particle fitting set, (9) floating body fitting set, (10)power transformer set
Measuring step:
1,Put the sample on the measuring table, measure the weight of the air, and press the M key to remember.
2,Fully immerse the sample in water, measure the weight of the water, press the M key to remember, and display the density value directly.
