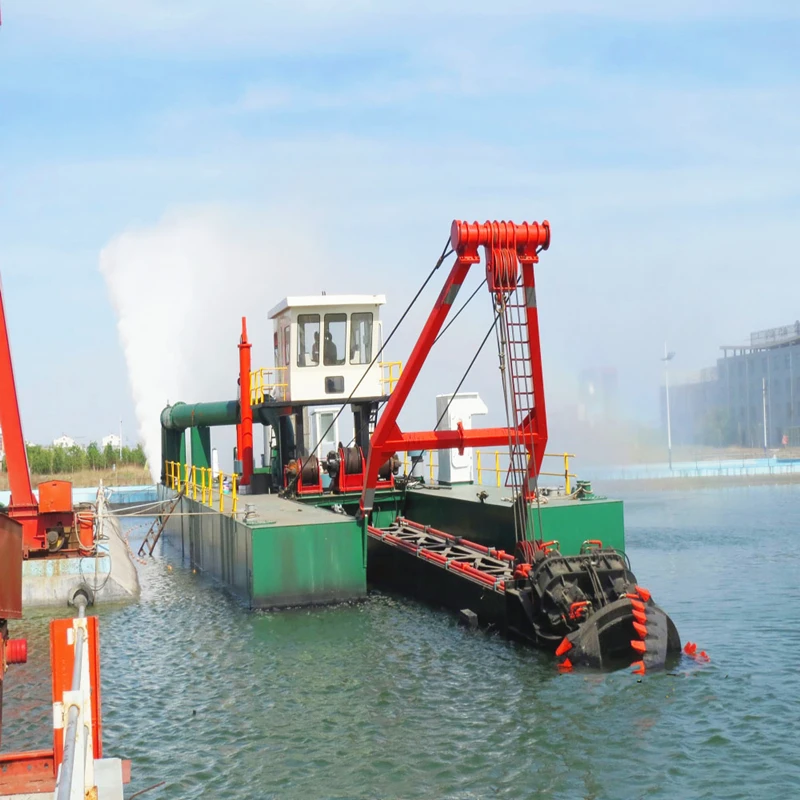

Diesel engine power 18 inch cutter suction sand dredger for river sand and inland waterways dredging
- Category: >>>
- Supplier: Shandong Haijie Dredging Machinery Co. Ltd.
Share on (62533973214):
Product Overview
Description
Haijie cutter suction dredger from experienced china factory.
Cutter suction dredger are widely used all kinds of port . river .lake .sea and inland waterway for dredging . Haijie cutter suction dredger adopt advanced hydraulic control system . this system can reach the longer service life . higher performance and higher capacity . Power of cutter suction dredger use diesel engine . this diesel engine from Cummins from US and UK. Cummins engine has steady performance . longer continuous working time . don't easy appear error.slurry pump is from famous manufacturing factory. pressure pump is made of high quality material to insure the service life , this pump can reach the output of full power .let customer get the largest capacity .
Cutter suction dredger is customized by our factory according to the client request. including engine brand . slurry pump brand . hydraulic control system and the others . all parts of cutter suction dredger adopt advanced device let the cutter suction dredger reach the match well.

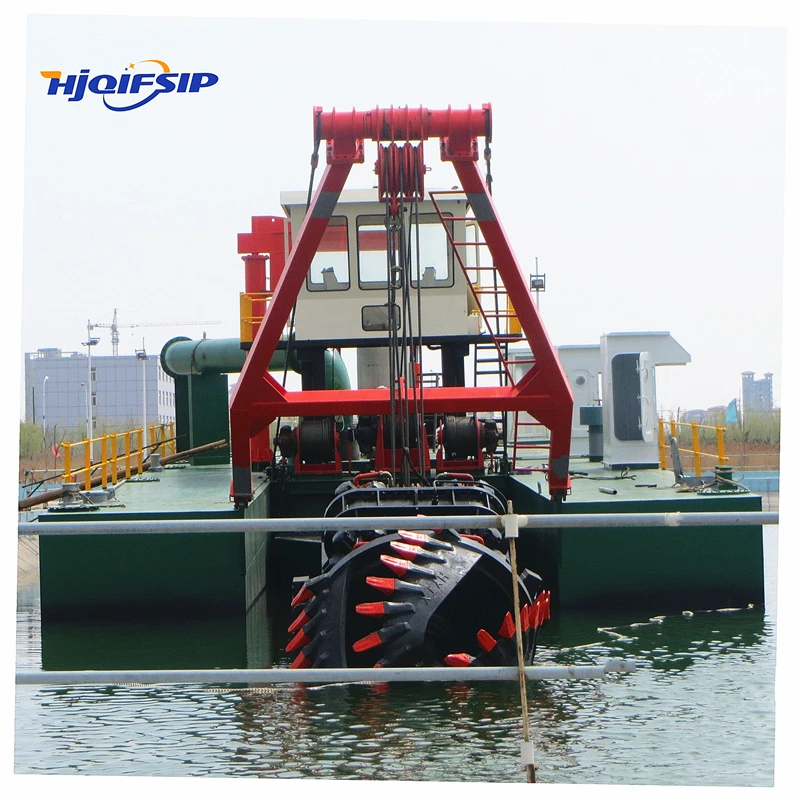

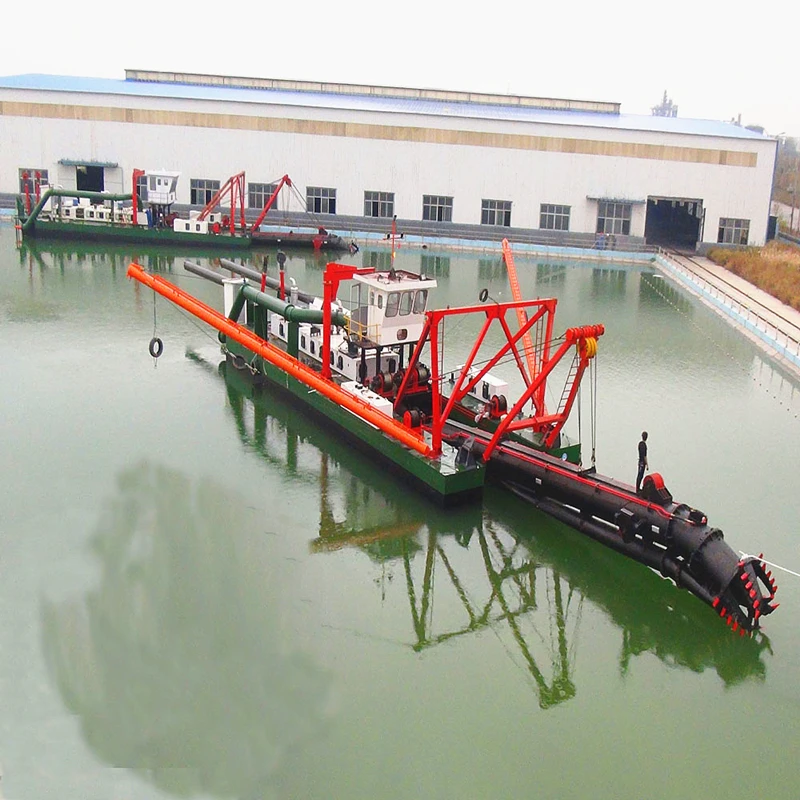

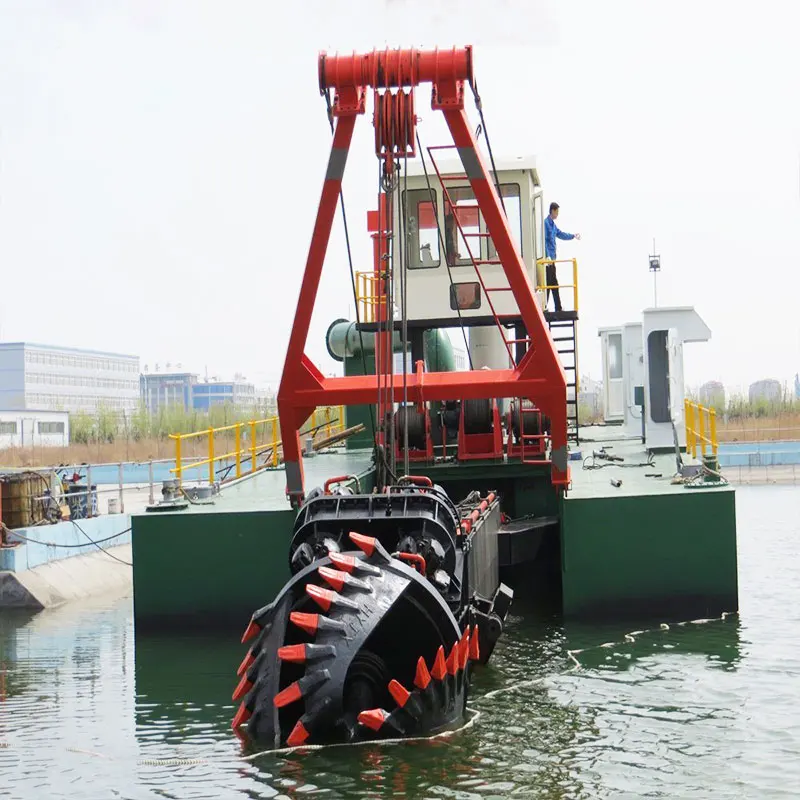

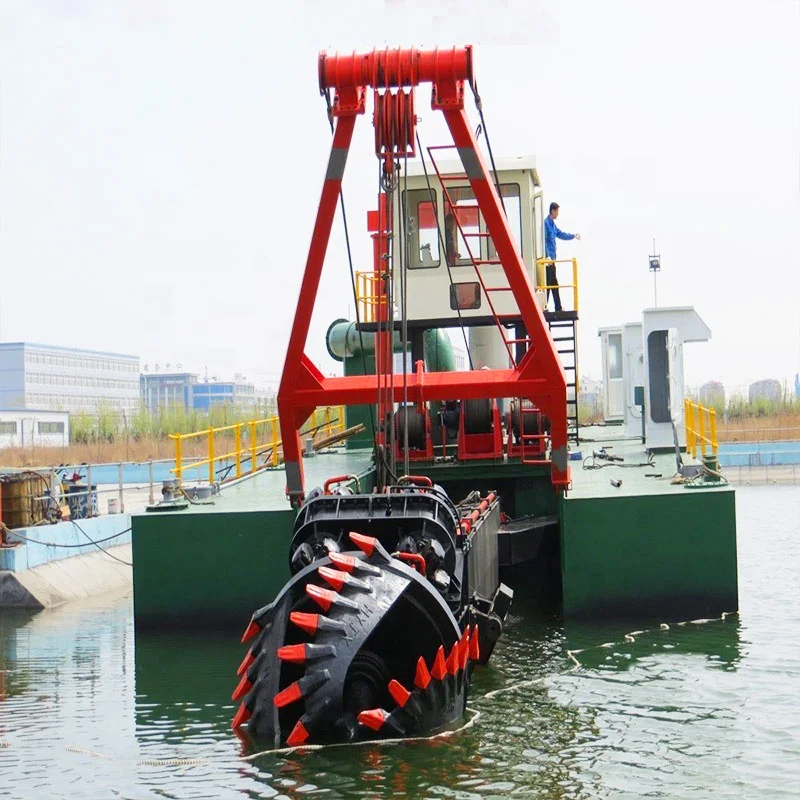

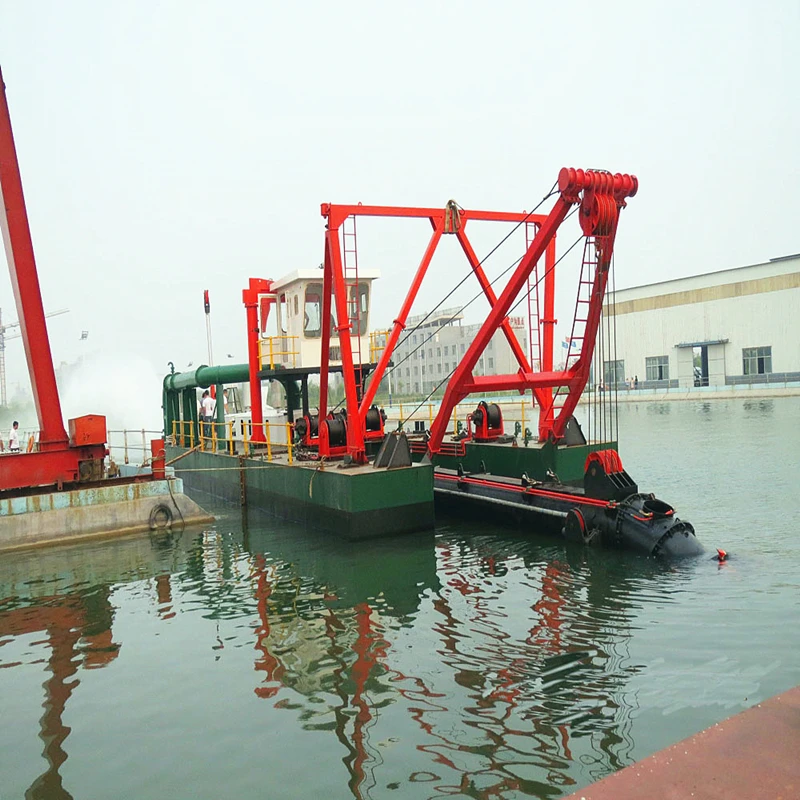

Product image:
&Application and specification :
*Application:
Cutter suction dredgers, characterized by strong geographical environment adaptability, a simple structure, easy maintenance, reliable performance, long service life, low costs and large workload (1,000 to 4,000 cubic meters per day) are ideal choice for sand field and river sand mining. It can also be used in salt mining in salt lakes, offshore and river dredging, hard riverbed mining, waterway improvement and development. Dug sand after screening and separation is pure and inclusion-free, which is a ideal choice for the building industry.
Specification:
Model | 18 inch | 20 inch | 22 inch | 24 inch | 26 inch | 28 inch | 32inch |
Dimension | 23*7.5*2.5m | 27*8.5*2.5m | 27*8.5*2.5m | 27*8.5*2.5m | 38*9.8*3.6m | 38*9.8*3.6m | 46*12.1*3.8m |
Main engin power | 895kw | 895kw | 1193kw | 1641kw | 2200kw | 2200kw | 3000kw |
Auxiliary engine | 224kw | 298kw | 298kw | 447kw | 540kw | 720kw | 720kw |
Max.dredging depth | 14m | 15m | 16m | 16m | 1-20m | 1-20m | 1-20m |
Discharge distance | 1500m | 2000m | 2000m | 2000m | 2000m | 2200m | 2500m |
Water flow | 3000m3/h | 4000m3/h | 4500m3/h | 5500m3/h | 6000m3/h | 7000m3/h | 7500m3/h |
Capacity | 600m3/h | 800m3/h | 900m3/h | 1100m3/h | 1200m3/h | 1400m3/h | 1500m3/h |
Cutter power | 80kw | 130kw | 170kw | 300kw | 350kw | 500kw | 500kw |
Dtail image:
Main diesel engine :
Make: Cummins.Model:KTA38-M2.
Power: 895kw-2200kw
Rpm: 1800r/min.
Cylinders:12-16.
Feature:
Power: 895kw-2200kw
Rpm: 1800r/min.
Cylinders:12-16.
Feature:
High efficient . full output long continuous working time. low failure.
High pressure pump:
Make:Shijiazhuang .
Water flow:3000m3/h.(3000m3-7500m3/h).
Head :48m-66m.
Capacity:600m3/h.
Discharge distance : 1500m-2500m.
Feature:
Head :48m-66m.
Capacity:600m3/h.
Discharge distance : 1500m-2500m.
Feature:
Full power working . The biggest output . long service life .low failure.

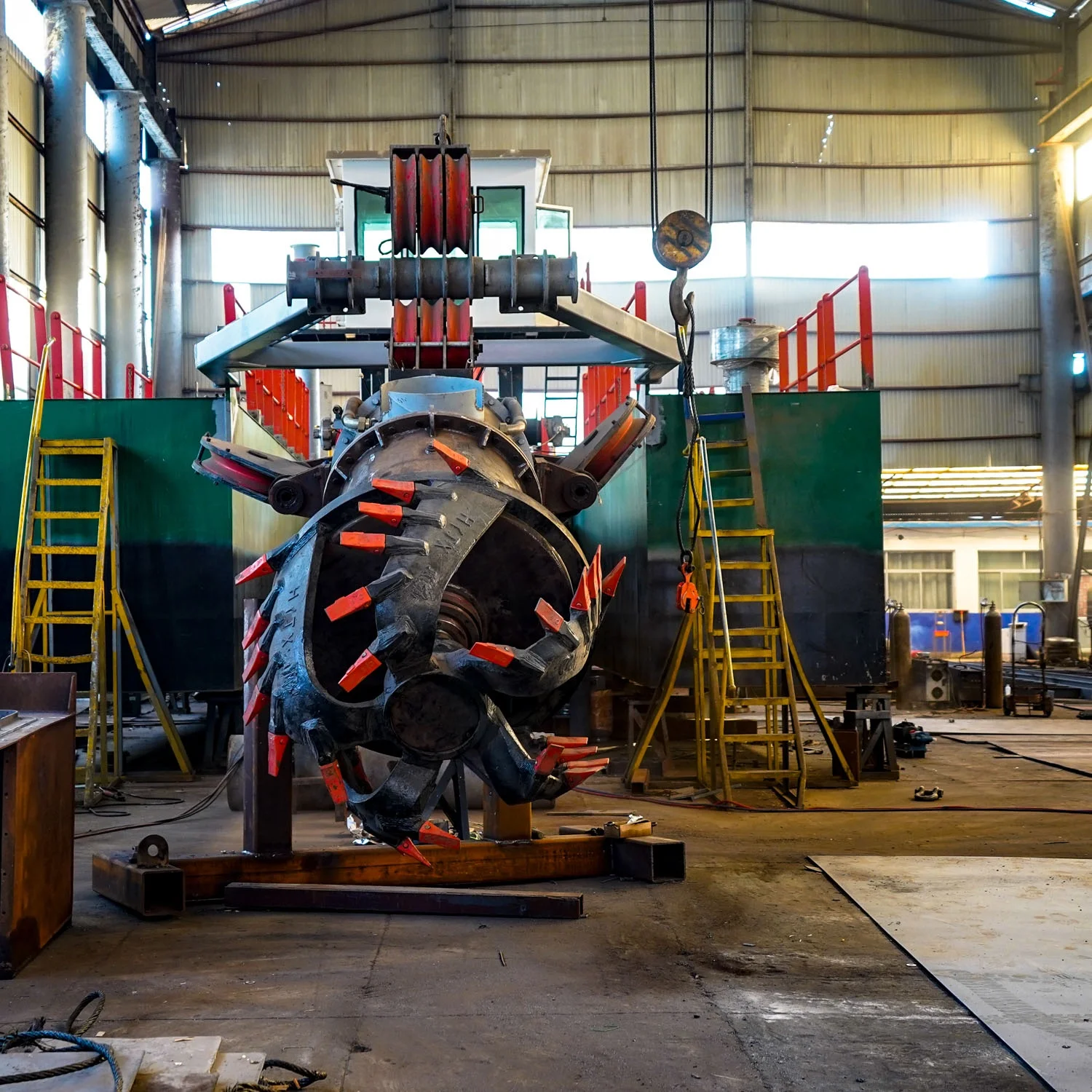

Cutter head:
Cutter head diameter:1500mm-2350mm.
Cutter head power:80kw-500kw.
Blade quantity:5.
Cutter teeth quantity :30.
Materail:K10.40Cr.
Feature:
Cutter head power:80kw-500kw.
Blade quantity:5.
Cutter teeth quantity :30.
Materail:K10.40Cr.
Feature:
Long service life . simple replacement.. high efficient .low failure.
PLC system from Siemens.
Hydraulic control system from Rexroth.
Product advantage :
2). High Efficiency. The cutter suction dredgers can dredge and discharge sand/mud at the same time without other ships for transportation.
3). Easy Operation. With hydraulic system and PLC control system, all the dredgers operation can be done in the operation cabin.
4). The dredgers are dismountable. So they can be disassembled and assembled easily.
5). Customized designs will be made based on customers' project requirements.
6). All the dredgers are built by skilled workers and inspected strictly to assure the high quality and durability.
7). Best parts will be used for the dredgers, like world famous Cummins engines, Shijiazhuang pumps, Hangzhou gearboxes, Siemens PLC control system.
8). Professional engineers will be sent to the project site to insist the customers on the installation, commissioning, testing of the dredgers and training of operators.
Other parts photo:
dredger video:
Successful case :
Dredger sold to Philippines.
333
Dredger in Bangladesh:
Packing and transport.
Our service & after -sales service :
&.1.we can offer the solution and design before the sale, we can customize according to your request and need .
2.we can according to your truth situation of dredging depth,discharge distance , sluarry concentration to do the suitable design for client.
3.we can offer the one year after- service and the professional enginner for our customers.
4.we can provide the detail installing guidance,overall commissioning, pre-job training and solving of the difficult problem.
2.we can according to your truth situation of dredging depth,discharge distance , sluarry concentration to do the suitable design for client.
3.we can offer the one year after- service and the professional enginner for our customers.
4.we can provide the detail installing guidance,overall commissioning, pre-job training and solving of the difficult problem.
@.1. Engineers available for overseas installation, training, trail operation and maintenance.
2. Offer one year warranty.
3. We supply customized services or products.
4. Worldwide shipping:we are shipping around the world where there is need for our products.
Client visited:
Request for reply:
1. How many meters for dredging depth?
2. How many cubic meter for capacity per hour ?
3.How many meters for discharge distance ?
4. Which diesel engine do you want to use ?(Cummins . Weichai and others ).
3.How many meters for discharge distance ?
4. Which diesel engine do you want to use ?(Cummins . Weichai and others ).

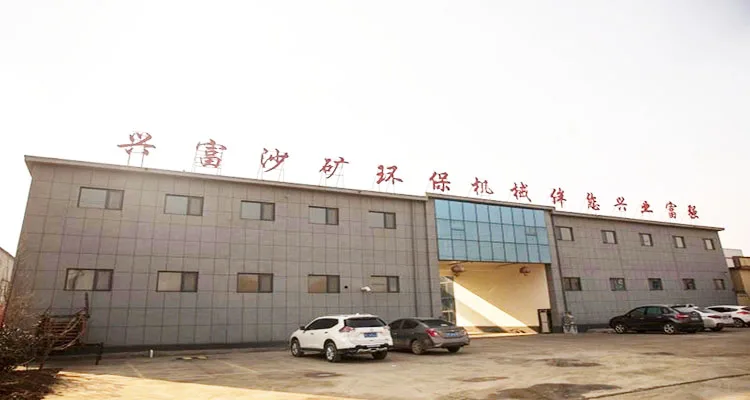

Factory and work ship :
Qingzhou Haijie is located beautiful city Qingzhou Weifang Shandong province .China. Our major product : all kinds of cutter suction dredger . chain bucket sand dredger .jet suction dredger .land and river mining equipment .multi-function server working boat so on. we have worker more than 50 , we have complete research development team and the technology team. we have experience engineer and mechanic go to abroad for support and guide . all parts of product adopt advanced device from famous supplier. we can insure the high quality product and after sales service for customer .
Haijie welcome customer from at home and abroad come to our factory . Haijie expect cooperation with you !
