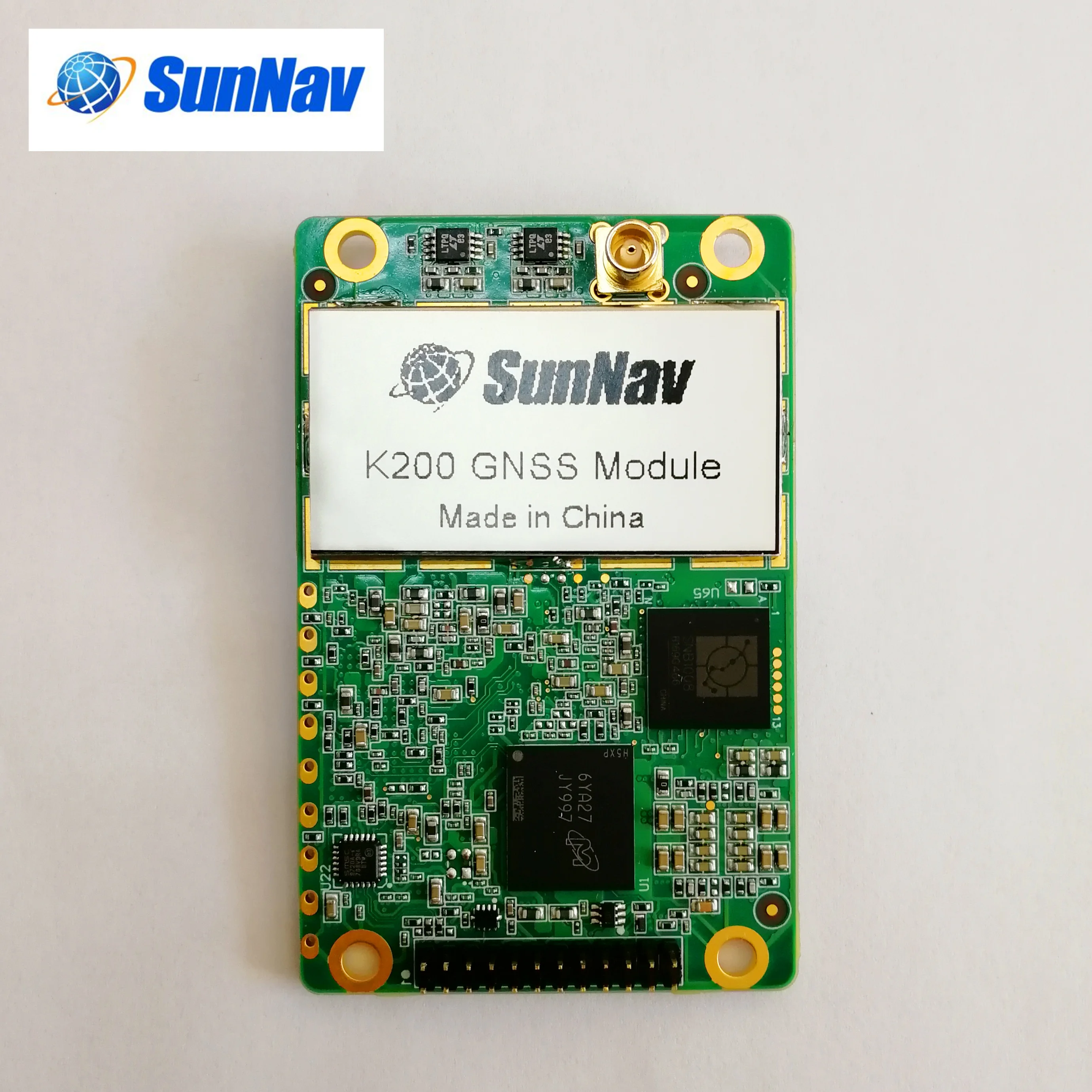

The K200 is a new generation OEM board designed to work with current constellations, which is also firmware upgradable to track satellite signals of upcoming constellations. With the latest QuantumTM Algorithm, it remarkably improves the stability and reliability of positioning accuracy in standalone and RTK modes. Your GNSS solution will never be outdated with the K200 OEM board inside.
As small-sized and multifunctional OEM board, the K200 has reliable performance in a wide range of applications, such as UAV mapping, machine control, precision agriculture and high accuracy land Surveying, especially in handheld RTK devices. Furthermore, the onboard MEMS-IMU provides consistent position and navigation when satellite signals lost, which well suits for fleet management and mobile surveys.
Cold start: <50s Hot start: <15s Warm start: <30 s RTK Initialization time: typically <10s Signal reacquisition: <1.5s Initialization reliability: typically>99.9% Velocity accuracy: 0.03m/s Acceleration: 4g Overload: 15g Time accuracy: 20ns
Performance Specifications
Post Accuracy:2.5 mm + 1 ppm Horizontal Processing Accuracy:5 mm + 1 ppm Vertical Single Baseline Accuracy:8 mm + 1 ppm Horizontal RTK Accuracy:15 mm + 1 ppm Vertical DGPS Accuracy:<0.4 m 3D RMS SBAS Accuracy:1 m 3D RMS Standalone Accuracy:1.5 m 3D RMS
Communications
3 LV-TTL ports, baud rates up to 921,600 bps 1 USB port 1 LAN Ethernet port 1 CAN Bus Reserved 1 Pulse Per Second (PPS) output 2 Event Marker input 3 LEDs indicating working status
Data Format
Correction data I/O: RTCM 2.X, 3.X, CMR(GPS only),CMR+(GPS only) Position data output: -ASCII: NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA,ZDA, PTNL,PJK; PTNL,GGK; PTNL,AVR; NAVPOS -SunNav Binary update to 50 Hz -BINEX Data: 0x00, 0x01-01, 0x01-02, 0x01-05,0x7d-00,0x7e-00, 0x7f-05 -Position data output rate: 1Hz, 2Hz, 5Hz, 10Hz, 20Hz, 50Hz
