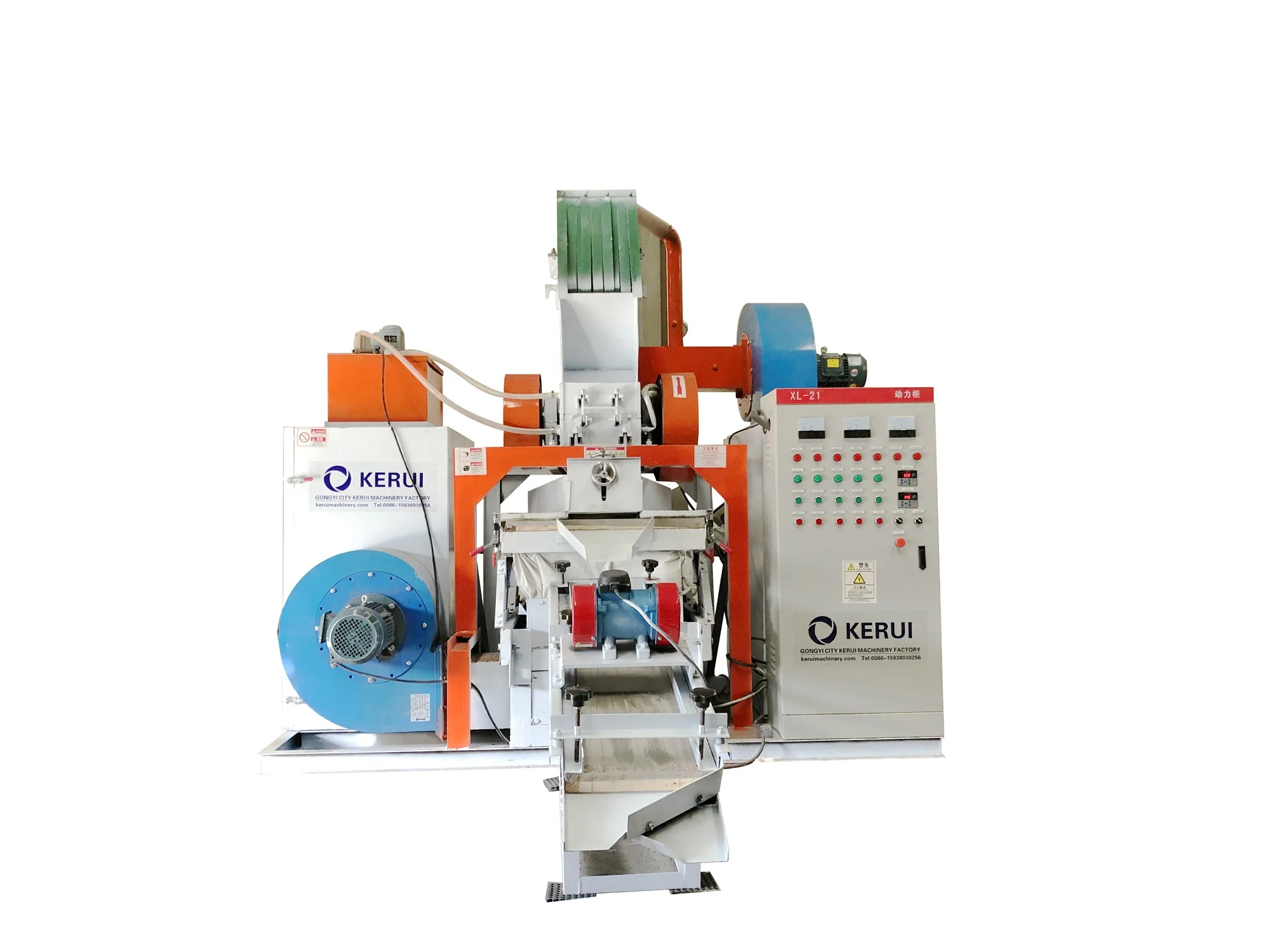

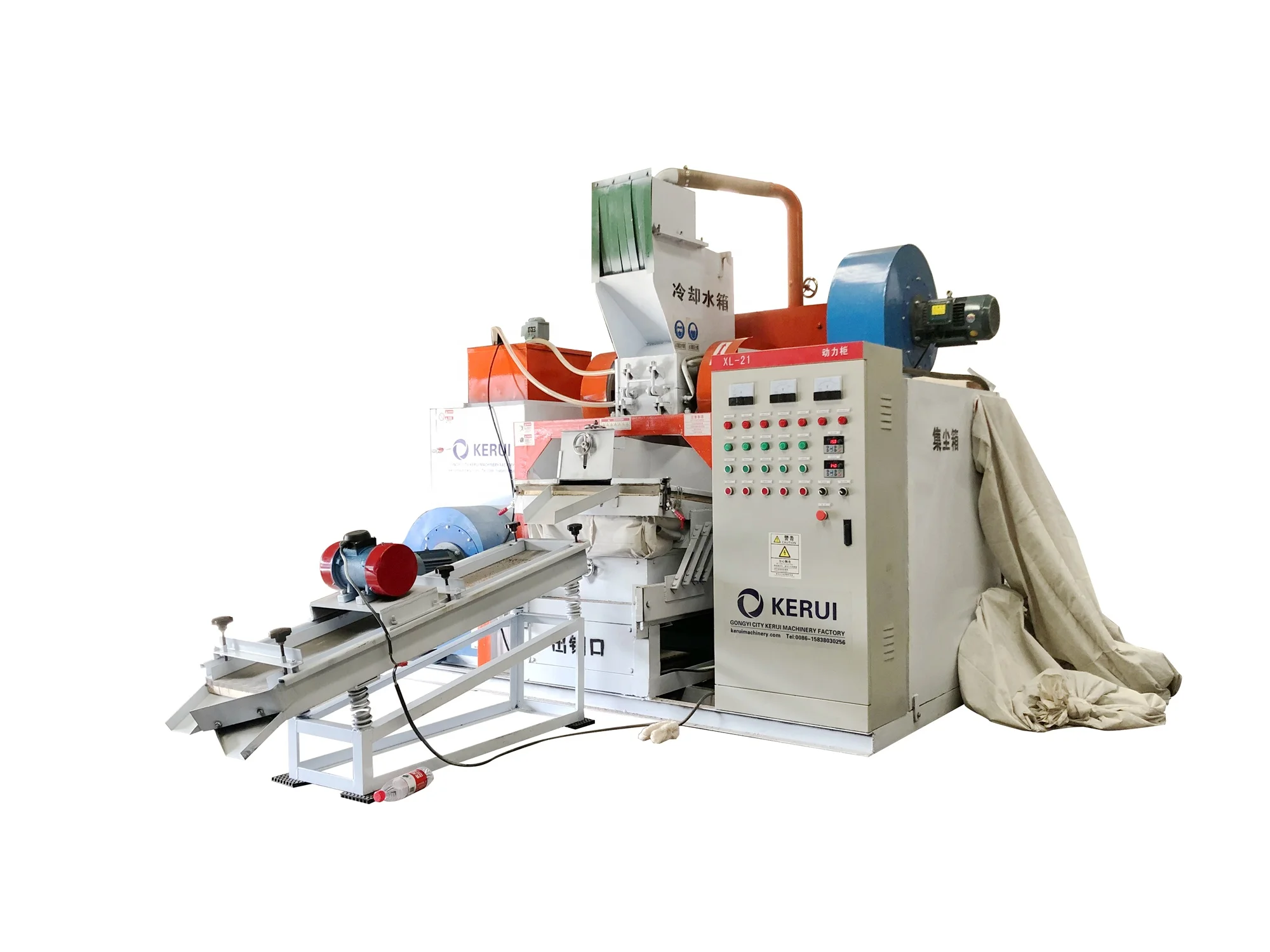

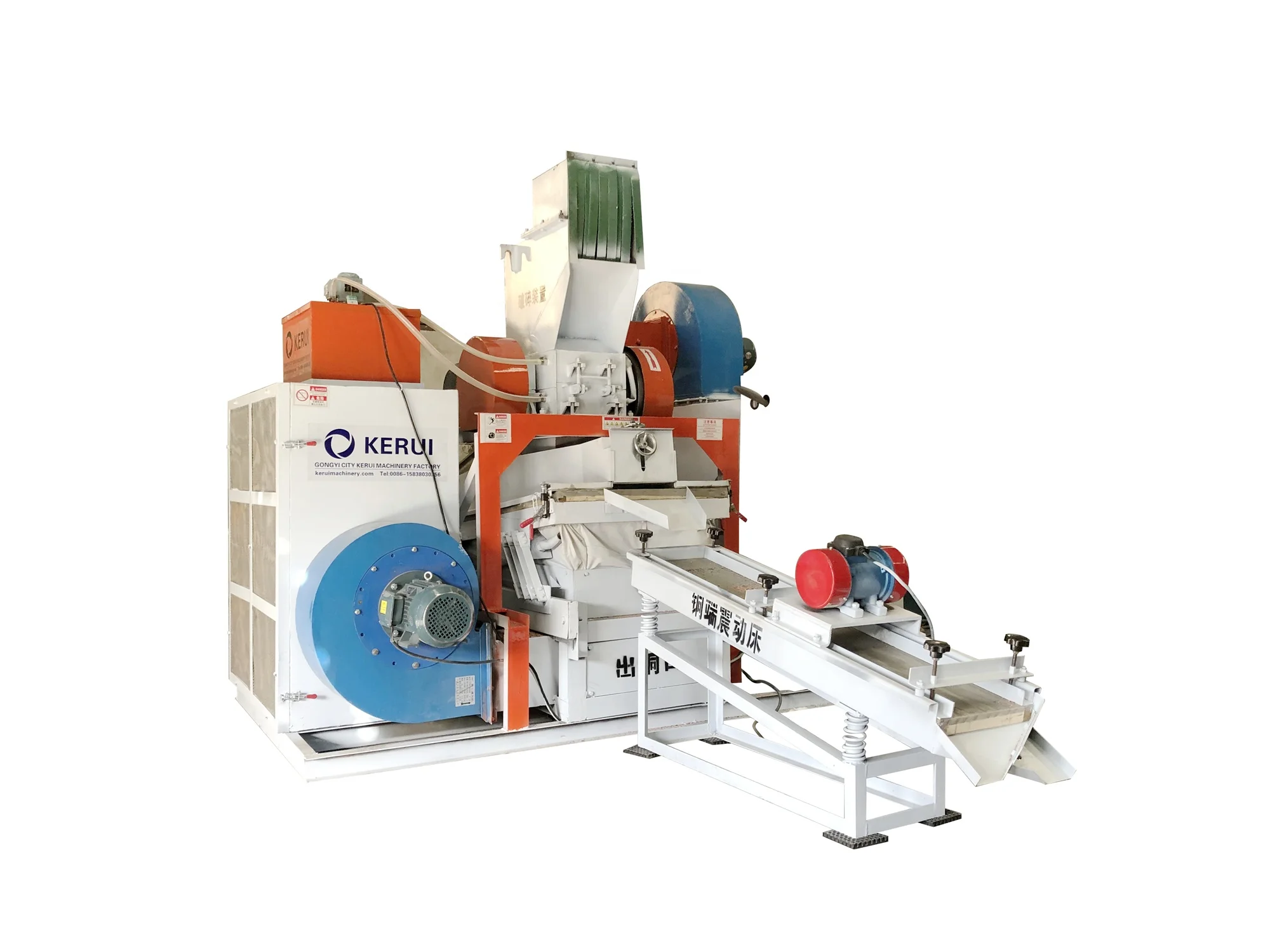

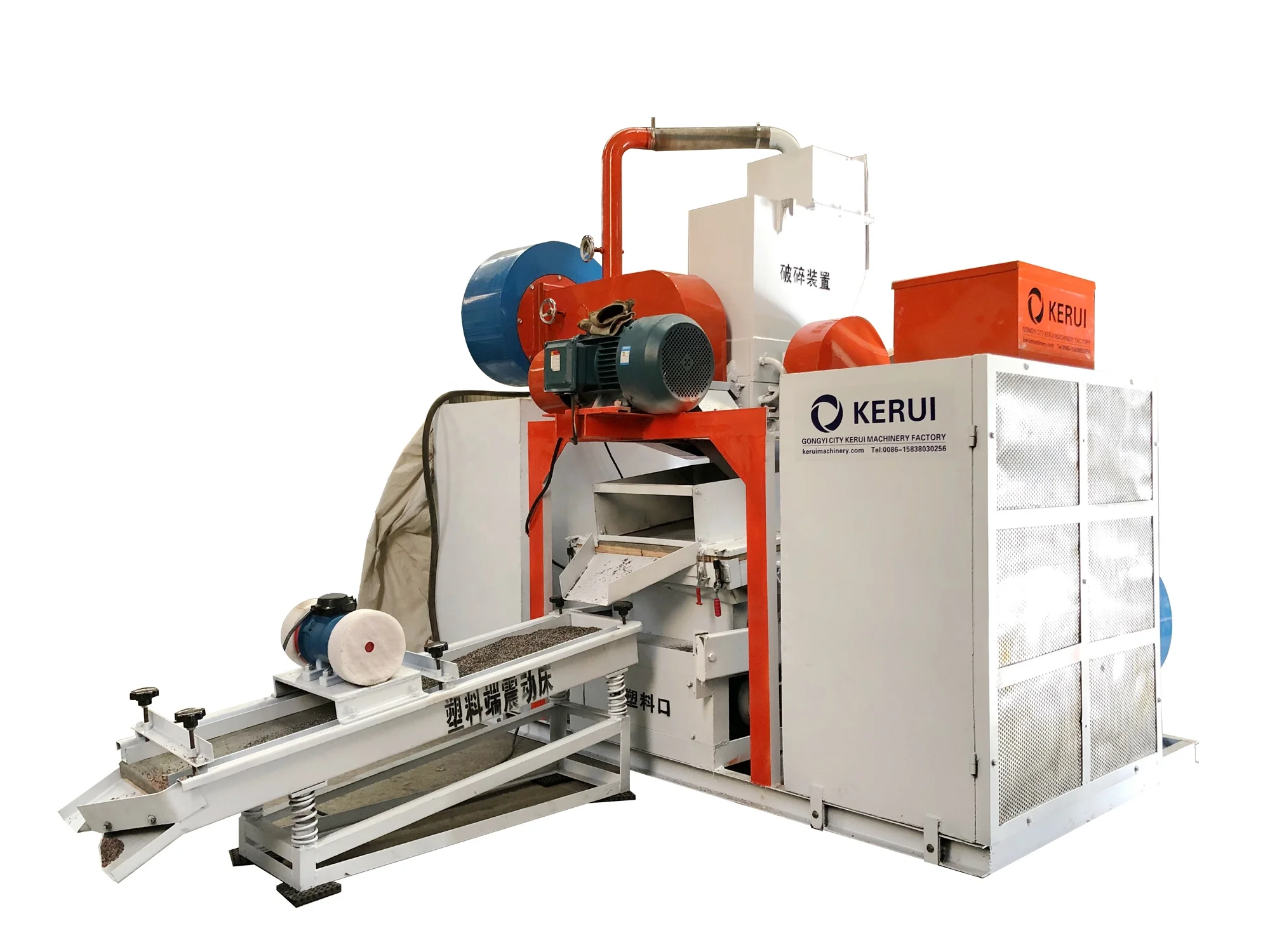

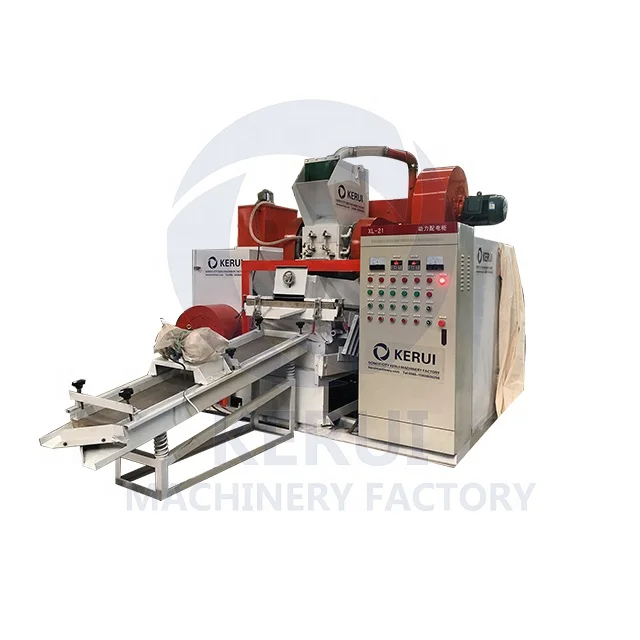

aluminum cable recycling machine/scrap wire cable granulator copper recycling production line
- Category: >>>
- Supplier: Gongyi City Kerui Machinery Factory Co. Ltd.
Share on (62534508135):
Product Overview
Description
Product Description
KR400C copper recycling production line is our fifth generation product, it is mainly used to process copper wire(industrial cable, signal wire, lighting wires, etc.) and aluminum wire(industrial cable) to get high purity output products. Compare to the forth generation product, both of the capacity and separation performance are highly increased.
Maximum capacity:100kg/h (Based on the copper content of the raw material)
Maximum separation purity:99%(Minimum dimension of the copper core should be over 2mm)
Maximum capacity:100kg/h (Based on the copper content of the raw material)
Maximum separation purity:99%(Minimum dimension of the copper core should be over 2mm)

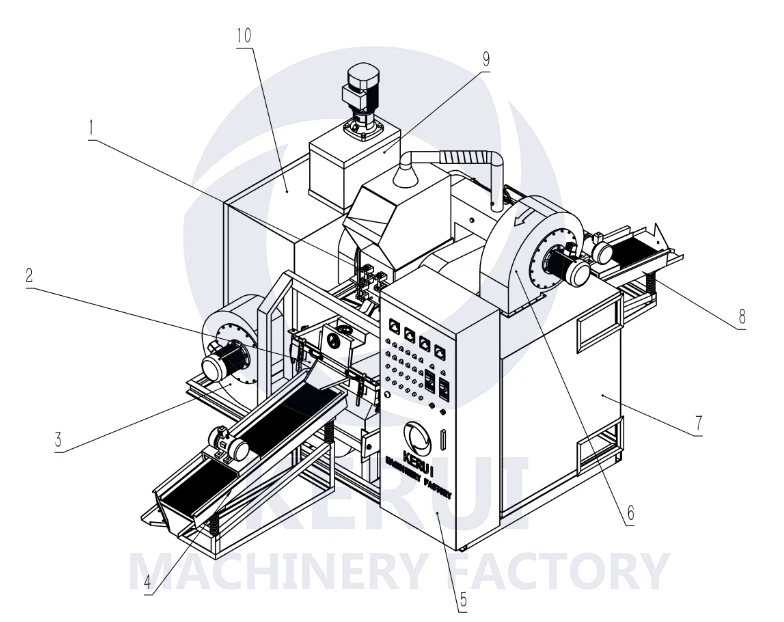

1.Crusher
2.Air separator
3.Downside blower
4.Copper outlet vibration screen
5.Cabinet
6.Dust collector fan
7.Dust collection box
8.Plastic outlet vibration screen
9.Water cooling tank
10.Dust filter box
2.Air separator
3.Downside blower
4.Copper outlet vibration screen
5.Cabinet
6.Dust collector fan
7.Dust collection box
8.Plastic outlet vibration screen
9.Water cooling tank
10.Dust filter box

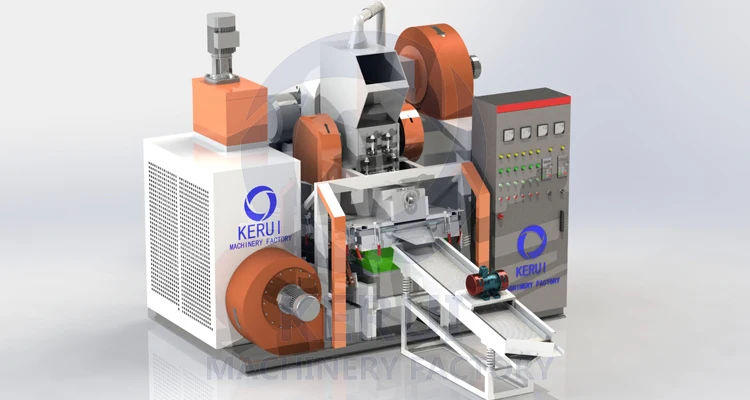

KR400C copper recycling production line
Mechanical structure:
This machine is all-in-one type which consists with crusher, air separator and dust collector. All of the equipment are placed on one platform.
working principle:
Feeding the material to the crusher, then the crushed material will on the air separator through the crusher sieve(the size of the crushed material will be controlled by the customized crusher sieve), then the air separator will separate the heavy material from the light one by the air pressure and the vibration.
Model | Size | Power | Weight | Capacity |
KR400C | 2600*1600*2100mm | 22kw | 1200kg | 80-100kg/h |
KR600C/S | 3900*1900*2300mm | 40.5kw | 3200kg | 300-500kg/h |
KR800C/S | 8000*1900*2400mm | 76kw | 6000kg | 600-800kg/h |
Details Images
Related Products
Packing&Shipping

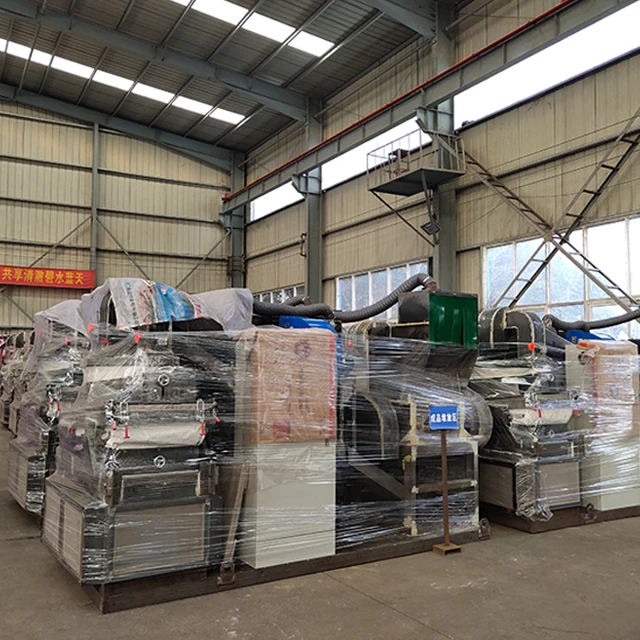

The KR400C copper recycling production line will be packaged with the wooden case and fixed by steel wires
After Sales Service
Warranty
100% brand new when leaving the factory. we guarantee quality of the machines for a period of one year from the date of a trial
run to the finish, but not to exceed thirteen months from the date of which machines away to the delivery port. If any parts
(excluding easily damaging parts) are found defective in quality in the first year, the seller should replace free-of-cost. After
one year, parts can be replaced on favorable payment basis.
run to the finish, but not to exceed thirteen months from the date of which machines away to the delivery port. If any parts
(excluding easily damaging parts) are found defective in quality in the first year, the seller should replace free-of-cost. After
one year, parts can be replaced on favorable payment basis.
Company Introduction
Established in 1998, Gongyi City Kerui Machinery Factory Co., ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of waste management equipment as copper recycling production line, scrap motor recycling machine, aluminum scrap recycling machine,etc.
Our Services & Strength
1.With the 3D layout according to the real working condition of our customer site, it can help the worker to expedite the progress of installation.
2.With the years of exporting experience, we can also provide the installation&use package(tools, wiring, spare parts,etc.) to reduce the local working cost.
3.With the fully English technical support team, our technical can directly communicate with our customer to guarantee the service quick, accurate and effective.
2.With the years of exporting experience, we can also provide the installation&use package(tools, wiring, spare parts,etc.) to reduce the local working cost.
3.With the fully English technical support team, our technical can directly communicate with our customer to guarantee the service quick, accurate and effective.
4.With the strong research and development team, our company is able to provide the customized service for each of our customers.
FAQ
Q:What is the capacity of the KR400C copper recycling production line?A:The capacity of the machine is effected by three items as the tickness of the cables, the copper content of the cables and the length of the cables.
For example:
To process the house lighting wires with copper content 40% without pre chopping, the capacity of the KR400C copper recycling production line can achieve 100kg/h.
Q:What is the power of the main motor?
A:The power of the main motor is 15kw and we could also upgrate to 22kw if you are going to process the industrail cables.
Q:What is the total power of the KR400C copper recycling production line?
A:The total power of the machine is 22kw and it requires the transformer with capacity 50KVA(3phase 380-440V)
For example:
To process the house lighting wires with copper content 40% without pre chopping, the capacity of the KR400C copper recycling production line can achieve 100kg/h.
Q:What is the power of the main motor?
A:The power of the main motor is 15kw and we could also upgrate to 22kw if you are going to process the industrail cables.
Q:What is the total power of the KR400C copper recycling production line?
A:The total power of the machine is 22kw and it requires the transformer with capacity 50KVA(3phase 380-440V)
