Трафаретная печатная Конвейерная сушилка ptfe сетчатая конвейерная лента
- Category: >>>
- Supplier: Jiangsu Bocheng New Tech Materias Co. Ltd.
Share on (62534570925):
Product Overview
Description
Product Description

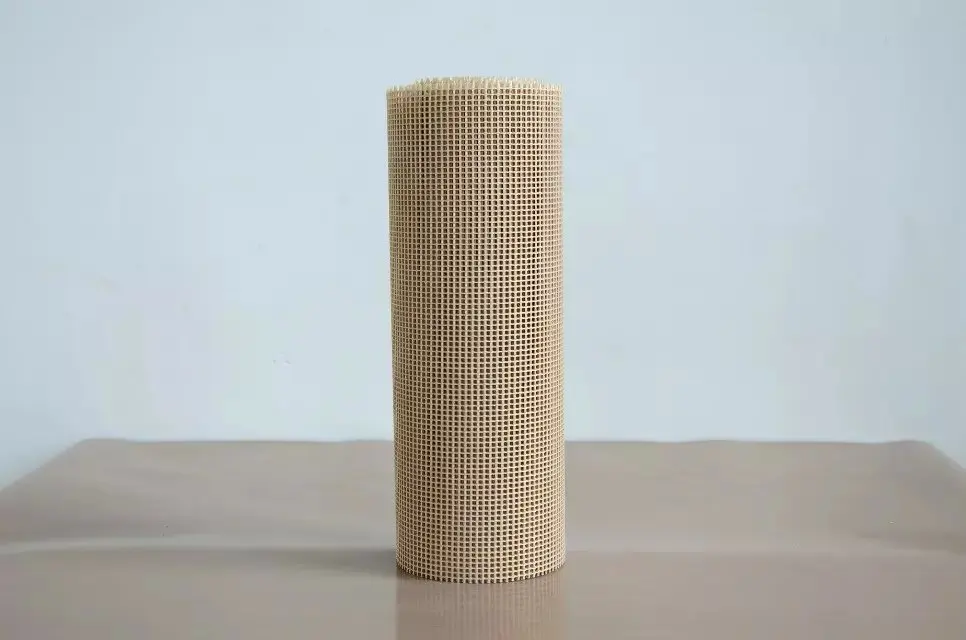

Non-stick belt PTFE dryer belt UV resistance belt
Open mesh PTFE impregnated fibreglass belting is available in brown or with a black U.V. block coating for ultra violet drying. The woven glass substrate provides exceptional strength and dimensional stability. Its non-stick surface, operating temperature range from -73°C to +260°C and the 70% open area makes this belting the perfect solution for many drying applications.
Applications
* Screen print dryers / shrink tunnels
* Drying textiles and non-woven materials
* Side and base sealing auto pack machines
* Re-soldering and ink drying cable braiding
* Heat-setting synthetic yarns
* Curing and cooling extruded rubber products, e.g. Automotive
* Screen print dryers / shrink tunnels
* Drying textiles and non-woven materials
* Side and base sealing auto pack machines
* Re-soldering and ink drying cable braiding
* Heat-setting synthetic yarns
* Curing and cooling extruded rubber products, e.g. Automotive

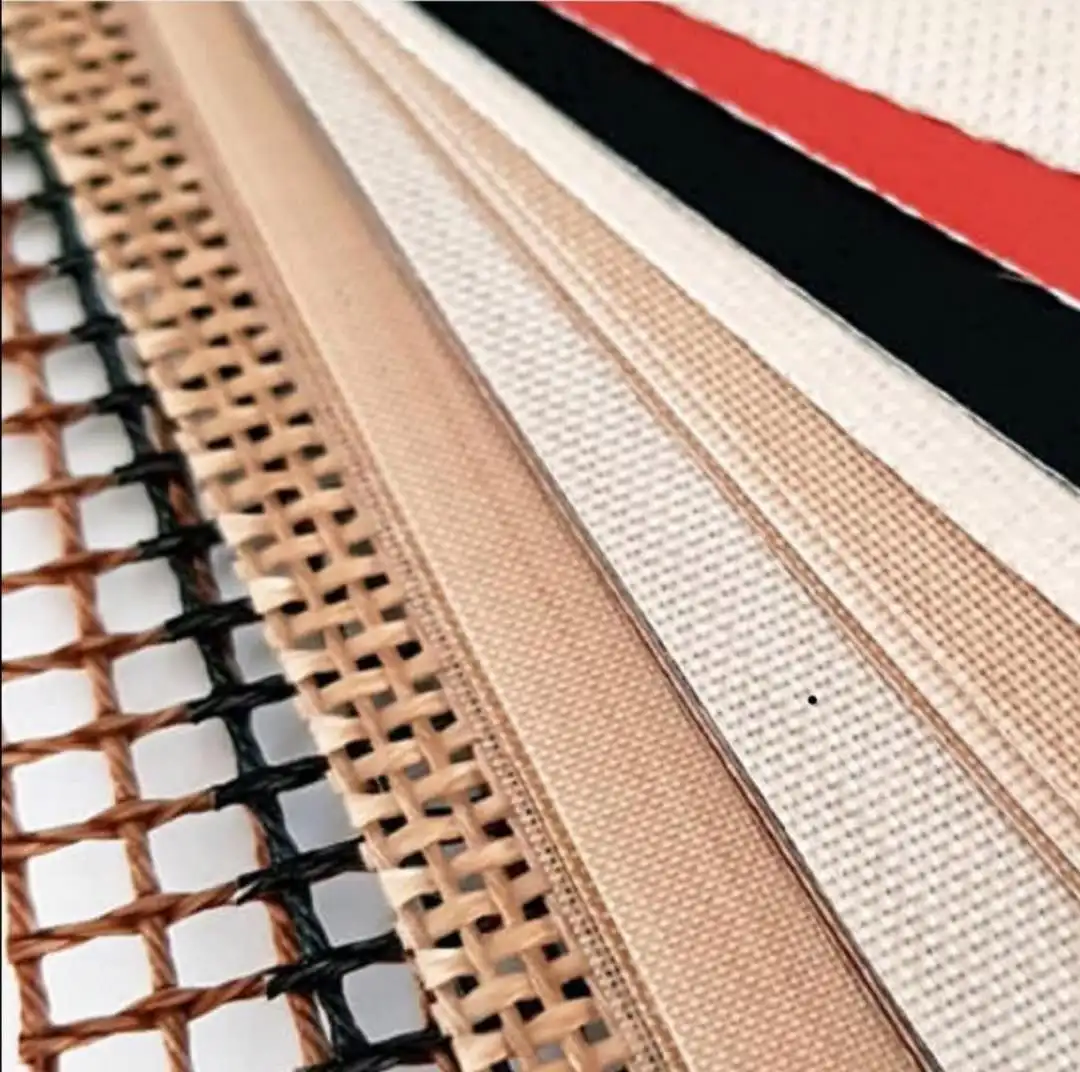

Detailed Images
4 X 4 DOUBLE WEFT
4 X 4 SINGLE WEFT
1X 1
Size Information
Our Food Quality PTFE coated glass fabrics are actively used in the following food processes:
* Contact Cooking
* Cooling & freezing
* Baking
* Sterilizing
* Drying, including vacuum drying
* Sizing
* Lining chutes
* Vessel linings
* Contact Cooking
* Cooling & freezing
* Baking
* Sterilizing
* Drying, including vacuum drying
* Sizing
* Lining chutes
* Vessel linings
Specification
Item No | Mesh Size | Weight | Width | Tensile strenght | Basic material |
KW001 | 1X1MM | 410G/M2 | 3000MM | 1600/1500N/5CM | PTFE+GLASS |
KW001B | 1X1MM | 415G/M2 | 3000MM | 1600/1500N/5CM | PTFE+GLASS |
KW004 | 4x4MM | 480g/m2 | 4000MM | 2100/1500N/5CM | PTFE+GLASS |
KW004B | 4x4MM | 485g/m2 | 4000MM | 2100/1500N/5CM | PTFE+GLASS |
KW004D | 4x4MM | 575G/M2 | 4000MM | 2800/1580N/5CM | PTFE+GLASS |
KW10 | 10 X 10MM | 570G/M2 | 3000MM | 1100/1000N/5CM | PTFE+GLASS |
KW051 | 0.5X1MM | 460G/M2 | 3000MM | 2200/1500N/5CM | PTFE+GLASS |
Manufacture Specification

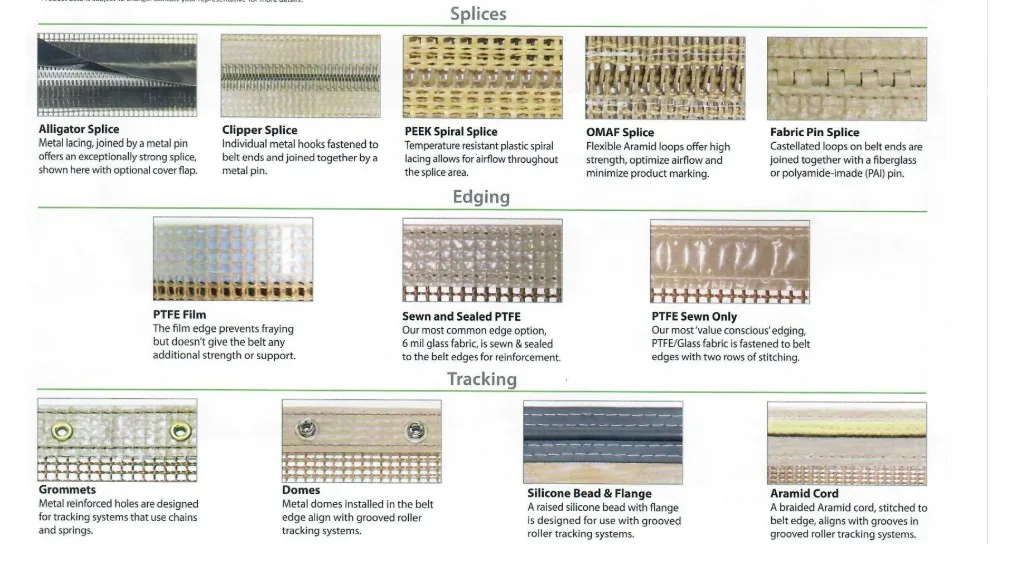

To enhance the tracking and belt life we offer various styles of edging:
* Heat-sealed and sewn, PTFE-coated fabric reinforcement
* Sewn only
* Heat-sealed TFE film edging
* Silicone edging (made to order)
* Heat-sealed and sewn, PTFE-coated fabric reinforcement
* Sewn only
* Heat-sealed TFE film edging
* Silicone edging (made to order)
Best Selling
Company Introduction
Our company is specialized in producing and selling various high-performance industrial composite materials. Our main products include PTFE coated fiberglass fabric, conveyor belts, silicone coated fiberglass fabric, food-grade PTFE and silicone baking lines, mats and other relative heat resistant PTFE and silicone materials. Our company has a professional team with good experience in providing thermal materials. Our company applies strict quality control systems and service systems, contributing to customers and markets which need high-performance composite materials. Our products are used in textile, dyeing, printing, food drying, petroleum, steel, chemical, medicine industry, etc. The products of our company sell well all over China and are exported to many foreign countries and regions with a good reputation.
Packing:Air bubble films and carton or as the customers’ requests
Shipping:Small order: By express, DHL, UPS, FEDEX, and EMS.
Large order: By sea or by air.
Choose the best and convenient way for you need.
Delivery time:5-15 days after payment in advance.
Shipping:Small order: By express, DHL, UPS, FEDEX, and EMS.
Large order: By sea or by air.
Choose the best and convenient way for you need.
Delivery time:5-15 days after payment in advance.
Contact Information
Jessica Chen
Whatsapp/wechat: +86 18252654002
E-mail address: sunshine@k-fabco.com
Any inquires, please do not hesitate to let me know. Looking forwarding to receiving your inquires and orders.
FAQ
1. What are our advantage to start business with you?
(1) Prompt delivery. We have six big coating machines and some other small machines. The delivery time is about 5-15 days.
(2) Reasonable price. Our machines are imported, which can improve the work efficiency,thus we can provide you high quality with competitive price.
(3) Variety choices. Our products are divided into economical series and premium series. We can fulfill a variety of requirements for you and bring best benefits for each other.
2. Do you have a good material stock for quick delivers?
We have a good material stock for quick delivers. Every time we produce a large amount,we will produce more than the specific quantity. For these products, we can sell to our small distributors for the quick order.
3. How wide is your standard production in PTFE fiberglass fabric?
The standard width is 1250mm. The max width is 3850mm.The min width is 1000mm.We can also provide you the customized items if required.
4. What about the MOQ?
For the regular thickness and width, we can provide you any quantity you need.
5. What about the raw material you use?
We use imported fiberglass from Taiwan and the PTFE resin is imported from Daikin and DuPont.
6. Do you have the specific QC department?
Of course we have the specific QC department.Our company applies strict quality control system and service system.
7. What about the warranty?
We are quite confident in our products.We have special quality control department who will 100% check each goods before shipment,and we can assure you all the goods sent out are in good conditions.When customers receive the goods in 15 days,if,unfortunately,there occurs broken ones,please tell us and show us the detailed proof so we can check it and give certain replacement in the next order.
8. How to order samples?
We can provide FREE samples,but you need to afford the freight.If you place an order next time,we will return the samples freight to you.
(1) Prompt delivery. We have six big coating machines and some other small machines. The delivery time is about 5-15 days.
(2) Reasonable price. Our machines are imported, which can improve the work efficiency,thus we can provide you high quality with competitive price.
(3) Variety choices. Our products are divided into economical series and premium series. We can fulfill a variety of requirements for you and bring best benefits for each other.
2. Do you have a good material stock for quick delivers?
We have a good material stock for quick delivers. Every time we produce a large amount,we will produce more than the specific quantity. For these products, we can sell to our small distributors for the quick order.
3. How wide is your standard production in PTFE fiberglass fabric?
The standard width is 1250mm. The max width is 3850mm.The min width is 1000mm.We can also provide you the customized items if required.
4. What about the MOQ?
For the regular thickness and width, we can provide you any quantity you need.
5. What about the raw material you use?
We use imported fiberglass from Taiwan and the PTFE resin is imported from Daikin and DuPont.
6. Do you have the specific QC department?
Of course we have the specific QC department.Our company applies strict quality control system and service system.
7. What about the warranty?
We are quite confident in our products.We have special quality control department who will 100% check each goods before shipment,and we can assure you all the goods sent out are in good conditions.When customers receive the goods in 15 days,if,unfortunately,there occurs broken ones,please tell us and show us the detailed proof so we can check it and give certain replacement in the next order.
8. How to order samples?
We can provide FREE samples,but you need to afford the freight.If you place an order next time,we will return the samples freight to you.
