Customized flexible round black high pressure coal mine ventilation air vent duct

Product Overview

Description

PVC black color anti-static coal mine flexible ventilation duct

Item			Unit	Index
Fabric	Color		-	black, yellow, orange or customized
	Base fabric		-	knitted/woven polyester fabric with both sides pvc coated
	Weight		g/m2	400-900 or customized
	Length		m	1-300 or customized
	Seam strength		N/50mm	1000-2500 or customized
	Tensile strength (warp/weft)		N/50mm	1500-3000 or customized
	Tear strength(warp/weft)		N	400-600  or customized
	Adhesion strength		N/50mm	60-100 or customized
	Antistatic		Ω	<3*108  or optional
	Wind pressure resistance		Pa	3000-10000
	Flame retardant		-	EN-71/UL94/DIN4102  or customized
Duct	Diameter		mm	300-3000 or customized
	Longitudinal seam(related to length)		pcs	1-4
	Circumferential seam(related to diameter)		pcs	1-5
	Sealing flap extend		mm	100-200
	Non-perpendicularity with duct axes		°	3
	Steel ring material		-	spring manganese steel or cold drawn steel
	Diameter of steel ring		mm	5-10 or customized
	Grommet spacing		mm	500-800  or customized
	Suspension way		-	suspension fin/patch or customized
	Connection way		-	steel ring or zipper coupling
	Torsional capacity	Duct length (≤5m)	mm	1/24 of circumference
		Duct length (>5m)		1/16 of circumference
PS: All of the above data can be customized, please e-mail to annalee @ cdfhcl.com to specificy requirements.

Foresight coal mine ventilation duct advantages:

• All-welded construction eliminates air loss.


• For positive pressure applications


• Dual suspension fin/tab to withstand double pressure.


•


  High wear resistance and tear strength.





• 2000,000 meters long capacity.


• Acceptable customization

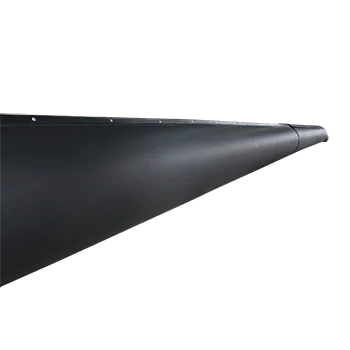

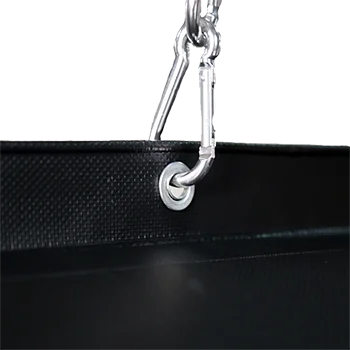

                            coal mine ventilation duct                                                                         hanging and hook







                                          weld joint                                                                        coal mine ventilation duct application







Trade Info:

• Delivery detail: The production cycle is 7-15 days after ordering, according to your orders.


• MOQ: 100 meters


• Supply ability: 150,000 meters/month


• Trade port: Shanghai, Shenzhen, Chengdu


• Payment term: T/T, L/C

      Chengdu Foresiht Composite Co., Ltd.was established in 2006, is an all-around major composite material enterprise. Our products  are widely used in PVC inflatable fabric for recreational toys, mining ventilation duct, tunnel air duct, flexible biogas engineering fabric, textile architecture membranes, tent fabric, PVC tarpaulin for vehicle and boat, pond liner, PVC geomembrane, air tightness fabric for water&gas tank etc.

    We obtained more than 10 national patents, unique anti-static technology of which won the National Security Science and Technology Achievement Award. Besides, we are the drafter of national and industrial standards of coal mine ventilation materials.

    We are looking for long term relationship and get win situation with you!

Q1. Are you a factory or trading company?

A: We are a factory with four workshops.

Q2. What is goods lead time?

A: According to clients’ requirements,generally the lead time is 5 to 15 days.

Q3. How can I get some samples?

A: We are honored to offer you samples.New clients are expected to pay for the courier cost,the samples are free for you,this charge will be deducted from the payment for formal order.

Q4. How does your factory do regarding quality control?

A: All the raw materials from international famous brand are detected by 4-6 tests before entering factory, and there is special team who designs the product according to client’s requirement in our company, the QC department is responsible for detecting dozens of indexes during the processing, so our products will be tested many times before leaving factory, and it accord with SGS quality standard and other third party certifier services.

Q5. What is your payment?

A: T/T and L/C.

Q6. Can your factory print my LOGO on the goods?

A: Yes, If printing logo need to increase the cost, you need to pay in advance, and then when the order quantity reaches a certain level, we will return the cost. If it is low, we can afford it.

Q7. How long is the warranty period ?

A: One year under normal conditions.

Q8. Where is your factory and how can we go ?

A:We are located in southwest of china, Chengdu, Sichuan, the hometown of panda. About two hours of aircraft from Shenzhen.
