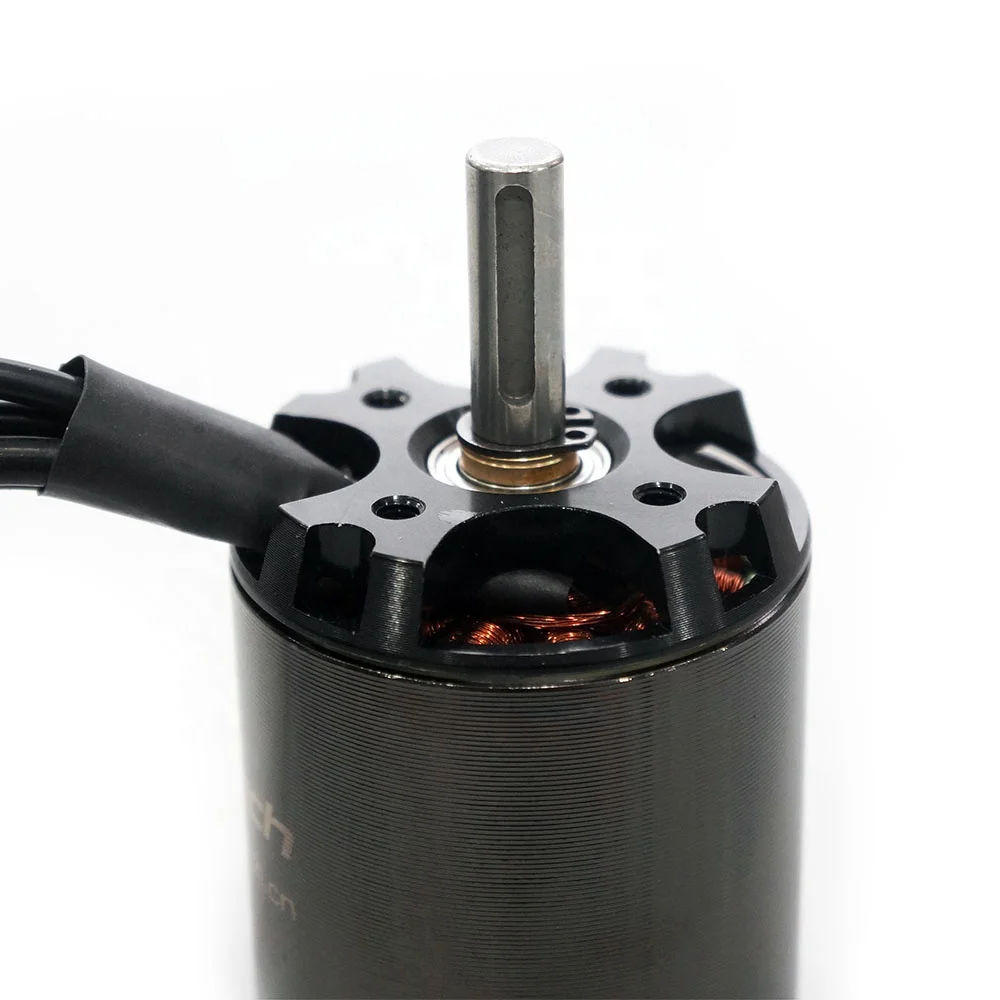

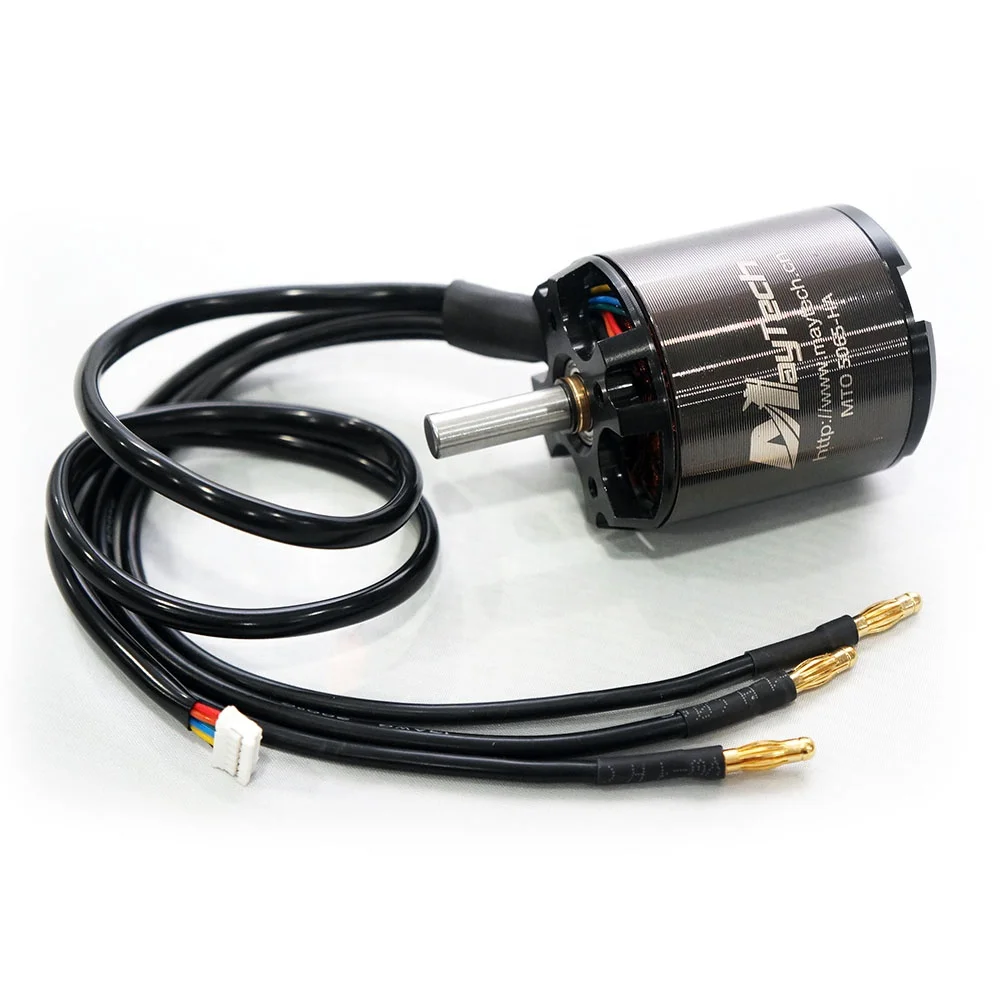

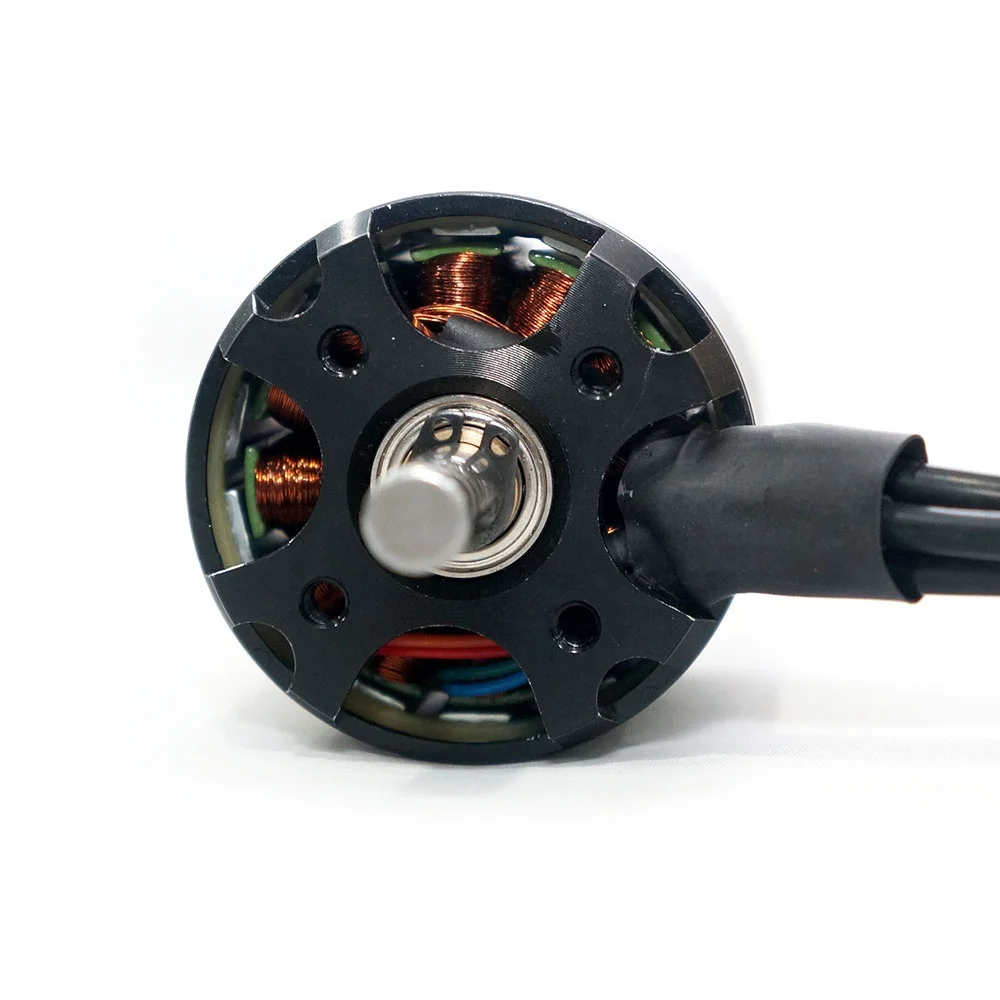

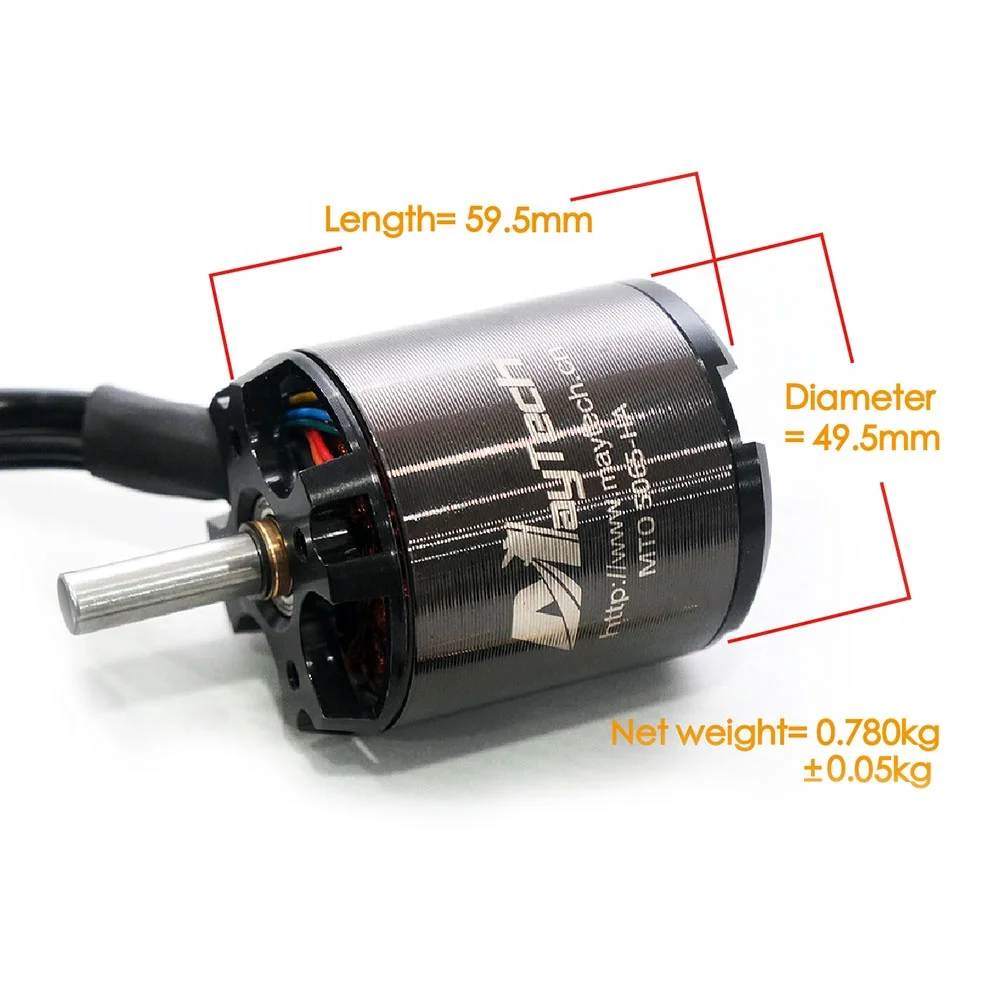

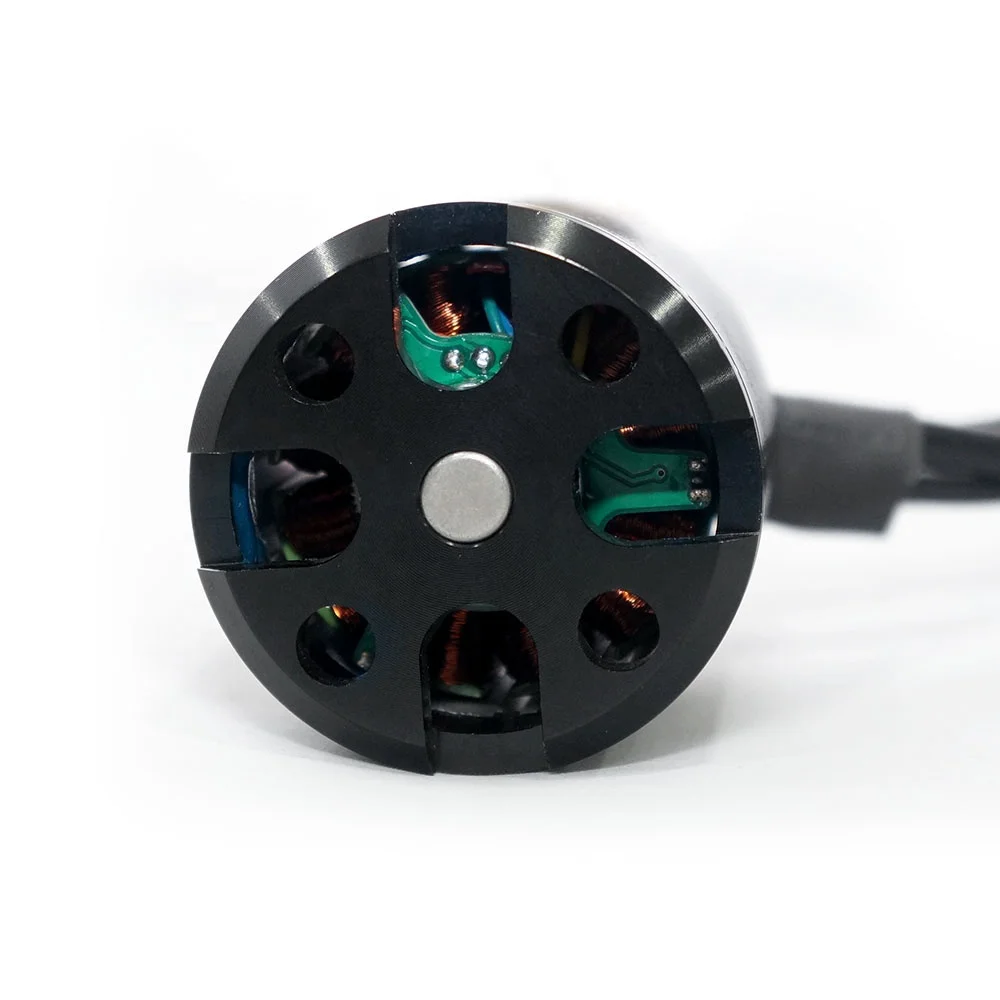

Maytech Electric Skateboard Brushless DC Motor 5065 220KV Outrunner Sensored Open Cover Motor Esk8 Robots Belt BLDC Motor
Model No. | MTO5065-220-HA | KV | 220 | ||
Idle Current | 1.2A | Max Current | 50A | ||
Input Volt | 2-10S | Max Output Watt | 1815W | ||
Rated Current | 42.5A | Shaft | 8mm | ||

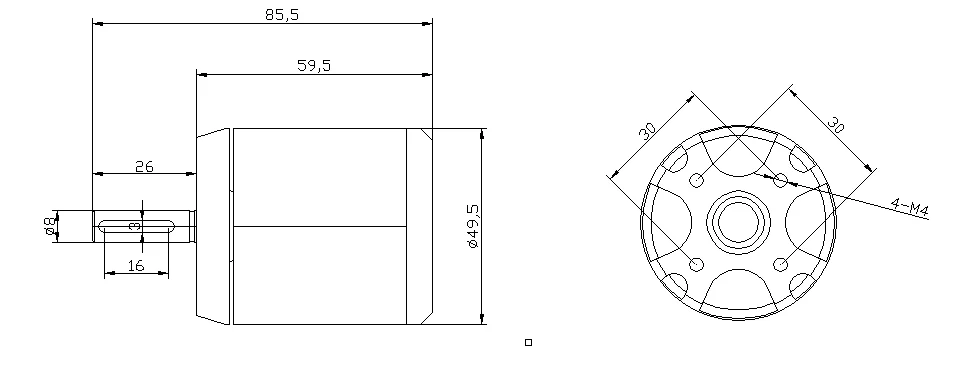

Output Shaft Length | 26mm | Internal Resistance | 0.0361 | ||
Hall Sensor | Yes | Motor Cable Length | 240mm | ||

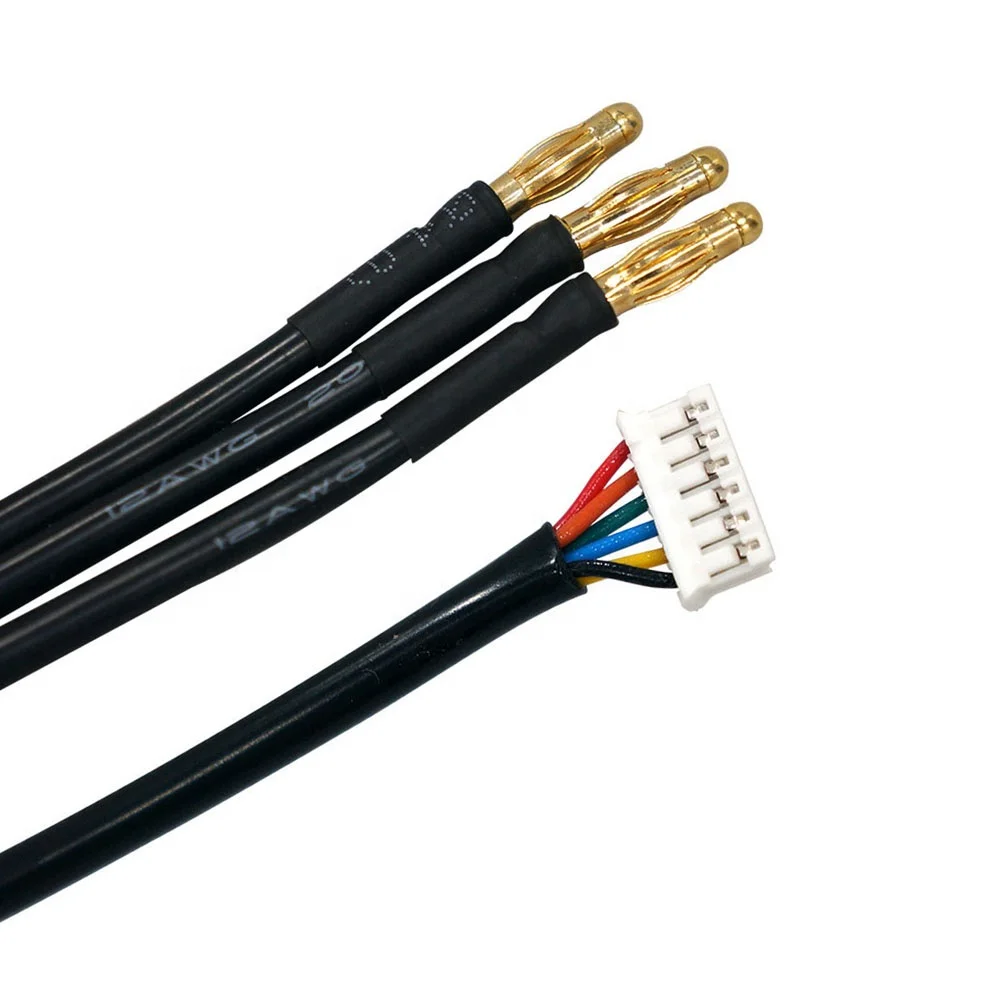

Sensor Cable Length | 500mm | Motor Connector | 4mm Male Connector | ||
Hall Sensor Connect | 6pin 2mm Pitch JST Connector | Battle Hardened | Yes | ||
Keyway | With 3mm keyway, key is not included | Cover | Open Cover Non waterproof | ||
Application | Electric skateboard, longboard, mountainboard, fighting robots, e-bike, e-scooter, walking robots, delivery robots, etc., | ||||
