Powder Coating Gas Heater Oven

KF-3210 Gas Fired Powder Coating Oven is a hot-selling model for industrial batch curing jobs. An indirect heating system takes natural gas as fuel fully burned by a high performance burner, and hot air is tramsferred from the heat exhanger. The heat is distributed as evenly as possible and this reduces the potential for issues with the curing. Users benefits from its features of energy-saving, efficient-working and environmetal-friendly by gas powder coating oven.

Features of Powder Coating Ovens

1. Uniform heating across entire area of the oven.

2. Quick & Fast Heating at desired temperature.

3. 100% Safety in Operation on all types of heating.

4. Trolley / Dryer / Batch / Conveyorised Option with conversion facility.

5. Auto cut off with buzzing and indicating on all types of heating

Gas Fired Powder Coating Oven Specifications

Model	KF-3210
Worksize Dimensions	W2000*D3100*H1900mm
Power Supply	LPG/Natural Gas/Diesel
Voltage/Frequency	220V/380V (50-60 Hz)
Warm-up Time	15-30 min. (180° C ,Max 250 ° C)
Temperature Stability	< ± 3.0-6°C
Burner	Italy Riello, 10,0000cal
Circulation/ Air Flow	Vertical, Variable through holes on the walls
Motor Power	4 kw
Warranty	12 months

Detailed Images

Heating Preservation Board

The oven shell is constructed of prefabricated panels filled with high temperature insulation.
Interlayer Material: 100mm thickness rock wool board.

Keep the oven chamber always warm.

The inside wall is galvanized steel

The outside wall is color steel sheet.

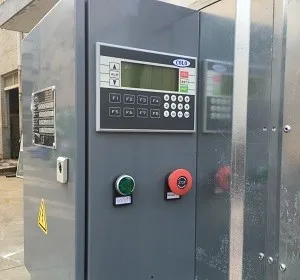

PLC Operation Panel

1. The user-friendly PLC panel gives you an easy access to set heating temperature, time and working of fan.

2. Precise temperature control, furnace tolerance of +/- 5oC.

3. Short circuit and overload protection.

Safety Interlock circuit, shuts oven down under the following conditions: Over temperature condition, fan and burner failure.

Circulation Fan

Circulation fan ensures maximum efficiency and delivery of the processed air to internal ducting on either side of the oven walls ensuring an even air flow and temperature.

Gas/Diesel Burner

Italy imported RIELLO brand burner. Quick heating and long servce life.

Direct fired, modulating burner with direct coupled, digital actuated control valve.

Heat Exchanger

Heat exchanger used in seamless steel tubes 8x8 array, use the combustion liner 310S stainless steel seamless pipe thickness of 3-4mm.

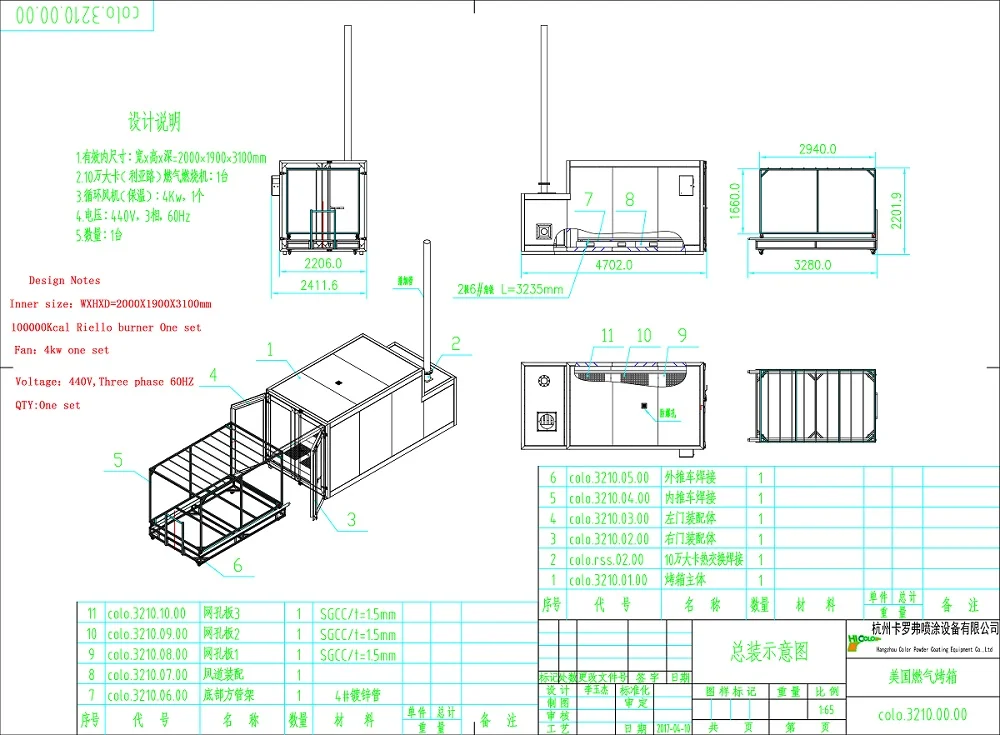

Technical Drawing

About Us

Kafan Company

Kafan is a new brand under COLO group, whose people has specialized in powder coating equipment for more than 10 years. Our products covers: electrostatic powder coating gun, powder spray booth, powder coating oven, powder coating line and some spare parts. Such one-stop purchasing facilitate customers buy what they want. Whether for powder coating beginners or update projects, Kafan's powder coating system optimize the application and operation. As an professional manufacturer, we devoted to supply most innovative and reliable powder coating system solution with powerful production capacity and advanced technology.

Kafan located in Hangzhou, China, we own a manufacturing base of 6000 square meters, around 150 employees and 24 sets production equipment, dividing into technical department, sales department, after-sale department, production department, QC department, admin department and finance department, etc. As a fast growing company in powder coating industry, we have exported to more than 100 countries, established long term business with distributor in US, Russia, Poland, UK, Germany, South Africa, Vietnam, Malaysia, etc. Quality and service is our endless goal to achieve.

Sales Team

* Inquiry and consulting support.

* English, Spanish, German, Russian Speakers

* 24h Online

Machine Production

* Design, material preparing, assembling, testing, etc

* 2000 m^2 Production Base

*10 years manufacturing experienced of powder coating equipment

Customer Photos

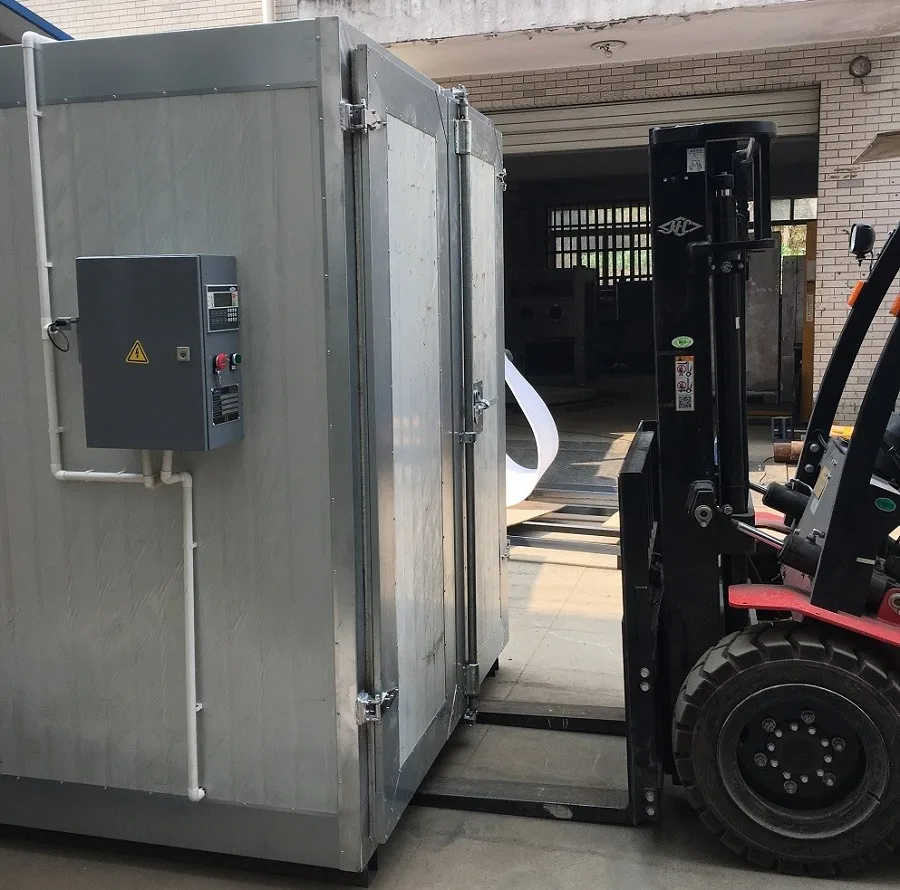

Packing & Delivery

Powder coating batch oven will be shipped in a full 20' or 40' container, delivered by sea.
