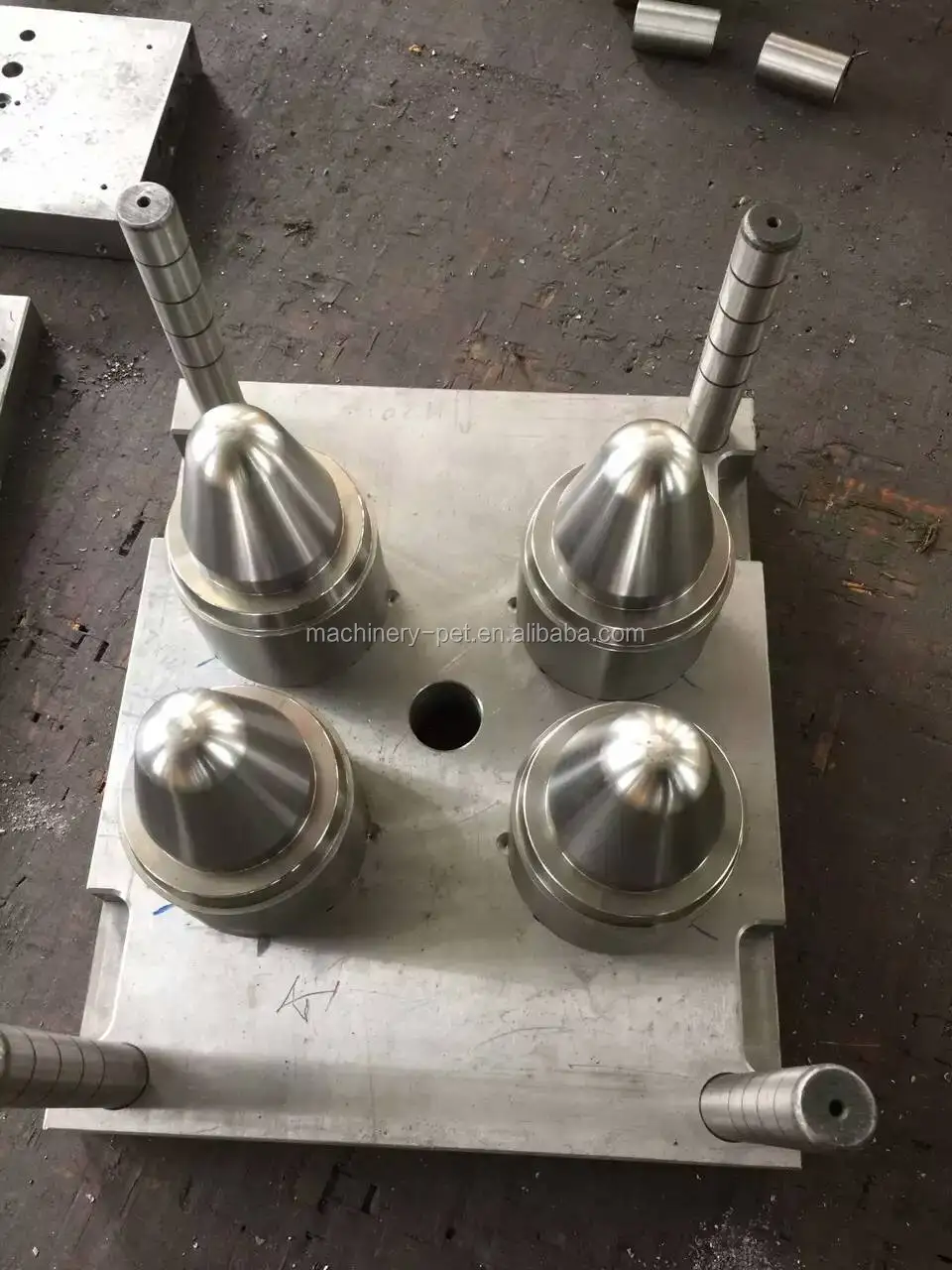

PET Jar Preform Mold Wide Neck Bottle Preform Mold
- Category: >>>
- Supplier: Taizhou Huangyan Pet Machinery Factory
Share on (62534806271):
Product Overview
Description
Specifications
1-Interchangeable parts for every cavity.
2-Optimized preform design ensures dynamic bottle Blowing Success.
3-High accuracy for each preform parts.
PET Jar Preform Mold Wide Neck Bottle Preform Mold

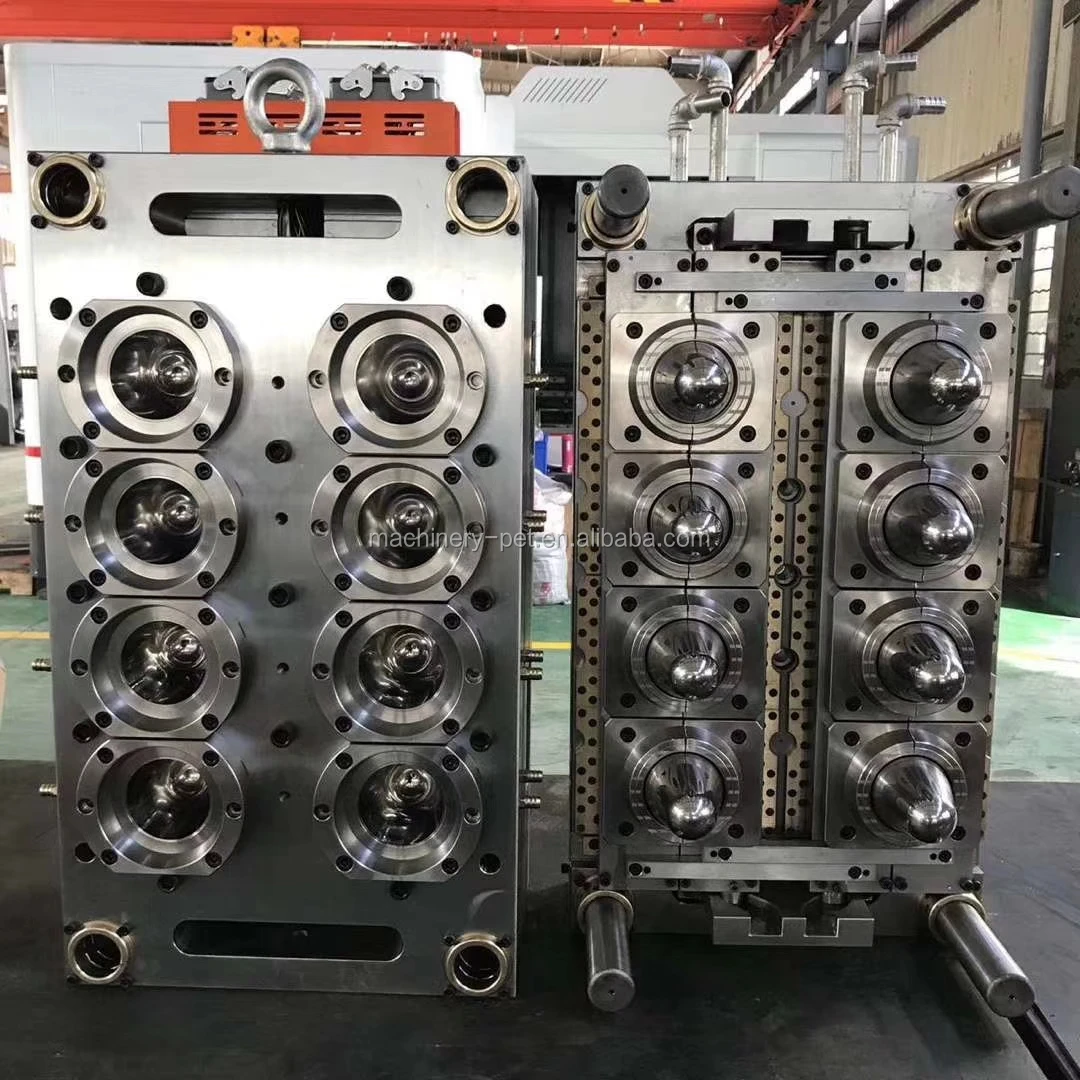

Product Overviews
Mold Features

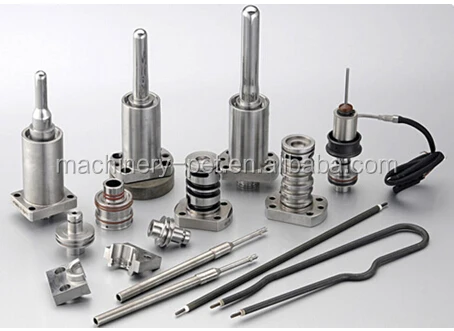

Hot Runner
Enploys PID system which features automatic compensation
Coil Heater: Hotset (Germany)
1- PC-VG Series Valve Grate Hot Runner System.
2- Valve piston with long-lived rubber seal
3- Section or independent control nozzle
Steel material:
2316 steel for core/cavity
Swedish ASSAB STAVAX S136 for neck, high grade with hard treatment up to HRC 50°-54°
P20 Tool steel HRC27-32. for mould plate,surface Ni plated, stainless
Hardness: HRC42 for Cavity, HRC45 for Core

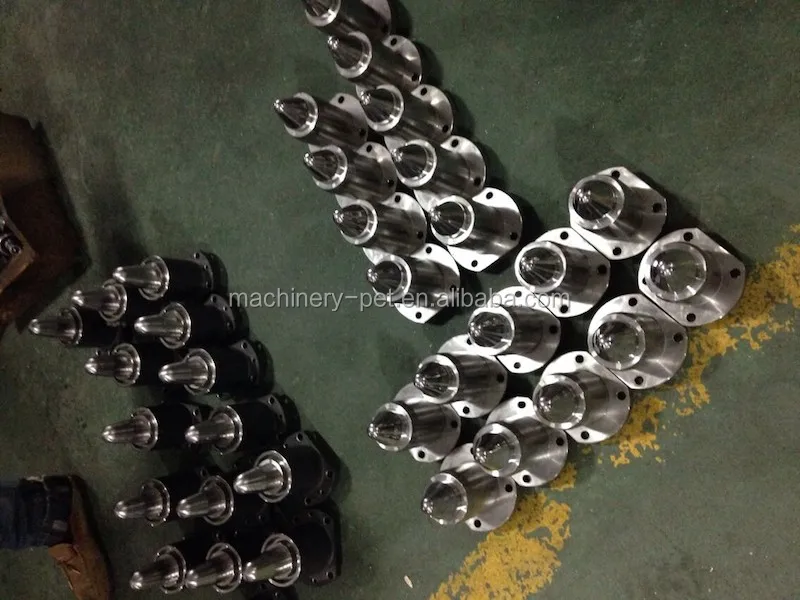

Interchangeable parts for every cavity.
Machine tolerance standards 0.005mm-0.003mm.90% of mold parts interchangeable with injection mold machines.
Mold life: 3million shots
Product Flow
PET Preform Drawings
PET Preform Neck Finish
Sample Showroom
Preform Weight Refer
| Type | Height(mm) | Width(mm) | Thickness(mm) | Weight(kg) |
| 6 Cav | 710 | 290 | 490 | 760 |
| 8 Cav | 540 | 400 | 490 | 810 |
| 12 Cav | 750 | 360 | 490 | 1020 |
| 16 Cav | 880 | 360 | 510 | 1240 |
| 24 Cav | 940 | 505 | 510 | 1880 |
| 32 Cav | 910 | 660 | 510 | 2360 |
| 48 Cav | 1110 | 610 | 555 | 2930 |
| 64 Cav | 1355 | 610 | 555 | 3560 |
| 72 Cav | 1140 | 880 | 555 | 4320 |
| Above mentioned data is based on 16gr preform with PCO neck. | ||||
| 28mm Neck Finish | 20gr Water Bottle | 21gr CSD Bottle | 48gr CSD Bottle |
| 12 Cavities | Approx.2200pcs/hr | Approx.2100pcs/hr | Approx.1200pcs/hr |
| 16 Cavities | Approx.2700pcs/hr | Approx.2800pcs/hr | Approx.1500pcs/hr |
| 24 Cavities | Approx.3700pcs/hr | Approx.3600pcs/hr | Approx.2400pcs/hr |
| 32 Cavities | Approx.5000pcs/hr | Approx.4800pcs/hr | Approx.3000pcs/hr |
| 48 Cavities | Approx.7200pcs/hr | Approx.6700pcs/hr | Approx.4300pcs/hr |
| 48 Cavities with robot arm cooling system | Approx.10000pcs/hr | Approx.9000pcs/hr | Approx.7000pcs/hr |
Packing & Loading
Payment & Delivery
Accepted Delivery Terms | FOB, CFR, CIF, EXW, Express Delivery |
Accepted Payment Currency | USD, EUR, CNY |
Accepted Payment Type | T/T, L/C, MoneyGram, PayPal, Western Union, Cash, Escrow |
Nearest Port | Ningbo port,Shanghai port,Hangzhou port |
Average Lead Time | 60 Day(s) |
Minimum Order Value | >US$ 500 |
Export Mode | Using an agent |
FAQ
[1] Q: Are you a factory or trading company?
A: We are a factory of PET Preform Mould
[2] Q: Where is your factory located?
A: Our factory,near Shanghai & Ningbo port, is located in Huangyan,Taizhou,Zhejiang and 3 hours by train from Shanghai, 2 hours by air from Guangzhou.
[3] Q: How about quality control in your factory?
A: “ Quality is the key point, do what customers need”
Our factory focuses on quality,quality control from beginning to the end. Every piece of goods is tested strictly before packing and delivery.
[4] Q: How about guarantee ?
A: One year guarantee for PET Preform Mould.
[5] Q: Do you provide preform injection molding machine and assistant machine?
A: Yes , we provide complete turnkey system for PET preform production and you will no need to find the suitable air compressor, autoloader, hopper dryer and chiller...etc..
[6] Q: Can you help us with the shipment of PET preform mold and Injection molding machine?
A: Yes,we have got our special shipment and forwarder company with long time cooperation for complete PET preform production line.
