IIT TDM800P 8 портов с 8 FXO Asterisk card для Voip IP PBX Digium TDM800P Openvox A800P ATCOM AX800P FreePBX

Product Overview

Description

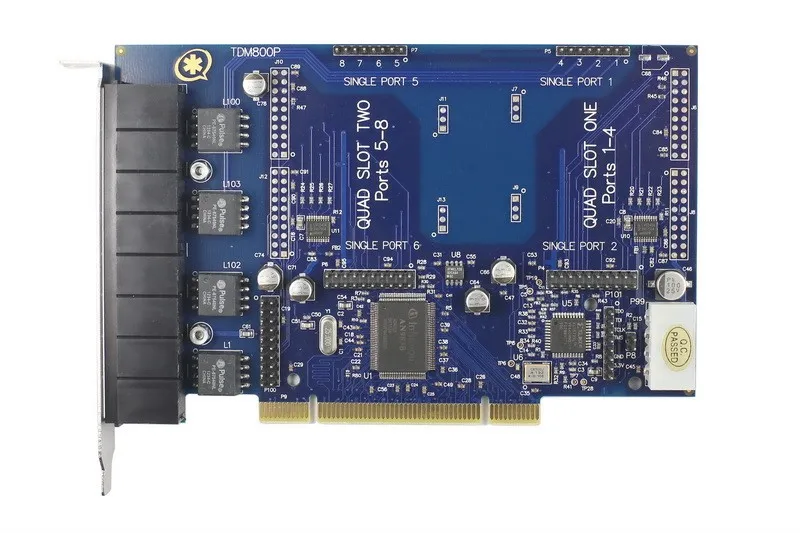

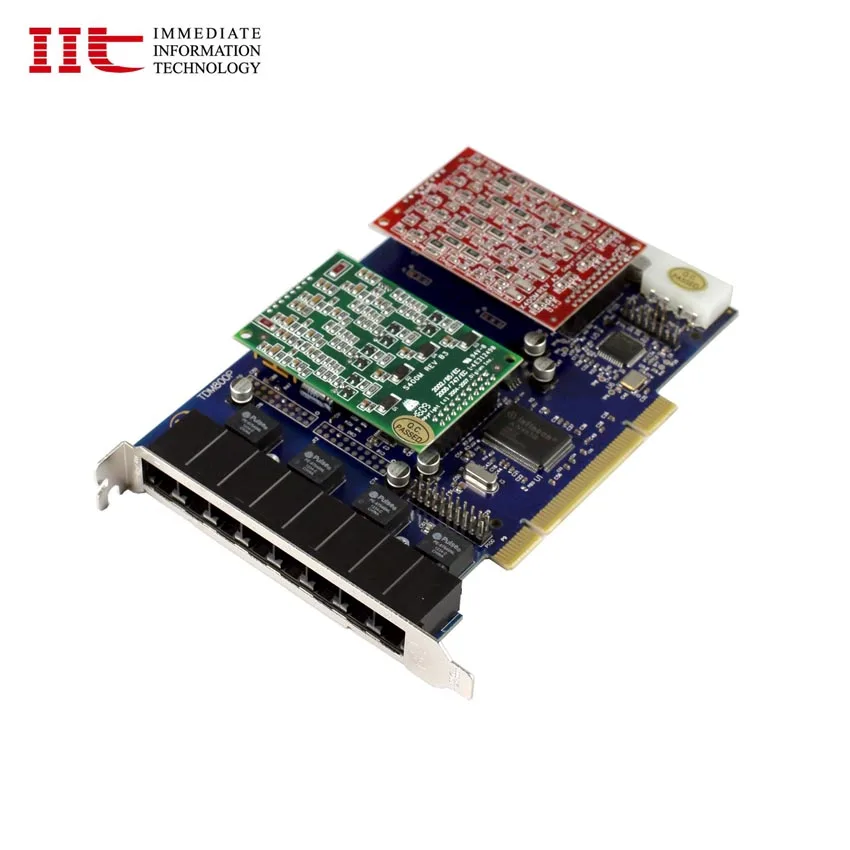

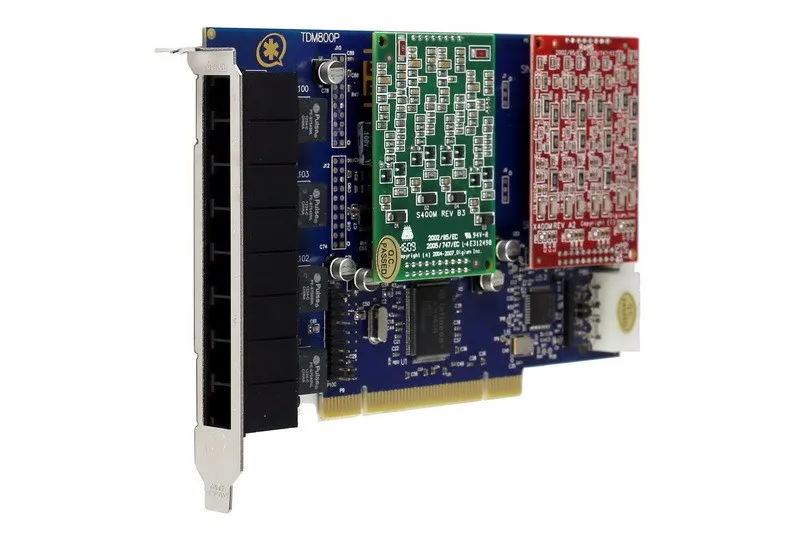

The TDM800P is a half-length PCI 2.2-compliant card that supports FXS-400 and FXO-400 station interfaces for connecting analog telephones and analog POTS lines through a PC. Its a 8 Port PCI Card for Asterisk, TrixBox and other Open Source Telephony projects with 2 included FXO-400 or FXS-400 modules. These cards are fully compatible with all analog Digium and other similar analog cards and modules with no changes to the drivers. FXO modules are used to plug existing analog telephone lines into your phone system.



With TDM800P hardware, Open Source Asterisk PBX software, and a standard PC, users can create a Small Office Home Office (SOHO) telephony environment which includes all the sophisticated features of a high-end PBX/Voicemail platform.



Scalable and Effective SOHO Solution, Target Applications

1. Small Office Home Office (SOHO) applications

2. Gateway Termination to Analog Telephones

3. Add Inexpensive Analog Phones to Existing PBXs

4. Wireless Point-to-Point Applications between Asterisk Servers



Services and Features

1. Caller ID and Call Waiting Caller ID

2. ADSI Telephones

3. PCI Half-length Slot

4. RJ-11C Connector

5.  Support Industry Standard: PCI 2.2

6.  The TDM800P can work with 3.3V and 5V PCI slot.

7.  Support GPL Software driver used with zaptel and Dahdi.



Module:

1. Motherboard: TDM800P

2. FXO-400 module: 2,1,0 pcs (optional)

3. FXS-400 module: 0,1,2 pcs (optional)



Model:

Model No.	Motherboard	FXS-400 module	FXO-400 module	Echo Can

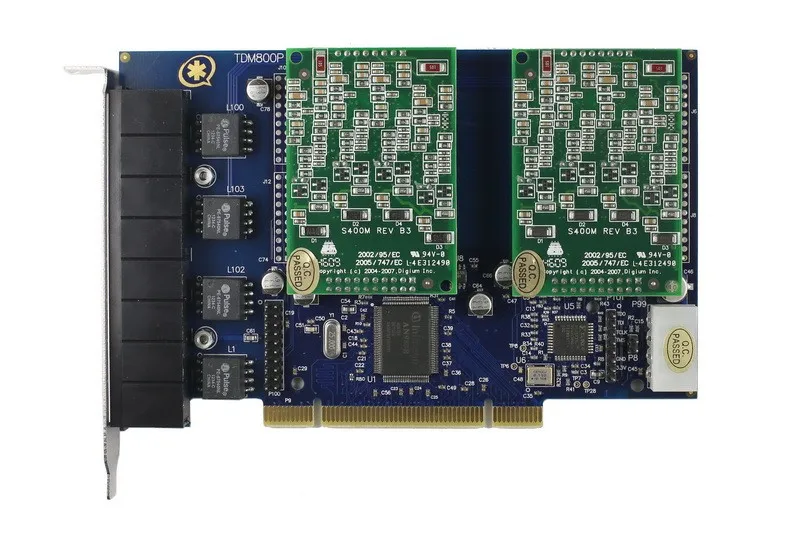

TDM800P-80	TDM800P	2	0	0
TDM800P-44	TDM800P	1	1	0

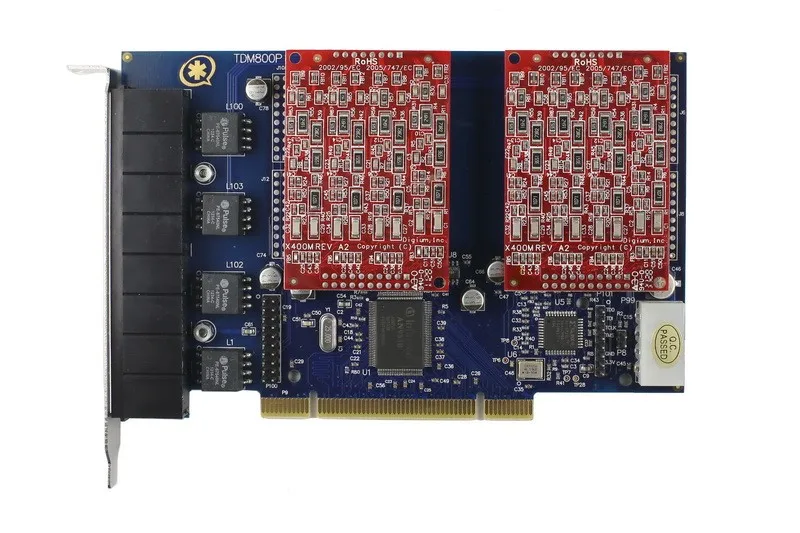

TDM800P-08	TDM800P	0	2	0
TDM800E-80	TDM800P	2	0	1
TDM800E-44	TDM800P	1	1	1
TDM800E-08	TDM800P	0	2	1



Hardware and Software Requirements:

1.  RAM >=128MB

2.  Linux kernel 2.4.X or 2.6.X

3.  CPU 800+ MHZ

4.  PCI 2.2



Specification:



1.  Name:             TDM800P

2.  Main board          1

3.  Module                2

4.  Modules Support    FXS-400/FXO-400

5.  Size(mm)          165*106*18

6.  Package Size(mm)  210*140*35

7.  Weight(g)          240
