DM-410A tray sealing machine is a kind of tray food sealer that launched by Dajiang Machinery Equipment Co., Ltd. for food packed by tray. The equipment has a high degree of automation with high packing speed and good sealing effect.
The microcomputer programmable controller and man-machine interface touch-screen control system are used in the machine. The parameter setting is intuitive and precise, and the operating is stable and reliable. According to the characteristics of the packing material, the parameters only need to be set for time to complete all of the packing operations uninterruptedly.
The machine is of a high degree of automation. All of the major components are products of internationally renowned brand with reliable quality, long service life and easy to maintain.
The operation is simple and convenient. Double startup safety switch is adopted to guarantee operator safety. The whole automatic packing process may be completed by just one touch of the start switch. Machine adopt easily replaceable sealing mould, client could replace the different sizes and shape mould according to their requirement.
Scope Of Application
DM-410A tray sealing machine is applicable to fresh-keeping packaging of all types of boxed fresh, cooked food, such as cool fresh meat, cooked meat products, fast food, pastry, rice noodle, cheese, soy products, aquatic products, poultry and other boxed foods.
Technical Characters
1. Main Structure Material: Machine main structure material adopt food grade 304 stainless steel, which is safety and sanitation, easily for cleaning. 2. Work status indication: the machine has an operating program status and failure real-time display function to monitor the equipment to ensure the normal operation of the machine. 3. Safty start button: The security measures of the machine only can be started by simultaneous operation of both hands which effectively prevents security incidents caused by malfunction of the operator.
Technology Specification
Model
DM-410A
Electrical Requirement
1P/220V/50HZ
Packaging Tray Dimensions (mm)
490 × 350 × 65
Working Pressure(mpa)
0.6-0.8
Max Width of Film(mm)
410
Consume Power(kw)
4.0
Max Diameter Of Film(mm)
260
Machine Weight(Kg)
350
Packaging Speed(time/m)
6-8
Machine Size(mm)
1190 × 1110 × 1520
Control System:
OMRON PLC programmable control system. The data setting and motion control are more accurate, the performance is more reliable, the operation is more easy and simple and more humanized.
Pneumatic System:
SMC pneumatic elements. The quality of the equipment is stable and reliable, and the service life is long, and avoids frequent equipment failures and even suspension of work and other quality accident caused by component quality.

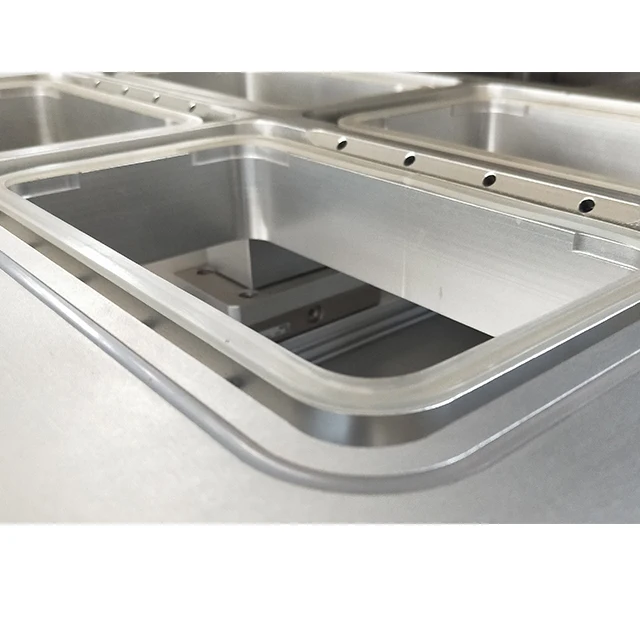

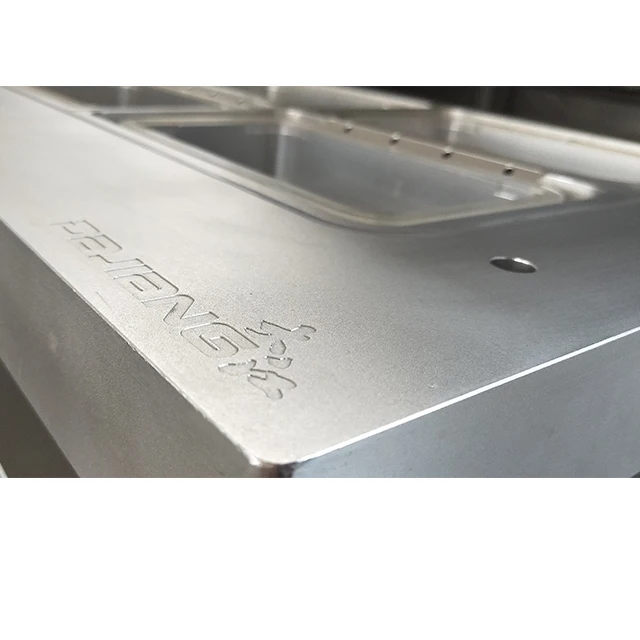

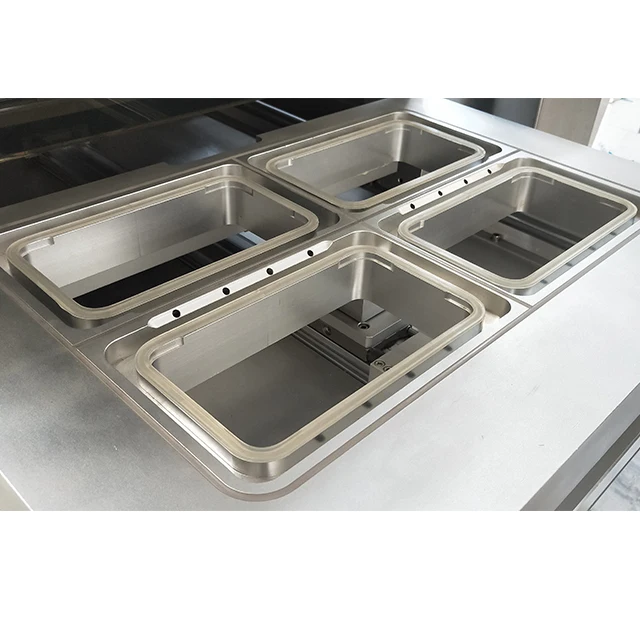

Easily replaceable of sealing mould: Different size of the trays are available according to clients packing requirement.
Emergency stop switch:
The machine is equipped with an emergency stop switch which can be pressed in case of abnormal condition to terminate all ongoing work programs to guarantee the safety of equipment and personnel.
Detailed Images
Related Products
Packing&Shipping
Company Introduction
Since our founding in 1994, DAJIANG. has served the processing and packaging equipment needs of thousands of companies worldwide. To date, we have developed various vacuum packaging machines and MAP tray sealing machines designed for factories ranging from small-shop to large-scale production. Regardless of the specifications of the cast parts and modules, our machinery allows for manufacturing standardization. This allows the parts produced to be applied to a wide range of machinery. We continually work to improve precision, lower maintenance requirements, and increase the machines' working life.
