Changdian 750 Professional Stencil Cleaner ,Pneumatic Stencil Cleaning Machine

Product Overview

Description

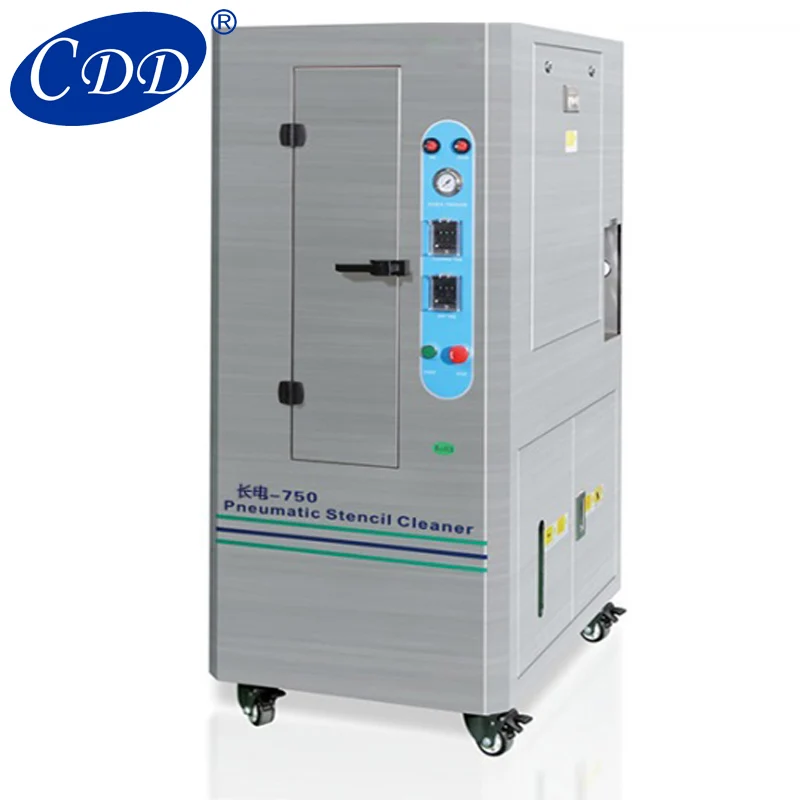

Changdian-750 Full Pneumatic Stencil Cleaning Machine

Machine characteristics:

Completely use compressed air as energy source, no electricity, no fire danger

 Closed-loop cleaning: there will be no leakage of gas and liquid; it is helpful to improve the working environment

 High-precision 3-level filtration system: effectively extend the life of cleaning agent recycling

Specially used for cleaning SM T stencil, P C B misprints and printing machine blades, etc.

 The equipment adopts precision filtering system

 Cleaning + air-drying process to ensure cleanliness

The liquid pressure can be displayed through the hydraulic gauge on the operation panel

 Independent air exhaust device design makes liquid consumption lower

 The whole body is made of 304 stainless steel, which is sturdy and durable, resistant to acid and alkali.

 One-button operation, easy operation, easy to clean and air dry

 Integral stainless steel structure, processed by wire drawing process; beautiful and durable, more convenient maintenance

 All pneumatic parts of the equipment are imported original accessories; for example: pneumatic diaphragm pump, pneumatic timer, air source indicator, pressure regulator, etc .; make the equipment durable and quality guaranteed



Equipment parameter:

Applicable stencil size	L750*W750*H400(mm)(Large size needs to be customized)
Cleaning liquid capacity	40L(MAX)
Optimal liquid usage	35L
Cleaning method	360 ° rotating cleaning liquid spray and high pressure air spray (washing → drying)
Cleaning time	2 ~ 5 minutes (conventional process)
Drying time	2 ~ 5 minutes (conventional process)
External air source	0.45mpa~0.7mpa
Tin slag filtration method	Three-stage filtering
Level 1 filtering	10um(Filter impurities and labels)
Level 2 filtering	5um(Filter small particles and solder paste)
Level 3 filtering	1um(Filters small particles and rosin)
Exhaust port size	φ120*40H(mm)
Net weight of machine	200kg
Machine size	L945*W650*1650(mm)
