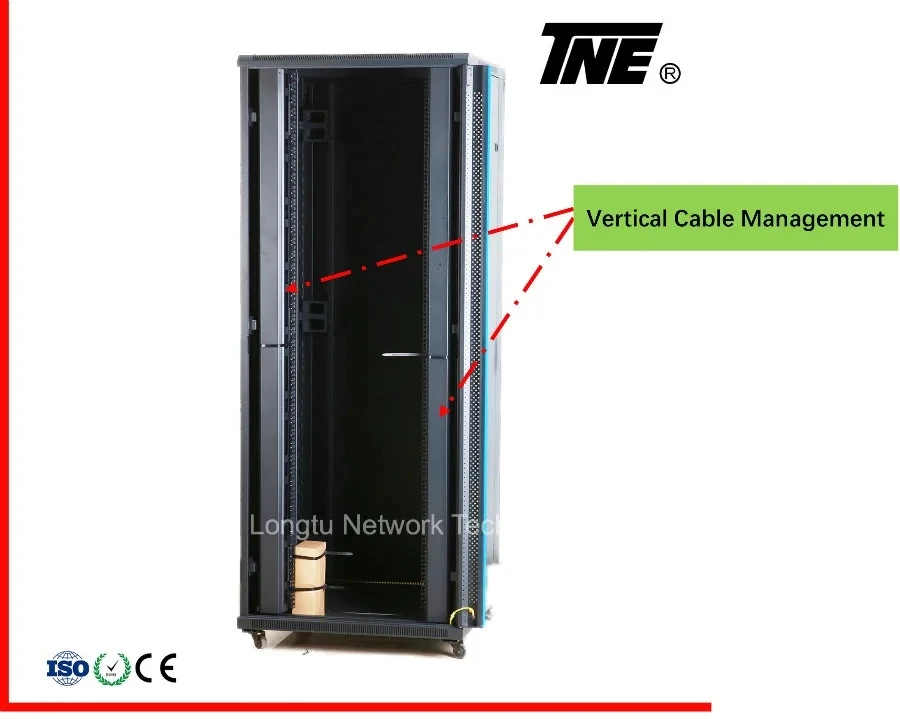

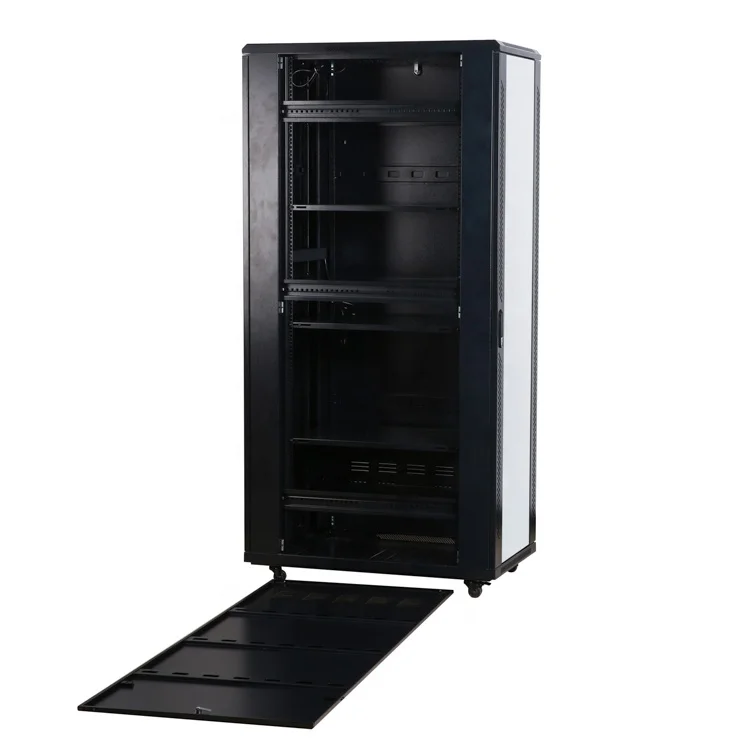

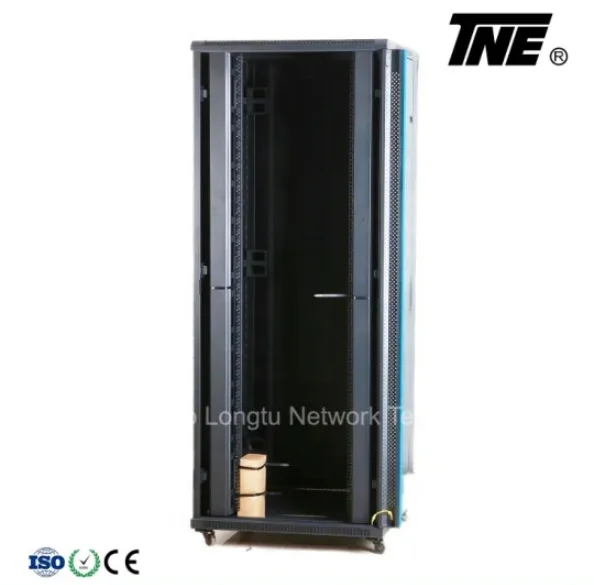

42U 800width Network cabinet with Vertical Cable Management
- Category: Network Cabinets >>>
- Supplier: Ningbo Longtu Network Technology Co. Ltd.
Share on (62534995802):
Product Overview
Description
Product Description
42U 800width Network cabinet with Vertical Cable Management
Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491;PART1, DIN41494;PART7,GB/T3047.2-92 and ETSI standard
Specifications:

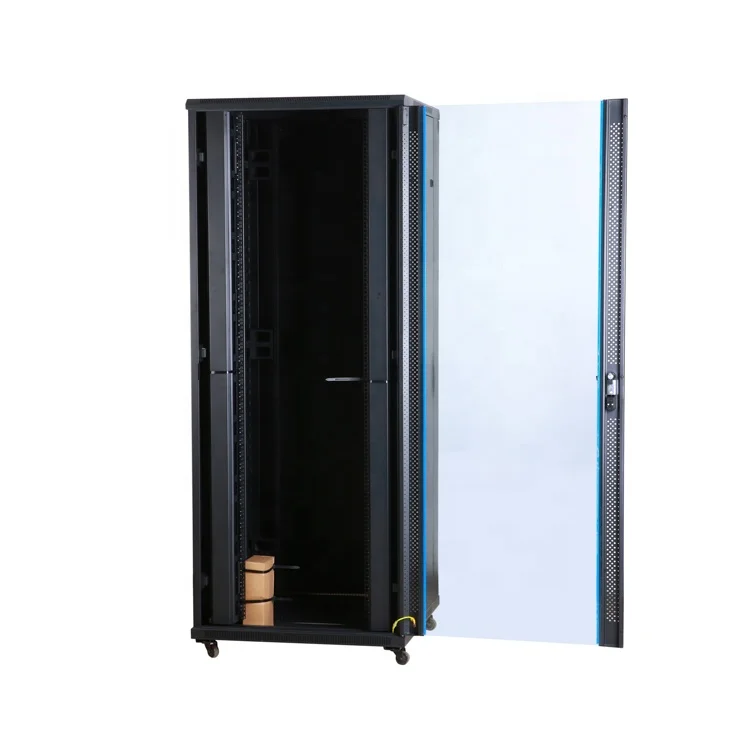

* Front Temper Glass Door with Swing Handle Lock (Thickness of Glass: 5mm)
* Rearl Flat Metal Door
Inside with 4 galvanized Mounting Elements (Rails) * Exquisite design with precise dimension and craftsmanship;
* Lockable door and side panels for system security;
* Fully adjustable vertical mounting rails;
* Swiveling wheels and legs can be jointly installed to withstand up to 800kg
maximum static load;
* Several lockable wiring holes on top/bottom, size of the large hole at the
bottom adjustable;
1. Standard
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standard
2. Material
High grade cold rolled steel.
3. Thickness
Mounting profile: 2.00mm others: 1.2--1.5mm
4. Loading Capacity
Static Loading: 800kgs
5. Surface finish
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.
6. Degree of Protection
IP20
7. Body Color
RAL7035, RAL9004 etc.
Optional Accessory 1. Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
2. 19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
3. 1U, 2U support board
4. Vertical Cable manager
5. 19'' Power distribution unit(PDU)
6. 19'' Blanking plate 1U, 2U, 4U
7. Heavy duty castor, Heavy duty castor with braker
8. Optional lock for side panels
9. Earth kit
Model No. | Capacity(U) | Width(mm) | Depth(mm) | Height(mm) |
TN-002 | 18U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 988mm |
TN-002 | 22U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 1166mm |
TN-002 | 27U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 1388mm |
TN-002 | 32U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 1610mm |
TN-002 | 37U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 1833mm |
TN-002 | 42U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 2055mm |
TN-002 | 45U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 2188mm |
TN-002 | 47U | 600mm/750mm/800mm | 600mm/800mm/1000mm /1200mm | 2277mm |
Related Products
Our Company
With years of export experience along with excellent quality, advanced services and competitive prices, Longtu has won numerous customers' trust and support.
Certifications
Delivery
Applications of Our Cabinets
Rack cabinets for Information Technology and telecommunication appliances use:
• Small, Medium and Large Servers
• DVR, Security Equipment and Routers
• Patch Panels and Switches
• Telephone Systems and PABX
• Network and Communications Equipment
• UPS Equipment
• Other Rack Mount Equipment
FAQ
1) What is your Payment term?
---TT, LC, Western Union could be accepted.
2) What is your Trade term?
---EXW, FOB, CNF, CIF is also ok.
3) What is the Loading Port?
--- Ningbo,Shanghai.
4) What is your MOQ?
MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
