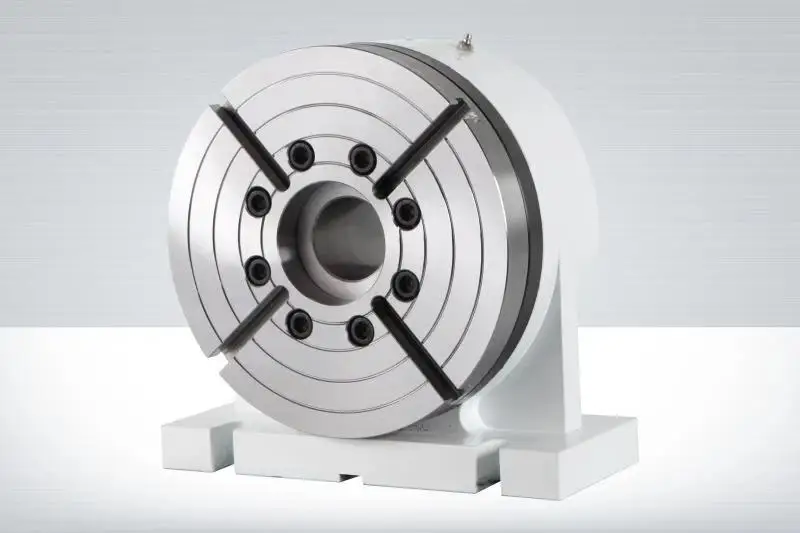

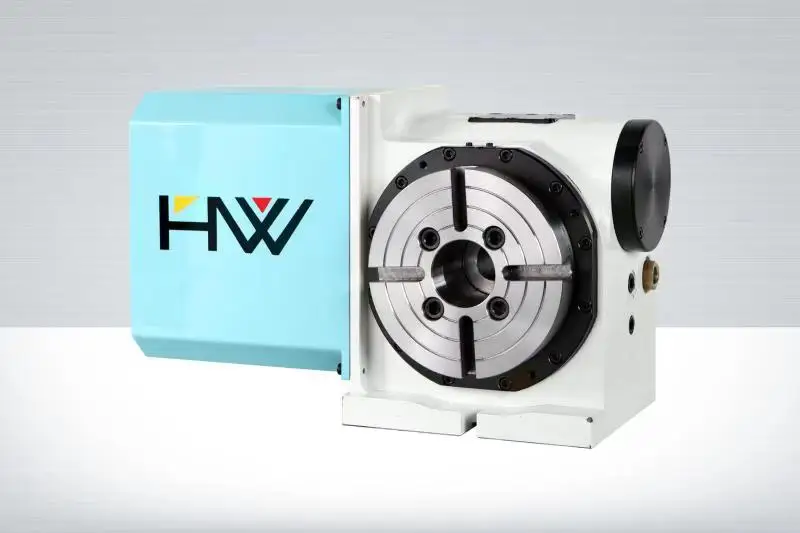

Good Price High Speed 4th Axis Precision Machine Rotary Table HW 170L
- Category: >>>
- Supplier: Jiangsu Shunjia Intelligent Technology Co. Ltd. [Jiangsu China]Jiangsu
Share on (62535000656):
Product Overview
Description
Technical Parameters | Unit | Value |
Table Diameter | mm | φ170 |
Center Height,in vertical | mm | 135 |
Through Hole Diameter | mm | 30 |
Overall Height,in Horizontal | mm | 188.8 |
Table Bore Diameter | mm | φ55H7 |
Table T-slot | mm | 12H8 |
Positioning Guider Block | mm | 14H7 |
Max. Speed(4000rpm) | rpm | 66 |
Max. Load -Vertical | kgs | 75 |
Max. Load -Horizontal | kgs | 150 |
Max. Load -Tailstock applied | kgs | 150 |
Precision positioning | sec | 4 |
Accumulated precision | sec | 20 |
Net weight without the motor | kg | 65 |
Technical Parameters | Rotation axis | Sloping shaft |
MITSUBISHI | HF104T(S) | HF-104 |
FANUC | α4i/β8i | B8i |
YASKAWA | SGMGV-09A | GV-09A |
SIEMENS | 1FK7060 | 1FK7060 |
HEIDENHAIN | QSY-116C |

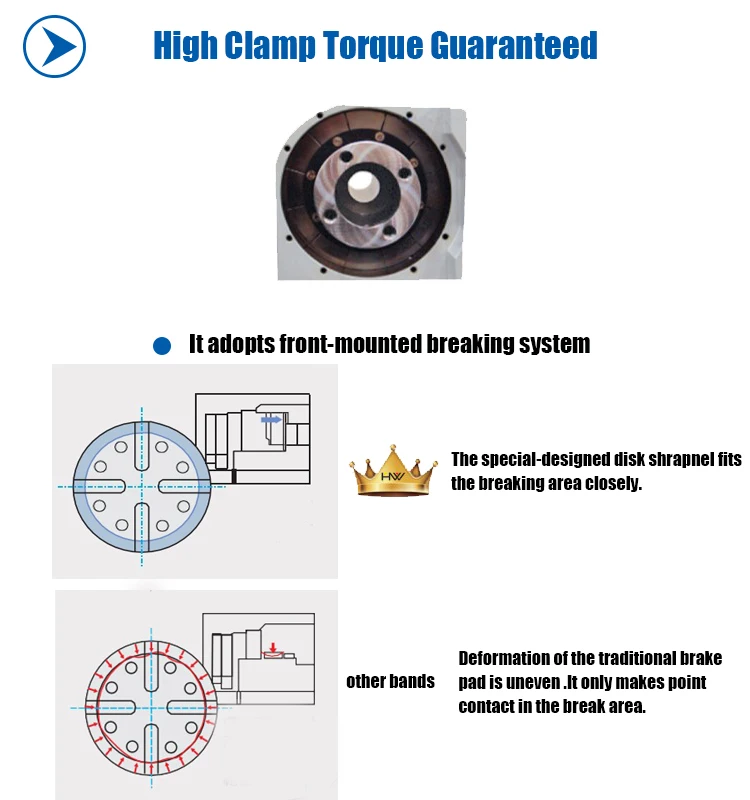

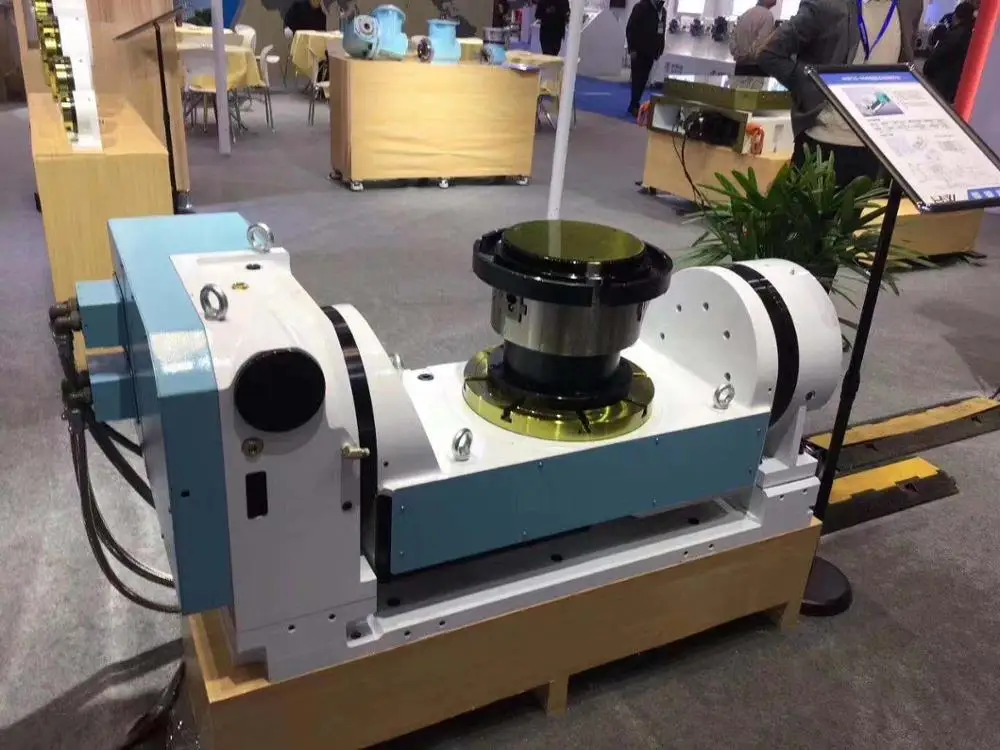

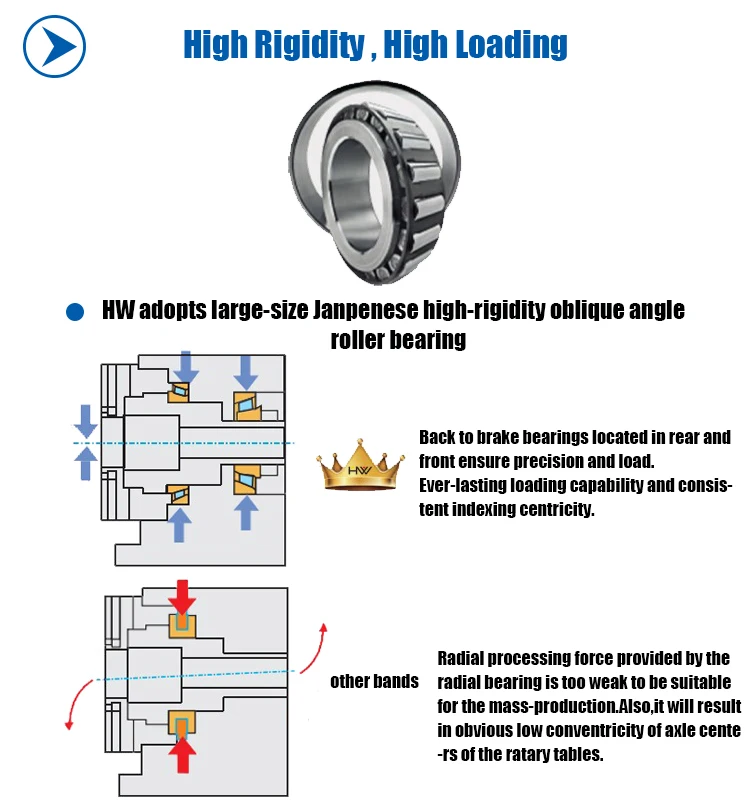

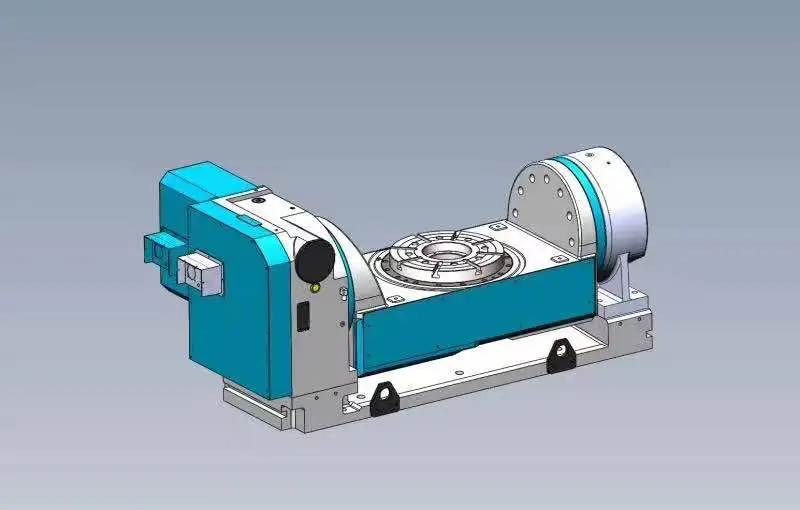

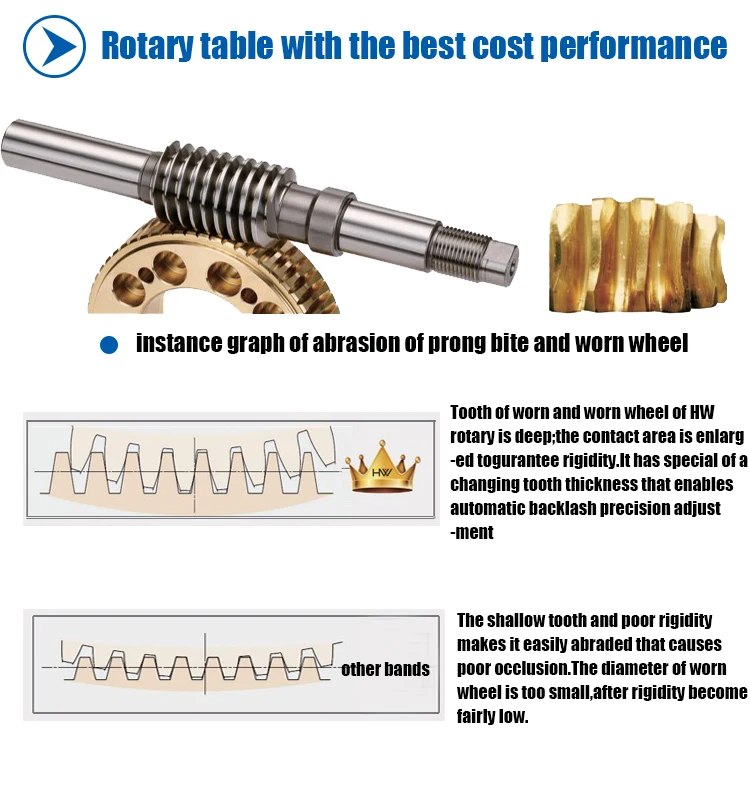

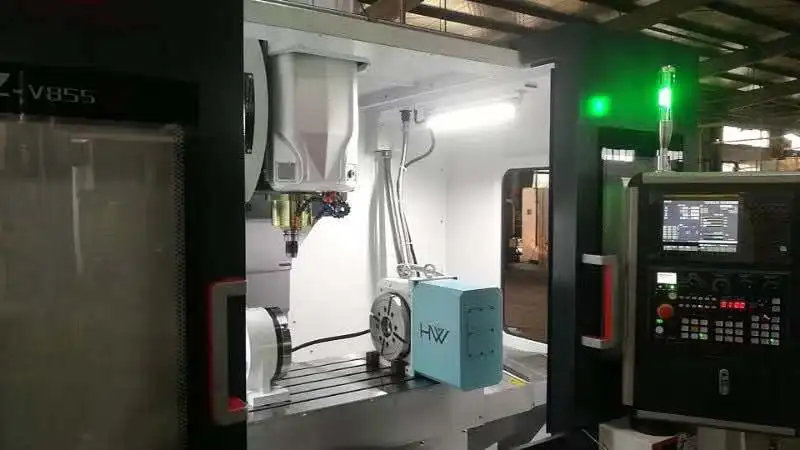

Detailed Images

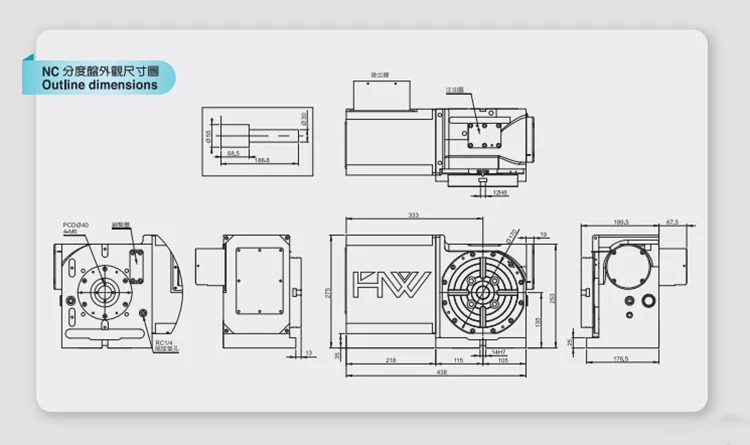

Size Information
Profssional Testing
Packing&Shipping
After Sales Service
Company Introduction
FAQ
Q:Are you trading company or manufacturer ?
A:We are the leading manufacturer engaged in CNC machining center, CNC lathe and other machine tools with 15 year's experience in China.
Q: Can you do customized orders?
A:YES, ODM/OEM are available according to your design and requirements.
Q: What is the MOQ?
A:Only one set for CNC machining center.
Q: How long is the warranty?
A:We provide one year's warranty and we also provide free lifelong remote support.
Q: How long is your delivery time?
A:Normally 45 days after order confirmed. If we have stock, we can deliver within 7 days.
A:We are the leading manufacturer engaged in CNC machining center, CNC lathe and other machine tools with 15 year's experience in China.
Q: Can you do customized orders?
A:YES, ODM/OEM are available according to your design and requirements.
Q: What is the MOQ?
A:Only one set for CNC machining center.
Q: How long is the warranty?
A:We provide one year's warranty and we also provide free lifelong remote support.
Q: How long is your delivery time?
A:Normally 45 days after order confirmed. If we have stock, we can deliver within 7 days.
