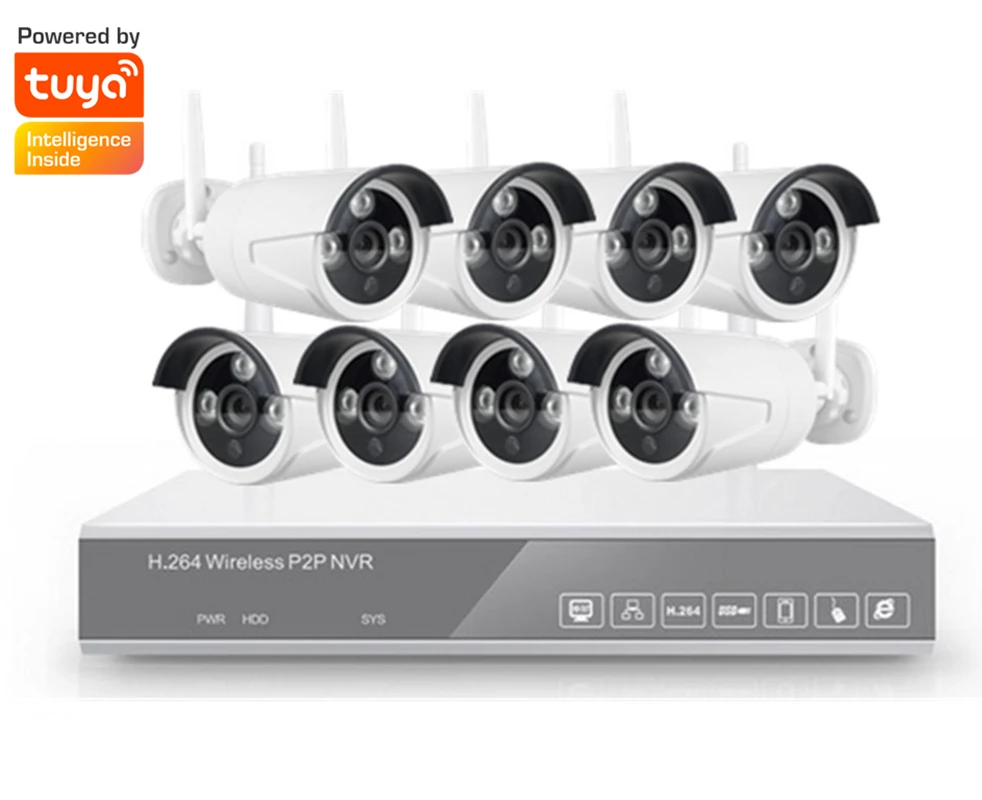

8CH CCTV System 1080P HD Wireless NVR Kit Outdoor Night Vision Security IP Camera WIFI CCTV System Plug & Play

Product Overview

Description

WiFi NVR Specification
	Model
System	Main processor	Hi 3520D
	Operating System	Embedded Linux
	System resources	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Interface	Operator interface	16-bit true color graphic menu operation interface, support mouse operation
	Preview	“1/4/8”
	Video input (IP)	8*720P/4*960P/4*1080P
	Access bandwidth	24Mbps
	Forwarding bandwidth	24Mbps
	Video compression	H.264
	Display quality	Max 720P/960P/1080P
	Playback quality	720P/960P/1080P
	Decode	720P/960P/1080P
	VR	Unsupport
	Motion detection	Support(depend on camera)
Audio	Audio compression	G.711A
	Intercom	Unsupport
Record & playback	Recording mode	Manual>Alarm>Dynamic Detection>Timing
	Local payback	8ch
	Search mode	Search by Time/Calendar/Event/Channel
	Record storage	HDD,Network
	Backup mode	Network backup, USB hard disk, USB burner, SATA burner

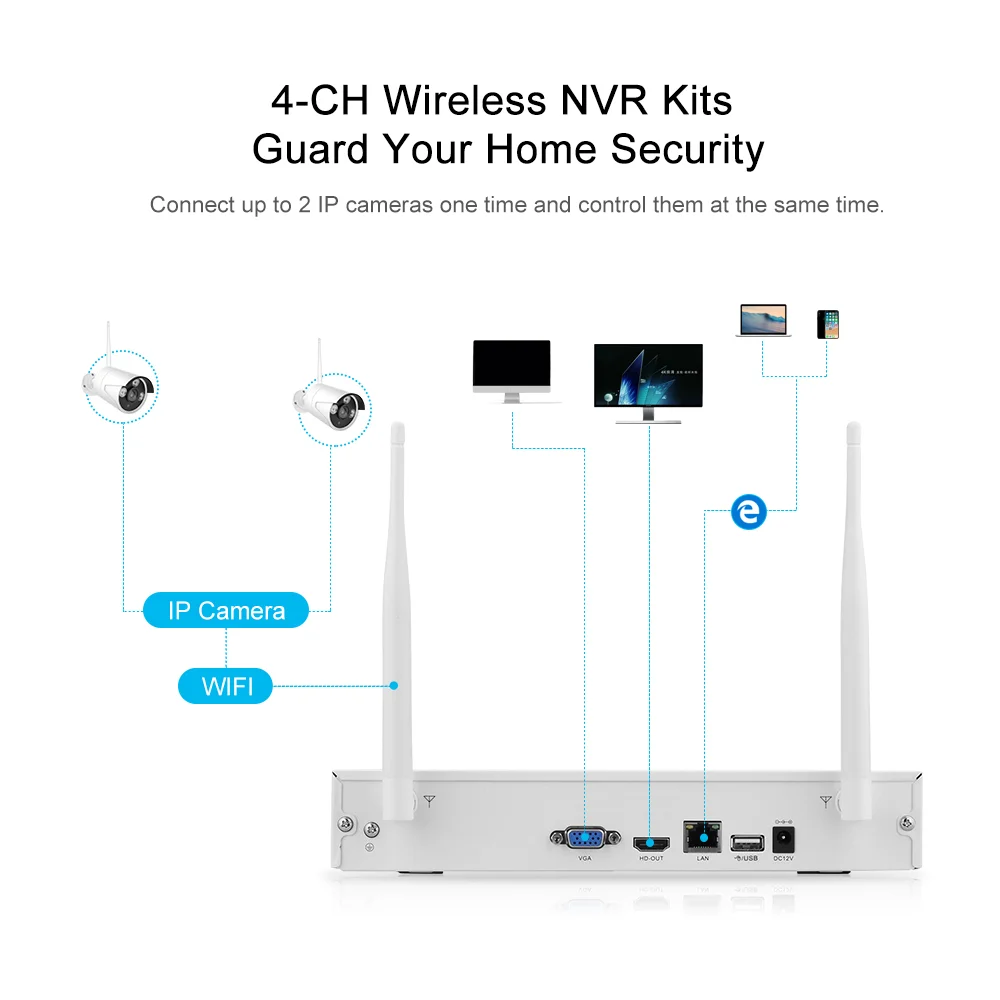

External	Video output	1ch VGA,1ch HDMI HD output
Interface	Audio I/O	0/0
	Alarm I/O	0/0
	Network interface	1*RJ45 10M/100M Adaptive Ethernet port+4ch WIFI
	USB interface	2*USB2.0 ports
	HDD	1* SATA(Up to 6TB for each disk)
	ESATA	No
	Serial interface	No
Other	ONVIF	No
	Power supply	12V/2A
	Power Consumption	<10W(Without HDD)
	Work environment	Temperature:0℃-+55℃ , Humidity:10%-90%RH , Atm:86kpa-106kp
	Dimension	254mm*215mm*42mm
	Weight	1.05KG
WiFi Camera Specification
	Model
To configure	Processor + sensor	XM510+H62 1/4" Progressive Scan Sensor
	Low illumination	Color: 0.1 Lux;  B/W: 0.01 Lux
	Effective pixel	HD 720P/960P/1080P
	Lens	HD lens 3.6MM
	Infrared lamp	3pcs x 10 Lamp beads
	Infrared distance	20~30 m
	Day&night	IR cut filter with auto switch
General	setting	Saturation, brightness and contrast ;
	Video compression	are adjustable through IE browser or client software.
	temperature	-10℃-+60℃
	humidity	10%-90% RH
	Power supply	DC12V 1A
	Consumption	MAX 6W

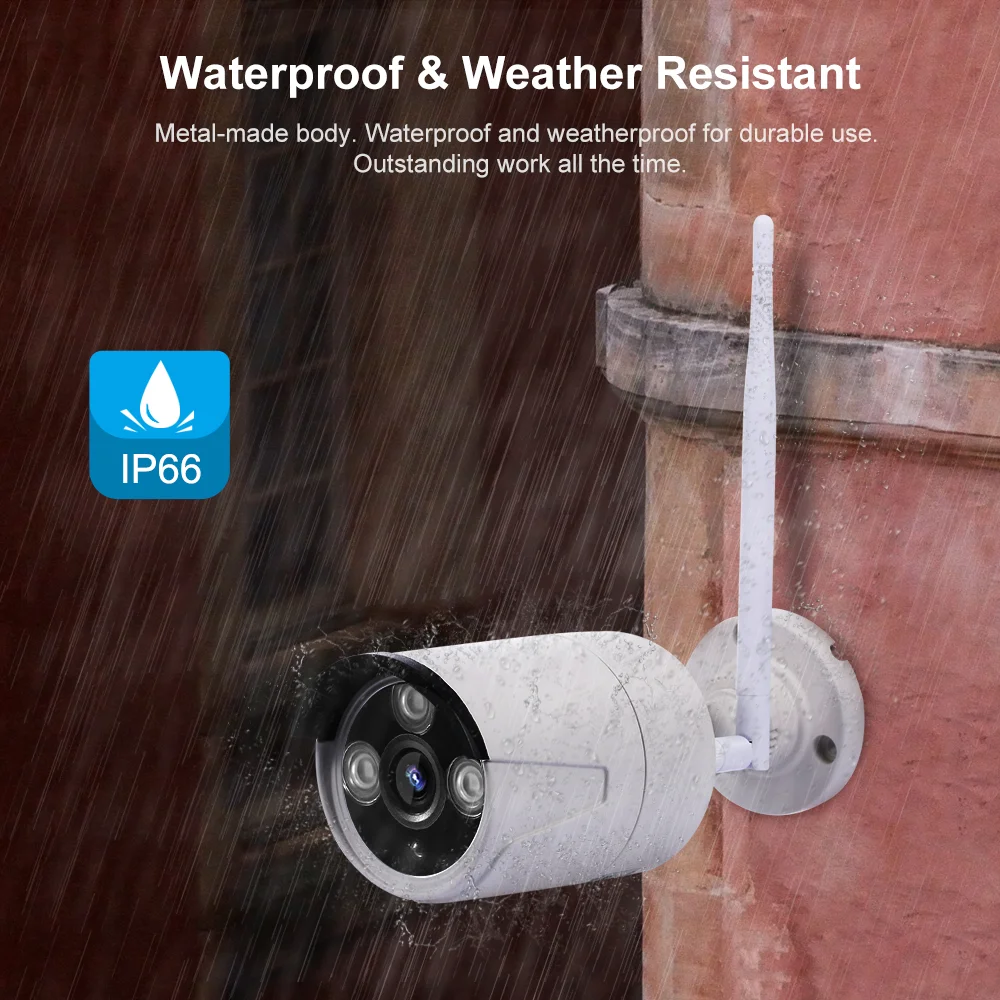

	Waterproof grade	IP66
	Dimension	170mm*65mm
	Weight	0.35 kg

Our Services
OEM Service:We could offer OEM and ODM services for our clients.
Delivery Time:Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:2 years repair.Whole life service for continue cooperating customers!
Price Term:FOB Shenzhen
Delivery Term:ByExpress(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
FAQ
Q: How long is the warranty?
A: 2 -years-warranty since delivered out.

Q: What's the MOQ?
A: 1pc for sample, at least 10pcs after sample order.

Q: How long is thedelivery time?
A: Sample order 3-5 working days, bulk order 7-15 working days.
