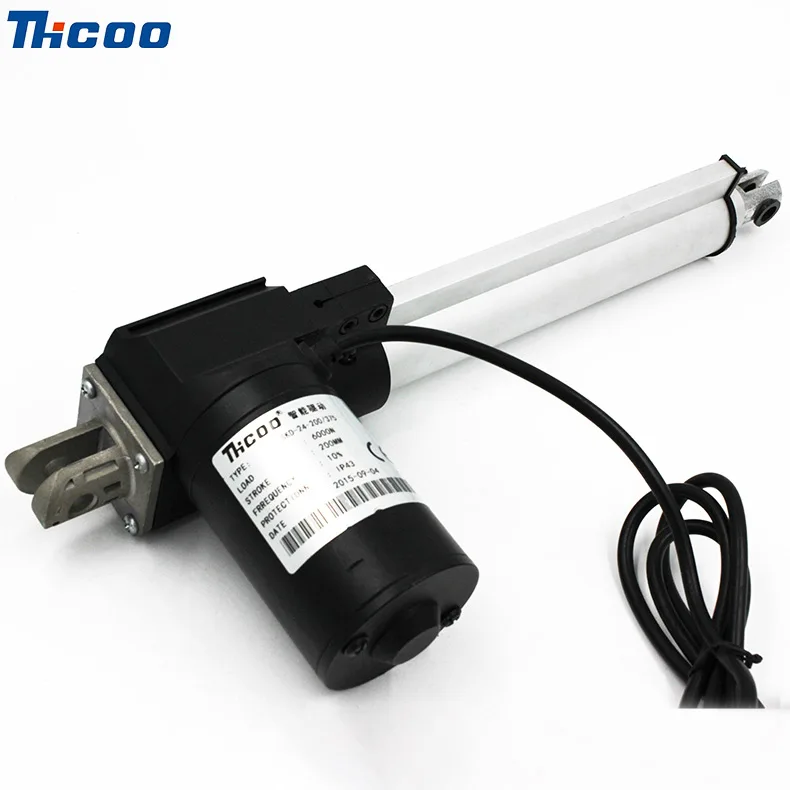

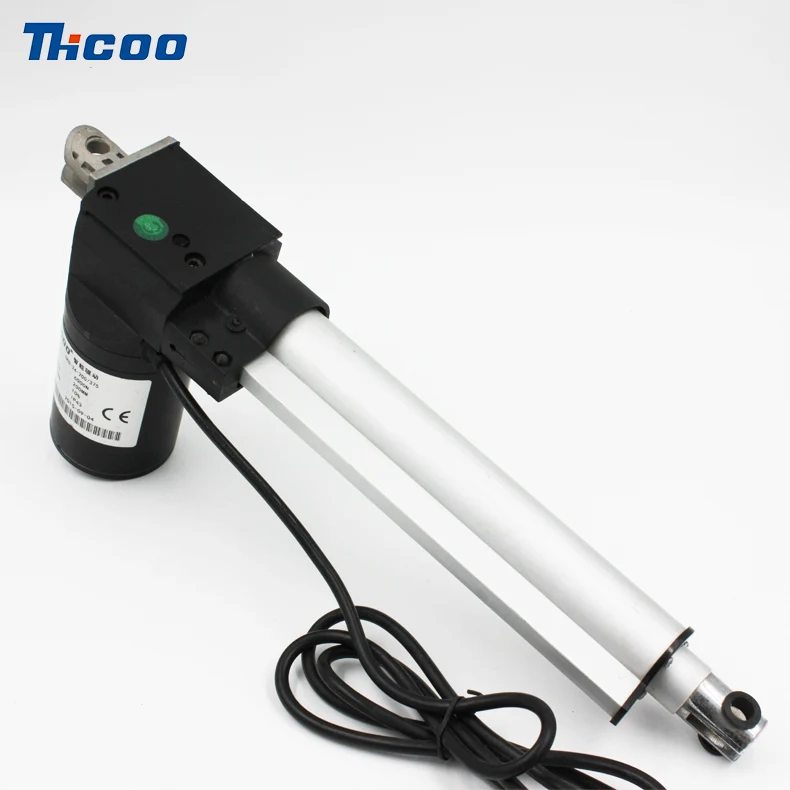

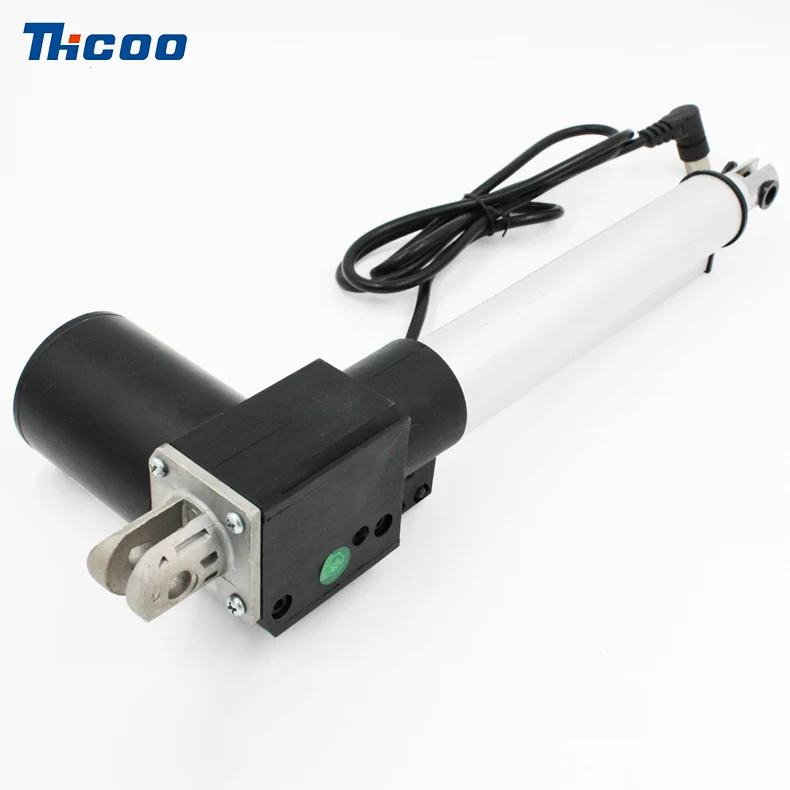

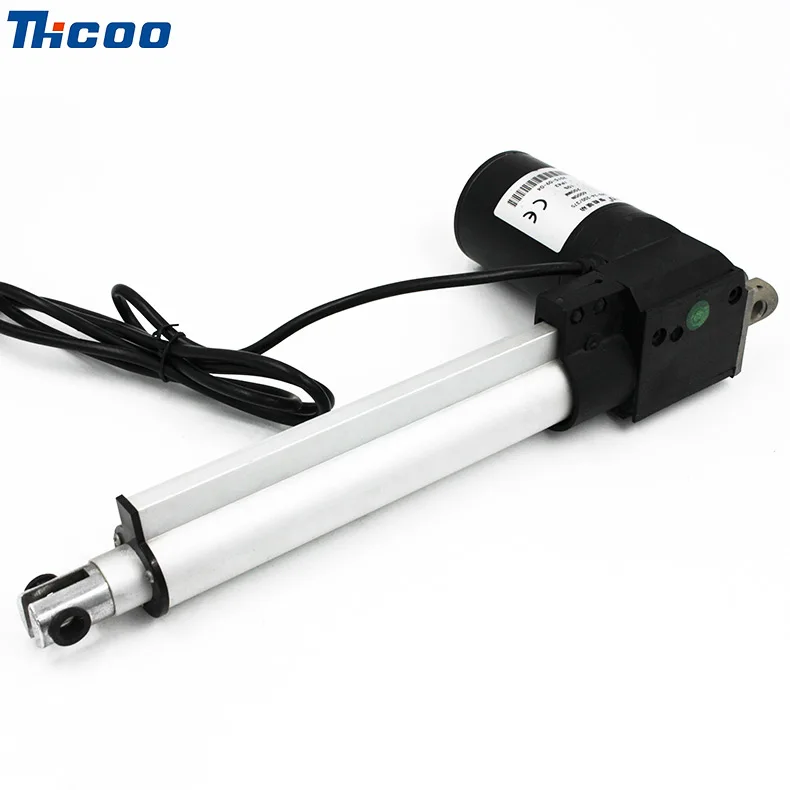

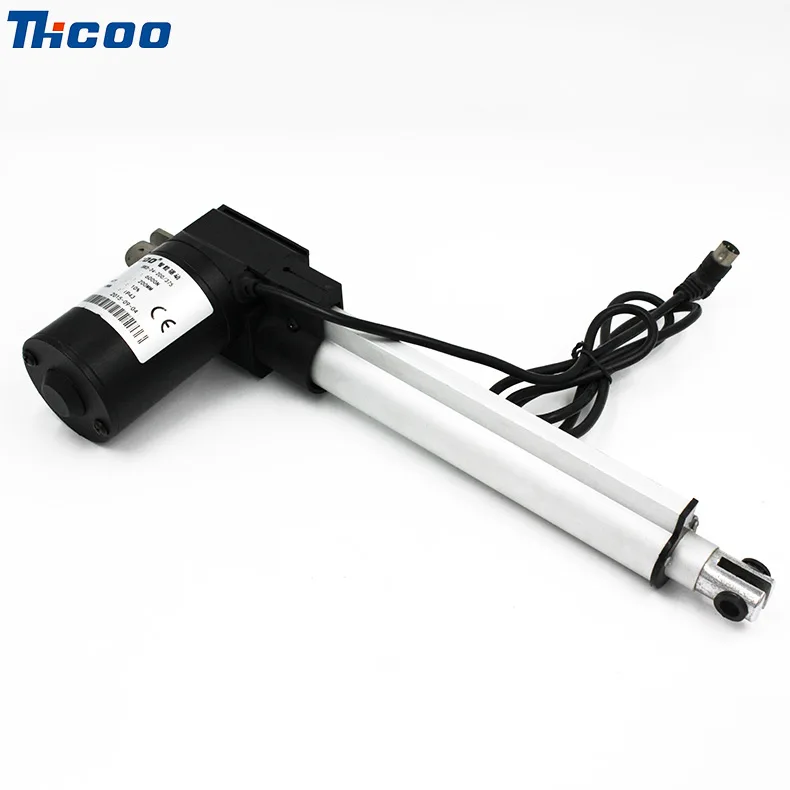

High Quality 24 volt 200mm 3500n Linear Actuator for Desk Lift SKD

Product Overview

Description

Product Model	SKD
Load capacity push	6000N / 4000N / 3000N/2000N/1000N
Load capacity pull	4000N / 3000N / 2500N/150N/600N
Self-lock capacity push	6000N / 4000N / 3000N/2000N/1000N
Self-lock capacity pull	4000N / 3000N / 2500N/150N/600N
Input	24VDC
speed at No load	4.5mm/s  4.5mm/s  8mm/s  22mm/s  42mm/s
speed at full load	3.5mm/s  3.8mm/s  5mm/s  12mm/s  22mm/s
Stroke length	10-1500mm (can be customzied)
Min installation Dimension	S+175mm(can be customzied)
Color	Black or grey
Limit switch	Built in
Overload protection	integrated in appropriate control-box
Duty Cycle	10%,max.2min/18 min.off
Inner pipe	Aluminum alloy
End Clevis	Steel
IP Degree	IP43
Operating temperature	-26℃~+65℃
Standards	CE/RoHS





SKD - 24 -2 - 22- 100/275 -O - 2

 Serial Number             Input        load       Speed                     Stroke                        way   direction

Note: The faster the speed, the smaller the thrust
