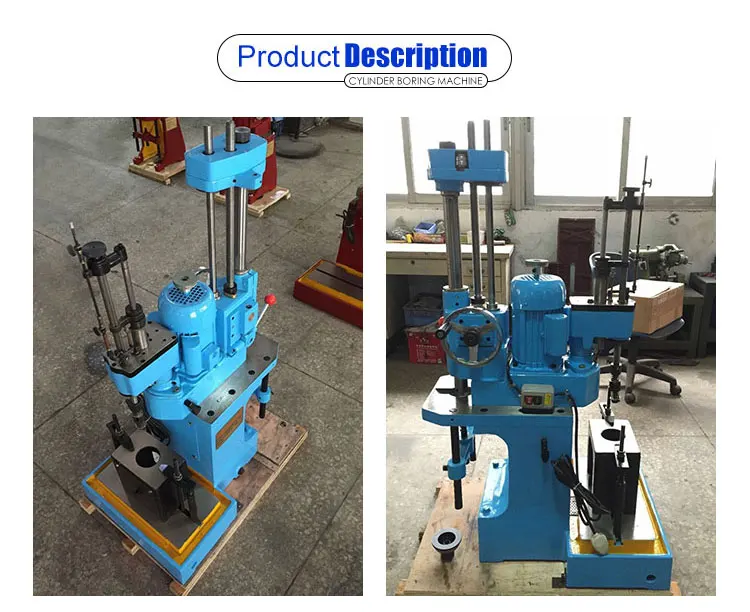

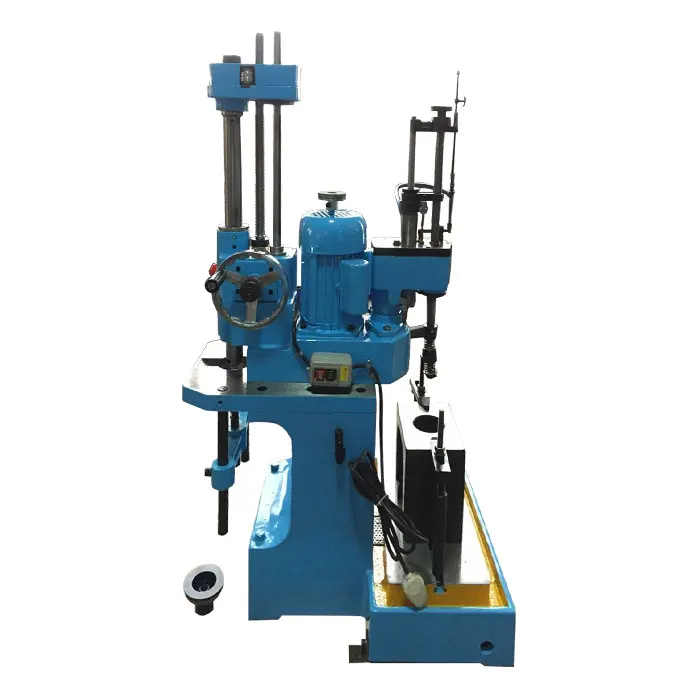

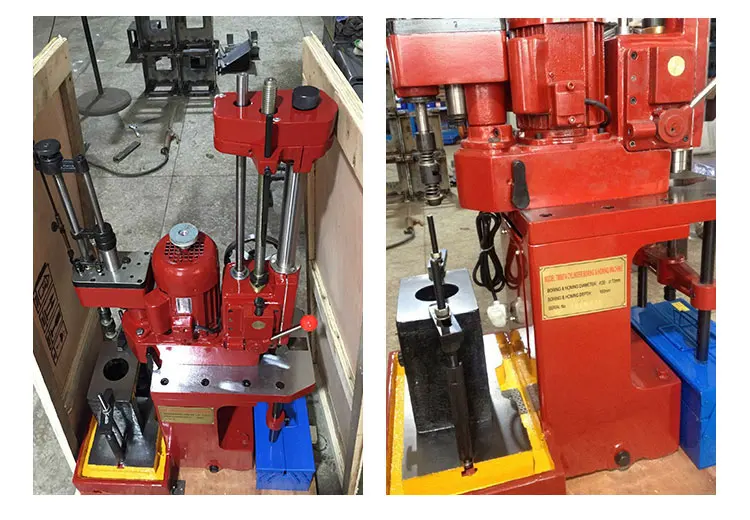

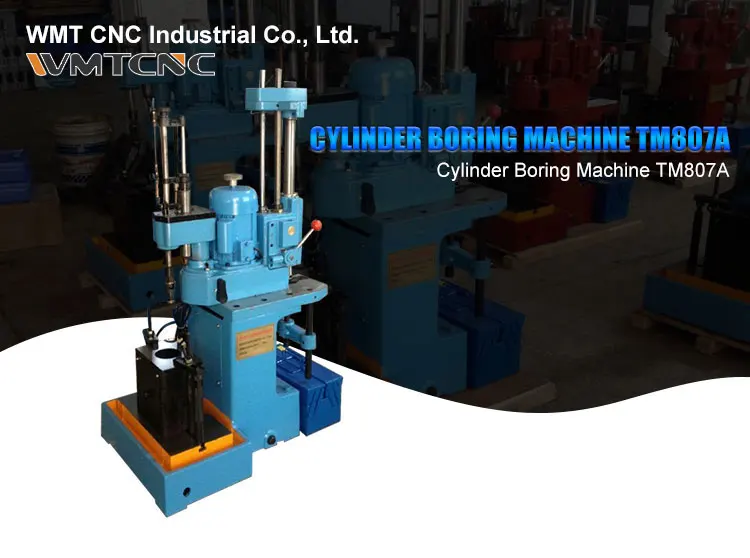

TM807A Cylinder Honing Machine Model with CE
- Category: Boring Machines >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (62535055554):
Product Overview
Description
Secifcations | TM807A |
Diameter of boring &honing hole | 39-72mm |
Max.Boring&honingdepth | 160mm |
Rotational speed of boring &spindle | 480r/min |
steps of variable speed of boring honing spindle | 1step |
Feed of boring spindle | 0.09mm/r |
Return and rise mode of boring spindle | 手动Hand operated |
Rotational speed of honing spindle | 300r/min |
Honing spindle feeding speed | 6.5m/min |
Electric motor power | 0.75.kw |
Rotational | 1400r/min |
Voltage | 220v or 380v |
Frequency | 50HZ |
Overall dimensions(L*W*H) | 680mm*480mm*1160mm |
Packing(L*W*H) | 820mm*600mm*1275mm |
Weight of main machine(approx) | N.W 230kg G.W 280kg |
