Manufacturer smooth two drum sail vibratory road roller
US $4300-$4400

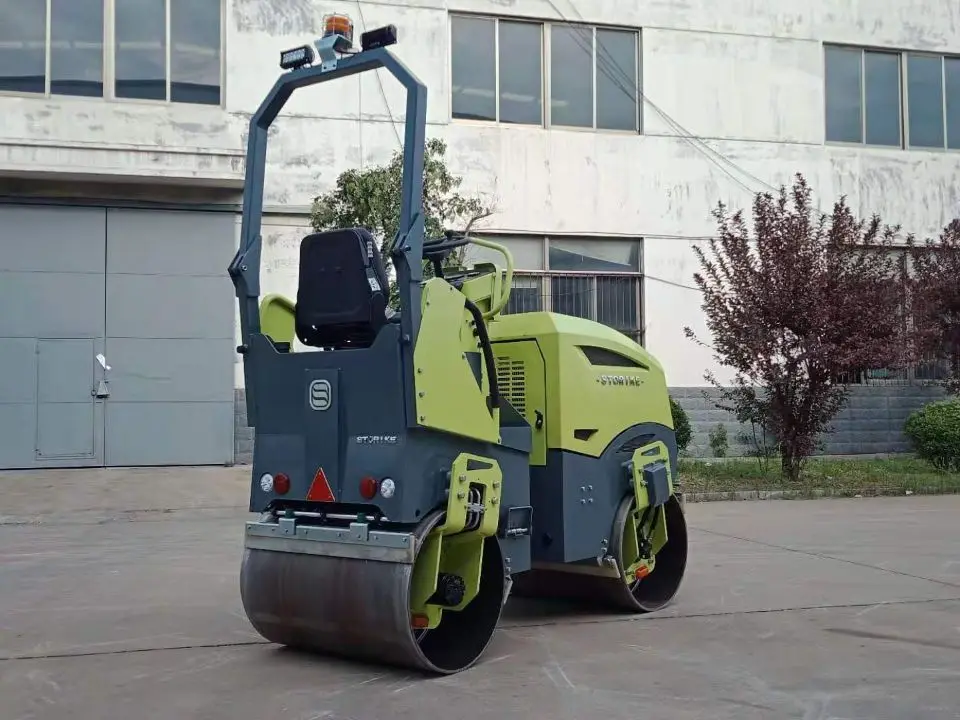

ST1500 1.5 ton 1.8 ton 2 Ton Double Drum Asphalt Road Roller
- Category: Road Machinery >>>
- Supplier: Shandong Storike Engineering Machinery Co. Ltd.
Share on (62535163985):
Product Overview
Description
ST1500 1.5 ton 1.8 ton 2 Ton Double Drum Asphalt Road Roller
APPLICATION:
Our products are used in municipal, highway pavement maintenance operations,
also apply to groove, pipe trench backfill compaction in the construction engineering,building construction and square homework, rolling lawns, etc.

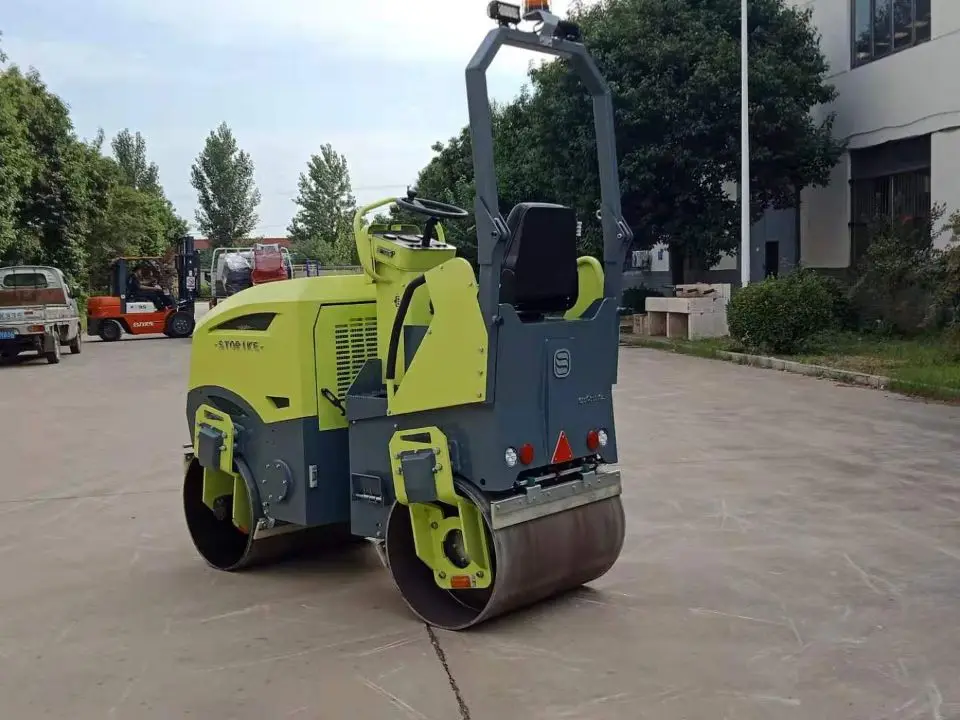

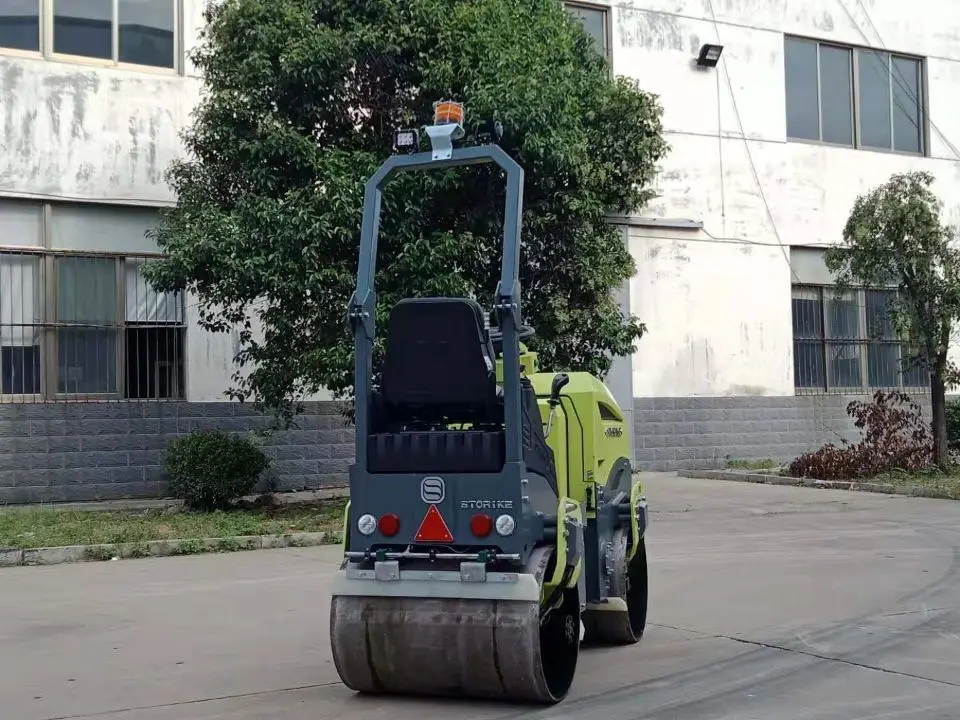

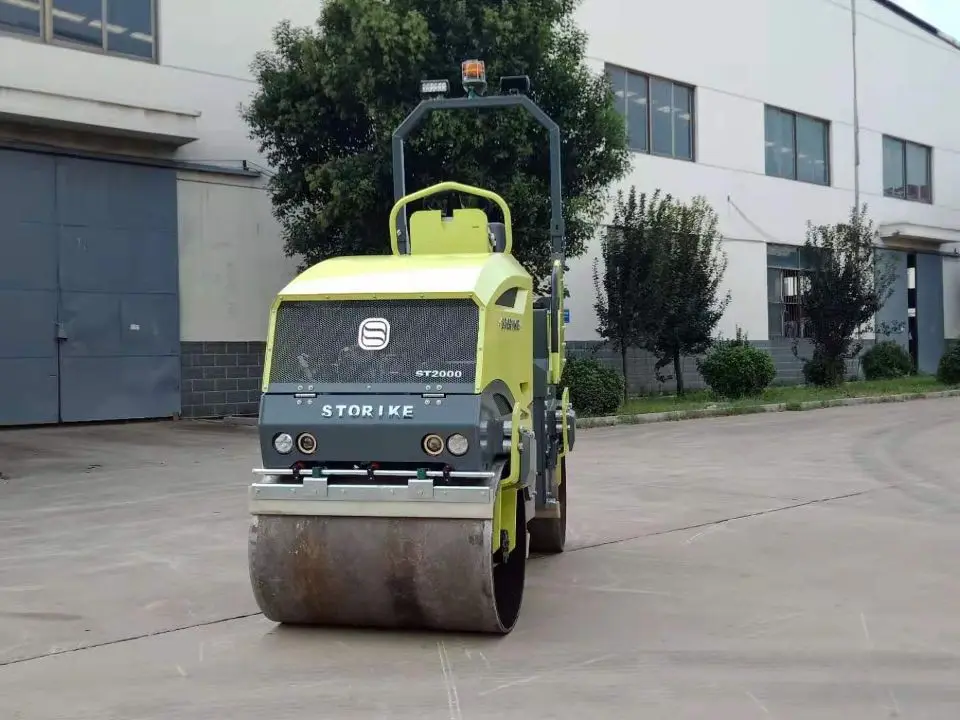

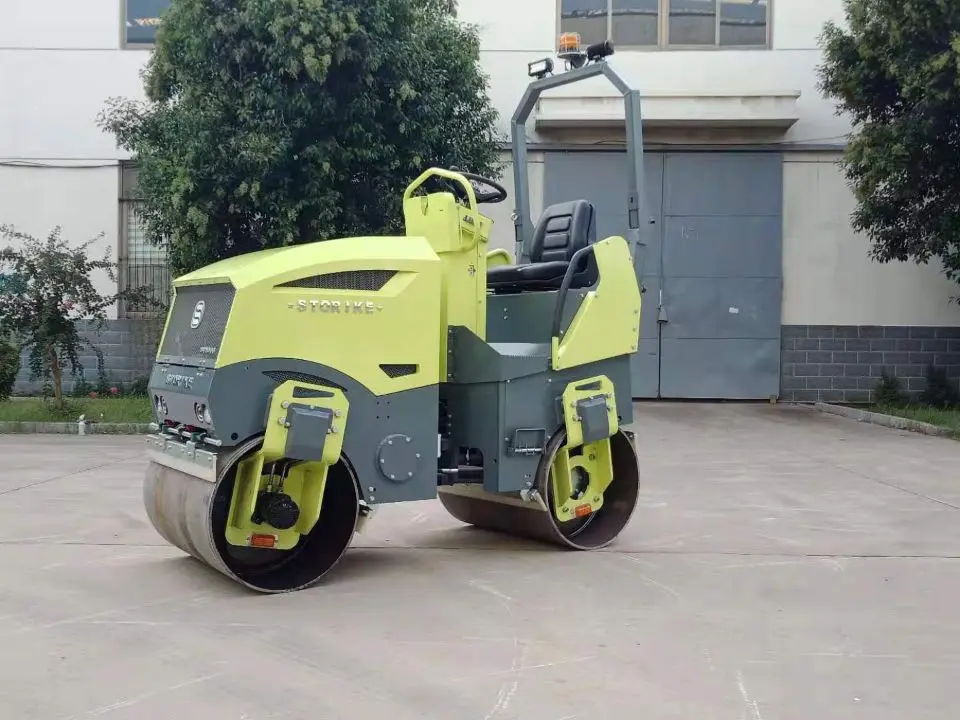

Picture:
Product Description
| ITEM NO/DETAILS | ST1500 | |
| ENGINE | ||

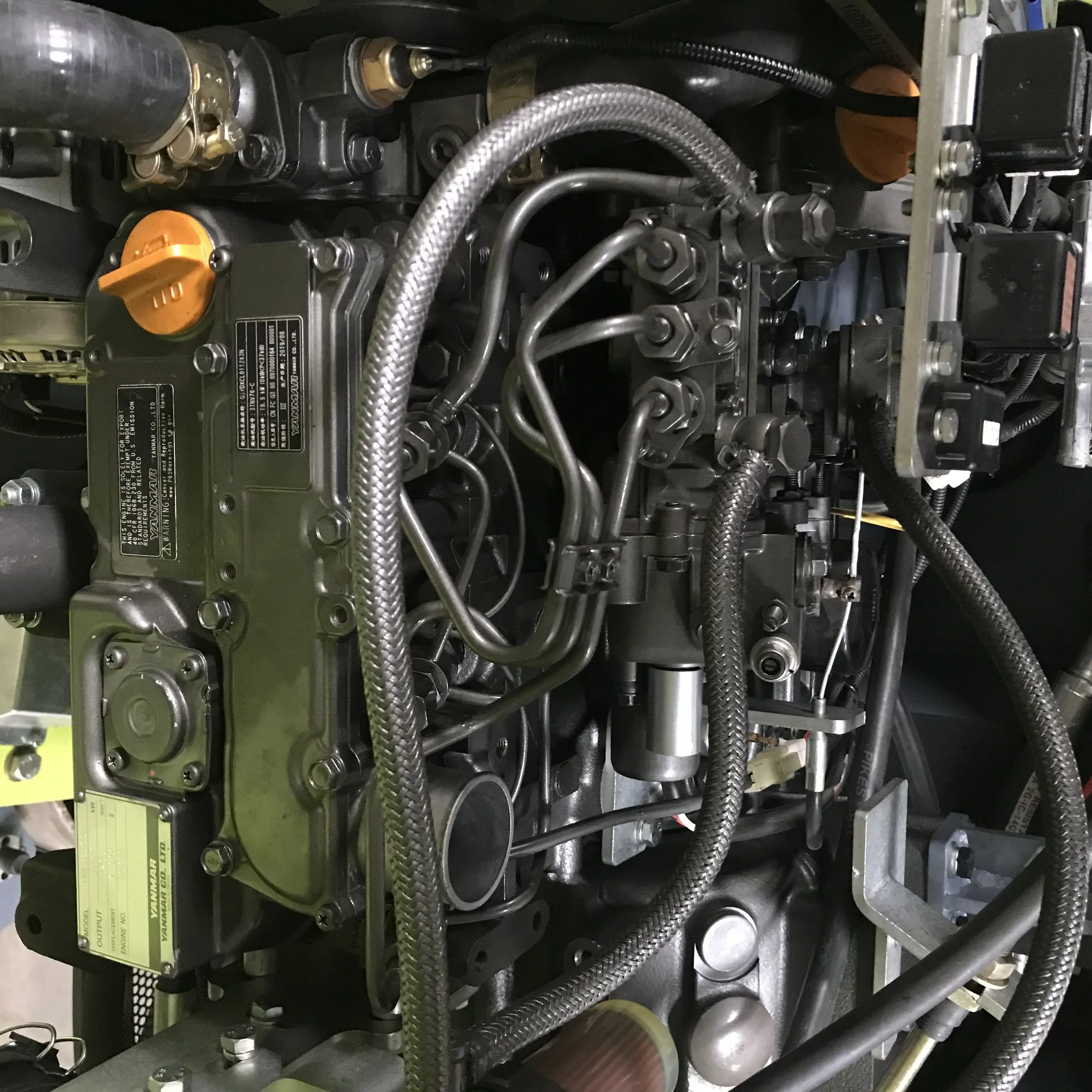

| Engine | YANMAR 3TNV76-CSA | |
| Engine type | Three cylinde, water-cooled, four-stroke, diesel | |
| Number of cylinders | 3 | |
| Output power (KW) | 18.6 | |
| Rating speed(RPM) | 3200 | |
| Fuel consupmtion(G/KWH) | 286 | |
| Lubricating oil volume(L) | 3.4 | |
| DRIVING | ||
| Electrical equipment(V) | 12 | |
| Drive mode | Variable plunge pump, stepless speed change, double-wheel series, motor parallel/series | |
| Walking speed (KM/H) | 0--3.6/0--7.5(parallel/series) | |
| Theoretical climbing ability(%) | 30/35(vibration on/off) | |
| STEERING | ||
| Swing angle(°) | 25.5 | |
| Steering mode | Hydraulic cylinder, articulated steering | |
| Steering system | Swing articulated | |
| EXCITING SYSTEM | ||
| Vibration wheel | Front | |
| Drive form | Hydraulic Motors | |
| Vibration frequency (HZ) | 65 | |
| Vibration amplitude (MM) | 0.5 | |
| Exciting force(KN) | 27 | |
| SPRINKLING SYSTEM | ||
| Water spray form | Intermittent pressure water spray | |
| CAPACITY | ||
| Hydraulic oil capacity(L) | 45 | |
| Fuel capacity(L) | 36 | |
| Water tank capacity (L) | 110 | |
| SIZE | ||
| Working width(MM) | 1050 | |
| Overall length(MM) | 2315 | |
| Machine height(MM) | 1770 | |
| Turning radius(outer)(MM) | 2955 | |
| Ground clearance(MM) | 325 | |
| Wheel track(MM) | 1565 | |
| Drum size | 630*900mm*2 | |
| Drum thickness(MM) | 12 | |
| Wheel offset(MM) | 50 | |
| WEIGHT | ||
| Weight(KG) | 2000 | |
| Static load(N/CM) | 110/105 | |
Configurations;

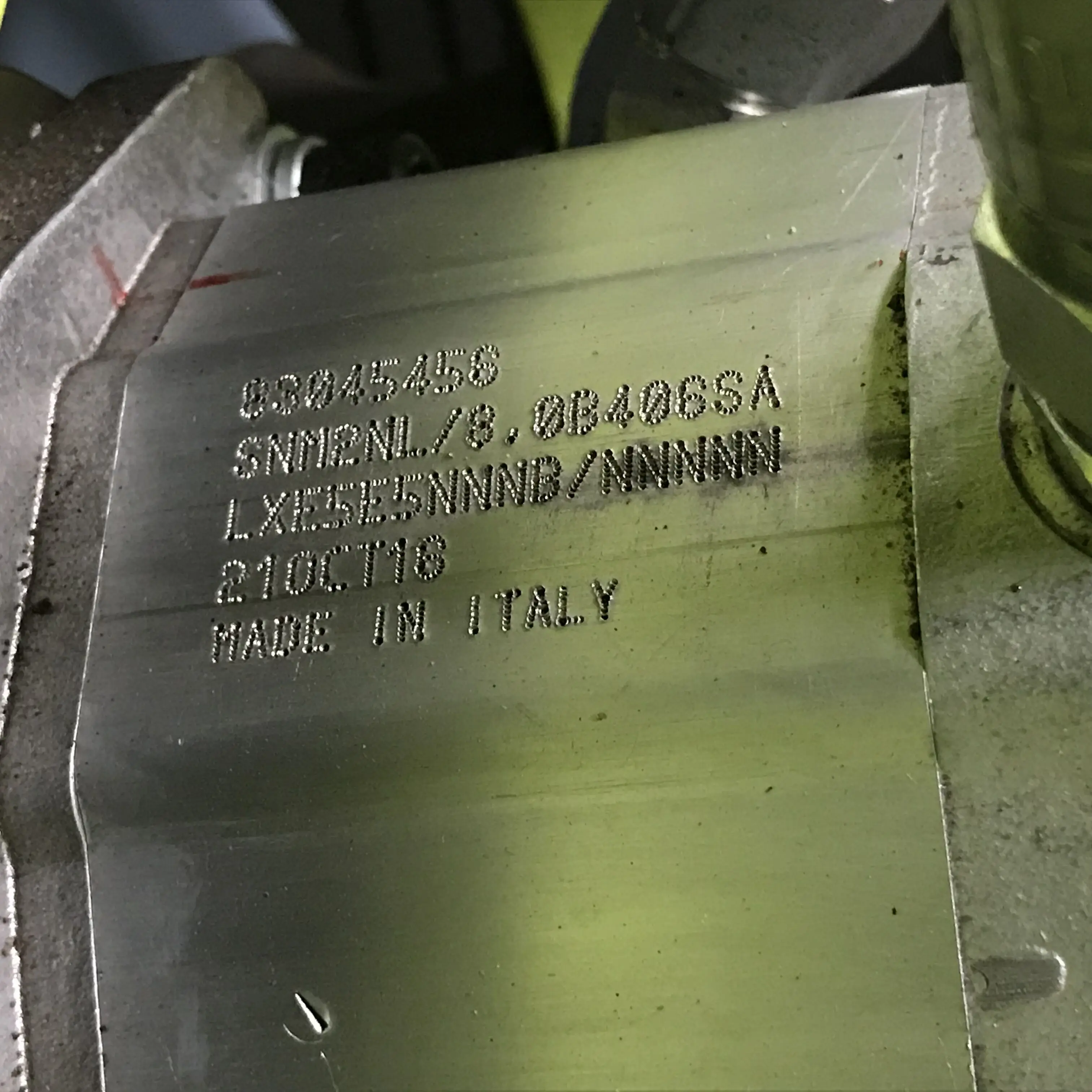

1.Imported Italy Hansa TMP pump

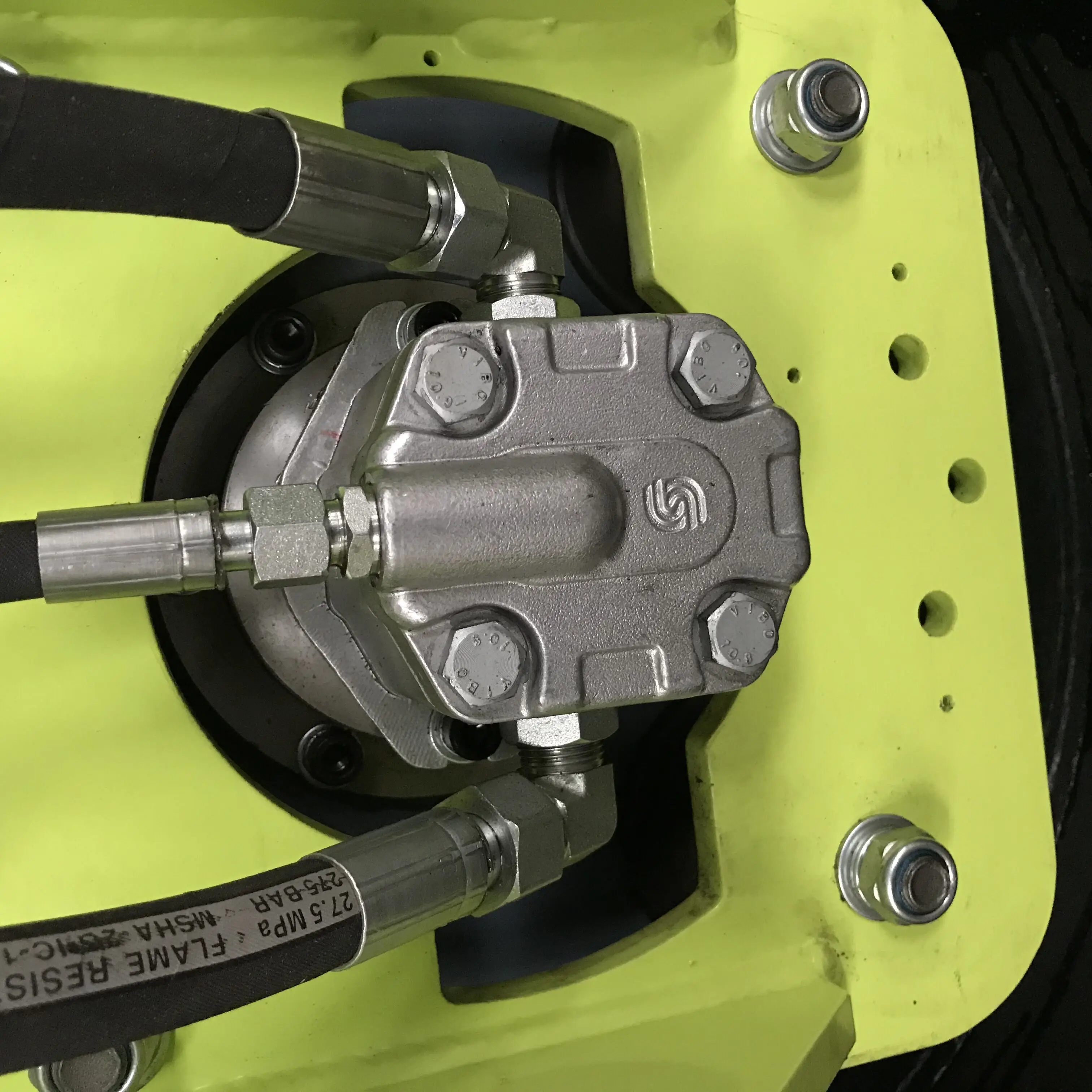

2.Imported Denmark Danfoss vibration motor
3.Imported Denmark Danfoss driving motor
4.Japanese NSK bearing
Features:
1. ST1500 road roller can adopt HONDA gasoline engine or famous diesel engine, superior performance, esay to start. asphalt roller walk behind vibratory roller
2. Operating radius is small, can work in a small area, suitable for groove backfill. vibratory roller soil compactor
3. With international famous brand hydraulic drive unit, walking forward and backward, reversing convenient.
4. With international famous NSK bearing, Mitsuboshi v-belt, ensure the good performance of the machine. Infinitely variable speed, double drums driven, the gradeability stays the same when oil temperature is higher.
5. Hydraulic control system, ensure the walking and compaction degree of accuracy, the maintenance is more convenient, convenient use, safety.
Kindly reminder:
We can supply different brand engine option :
Gasoline type:Honda ,Briggs&Stratton,Robin ,Loncin....
Diesel type:Changchai ,Changfa,Kipor,Golden Flying Fish...
For our products more technique data or working video.Please contact immediately.
whatsapp:008613963746955
Certifications

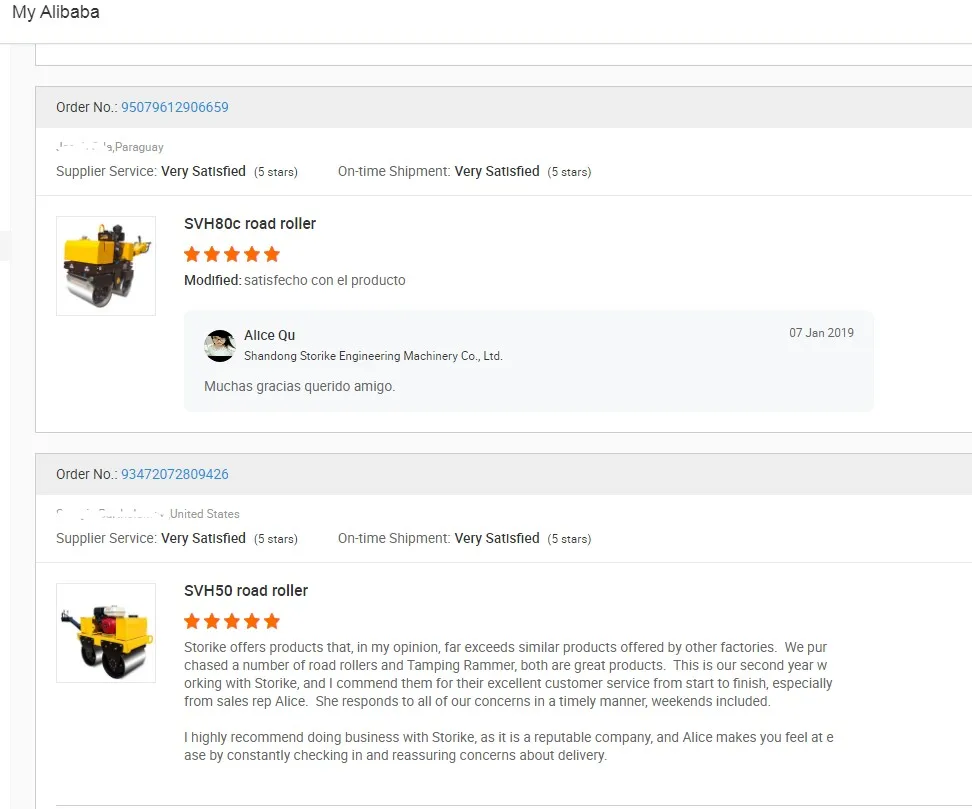

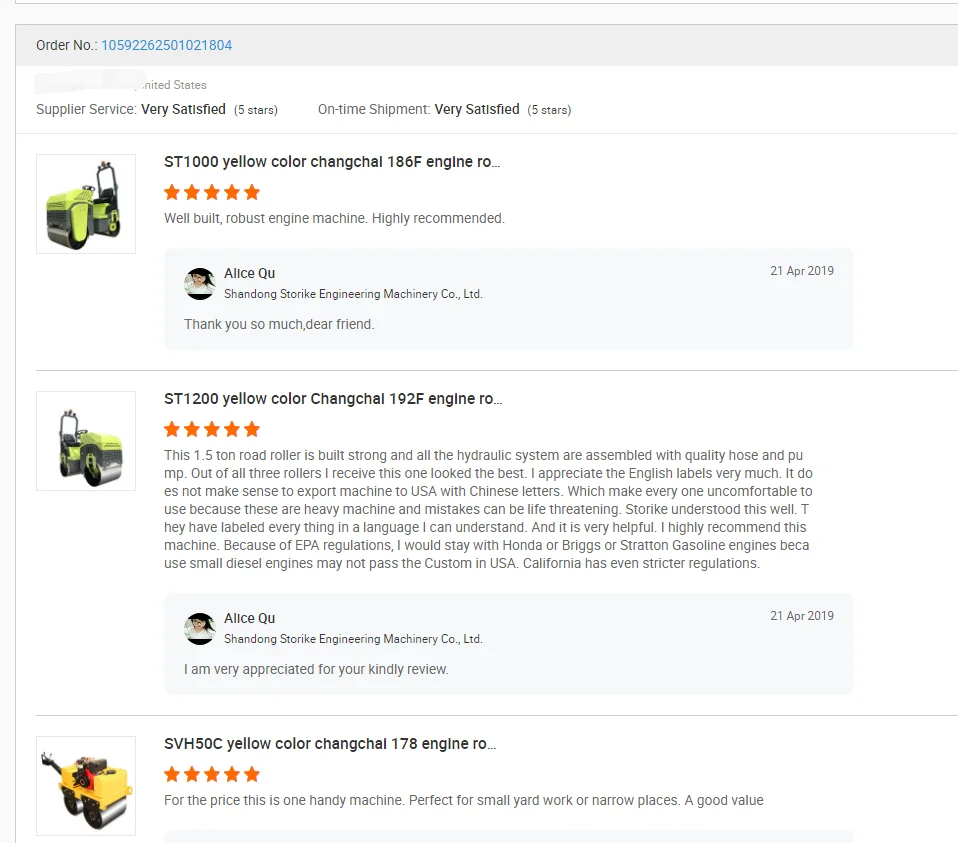

Customer feedback
