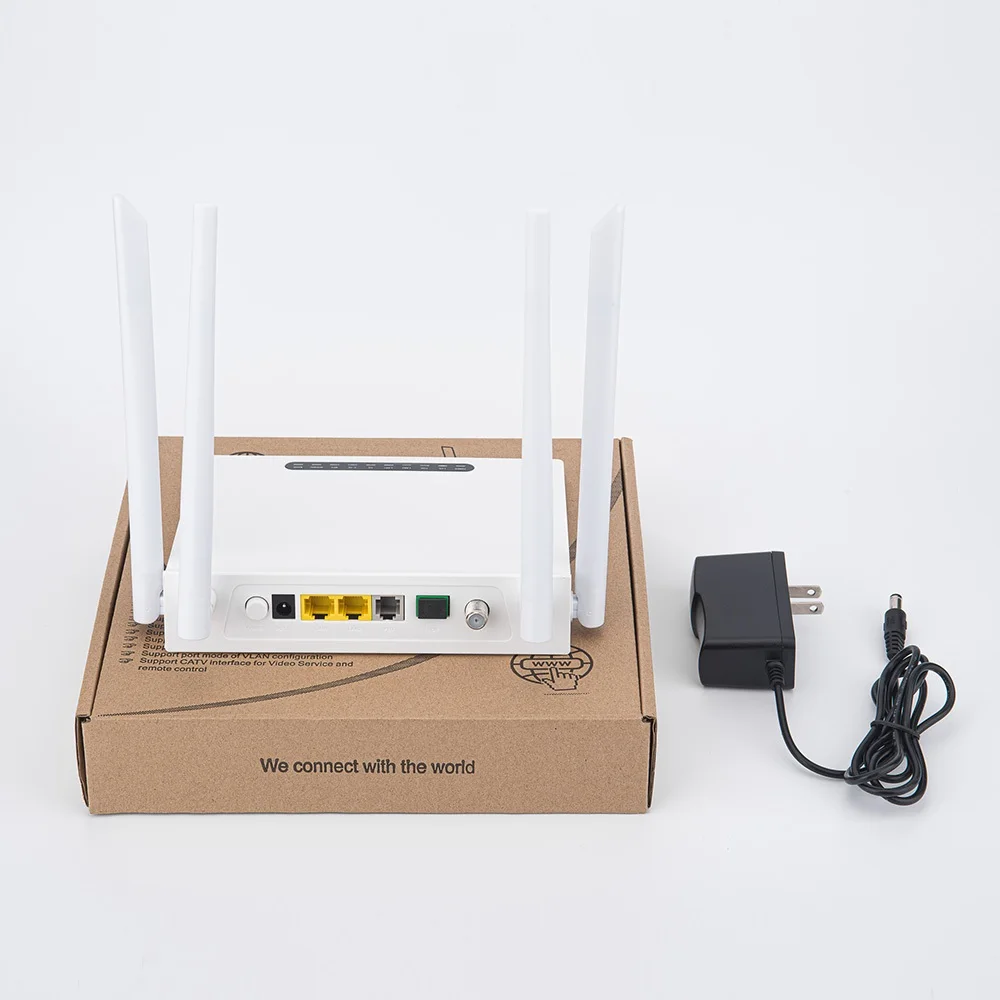

FTTH Fiber Optic Network Modem Router 1GE 1FE FXS CATV Wifi 5dBi GPON XPON ONU
- Category: >>>
- Supplier: Microlink Electronics Co. Ltd.
Share on (62535170798):
Product Overview
Description
FTTH Fiber Optic Network Modem Router 1GE+1FE+ FXS+CATV Wifi 5dBi GPON XPON ONU
Product Description
FEATURE
Router mode supports PPPoE/DHCP/ static IP
Support port-based rate limitation and bandwidth control;
In compliant with IEEE802.3ah Standard
Up to 20KM transmission Distance
Support data encryption, group broadcasting, port Vlan separation, etc.
Support Dynamic Bandwidth Allocation (DBA)
Support ONU auto-discovery/Link detection/remote upgrade of software;
Support VLAN division and user separation to avoid broadcast storm;
Support power-off alarm function ,easy for link problem detection
Support broadcasting storm resistance function
Support ACL and SNMP to configure data packet filter flexibly
Specialized design for system breakdown prevention to maintain stable system
Support software online upgrading EMS network management based on SNMP ,convenient for
maintenance
Support port-based rate limitation and bandwidth control;
In compliant with IEEE802.3ah Standard
Up to 20KM transmission Distance
Support data encryption, group broadcasting, port Vlan separation, etc.
Support Dynamic Bandwidth Allocation (DBA)
Support ONU auto-discovery/Link detection/remote upgrade of software;
Support VLAN division and user separation to avoid broadcast storm;
Support power-off alarm function ,easy for link problem detection
Support broadcasting storm resistance function
Support ACL and SNMP to configure data packet filter flexibly
Specialized design for system breakdown prevention to maintain stable system
Support software online upgrading EMS network management based on SNMP ,convenient for
maintenance
DATASHEET
Wavelength | Insertion force | TX: 1310nm, RX: 1490nm CATV 1550nm | |||||||
GPON PORT | CLASS B+ | ||||||||
Downstream rate | 2.5Gbps | ||||||||
Upstream rate | 1.25Gbps | ||||||||
Receiving sensitivity | ≤-27dBm | ||||||||
Transmitting optical power | 0~+4dBm | ||||||||
Transmission distance | 20KM | ||||||||
Optical Interface | WDM | SC/APC Connector | |||||||
LAN Interface | 1 x 10/100/1000Mbps and 3 x 10/100Mbps auto adaptive Ethernet interfaces | ||||||||
rj45 connector ,Full/half duplex mode | |||||||||
Gateway | Router mode | PPPoE/DHCP/ static | |||||||
IP WAN | Route rand Bridge mode | ||||||||
WAN | Internet,VoIP,IPTV,TR069 | ||||||||
LAN | DHCP and static IP | ||||||||
Support | NAT and NAPT | ||||||||
Support | UPnP | ||||||||
Standard | IEEE802.11b/g/n | ||||||||
Operating frequency | 2.400-2.4835GHz | ||||||||
MIMO | rate up to 300Mbps | ||||||||
2T2R | 2 external antenna 5dBi | ||||||||
Support | Multiple SSID | ||||||||
Channel | Auto | ||||||||
Modulation type | DSSS, CCK and OFDM | ||||||||
Encoding scheme | BPSK, QPSK, 16QAM and 64QAM | ||||||||
CATV Interface | RF/ WDM/optical power | +2~-18dBm | |||||||
Optical reflection loss | ≥45dB | ||||||||
Optical receiving wavelength | 1550±10nm | ||||||||
RF frequency range | 47~1000MHz, RF output impedance: 75Ω | ||||||||
RF output level | 78dBuV | ||||||||
AGC range | 0~-15dBm | ||||||||
MER | ≥32dB@-15dBm | ||||||||
Connector | 1 FXS, RJ11 | ||||||||
Support | G.711/G.723/G.726/G.729 codec | ||||||||
Support | T.30/T.38/G.711 Fax mode, DTMF Relay | ||||||||
Line testing | GR-909 | ||||||||
LED | WIFI,WPS,PWR,LOS,PON,LAN1~LAN4,FXS, Worn, Normal(CATV), 12 LEDs to indicate statis | ||||||||
Push-Button | Reset, WLAN, WPS (3 buttons for setting) | ||||||||
Power Supply | DC 12V/1A | ||||||||
Power Consumption | ≤6W | ||||||||
Operating Condition | Temperature | 0℃~+50℃ | |||||||
Humidity | 10%~90%(non-condensing) | ||||||||
Storing Condition | Temperature | -30℃~+60℃ | |||||||
Humidity | 10%~90%(non-condensing) | ||||||||

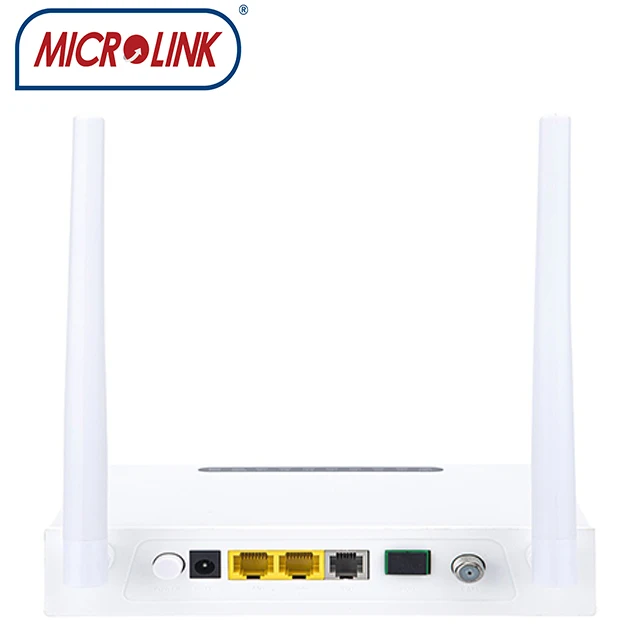

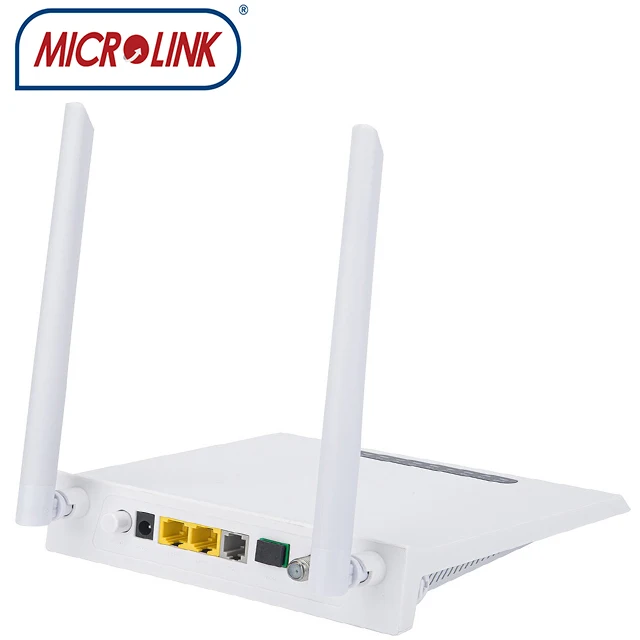

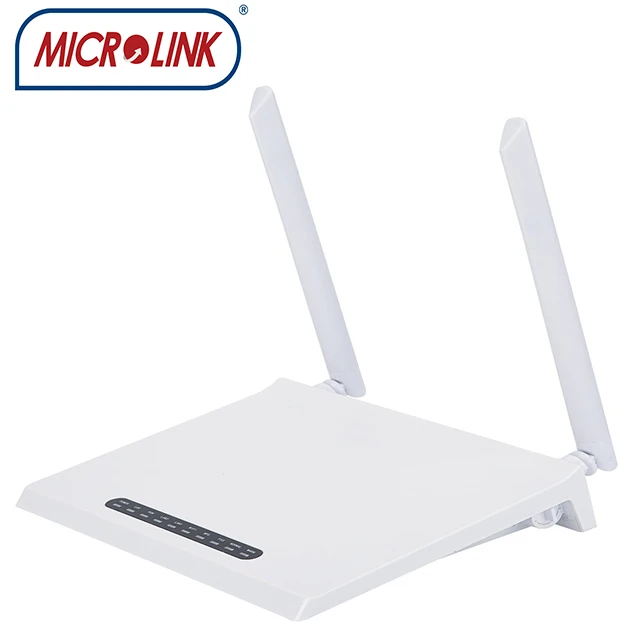

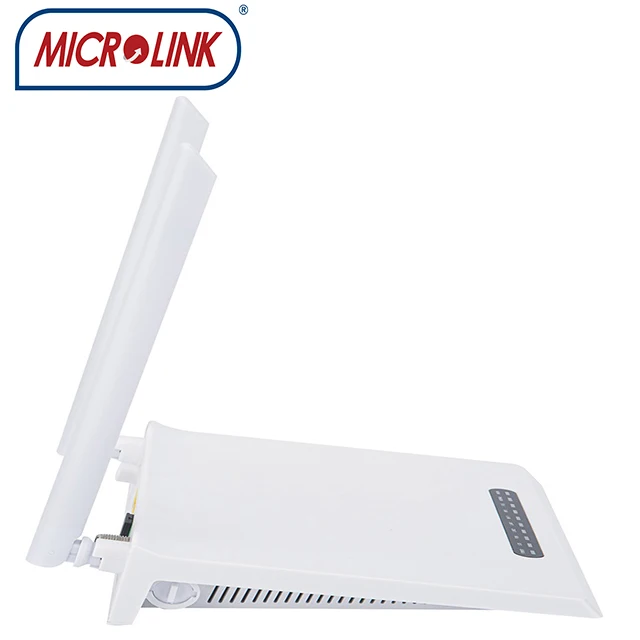

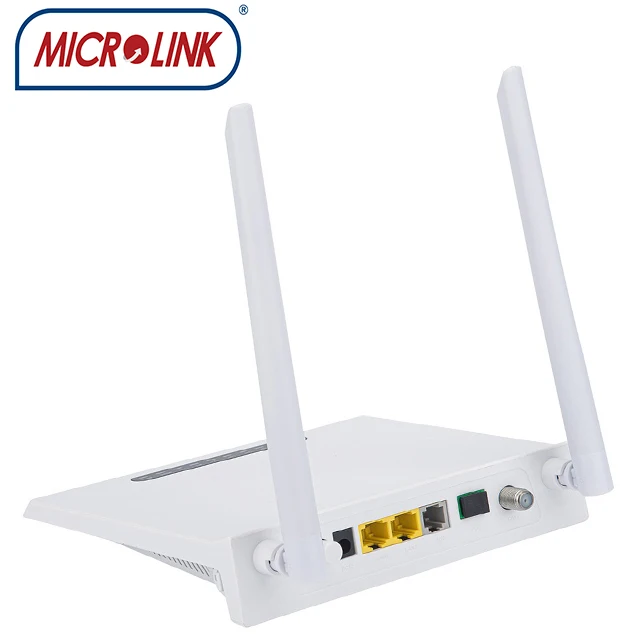

Detailed Images
Application
Packing & Delivery
Related Products
Our Factory
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer, designer and distributor.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it depends on order quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight which is refundable from an official order. For our regular clients, we bear sample cost and delivery freight.
Q: Do you offer OEM & ODM service
Yes, we can print your LOGO on RJ45 plug and cable and package as per demand for bulk order.
Q: What is your terms of payment ?
A: Payment less than 1000USD, 100% in advance. Paymen more than 1000USD, 30% T/T in advance ,balance before shipment.Also we accept L/C at sight. Other payment ways are negotiable.If you have another question, pls feel free to contact us as below:
Q: What about shipment?
A: we have long term cooperation with premium logistic forwarders, who can offer fast delivery at low freight rate for shipment like express, post, air cargo, ocean cargo, door to door DDP &DDU.
