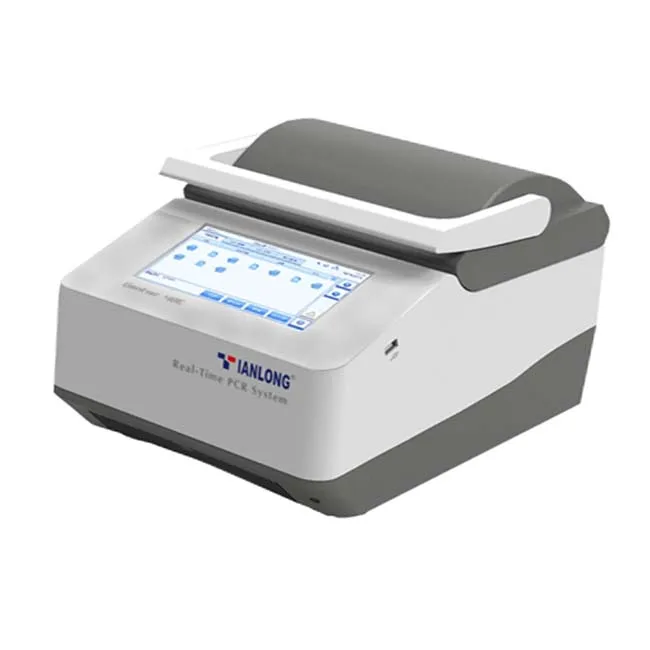

Gentier 48E Real-Time PCR Detection System

Introduction:

Gentier 48E real-time PCR detection system is tailor-made for workers in small and medium-sized laboratories, mobile laboratories, and on-site detection. With excellent performance and portability, make your testing more convenient, accurate and efficient.

 Features:

1. Detection flux: 48-well 4-color fluorescence detection, each tube can detect 4 items at the same time, which greatly improves the experimental efficiency and avoids the inconvenience caused by repeated sample detection.

2. Temperature control: The maximum heating rate is up to 8 ° C / s, and the maximum cooling rate is up to 6.1 ° C / s. It takes only 30min to complete a standard PCR amplification program, which can achieve your rapid detection; the temperature accuracy is controlled within ± 0.1 ° C Within, it guarantees good repeatability and accuracy.

3. Fluorescence scan: It takes only 2s to complete all 48-well 4-color fluorescence scans. For users who need to use the high-resolution melting curve (HRM) function, it can significantly reduce the overall test time and greatly improve work efficiency.

Convenient operation:

4. Built-in 7-inch full-color touch screen, independent control system and USB data export function, without the need to connect to a computer, the entire experiment can be completed in a single machine operation.

5. Full Chinese system interface and guide-type parameter setting, after simple training, you can fully master the standard use of the instrument, and quickly have the ability to independently operate experiments.

6. Standard network interface. By setting network parameters, functions such as remote operation, experimental monitoring and data transmission in the local area network can be realized.

Powerful data processing:

7. One machine for multiple uses: In addition to the conventional relative quantification, absolute quantification, HRM, SNP and other analysis functions, it is more compatible with a variety of isothermal amplification technology fluorescence analysis functions, and truly realizes one machine for multiple uses.

8. Complex data analysis: In addition to the instrument operation software, it is also equipped with a set of independent data management software to achieve centralized management, statistics and analysis of users' massive experimental data, reducing errors caused by manual complex analysis of the original data.

9. Universal report function: The built-in universal report function can adjust and customize the experimental report format according to the needs of different users, and establish its own unique experimental report style.

Excellent environmental adaptability:

10. Small size, light weight, easy to carry, can be moved to the required place or equipped to a mobile laboratory for on-site testing as required.

11. The fixed fluorescence detection unit is used, and no calibration work is required after moving, and it can be started directly.
