External diamond head roller burnishing tool fit different shape process

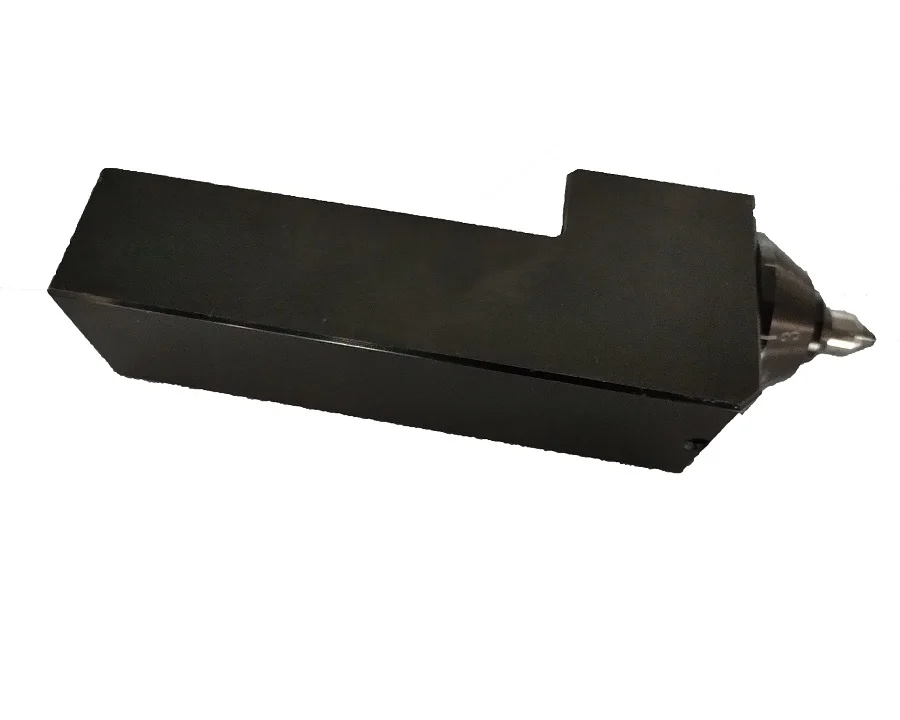

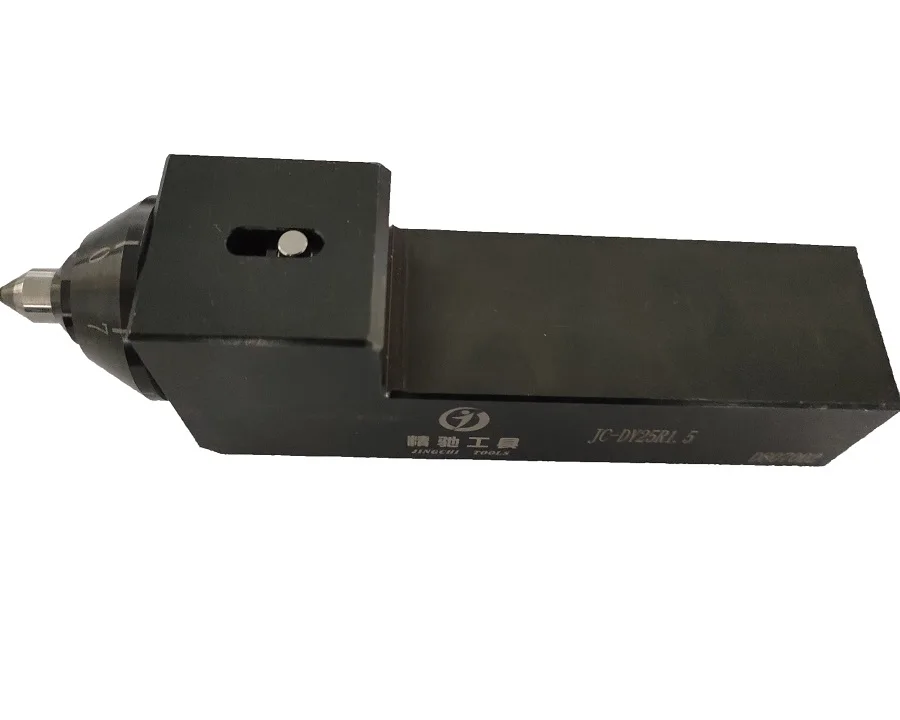

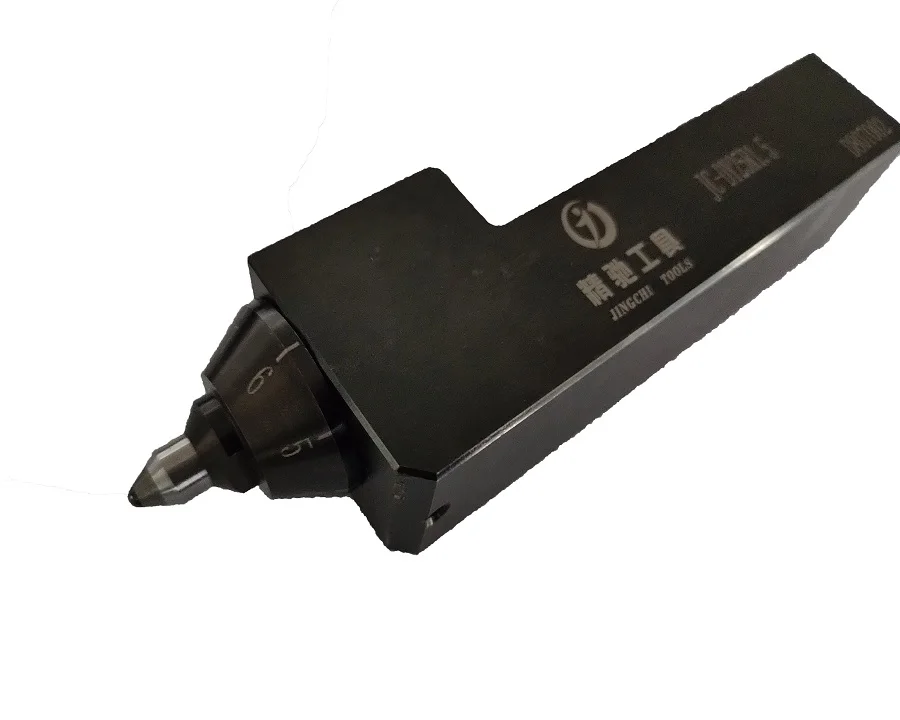

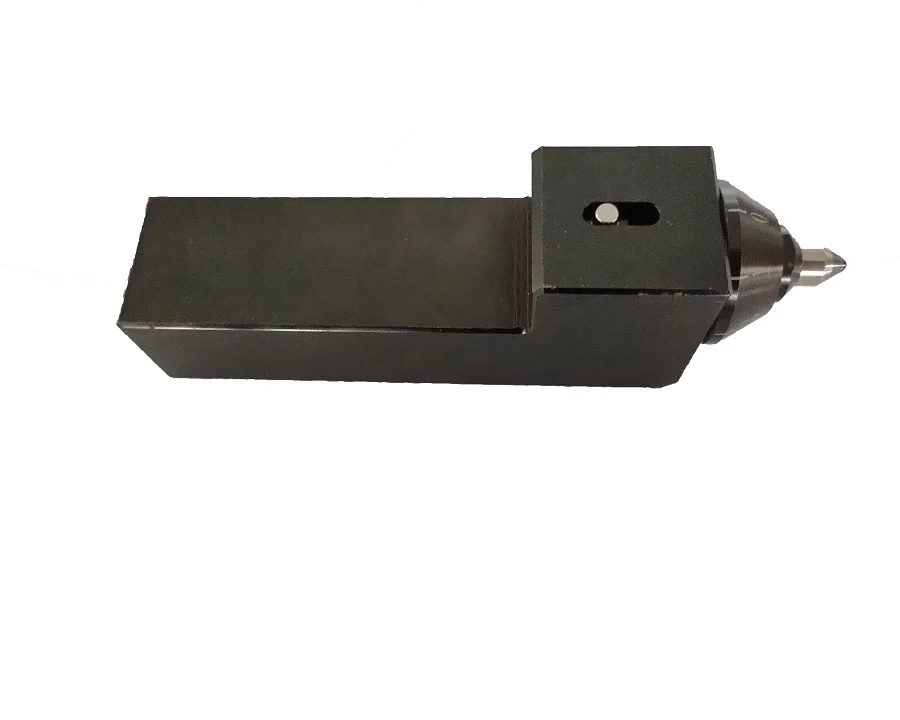

JC-DY Diamond head burnishing tool

Diamond head burnishing tool has wide application range and strong versatility. It can burnish the workpiece with the highest hardness of HRC60. It is also suitable for the processing of the workpiece with minimal diameter, complex outer diameter and thin wall.

Processing principle

The diamond head burnishing tool is a low-cost and high-efficiency process for strengthening mirror surface processing of workpiece surface. It uses high strength and high precision diamond to burnish workpiece surface. With the applied pressure exceeding the yield point of the material, the surface of the part will be plastic deformed due to cold extrusion of the shallow material to achieve mirror surface finishing.

Processing advantage

1.One Tool can be used for various taper, circular arc and outer circle.

2.After burnishing,the surface roughness of workpiece will be less than Ra0.1.

3.The diamond tool can extend into the inner minimum 14mm hole.

4.The tool has long service lif,rotary diamond head,many point are available.

5.Diamond tool can burnish the material whcih hardness up to HRC60 degrees.

6.After burnishing,the surface hardness of the workpiece will be increased to 15-30%.

7.The wear resistance of the workpiece will be increased by 15%.

8.Improve the fit of parts.

9.Improve corrosion resistance.

10.No special equipment, low cost.

Processing parameter

Linear Velocity:V= 50-150m/min
Feed Rate:S=0.05-0.2mm/rev
Press-in(pressure spring inside):0.01-0.5
Machining Allowance:0.005-0.02mm

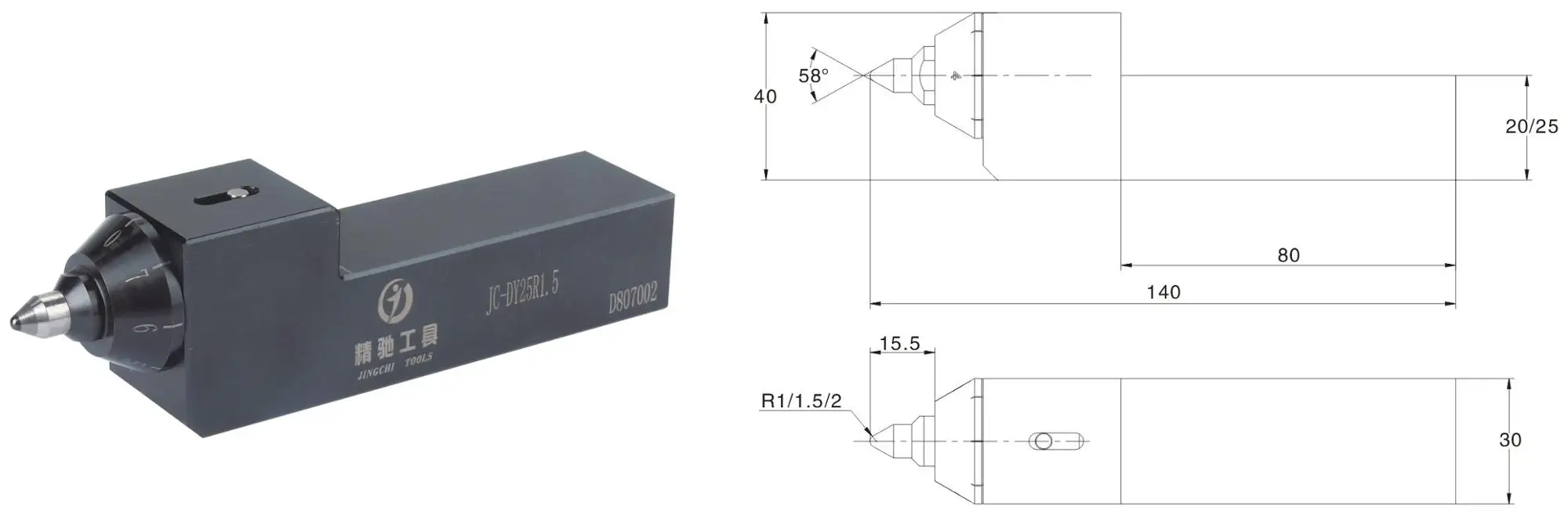

External diamond head burnishing tool

One tool is suitable for processing different parts

1. Outer surface burnishing

2. Conical surface burnishing

3. Spherical surface burnishing

4. End surface burnishing

Note: ** Represents R size of diamond head,usually have R 1.0, R 1.5, R 2 diamond head in stock.
