1.Used for aluminum windows and doors profiles cutting and for curtain wall profile cutting also for plastic profiles cutting.

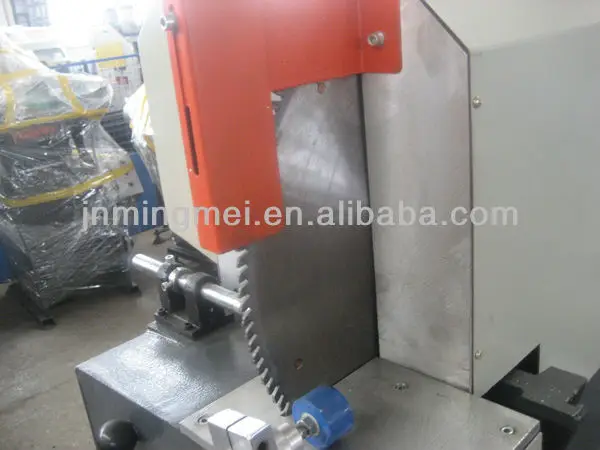

2.Adopted carbide alloy blade, cutting smoothly.
3.This machine with up-feed blade and digital display positioning system(depends on request)
4.Spray device, to realize fast cooling
5.Can cutting many pieces profiles in same time.
6. Special for aluminium and PVC profile cutting at 45°~90°. Carbide saw blade give accurate processing and high endurance. To provide the bracket with scale ruler for material locating.
Parameter
Air Pressure
0.4~0.7MPa
Saw blade specification
60L/min
Input Voltage
380V 50Hz or As Customer need
Input Power
1.5Kw
Saw blade specification
Ø450×Ø30
Air comsuption
50L/min
Motor rotary
2800r/min
Cutting width*height
Max 120, 200mm
Cutting lenth
400-4200mm
Overall Dimension
7000×1300×1500mm
Cutting angle
90° 45°
Repeat locating length
≤0.1mm
Cutting profile surface roughness
Ra12.5Um
Angle cutting tolerance
±5′
Weight
450kg
Main accessory
Saw blade
Japan UNIKEN
Solenoid valve
GermanyFESTO
Cylinder
PC(FESTO Joint Venture Brand)
Motor
AnhuiSanyang (Best Chinese Motor Brand)
Air Filter Device
STNC
Electrical Button and Switcher
Schneider
AC Contactor and Circuit Breaker
Schneider
Approach Switch
Japan Omron
Linear bearing system
Linear (South Korean brand)
Standard accessory
Saw blade
1pcs
Work piece supports
2set
Air Gun
1pc
Complete tooling
1set
Certificate
1pc
Operation Manual
1pc

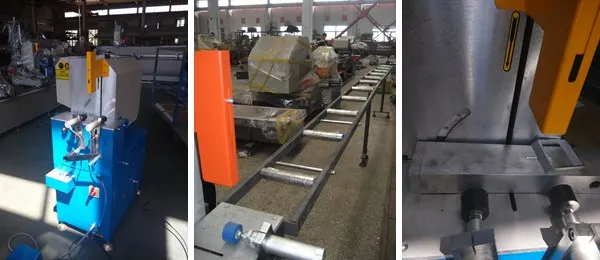

Detailed Images
Packaging & Shipping
Certifications
Company Information
Customers
Remarks
1. All the electrical elements,Circuit breaker protection and AC contactors are schneider or other world famous brand.
2. International CE standard high flexibility, high shielding cables.
3. Warranty time: 1 year
4. Quotation Valid: 90 days
5. Payment terms: 30%T/T as deposit, 70% balance made before shipment by T/T
6. Delivery time: 30 days upon receipt of 30% deposit by T/T
7. Packaging: Film packaging and fumigation-free wooden case(if delivery by full container load, then without wooden box,just use the tray)
8. After sales service:
1)24 hours service on Internet and Telephone, free instructions and problem solving
2) Free training to make sure a master of the operating of cnc router for the person who come to our factory
3)User-friendly English manual or operating video for machine using and maintaining
4) on-the-spot training, installation and repairing can be met if required.(If so, need the buyer afford the visa and air ticket and 60USD/DAY Salary)
Kindly and friendly inform
In Jinan city, there are many many factory producing the cnc router and pvc/aluminum window door machine and insulating glass machine, and the price and quality both have the very big differences.
We are the national company founded in 1995, we do OEM for many trading companies in Jinan. For me, i have been in this machinery for 4 years, i know well how to give you the suitable process program and focus on the after sales service during China's third industry transform to the second stage period.
Please note that you need compare the price when same quality, or compare the quality when getting same price, we believe our product must be the best quality in same price, also best price in same quality.
We hope we could establish longterm business relationship only one machine.
Please do not hesitate to contact me if any needed!
