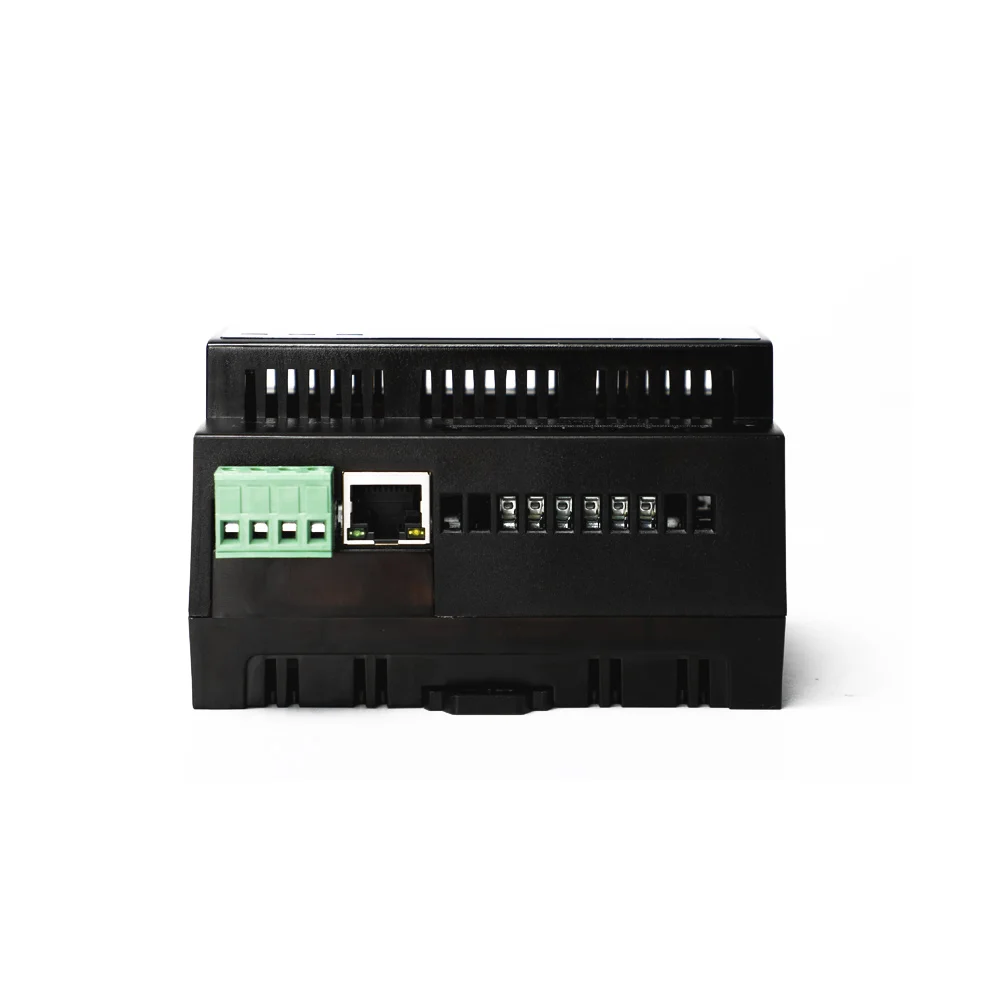

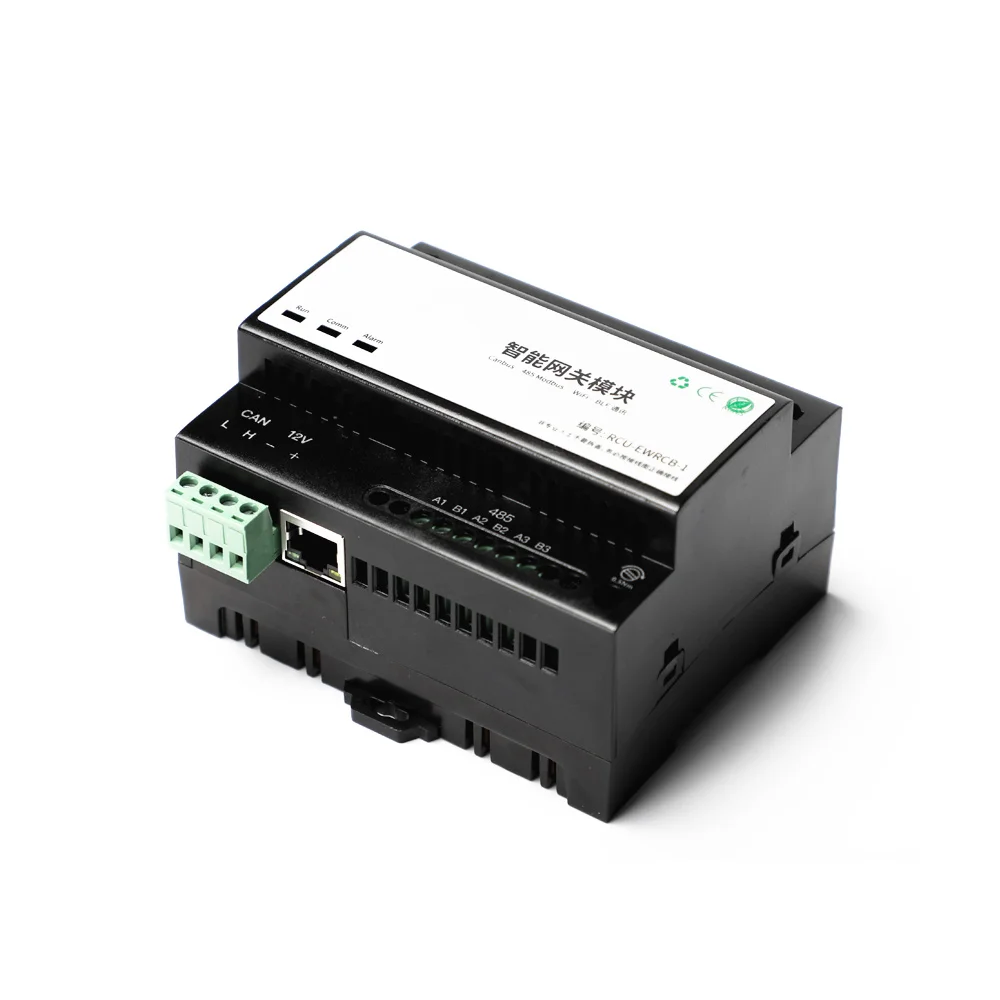

Wired Building Automation Light Control System 485 Modbus gateway Module rs485 tcpip with 4G Wifi APP Remote Control
- Category: >>>
- Supplier: Shenzhen Omni Intelligent Technology Co. Ltd.
Share on (62535710732):
Product Overview
Description
Wired Building Automation Light Control System 485 Modbus gateway Module rs485 tcpip with 4G Wifi APP Remote Control
Product Description
Place of Origin | China |
Brand Name | Omni |
Usage | General Purpose |
Size | 108mm*88mm*66mm |
Operating Voltage | 12VDC±10% |
Working Current | 90mA |
CAN interface | CAN bus 4 bit 5.08 plug-in Terminal |
RS485 Interface | 3 groups RS485 Interface |
Network Port | RJ45, 10M/100M adaptive, support TCP/IP/UDP |
Wifi | Build-in 2.4G wifi, 802.11 b/g/n |
Working Environment | Temperature: 0℃~45℃, humidity: 10~95% |

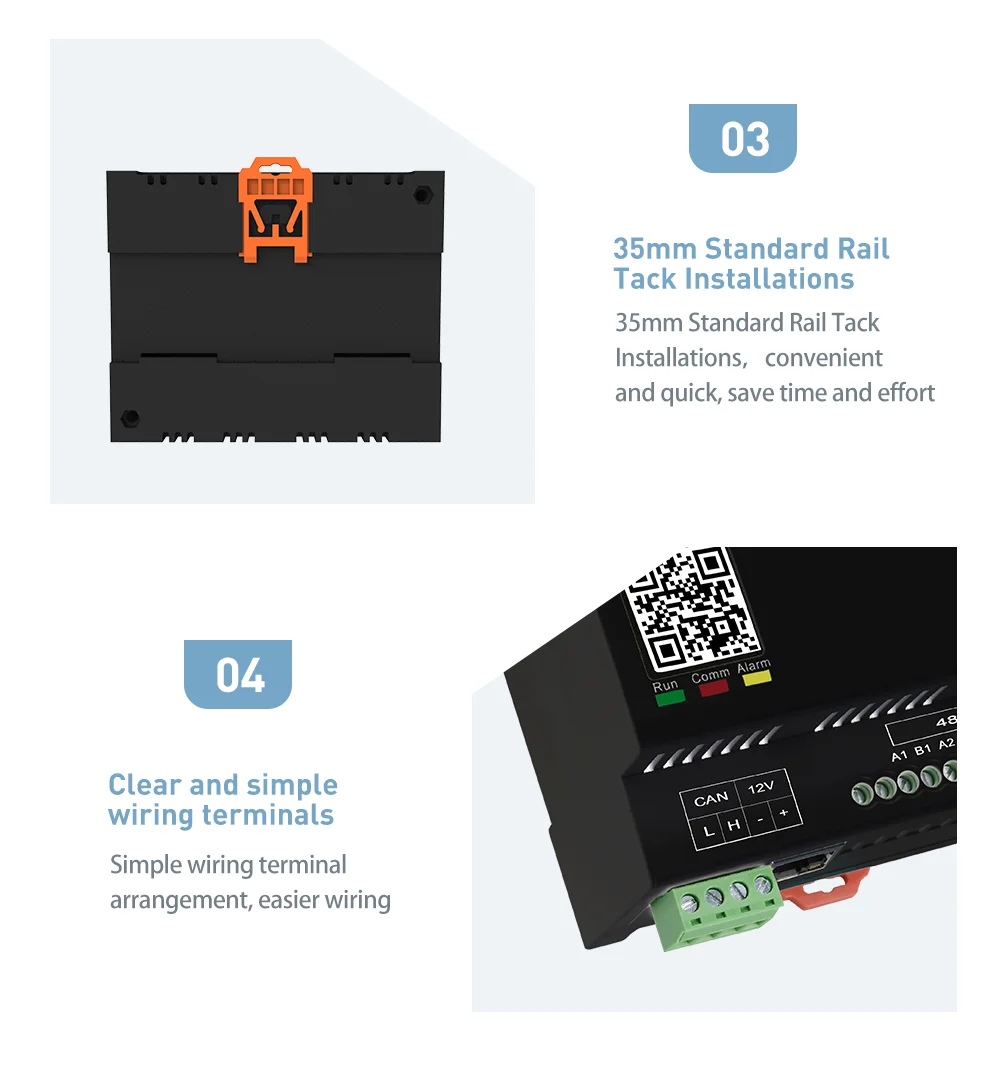

Installation method | 35mm standard guide rail installation (6 modules) |

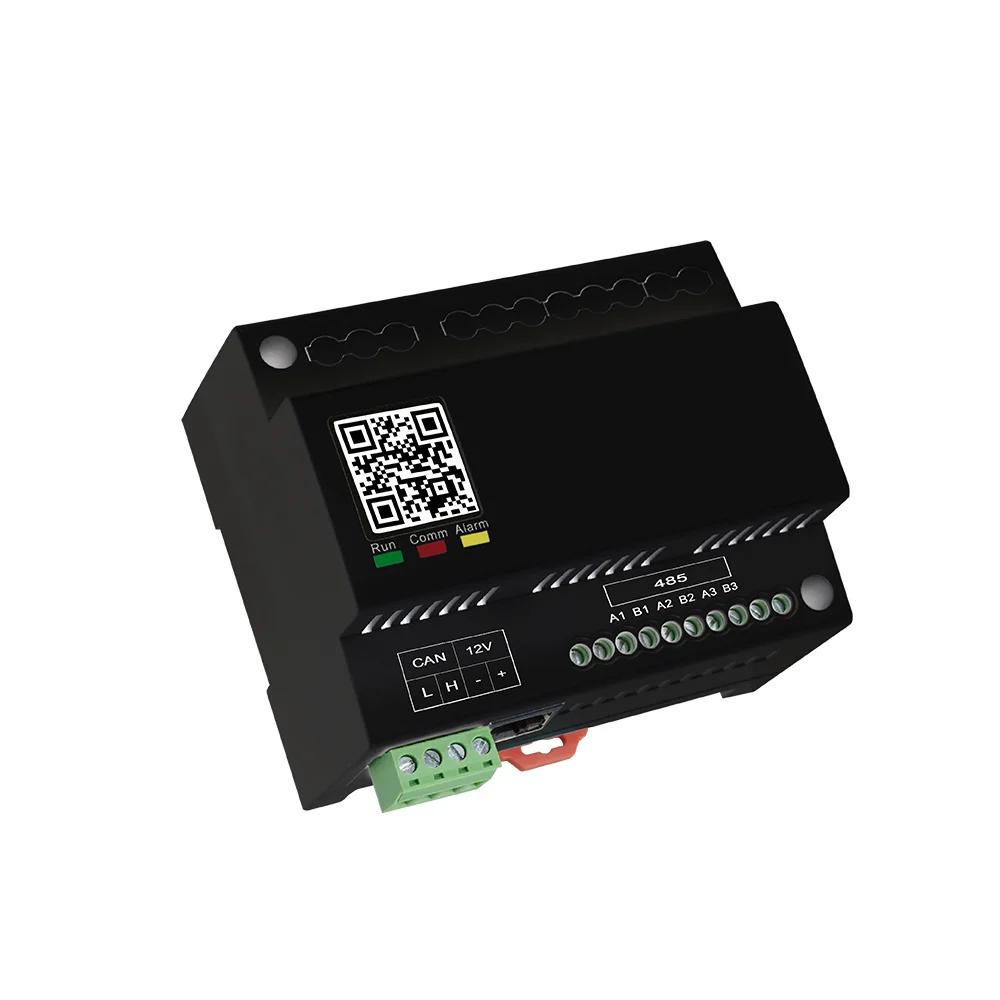

Gateway Module
Gateway module is used for the communication and network management of the intelligent control system with 4 channels. It has the function of IP network, scene mode and timing, WIFI and processing RS232/485 data etc. It can communicate with the operation management platform through TCP/UDP. 4 channel modbus gateway module is generally used as main host for smart hotel and building automation control system, connecting with relay module/curtain module/dimming module to realize light control, curtain control and air conditioner control for smart home.

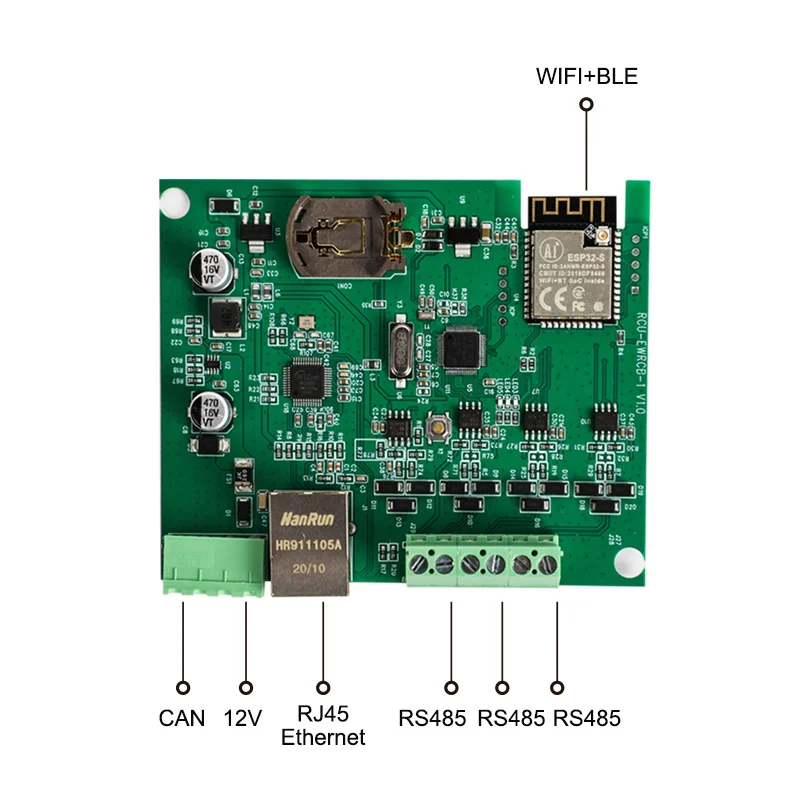

Gateway Module Interfaces

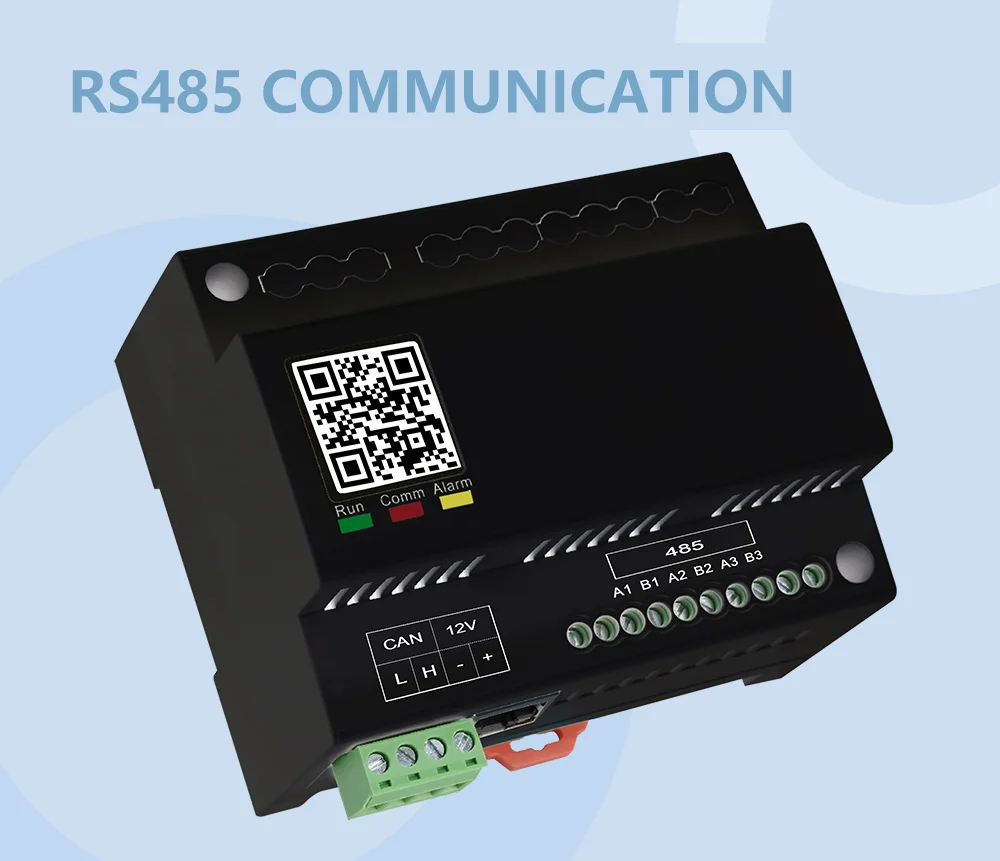

1.RS485 Port there are 3 groups in total.Each interface supports 32 sub-device, and support mount relay module, curtain control module, dimming module, switch panel, sensors, central air conditioning controller, etc.
2.CAN port will support scenario linkage between gateway modules
3.RJ45 port,RJ45 interface is equivalent to Ethernet interface.RJ45 is help you to connect into Ethernet.
2.CAN port will support scenario linkage between gateway modules
3.RJ45 port,RJ45 interface is equivalent to Ethernet interface.RJ45 is help you to connect into Ethernet.
Gateway Module Features
● Scene Mode: support 32 Scene Definitions;
● Timing:RTC real-time clock, support scene timing function;
● CAN Communication: support scene linkage function between gateways;
● WIFI Communication: connect to the cloud server via wifi, and operate the device through the mobile app/backend server;
● Mobile APP :You can use APP to add/delete devices, set 485 addresses, device pairing, set device relationship attributes,
control device switches, device online upgrades, etc.
● Mobile APP :You can use APP to add/delete devices, set 485 addresses, device pairing, set device relationship attributes,
control device switches, device online upgrades, etc.
● RS485 Communication: 3 groups of 485 Interface, each 485 port supports 32 sub-devices, support mounts relay drive module, window control module, dimming module, switch panel, sensor, central air conditioning controller, etc;

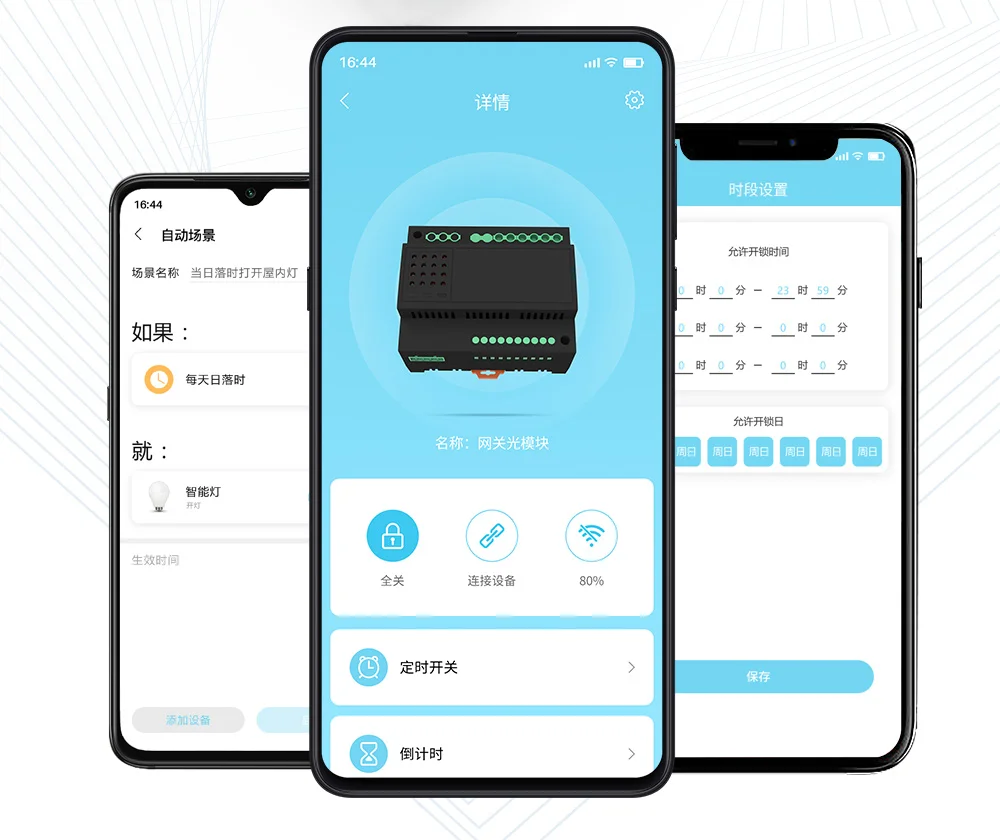

Omni APP Operation Instructions
When you use our gateway, please note that you need to download the Omni smart app first. On the surface of the gateway module, we paste a QR code to add devices to you. The gateway module has built-in wifi communication and Bluetooth module. When using the gateway module, you need to connect to wifi and turn on bluetooth, so that you can add devices smoothly.
Gateway module network protocols:
There are three Transmission Control Protocol/Internet Protocol ,which is TCP, IP, UDP. The reliable transmission of TCP,IP,UDP help you in complex industrial or large buliding enviroment with low error rates.
FAQ
1: Are you factory or trading company?
A: We are factory with more than 6 years manufacture experience in intelliegent control system, welcome to visit our factory!
2: What is Rs485 control system? What device can the system control?

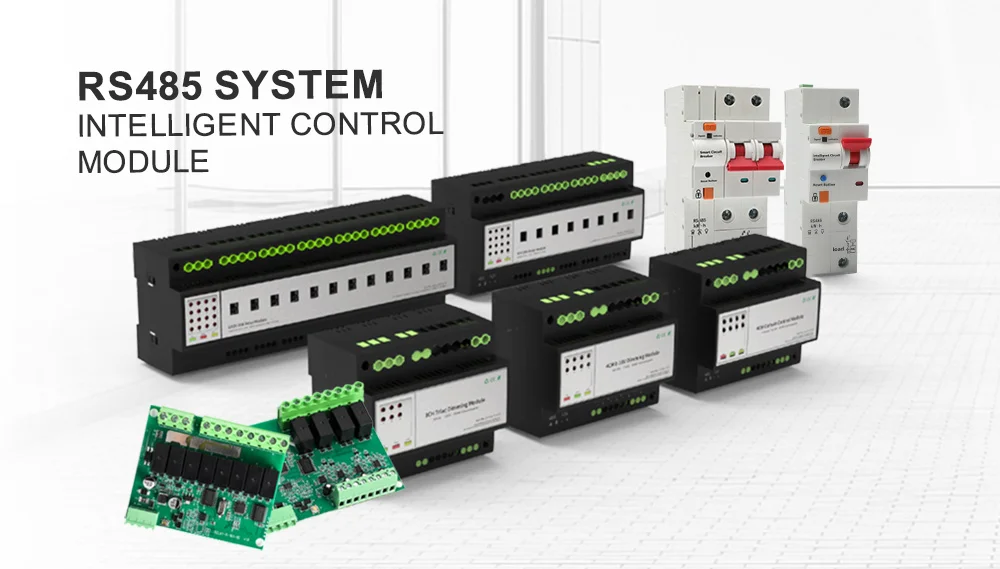

A: Omni Rs485 intelligent control system conbine with power supply, smart circuit breaker, gateway module, relay module, curtains control module, dry contact input module, smart air-conditioner panel, smart switch panel, temprature&humidity sensor, IF detector sensor, or custom any functions what you want.
3. How can we guarantee quality?
Omni always manufacture a pre-production sample, 100% final inspection before shipment.
4. Except Rs control system, what else can you buy from us?
RF remote control, Cabinet Lock,Finger Printer Lock,GPS Tracker,U Lock,
5. How can I get a sample to check your quality?
A: After order confirmation, Omni would provide the sample to check quality. Blank sample for free, only freight collected. Existing samples would shipping 3-5 days, custom sample would finishing 15 to 20 days in usual.
6. Can you custom packaging for us?
A: Yes. Omni have a professional team with rich experience in gift box design and manufacturing. Just tell us your ideas and we will help to carry out your ideas into perfect gift boxes. It does not matter if you ado not have someone to complete files. Send us high resolution images, your Logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
7. What about the lead time for mass production?
A. Omni would made a schdule for per customer, 25 to 35 days inusual after confirm with payment. Specilly will more days in peak season.
8. What is your terms of delivery?
A: We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
A: We are factory with more than 6 years manufacture experience in intelliegent control system, welcome to visit our factory!
2: What is Rs485 control system? What device can the system control?
A: Omni Rs485 intelligent control system conbine with power supply, smart circuit breaker, gateway module, relay module, curtains control module, dry contact input module, smart air-conditioner panel, smart switch panel, temprature&humidity sensor, IF detector sensor, or custom any functions what you want.
3. How can we guarantee quality?
Omni always manufacture a pre-production sample, 100% final inspection before shipment.
4. Except Rs control system, what else can you buy from us?
RF remote control, Cabinet Lock,Finger Printer Lock,GPS Tracker,U Lock,
5. How can I get a sample to check your quality?
A: After order confirmation, Omni would provide the sample to check quality. Blank sample for free, only freight collected. Existing samples would shipping 3-5 days, custom sample would finishing 15 to 20 days in usual.
6. Can you custom packaging for us?
A: Yes. Omni have a professional team with rich experience in gift box design and manufacturing. Just tell us your ideas and we will help to carry out your ideas into perfect gift boxes. It does not matter if you ado not have someone to complete files. Send us high resolution images, your Logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
7. What about the lead time for mass production?
A. Omni would made a schdule for per customer, 25 to 35 days inusual after confirm with payment. Specilly will more days in peak season.
8. What is your terms of delivery?
A: We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
Packing & Delivery
Company Profile
Omni intelligent system ( )module packaging usual adops high quality environmental kraft paper airplane box, inner with pearl cotton, ensure most percents protect every product good to customer's door. If you want to custom own packaging, logo or any pattern both supported, only send us the AI, CAD, PS, or high resolution picture to us, we would finish the rest job as per your request.
Omni intelligent company cooperate with all brands airexpress, as these electrical products, our forwarder provide good cost in shipping, safe protect service, fastest time arrive your door. Besides, sea shipping, multi-way transportation also available. we also have warehousing service for all customer.
Omni intelligent company cooperate with all brands airexpress, as these electrical products, our forwarder provide good cost in shipping, safe protect service, fastest time arrive your door. Besides, sea shipping, multi-way transportation also available. we also have warehousing service for all customer.
