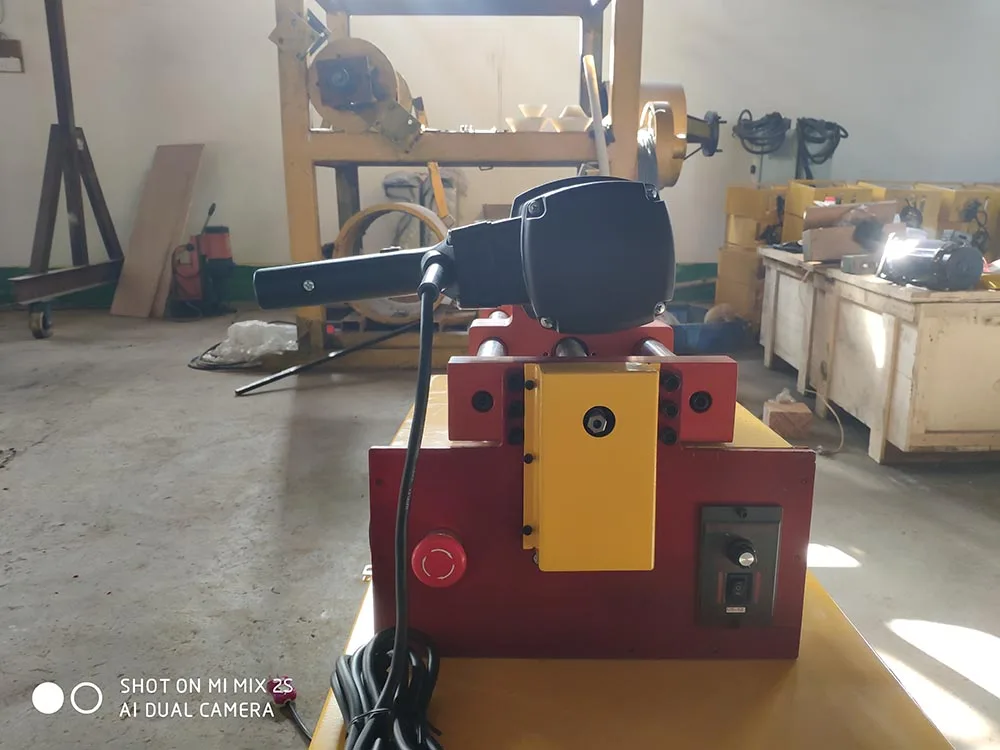

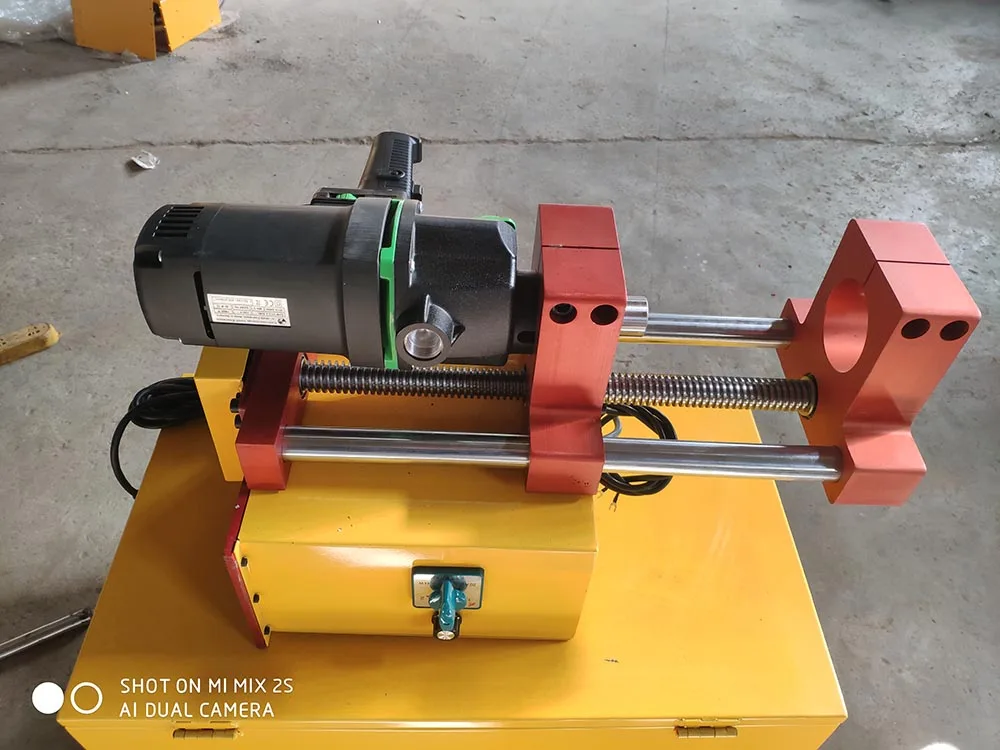

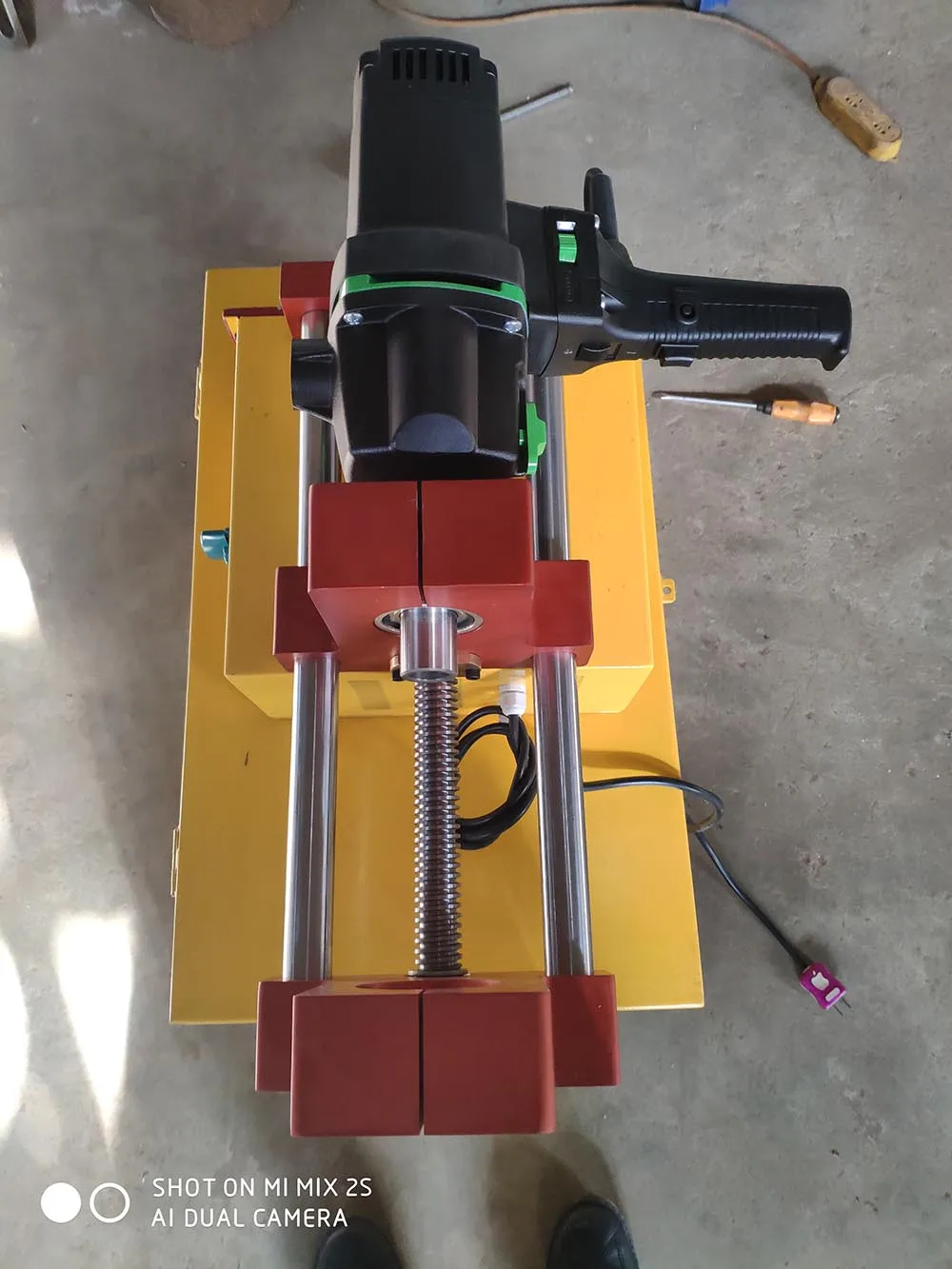

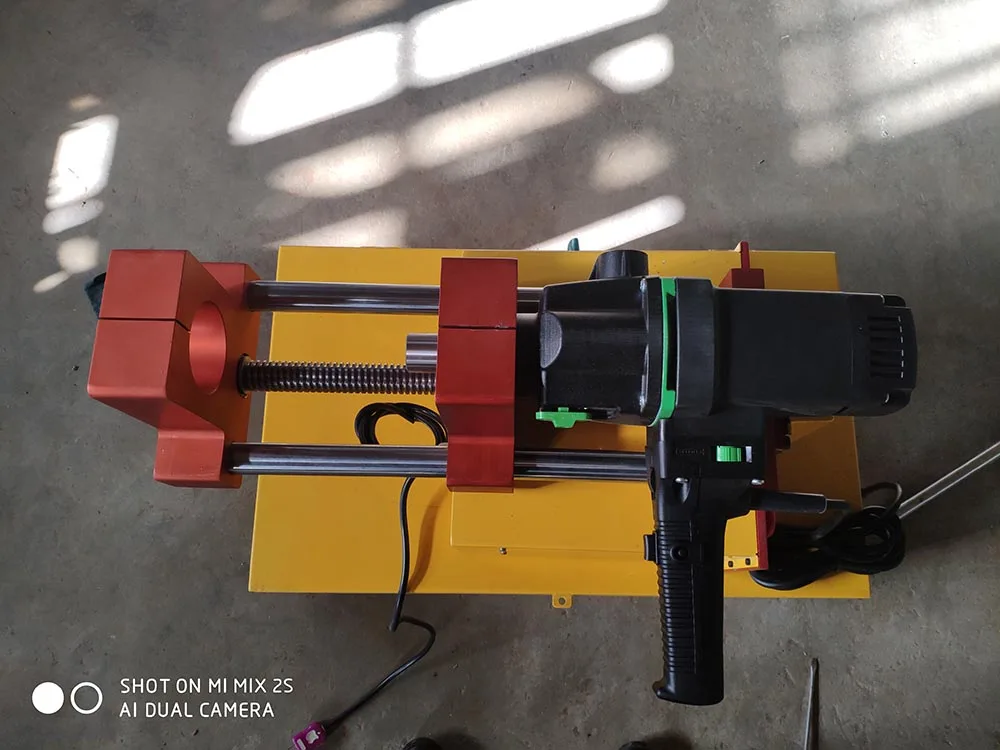

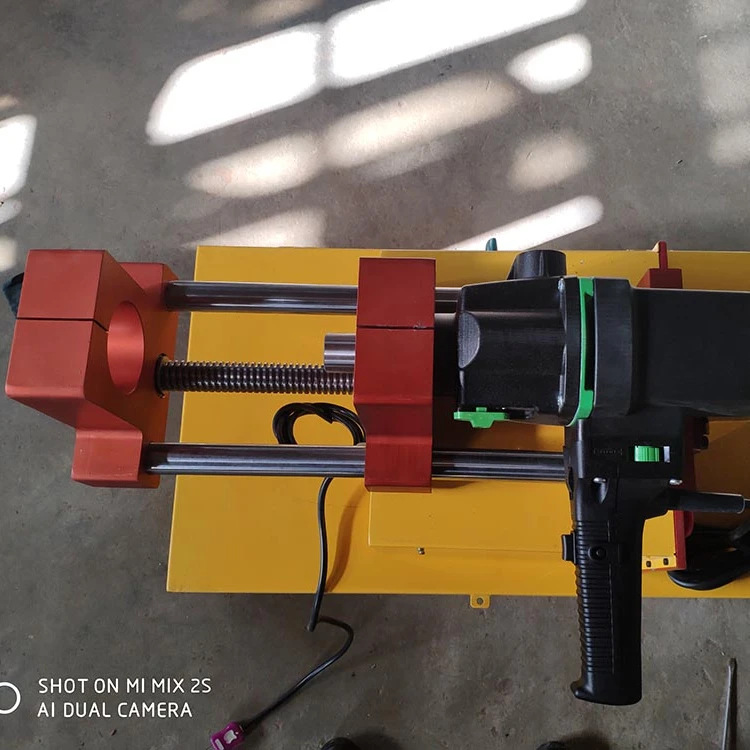

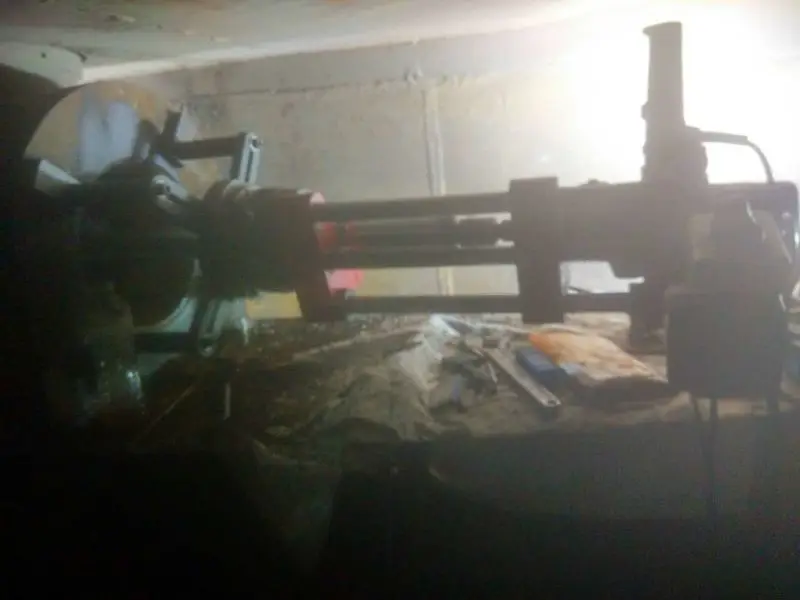

YKH60 Portable Line Boring & Bore Welding Machine is a proven dependable and extremely powerful on-site boring machine. It Offers workshop-quality tolerances on-site and can eliminate costly dismantling and production downtime.
•Multifunction: can perform both line boring and bore welding.
• Eibenstock 1.8Kw powerful electric motor, light-weight, infinite speed variation.
• The main body of machine use aviation aluminum alloy, high-strength,light-weight.
•Control unit is simple,easy to maintain and operate.
• Spherical bearing mounting system allows quick setup and ensure the concentricity of the boring bar and the shaft of electric motor, avoiding vibration during machining. Bearings can be finely calibrated, fast and accurate.
• Universal bearing mount assembly can be adjusted according to the mounting position.
• One machine body can match boring bars of various diameters.
• Reasonable gear reducer avoid the wear of worm gear mechanism.
• Reducer equipped with torque limiting protection. Electric motor equipped with torque overload protection and overheat protection.
Specification
Boring Bar Diameter
60mm
Standard Length of The Boring Bar
2000mm (Customizable)
Boring Diameter Range
65-400mm
Bore Welding Range
50-400mm
Power unit
Eibenstock 1.8Kw motor, Germany
Roating Speed
470rpm --infinite variable speed
Boring Stroke
350mm (Customizable)

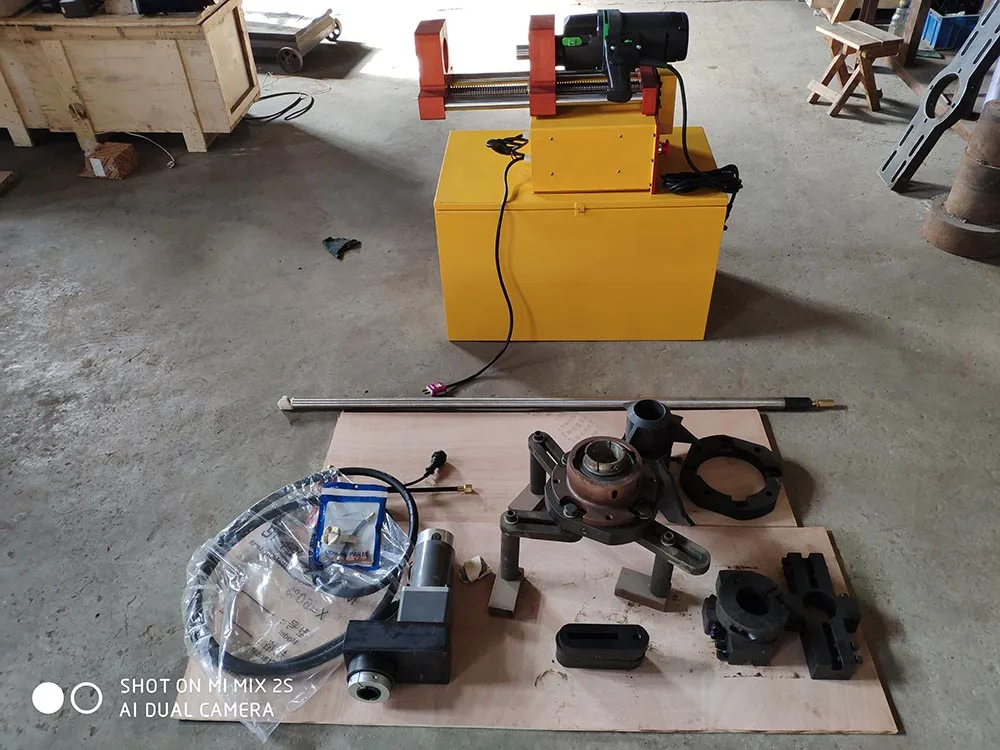

Standard Accessories and Components
Machine-Body（ EIBENSTOCK MOTOR included）
1Set
Boring Bar (60*2000mm)
1Pc
Universal bearing mount assembly
2Pcs
Setup Cones
4Pcs
Tool Holder
3Pcs
Cutter Tools
3Pcs
Locking sleeve
1Pc
Bore welder gearbox(with motor)
1Set
Welding torch
1Pc
Weld gun assembly
1Pc
Welding nozzles
2Pcs
Welder connector (Europe or Panasonic)
1Pcs
Dial Indicator (Magnetic Seat)
1 set
Wrench Tool
1Set
Operating Manual
1 pc
Packing & Delivery

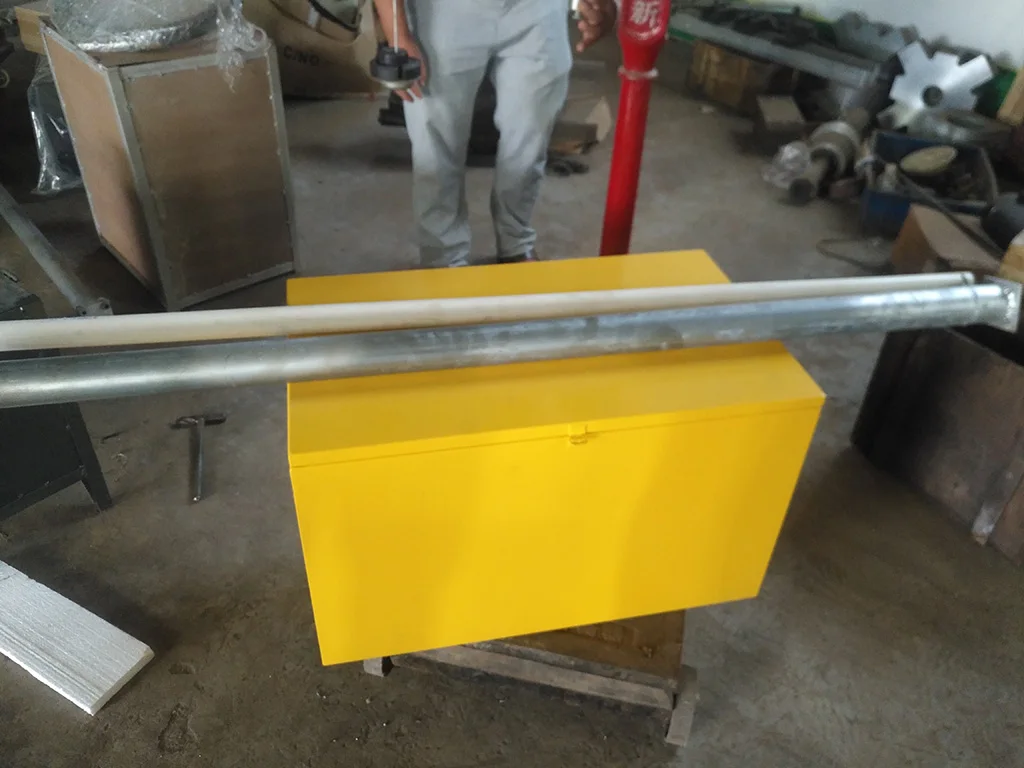

YKH60 portable line boring machine is packed into 3 case, suitable for ocean delivery.
