High speed wood barking machine/birch wood log debarking machinery for veneer peeling 4feet and 8feet

Product Overview

Description

High speed  wood barking machine/birch wood log debarking machinery for veneer peeling



1. Product  Description

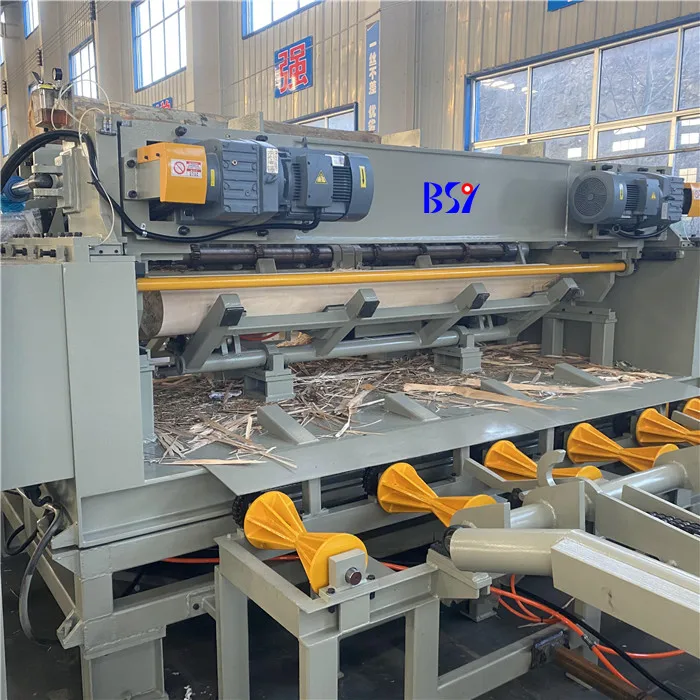

This machine adopts rotary cutting principle of  non-chuck rotary lathe, hydraulic pressure drive into the constructions, can quickly and effectively remove bark and complete log the round work. One debarker machine can supply with two rotary lathe, save about five or six people



2. Features:



1. The roller diameter is enlarged, increasing debarking speed.
2. Chrome plated rollers are more wear-resistant. Grooves along the roller surface make it

difficult for bark to get stuck around the rollers.
3. Well-designed with quality materials and precise manufacturing, each part ensures

continuity of quality work.
4. A hydraulic feeding device processes logs faster and adjustable settings allow the wood

peeler to debark and trim different sizes and types of logs.
5. A manual reverse switch with a self-reset function responds quickly for convenient and safe use.
6. A front and back feed keeps the logs moving in and out of the debarker efficiently, and a

large oil pump keeps the feeds well-lubricated and working smoothly.

7. Our hydraulic debarker made using high-quality steels and bearings boasts longer

service life than common debarkers.



3. The technical parameters:



specifications	BBP2600G	BBP2000G	BBP1400G
Working log length	2600mm	2000mm	1400mm
Working log diameter	∅130-500mm	130 -500 mm	130 -500 mm
motor	37.7KW	37.7KW	22.7KW
Cutting speed	60m/min	60m/min	60m/min
Overall dimensions	3850*2200*1500mm	3450*2200*1500mm	2800*2200*1500mm
weight	8000kg	7000kg	6500kg



specifications	BBP2600F1	BBP2000F1	BBP1400F1
Working log length	2600mm	2000mm	1400mm
Working log diameter	∅80-400mm	80 -400 mm	80 -400 mm
motor	37.7KW	37.7KW	22.7KW
Cutting speed	60m/min	60m/min	60m/min
Overall dimensions	3850*2100*1400mm	3450*2100*1400mm	2800*2100*1400mm
weight	7800kg	6800kg	6200kg



Detail images:

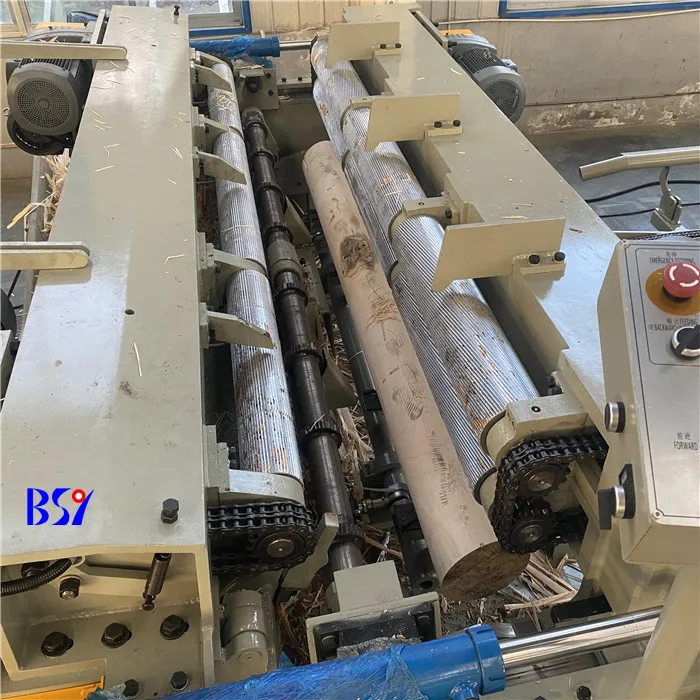

The Roller:Chrome plated rollers are more wear-resistant. Grooves along the roller surface make it difficult for bark to get stuck around the rollers.

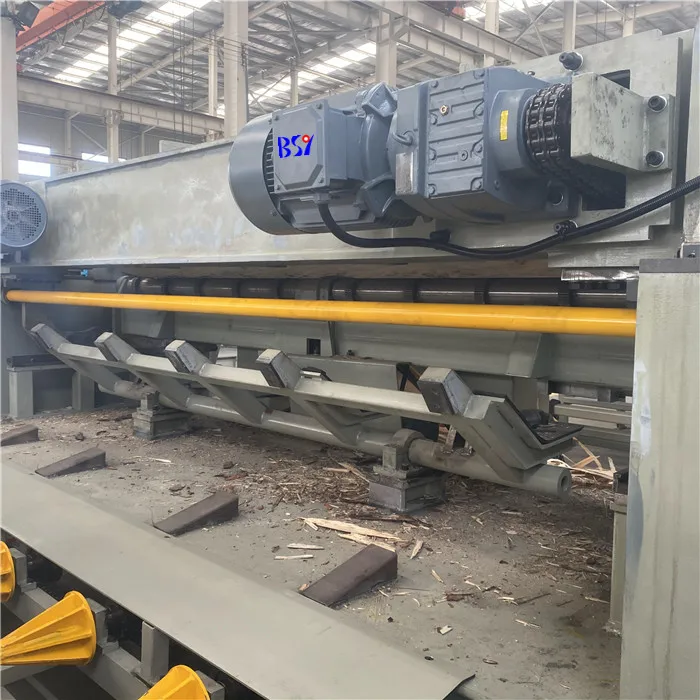

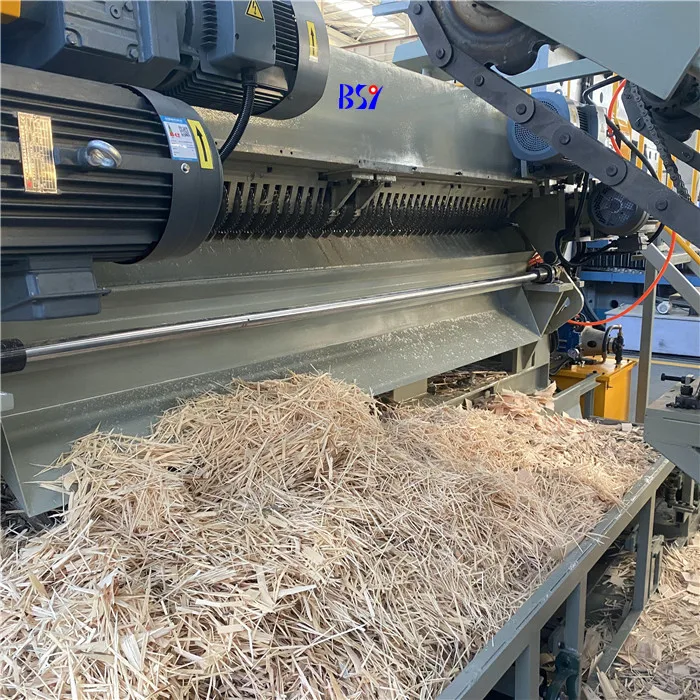

Hydraulic pressure drive into the constructions, can quickly and effectively remove bark and complete log the round work
