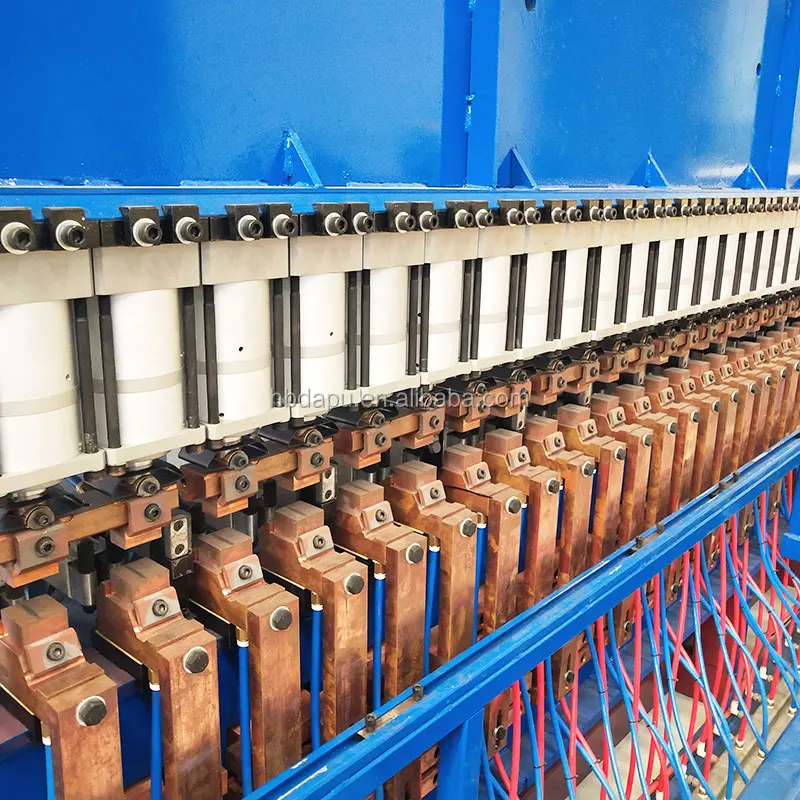

Concrete reinforcement steel rebar mesh welding machine for building construction
- Category: >>>
- Supplier: Hebei Dapu Import & Export Trade Co. Ltd.
Share on (62535955577):
Product Overview
Description
This is our new type concrete reinforcement steel rebar mesh welding machine for building construction, which adopts SMC bally air cylinders to control welding, the welding speed can be up to max.80-100 times/min. We can also supply other types of wire mesh welding machines 5-12mm and 3-8mm.
Technical Parameters
Technical Parameters
| Model | DP-FM-2500A+ | DP-FM-3000A+ | DP-GW-2500B | DP-GW-3000B |
| Air cylinder type | SMC 80 double acting air cylinder | SMC 90 single acting bally air cylinder | ||
| Wire diameter | 3-8mm | 5-12mm | ||
| Longitude wire space | 100-300mm | 100-300mm | ||
| Cross wire space | Min.50mm | Min.50mm | ||
| Mesh length | Max.12m | Max.12m | ||
| Mesh width | Max.2500mm | Max.3000mm | Max.2500mm | Max.3000mm |

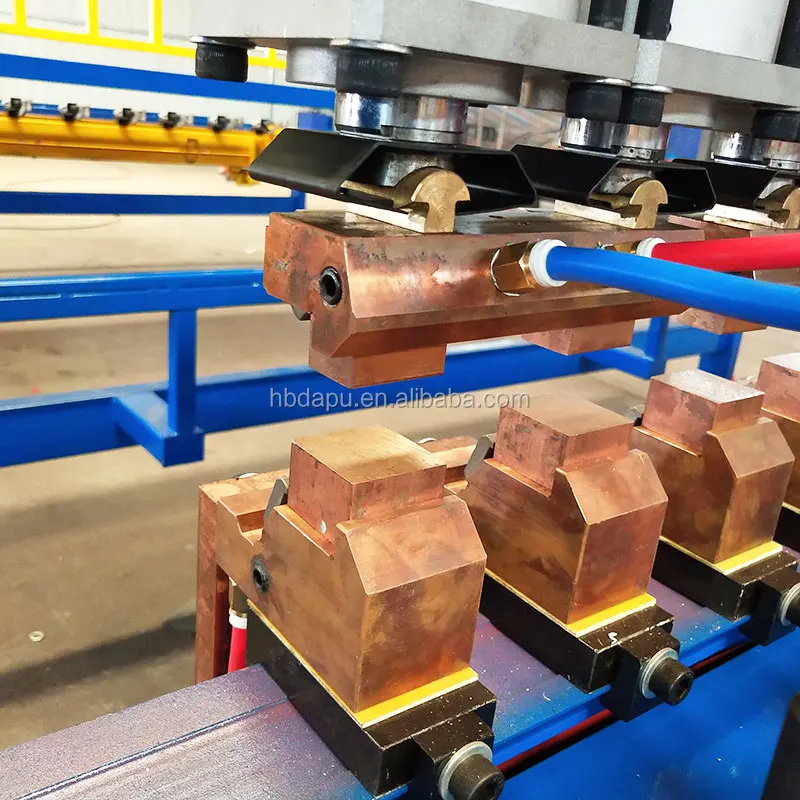

| Welding electrode | Max.24pcs | Max.31pcs | Max.24pcs | Max.31pcs |
| Welding transformer | 150kva*6pcs | 150kva*8pcs | 150kva*12pcs | 150kva*16pcs |
| Welding speed | Max.100 times/min | Max.80-100 times/min | ||
| Weight | 5.2T | 7T | 8.5T | 9.8T |

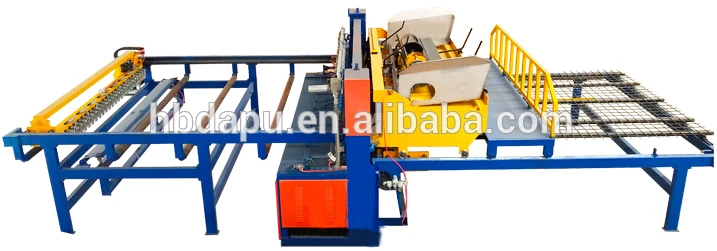

| Main machine size | 12.12*5.4*2.1m | 12.13*6*2.1m | 12.13*5.4*2.1m | 12.13*6*2.1m |
Machine Advantages
Machine Advantages
SMC (Japan) custom-made 90 bally air cylinders | |
1. Output power increase 20%. 2. Air consumption save 30%. 3. Air cylinder length reduce 60%, short stroke. 4. Welding pressure: 570KG. 5. Piston rod don't rotate. 6. Single-acting cylinder, connect with electromagnetic valve by one air pipe. 7. Compared with old type machine, total power consumption saves 50%. 8. The welding speed can be up to max.80-100 times/min. |  |
