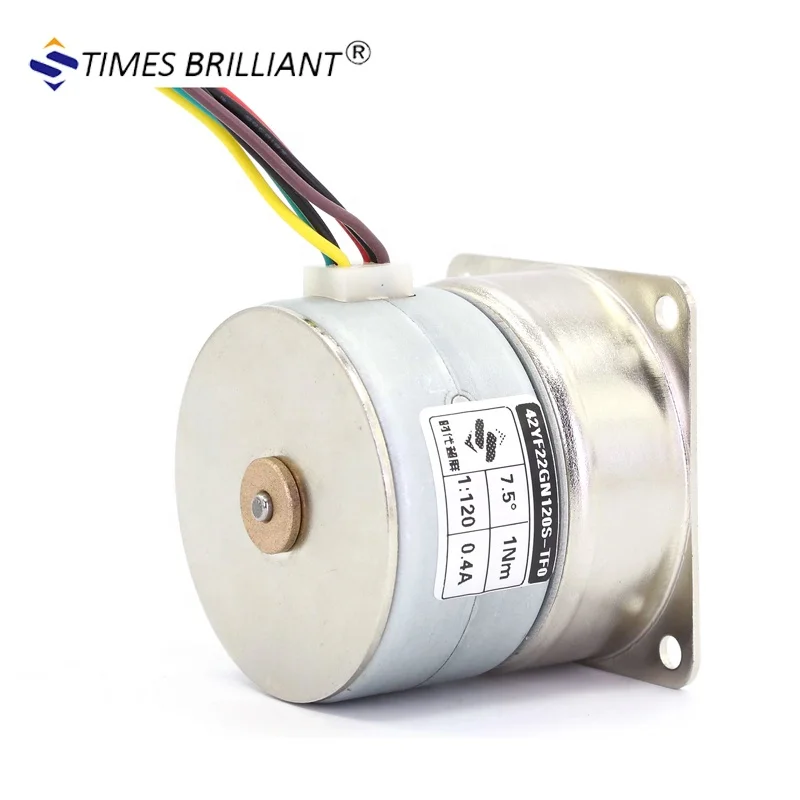

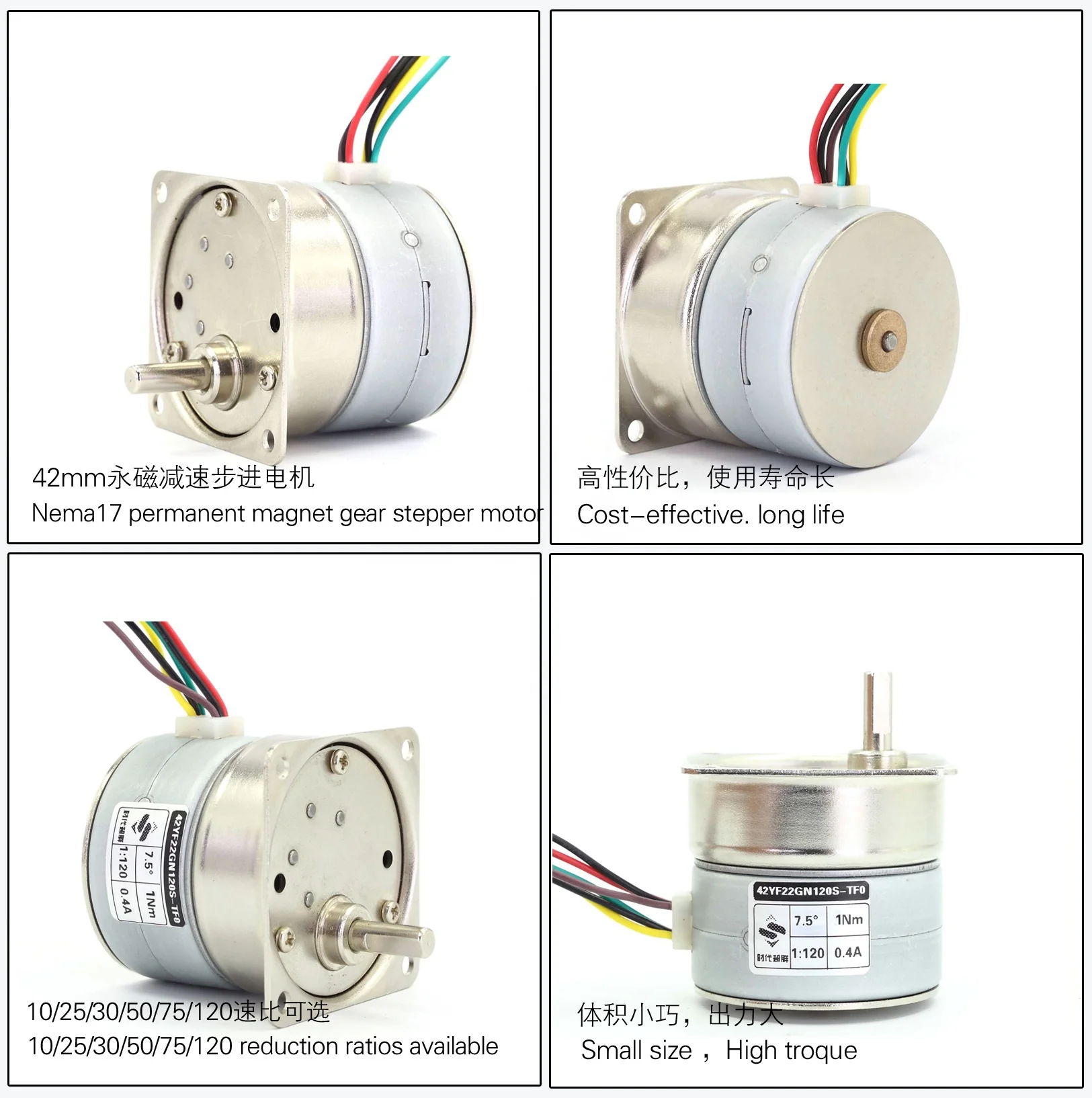

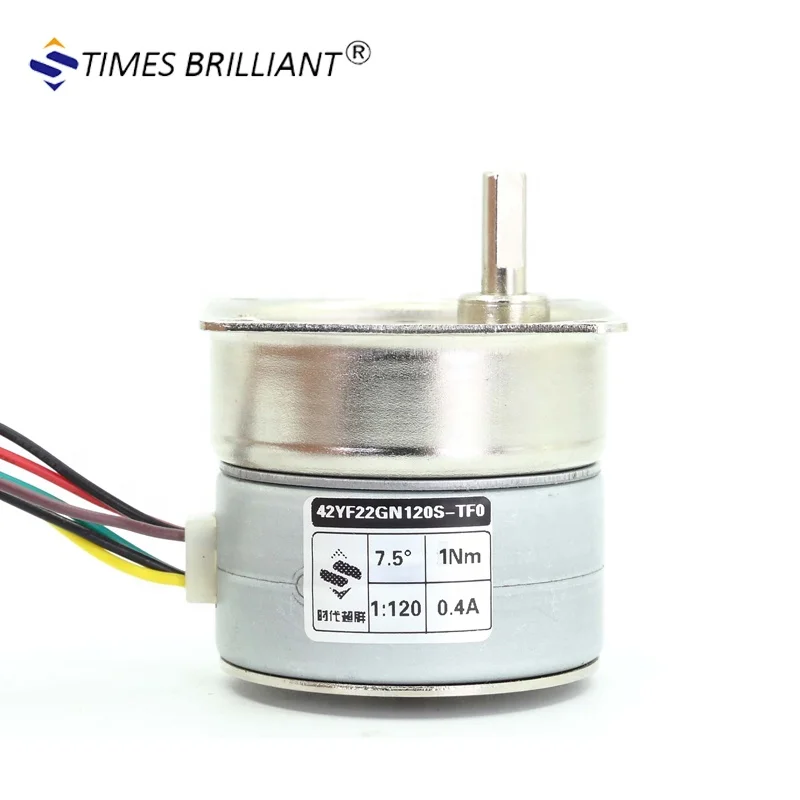

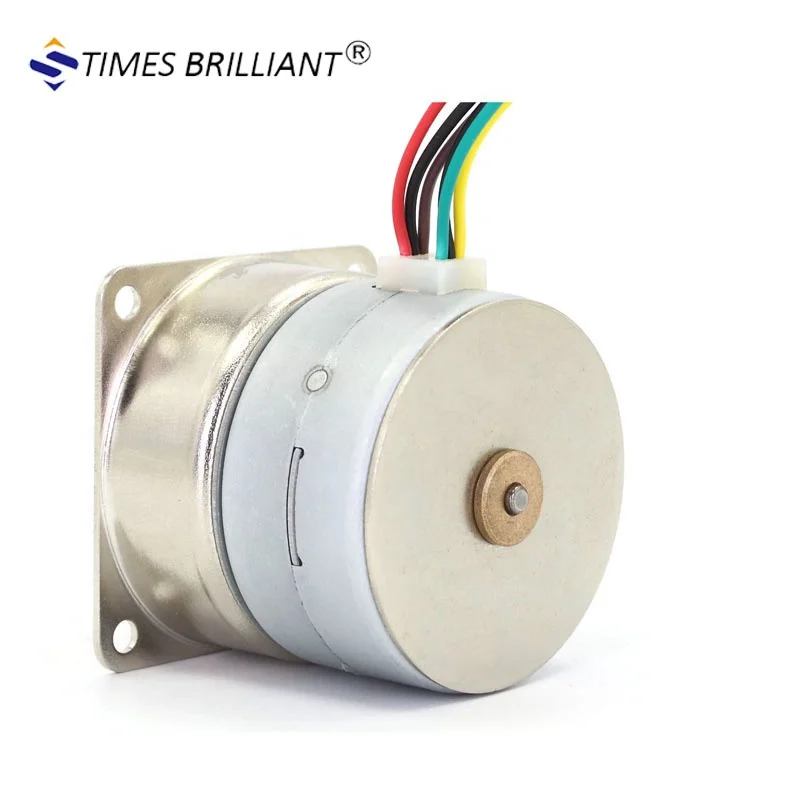

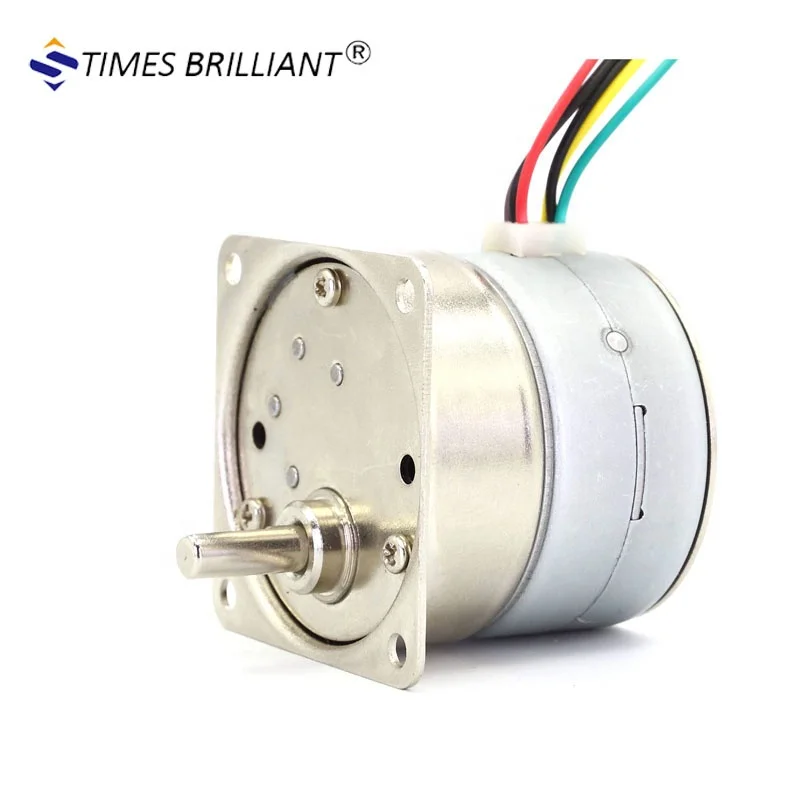

china ratio 1:120 low speed high troque 1Nm 12V reduction motor Nema17 Permanent magnet geared stepper motor
- Category: >>>
- Supplier: Beijing SDSW Technology Co. Ltd.
Share on (62535955673):
Product Overview
Description
China ratio 1:120 low speed high troque 1Nm 12V reduction motor Nema17 Permanent magnet geared stepper motor
Note: the motor with magnetic ,so magnetic inspection fee will be incurred during transportation. Please contact shop assistant to supplement it.large quantities can dispense with it

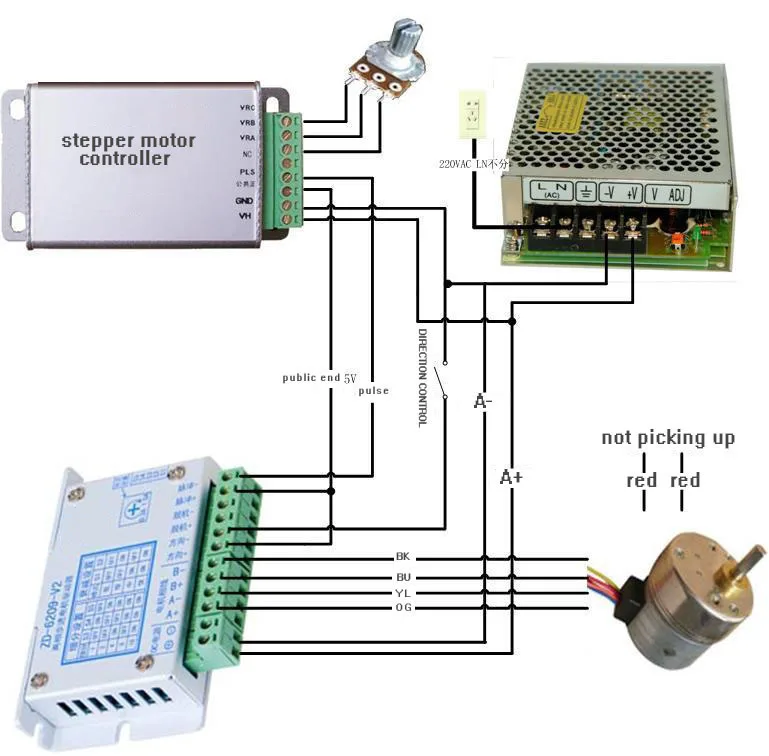

Black wires don't need to be connected
Related Products |
model | phase | stepper angle(°) | troque (Nm) | ratio | current(A) | Resistance(Ω) |
| 35YF22GN011R-TF0 | 2/4 | 7.5 | 0.1 | 1:11 | 0.4 | 30 |
| 35YF22GN030R-TF0 | 2/4 | 7.5 | 0.3 | 1:30 | 0.4 | 30 |
| 35YF22GN075R-TF0 | 2/4 | 7.5 | 0.8 | 1:75 | 0.4 | 30 |
| 35YF22GN120R-TF0 | 2/4 | 7.5 | 1 | 1:120 | 0.4 | 30 |
| 42YF22GN010S-TF0 | 2/4 | 7.5 | 0.1 | 1:10 | 0.4 | 30 |
| 42YF22GN025S-TF0 | 2/4 | 7.5 | 0.3 | 1:25 | 0.4 | 30 |
| 42YF22GN030R-TF0 | 2/4 | 7.5 | 0.4 | 1:30 | 0.4 | 30 |
| 42YF22GN050S-TF0 | 2/4 | 7.5 | 0.6 | 1:50 | 0.4 | 30 |
| 42YF22GN075R-TF0 | 2/4 | 7.5 | 0.8 | 1:75 | 0.4 | 30 |
| 42YF22GN120S-TF0 | 2/4 | 7.5 | 1 | 1:120 | 0.4 | 30 |
