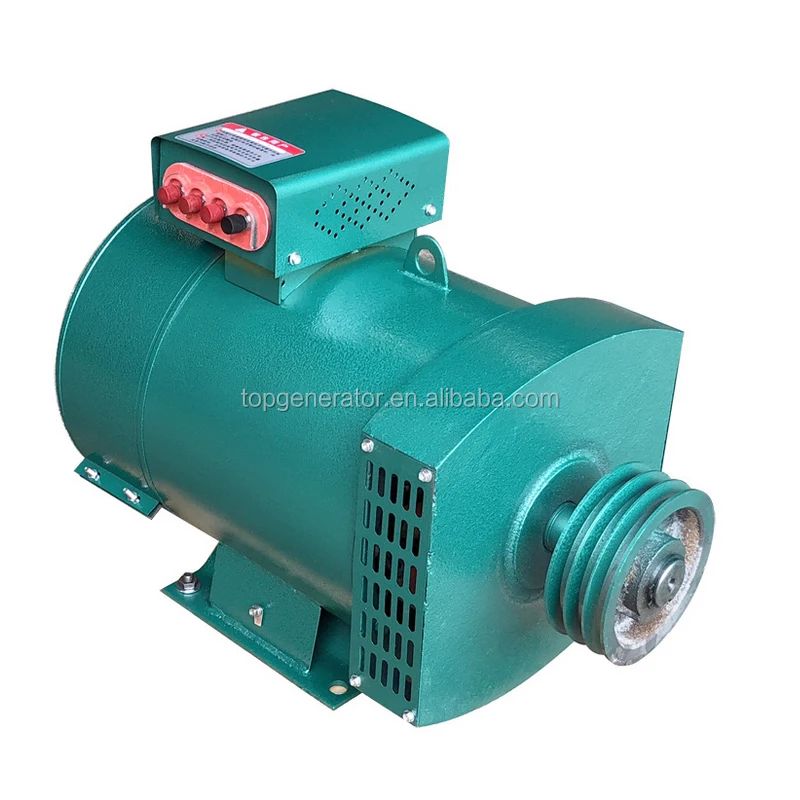

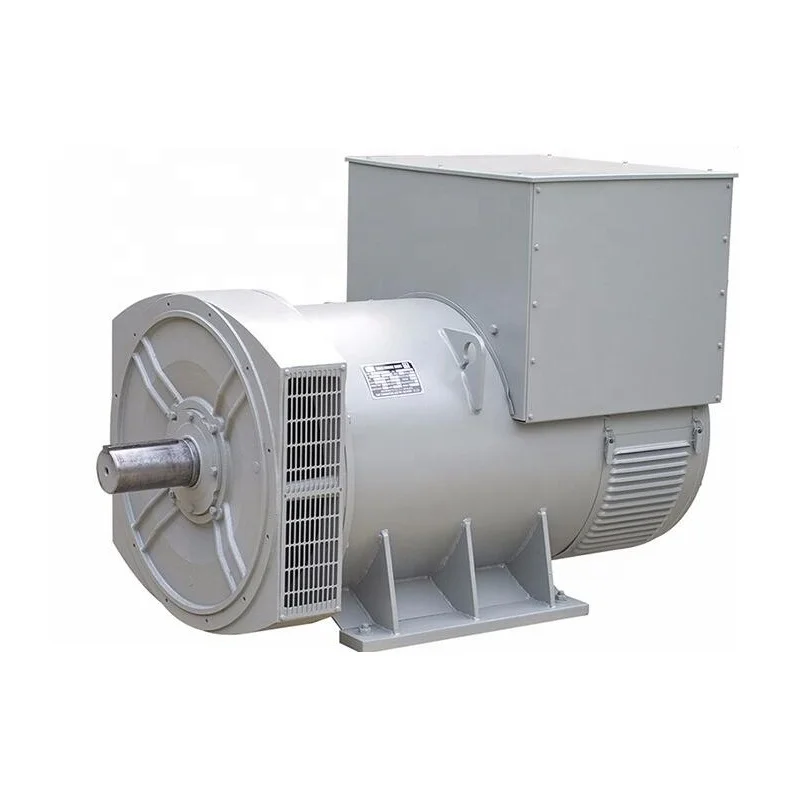

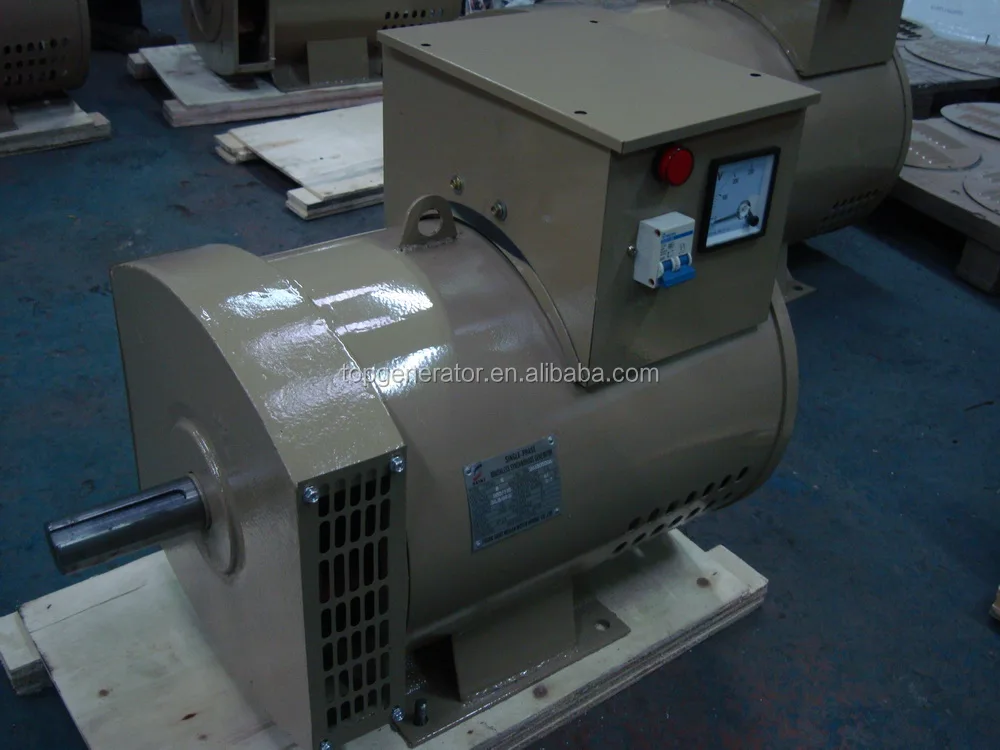

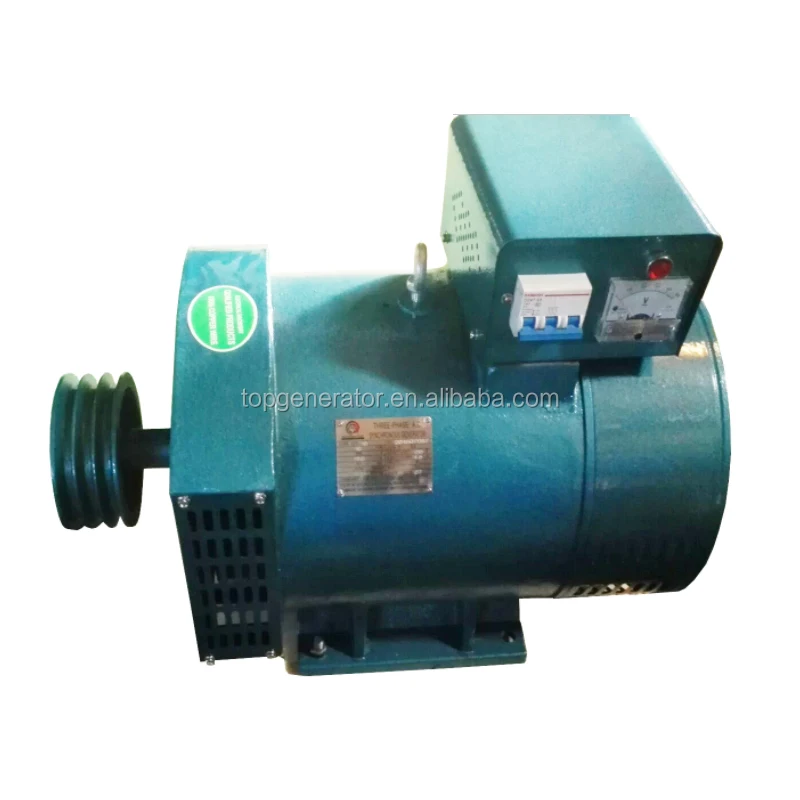

Electrical Connector alternator ac brushless dynamo 15kw generator head

Product Overview

Description



TFW2 Series three phase A.C.Synchronous brushless generator import ,digst and absorb international advance technology of manufacturing electric machinery.  it is new type design and developed A.C.Synchronous generator by ourself but same technical date as USA Alternator.   The products have outstanding performance. reliable quality. convnient maintnance.  the generator and the engin can be connected with steel or fiexible material.  as a small-typ generating station. it can be used in factory, building and work sited for lightning and electric power source





♦   Brushless, 4 poles, rotation magnet.ac alternator low rpm

♦   IP21-23 enclosure is standard for all industrial alternators.

♦   The insulation system is Class H.ac alternator low rpm

♦   Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts.

♦   Wide range of flange adaptors and single bearing disc coupling.

♦   Standard 2/3 pitch windings avoid excessive neutral currents.ac alternator low rpm

♦   Optional accessories available for easy paralleling with mains or other generators.

♦   Optional permanent magnet generator ( PMG ) system provide constant excitation under all condition.

♦   AVR auto voltage regulator, auto exciter, auto adjustment.ac alternator low rpm

♦   Standard: BS5000, VDE0530, NEMA MG1-32, IEC34, IEC60034, AS1359.



Brushless alternator as per the specification :

Brushlss Copper Generator Main Performance Data:
Model	Alternator Raw POWER				Dims
	1500rpm / 50Hz, 400V		1800rpm /60Hz, 440V
stamford	KW	KVA	KW	KVA	cm
SML164A	6.5	8.1	8.2	10.3	58*56*62
SML164B	8.8	11	11	13.8	58*56*62
SML164C	10.8	13.5	13.5	16.9	58*56*62
SML164D	12.8	16	16	20	58*56*62
SML184E	18	22.5	23	28.8	72*56*62
SML184F	22	27.5	27.5	34.4	72*56*62
SML184G	25	31.3	30	37.5	72*56*62
SML184H	30	37.5	37.5	46.9	72*56*62
SML184J	32	40	40	50	72*56*62
SML224C	34	42.5	42	52.5	84*58*90
SML224D	40	50	50	62.5	84*58*90
SML224E	48	60	56	70	93*58*90
SML224F	58	72.5	70	87.5	93*58*90
SML224G	68	85	78	97.5	97*58*90
SML274C	80	100	94	117.5	94*69*97
SML274D	91	113.8	110	137.5	94*69*97
SML274E	112	140	134	167.5	94*69*97
SML274F	128	160	152	190	106*69*97
SML274G	144	180	174.8	218.5	111*69*97
SML274H	160	200	196	245	116*69*97
SML274J	184	230	224.8	281	116*69*97
SML274K	200	250	239.2	299	116*69*97
SML314C	200	250	235	294	133*79*106
SML314D	236	295	280	350	133*79*106
SML314E	260	325	315	394	133*79*106
SML314F	304	380	365	456.3	133*79*106

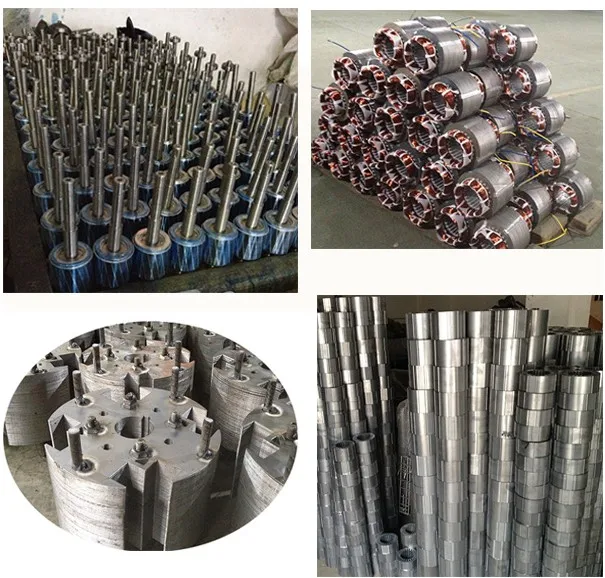

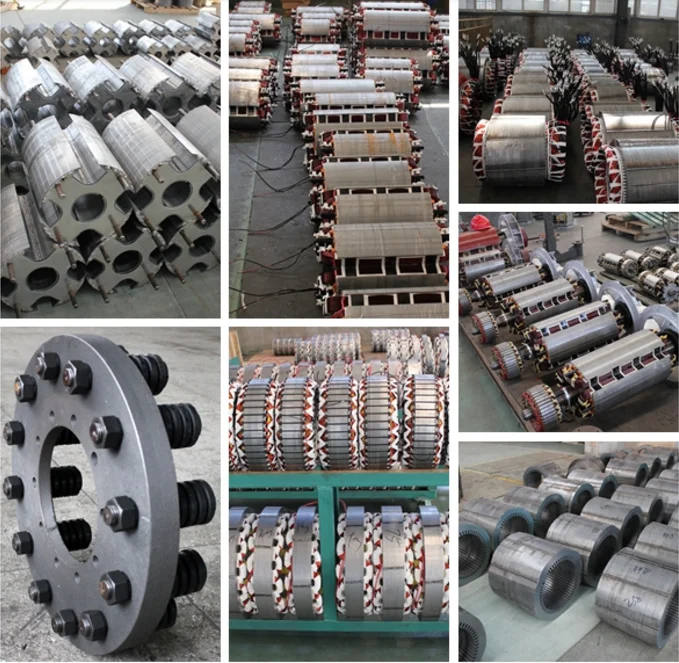

very good quality spare parts and generator product line

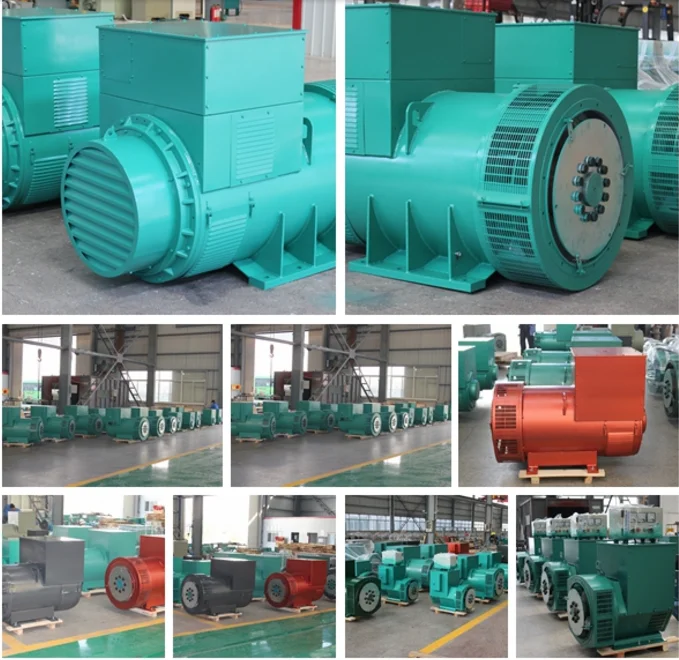

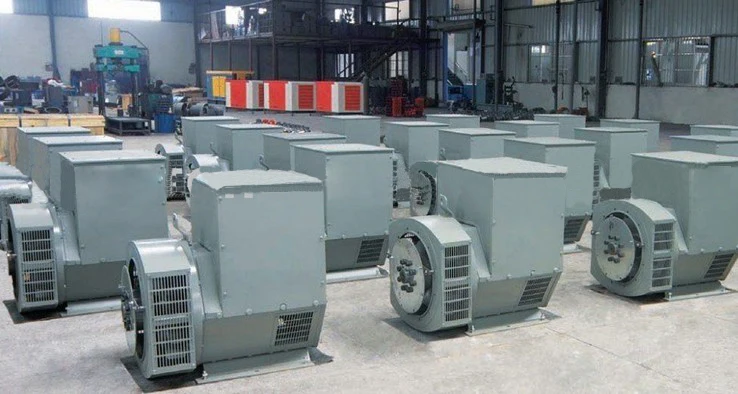

very good quality brushless generator product line
