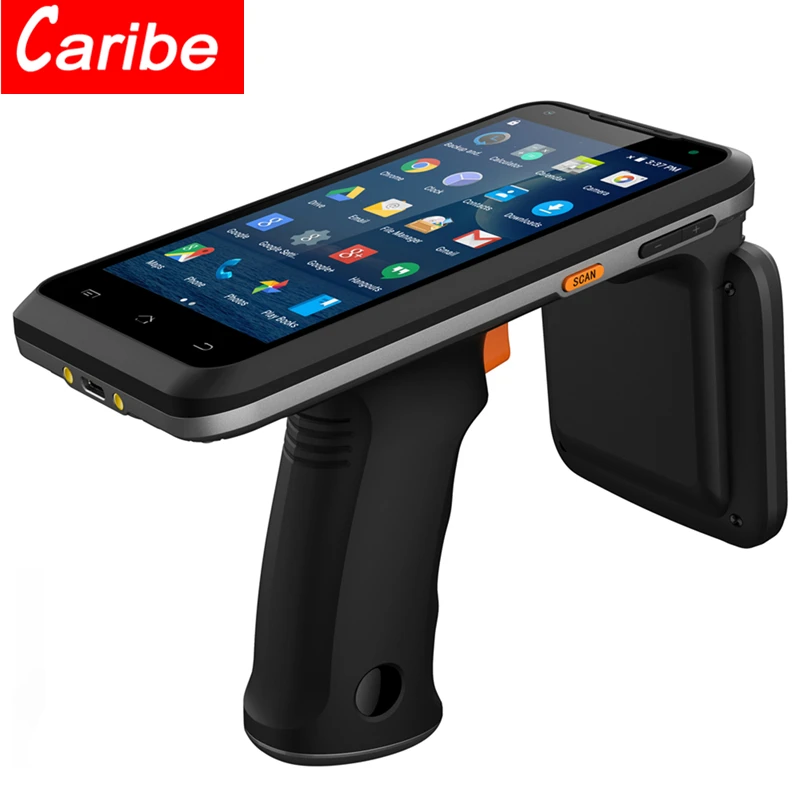

CARIBE PL-55L сканер штрих-кода можно крепить любые приспособления: PDA Android 8,1 портативный терминал внешний UHF считыватель в виде пистолетной рукояткой
- Category: PDAs >>>
- Supplier: Shenzhen,Pan,Ling,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Special Note: The parameter information procurement needs, please contact sales

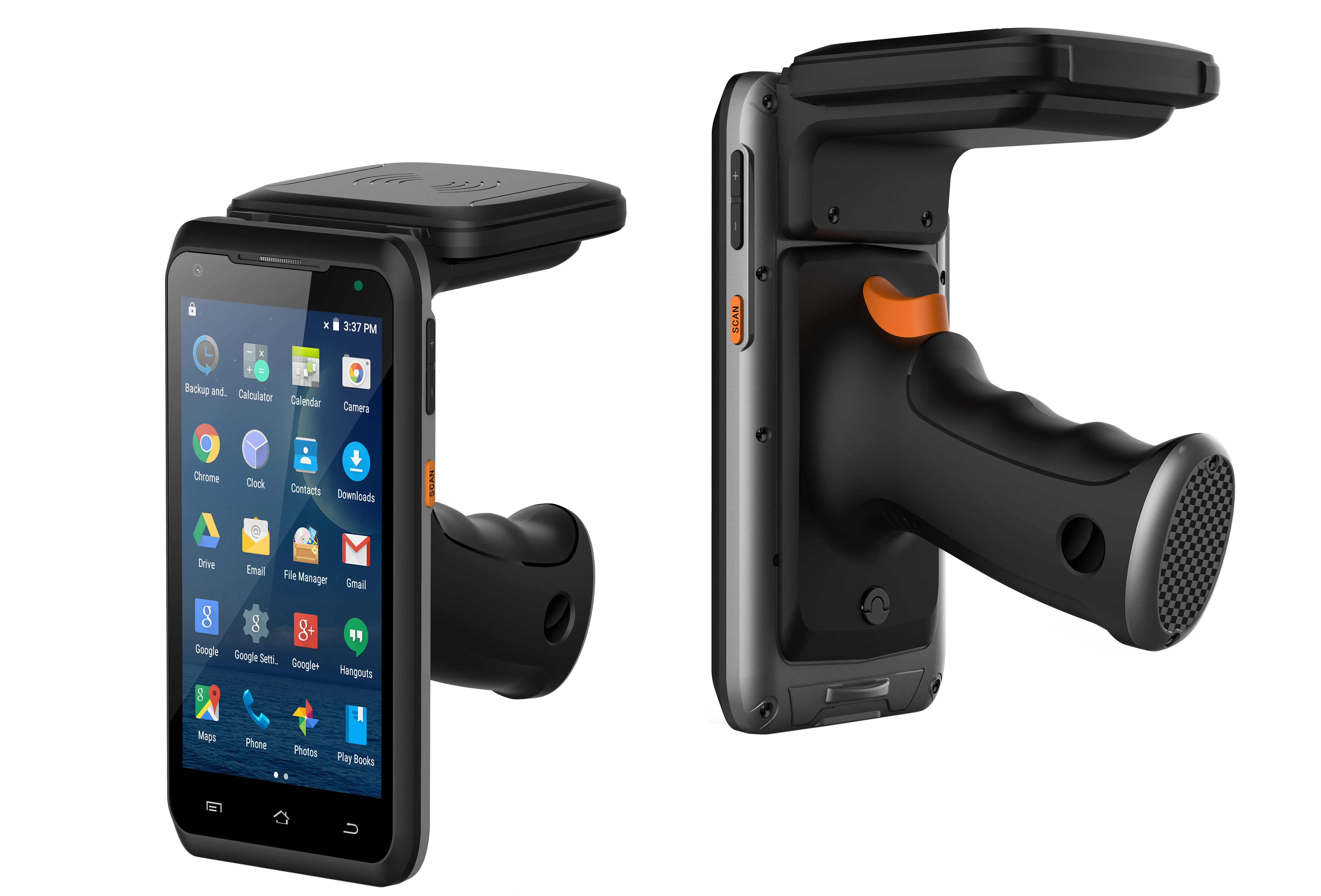

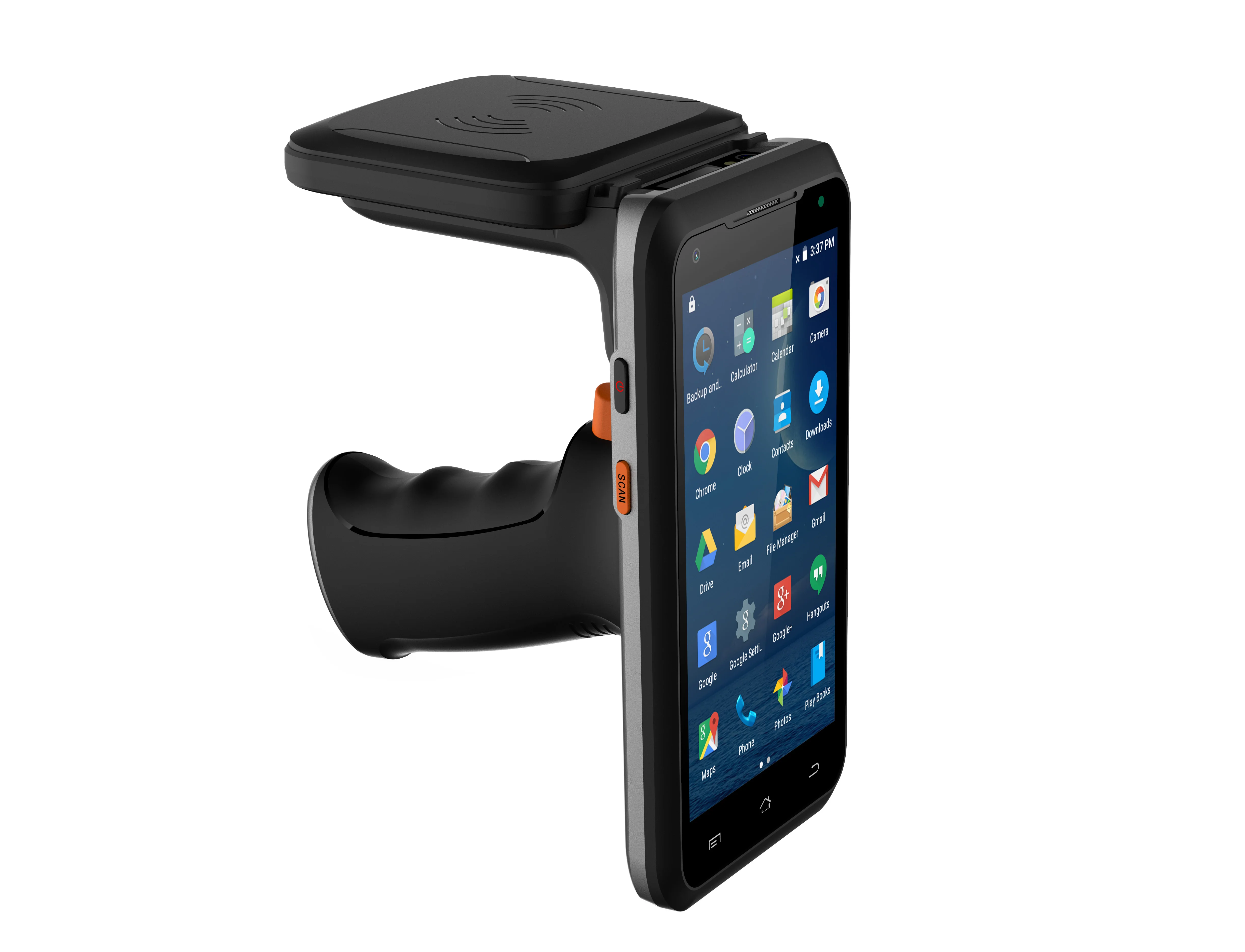

5.5 inch android data terminal pda with OCTA 2GHZ,2G RAM, 16G ROM, camera 13MP AF, Wifi(802.11a/b/g/n), bluetooth 4.1, 4G-lte,
3G, 2G, GPRS, GPS, GSM and 1D/2D barcode scanner, NFC(HF13.56m) or 125k RFID(option) or UHF RFID (option)
Selling points:
PLS follow this: Default configuration: OCTA 2GHZ + 2G RAM + 16G ROM + Wifi + BT4.1 + GPS + FDD-TLE 4G/WCDMA/GSM + phone
+ 13MP pixel Camera barcode scanner (Support google play store)
2D ,NFC ,LF(125K) for option;
5.5 inch android data terminal pda with OCTA 2GHZ,2G RAM, 16G ROM, camera 13MP AF, Wifi(802.11a/b/g/n), bluetooth 4.1, 4G-lte,
3G, 2G, GPRS, GPS, GSM and 1D/2D barcode scanner, NFC(HF13.56m) or 125k RFID(option) or UHF RFID (option)
Selling points:
PLS follow this: Default configuration: OCTA 2GHZ + 2G RAM + 16G ROM + Wifi + BT4.1 + GPS + FDD-TLE 4G/WCDMA/GSM + phone
+ 13MP pixel Camera barcode scanner (Support google play store)
2D ,NFC ,LF(125K) for option;
External UHF reader: 30 meters reading distance max.
Compact and Portable Ergonomic Design
Safedroid OS (Android 8.1 ) Highly optimized Android operating system.
13 mega pixel camera.
High capacity 6000mA large capacity battery for critical requirements;
Pogo Pin interface for convenient charging with optional charge cradle.
Industrial rugged design, water-proof and protection grade(IP66)
Compact and Portable Ergonomic Design
Safedroid OS (Android 8.1 ) Highly optimized Android operating system.
13 mega pixel camera.
High capacity 6000mA large capacity battery for critical requirements;
Pogo Pin interface for convenient charging with optional charge cradle.
Industrial rugged design, water-proof and protection grade(IP66)
Product Description
Product Name | Handheld Industrial PDA Barcode Scanner RFID Reader |
CPU | MTK OCTA 2GHz |
Operating system | Android 8.1 |
Memory | RAM：DDR4 2GB（optional 3G/4GB/6GB) NandFlash：16GB（optional 32/64GB/128GB) |
Extend memory | MicroSD/TFcard slot(Max up to 128G) |
Display | 5.5 inch QVGA imitative glass durable touch screen, 720X1440 pixel, 350cd/㎡ |
Keyboard | 5 keys, 3 touch function key |
Battery | 3.8V 6000mAh Rechargeable Li-polymer Battery |
Size | 174×82×22mm |
Weight | 400g |
Camera | 13MP, front camera 5MP（optional, automatic focusing |
Slot | Micro SD（TF）card slot * 1, Micro SIM card slot * 1， PSAM card slot * 2 |
Light | Battery light * 2 |
Interface | Type-C * 1, cradle charger interface |
Audio | Speaker * 1, Microphone *1, headphone * 1 |
Phone function | Support HD voice mobile call |
Vibrating alert | support |
Compass | support |
Audio decibel | Louderspeaker 90dB |
1D barcode scanner（optional） | SE955/U966/N4313 Code 39, Codabar, Code 128, Discrete 2 of 5, Interleaved 2 of 5, Code 93, UPC-A, UPC-E，EAN-8, EAN-13, MSI, EAN-128, ISBN/ISSN etc. |
2D QR code （optional） | Import Zebra 4710 1D:Code 39, Codabar, Code 128, Discrete 2 of 5, Interleaved 2 of 5, Code 93, UPC-A，UPC-E, EAN-8, EAN-13, MSI, EAN-128, ISBN/ISSN etc. 2D：PDF417, QR Code(QR1, QR2, Micro QR), Data Matrix, GS1-DataBarTM(RSS-Limited, RSS-14, RSS-14 Stacked, RSS-Expand) etc. |
NFC（optional） | ISO14443A, ISO15693, Mifare（support S50 & S70 card read and write） |
125K （optional） | 125KHZ, ISO11784/ISO11785 |
UHF RFID（optional） | 900-960mhz, Long range reading distance max 30meters |
WiFi | IEEE 802.11a/b/g/n/ac, support 2.4GHz, 5.0GHz |
Bluetooth | Bluetooth 4.1 |
GPS | Support GPS, Beidou |
Wireless communication | FDD-LTE Uplink: 1920MHZ-1980MHZ; Downlink: 2110MHZ-2170MHZ Uplink: 1710MHZ-1785MHZ; Downlink: 1805MHZ-1880MHZ Uplink: 2496MHZ-2690MHZ; Downlink: 2496MHZ-2690MHZ WCDMA: Uplink:1850MHZ-1910MHZ; Downlink: 1930MHZ-1990MHZ Uplink:880MHZ-915MHZ; Downlink: 925MHZ-960MHZ GSM: 850MHZ, Uplink:824MHZ-849MHZ; Downlink: 869MHZ-894MHZ 900MHZ, Uplink:880MHZ-915MHZ; Downlink: 925MHZ-960MHZ 1800MHZ,Uplink:1710MHZ-1785MHZ; Downlink: 1805MHZ-1880MHZ 1900MHZ ,Uplink:1850MHZ-1910MHZ; Downlink: 1930MHZ-1990MHZ |
Operating Temperature | -20°C~+55°C |
Storage Temperature | -40°C~+80°C |
Environment Humidity | 5%RH ~ 95%RH (no condensation |
IP rate | IP66, 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature |
Accessories | Type C charging cable * 1, battery * 1. |
All in ONE solution in PDA
PL-55L PDA has the function of 4G LTE, Bluetooth, Wifi, GPS etc. function.
And also have the optional functon of the followings:
1D barcode scanner
2D QR code scanner
NFC reader
125K reader
UHF reader : 30meters max long range
And also have the optional functon of the followings:
1D barcode scanner
2D QR code scanner
NFC reader
125K reader
UHF reader : 30meters max long range
Details Images
Product Usage

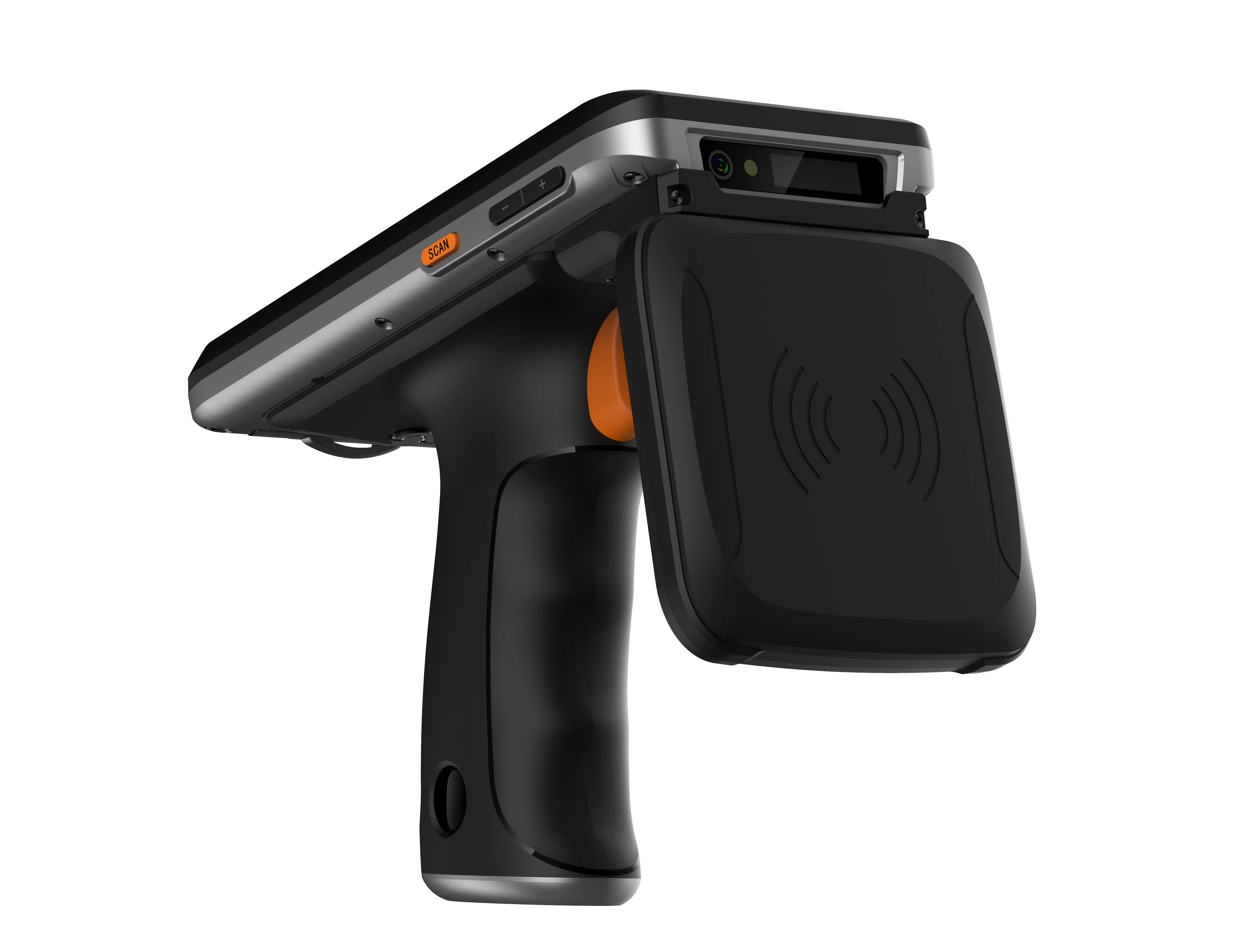

Long rang UHF reading distance
The device is with efficient external UHF moduel, to support long range RFID UHF reading didtance .
The distance can reach to 30meters max
Rugged design and reliability

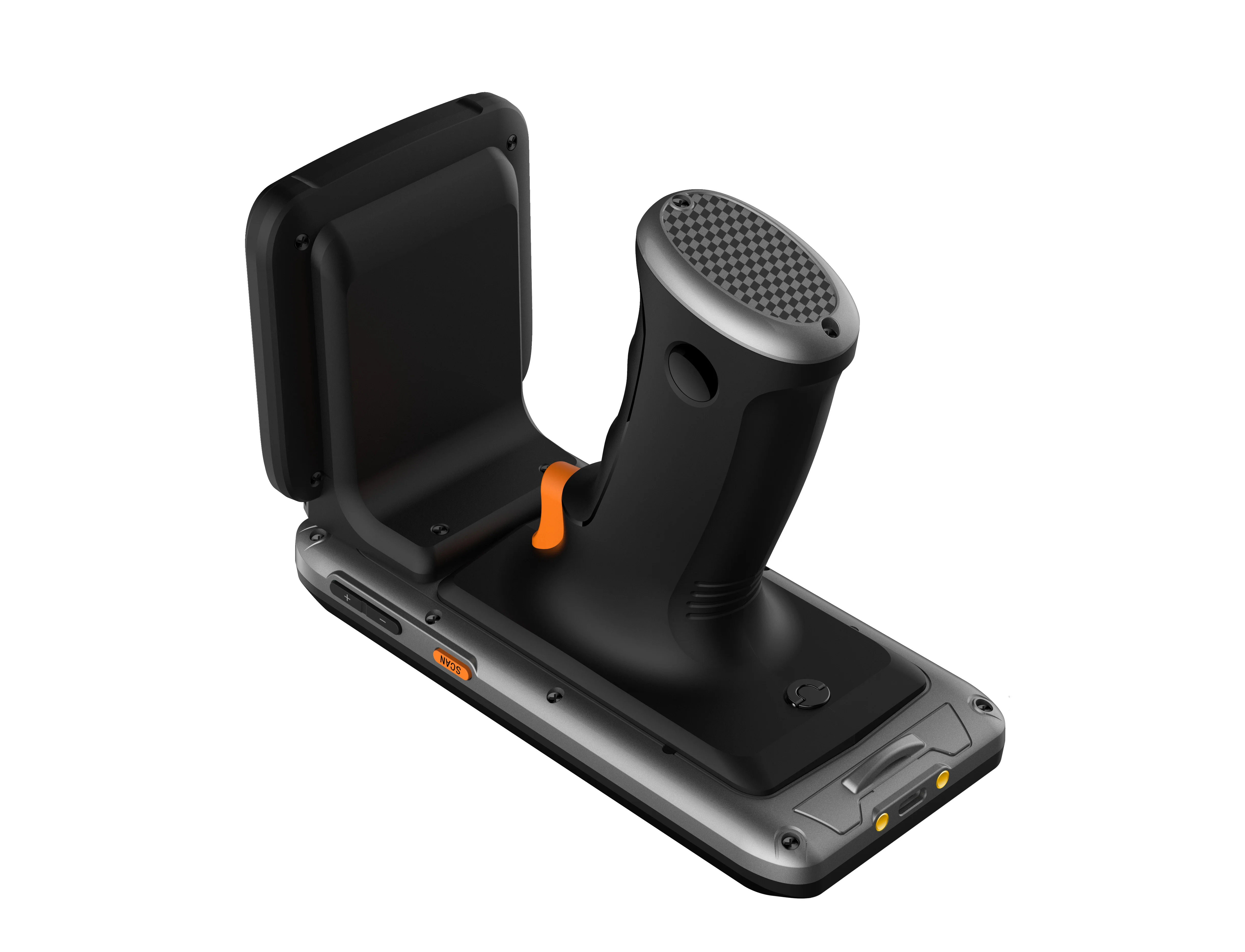

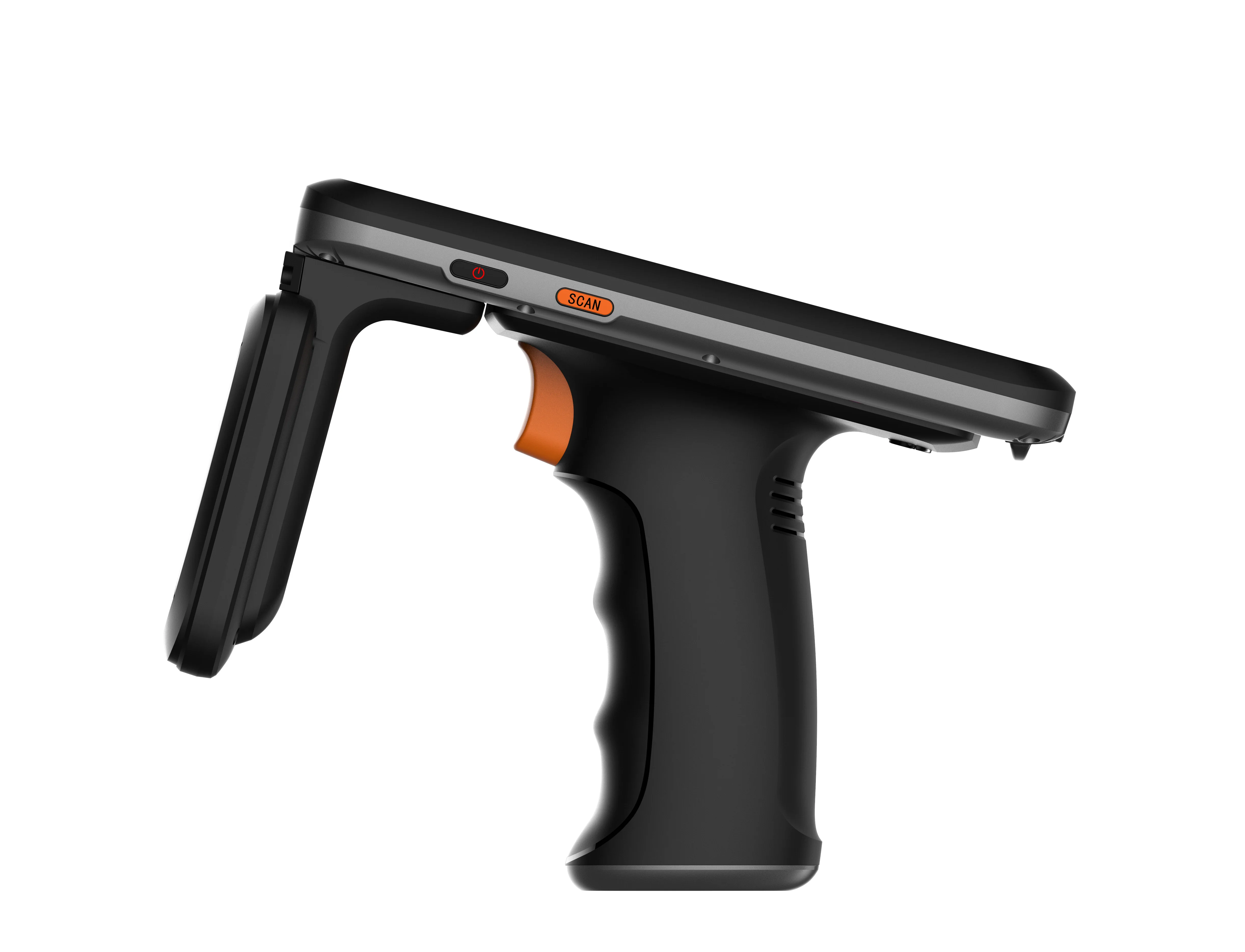

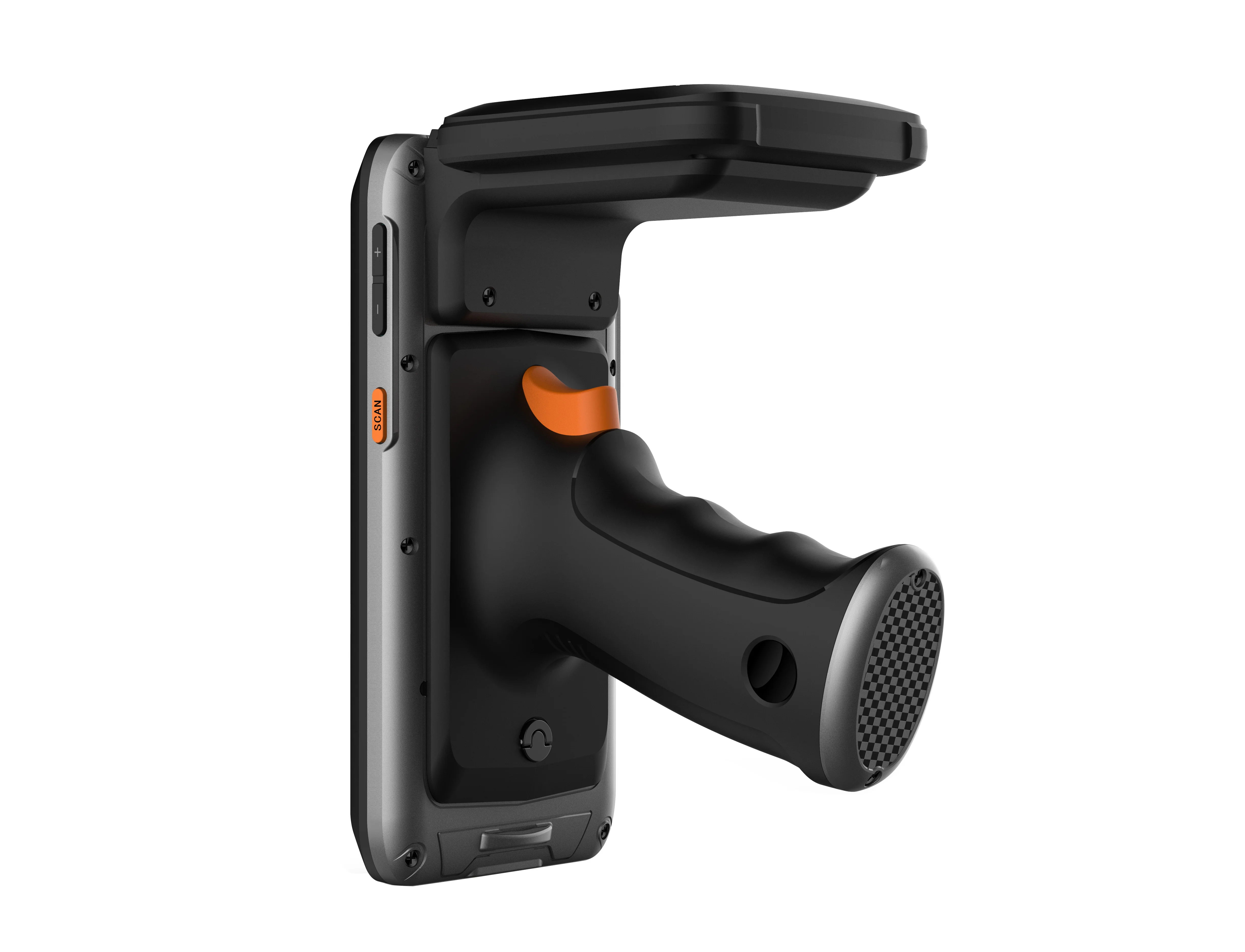

The devices with most fashtionable grip ,easy to handheld the device to scan .
The device can afford multiple drop test up to 5 feet / 1.5 meters, IP66 sealing complete protection against dust and splashing liquid, upgraded shock absorption for internal main circuit board and all electronics.
Ultra-high performance & high efficiency
Android 8.1 OS MTK OCTA 2.0Ghz. 2GB RAM (optional 3GB/4GB/6GB) + 16GB ROM （optional 32GB/64GB/128GB).
Faster speed and smoother operation; professional and multiple data collection modes for accurate, quick and secure data collection.
