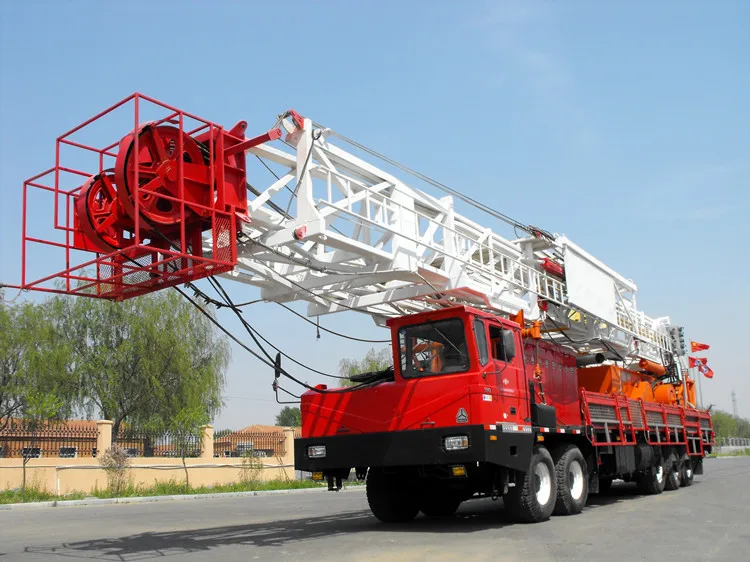

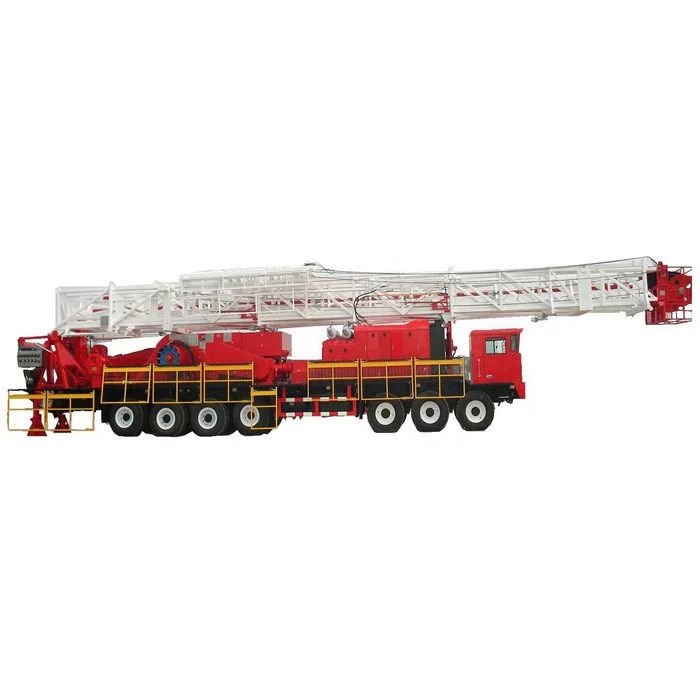

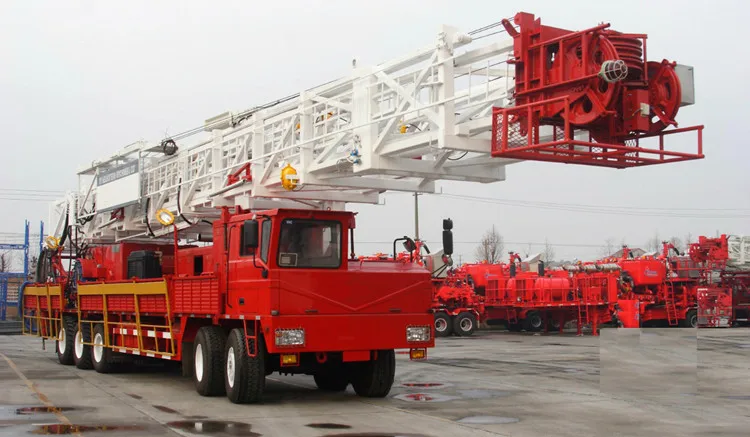

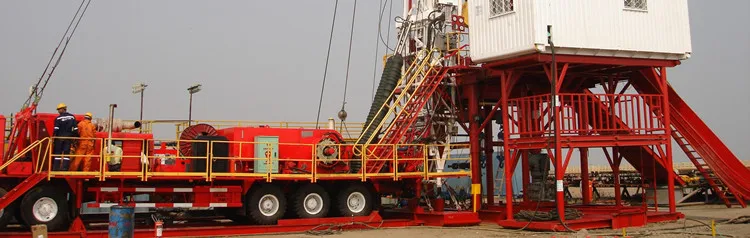

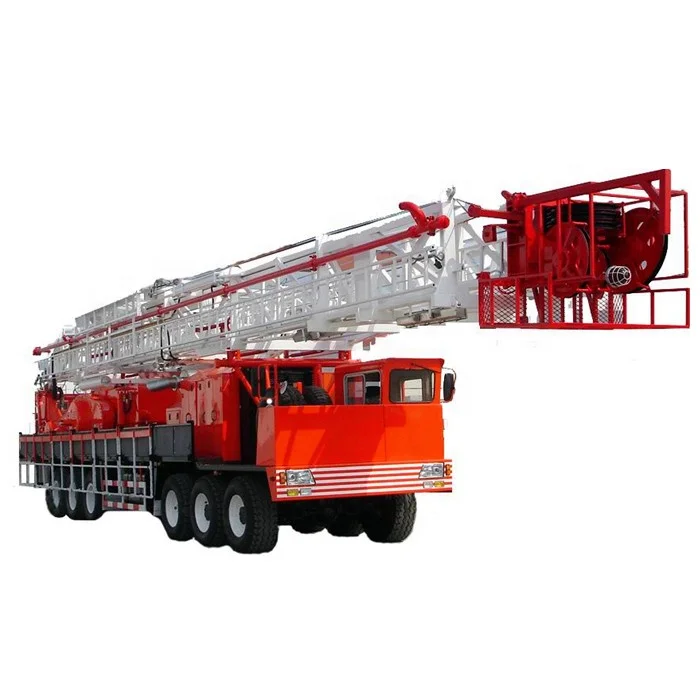

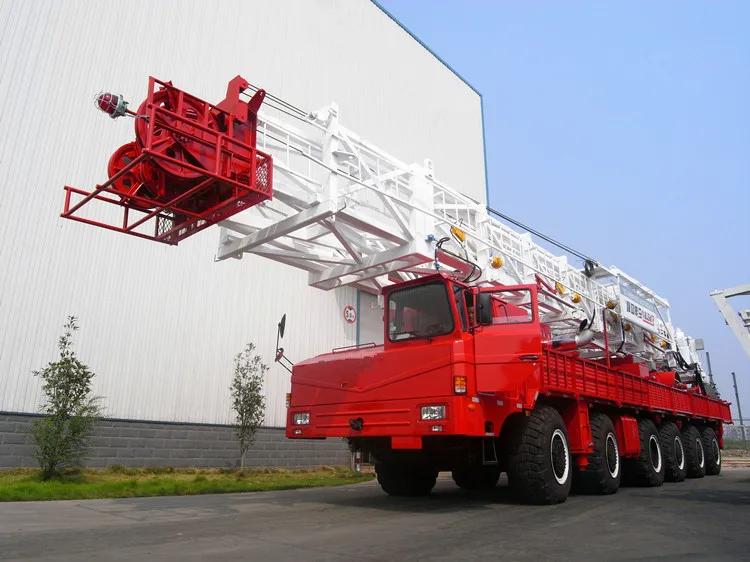

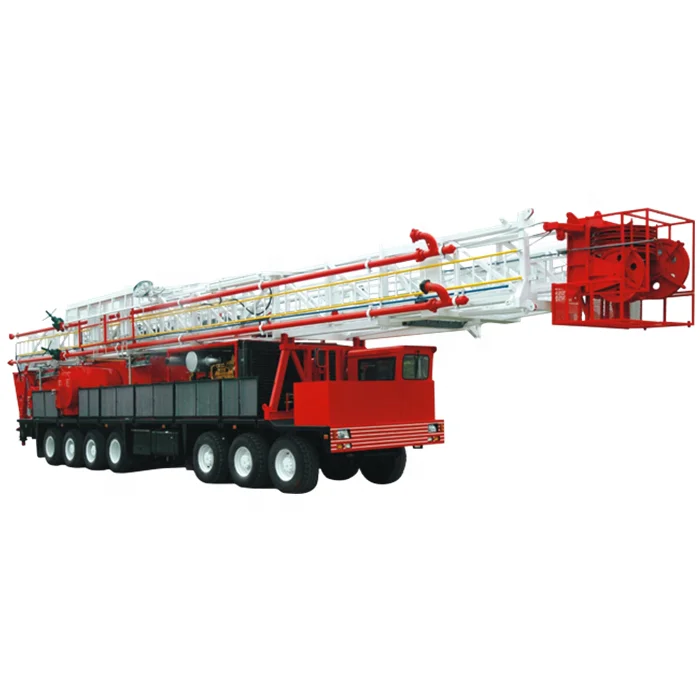

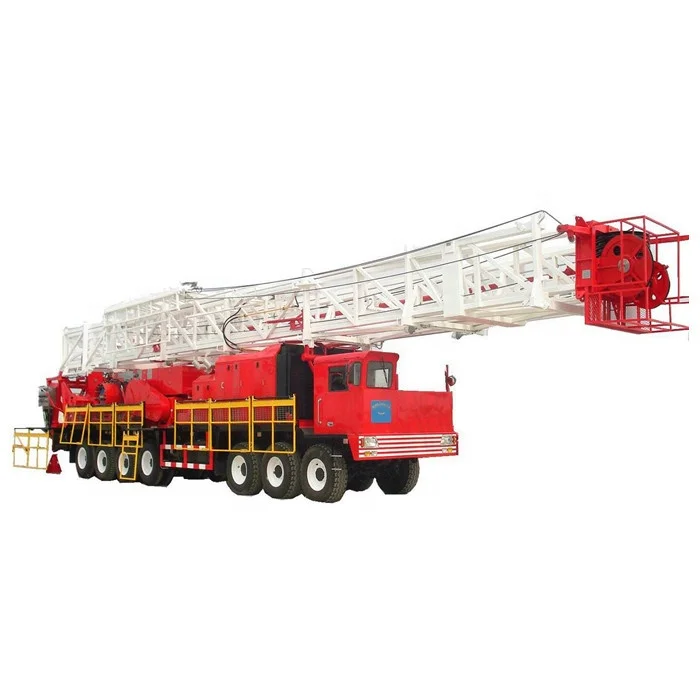

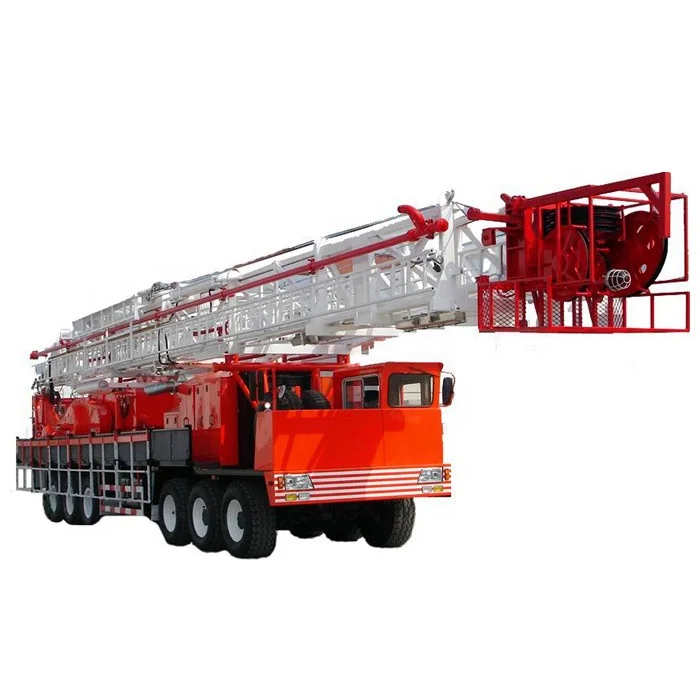

The truck mounted drilling rigs put all parts of power system, draw-works, mast, traveling system and transmission system on the self-propelled chassis. It has the characteristics of heavy workload, reliable performance, strong cross-country ability, convenient for transportation, low cost for operation and moving.
Application
The truck mounted mechanical drill equipment series are with the drilling depth of 1000m, 1500m, 2000m, 3000m and 4000m, which can adapt to middle and shallow well drilling operation. We can also design rigs applicable to cold, desert, plateau and other special environmental requirements of customers.
Product Paramenters
Features of Truck Mounted Drilling Rig
1. The power system uses world famous engine with reliable performance.
2. The transmission system adopts Allison transmission case with flexible connection, which features smooth transmission, little impact and long duration.
3. The truck adopts petroleum-purposed vehicle chassis and uses many vehicle design technologies, such as heavy load wide axles, low-profile tires, high intensity main beam, hydraulic steering mechanism, double line brake system, etc. 4. The truck has good cross-country and driving performance, which can satisfy the complicate conditions of oilfields.
6. The mast is two-section front open and front tilting mast. The raise and fall down of the mast is realized by hydraulic cylinders, which design and manufacture meet with API 4F specification.
5. Centralized control of electricity, gas and hydraulic systems. The main components adopt imported elements of famous brands.
Item
Name
Parameter
ZJ10/900CZ
ZJ15/1350CZ
ZJ20/1580CZ
ZJ30/1800CZ
ZJ40/2250CZ
1
Drilling depth (41/2’‘Drill Pipe) (m)
1000
1500
2000
3000
4000
2
Overhaul depth (31/2’‘Drill Pipe)(m)
2500
4500
5500
6500
7000
3
Max. hook load (kn)
900
1350
1580
1800
2250
4
Hook speed (m/s)
0.2 to 1.4
5
Mast (m)
29/31
33
35
38/39
38/39
6
Mast type
A-mast
A-mast
A-mast
A-mast
A-mast
7
Engine power(kW)
261
403
470
2 x 403
2 x 470
8
Hydraulic transmission box
4700 OFSR
M5620AR
M6620AR
2xM5620AR
2xM5620AR
9
Transmission type of mechanical drill equipment
Hydraulic + Mechanical
10
Traveling system
4 x 3
5 x 4
5 x 4
6 x 5
6 x 5
11
Main rope diameter (mm)
φ26
φ26
φ29
φ32
φ32
12
Hook Block model
YG90
YG110
YG160
YG180
13
Swivel model
SL110
SL135
SL160
SL225
SL225
14
Rotary table model
ZP175
ZP175
ZP175
ZP275
ZP275
15
Chassis model
XDP40/8x6
XDP50/10x8
XDP60/12x8
XDP70/14x8
YG225
16
Approach / departure angle
22°/18°
30°/20°
26°/18°
26°/18°
26°/18°
17
Min. ground clearance(mm)
311
18
Max. Gradeability
26%
26%
26%
26%
26%
19
Min. turning diameter (m)
28
30
38
41
41
20
Overall dimension (m)
16.7 x 3.05 x 4.2
18.8 x 3.05 x 4.3
20.5 x 3.05 x 4.4
22.3 x 3.2 x 4.5
22.3 x 3.2 x 4.5
21
Main unit mass (kg)
50000
58000
65000
82000
85000
Packing&Shipping
The rig will be delivered by sea, train, truck, etc.
Company Introduction
Our products cover 12 series with over 200 kinds, including truck-mounted drilling rigs, skid-mounted drilling rigs, trailer-mounted drilling rigs, work over rigs, etc. Our 4000m truck-mounted drilling rig and 4000m trailer-mounted drilling rig is the largest self-propelled drilling equipment in the worldwide, with high-competitive in the international market, providing the advanced drilling equipment for factory drilling.
Our company is committed to study the unconventional oil and gas equipment, and oil and gas exploration equipment under special environment such as offshore, desert, shallow, rainforest and cold weather (polar region). At the same time, mechanization and intellectualization of equipment are improved and developed continuously. We developed the cold weather drilling rigs that can adapts to the 45℃ to -60℃ temperature, the series of drilling rig are exported to high-end market such as Russia and Canada. The truck-modular rigs and free-standing drilling rigs can meet the different requirements from the customer.
FAQ
1. Can you produce the drilling rig as per drawings or technical requirements? Yes, we can produce the drilling rig as per your drawings and requirements.
2. What's the payment term? 30% advance payment after signing the contract, 30% production progress payment after 1-2 month's production, 30% balance payment before delivery, remaining 10% shall be paid after installation.
3. Can we visit your company before placing order?
